1. Up to 32CH / 1GHz High-Speed Sampling
2. USB 3.0 Up to 5Gbps High-Speed Data Transfer
3. 4Gbit Hardware Memory for High-Speed Buffer Capture
4. 170+ Protocol Decoders with Custom Protocol Support
5. 4-Channel PWM Output, 3.3V, 1Hz–20MHz

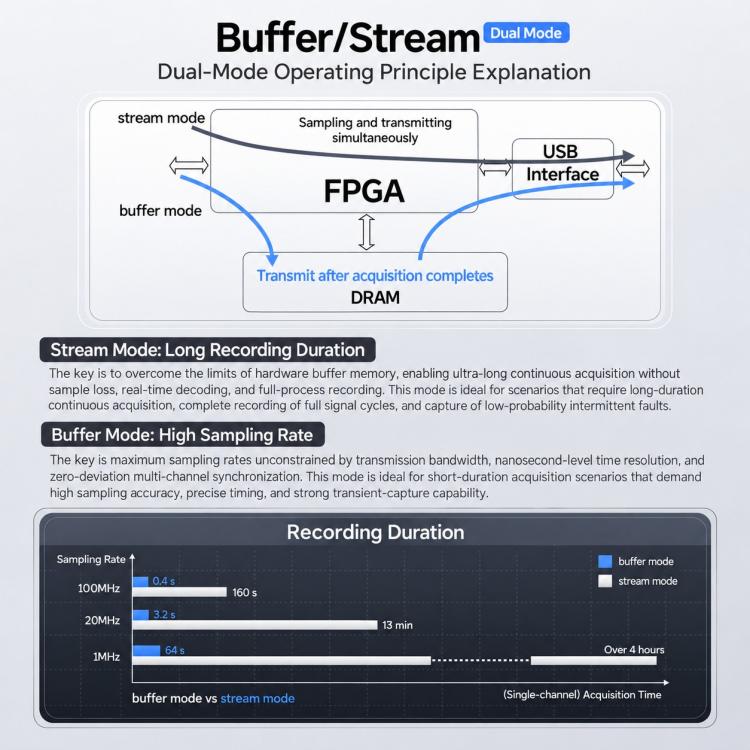

6. Buffer / Stream / Roll Modes for Flexible Acquisition

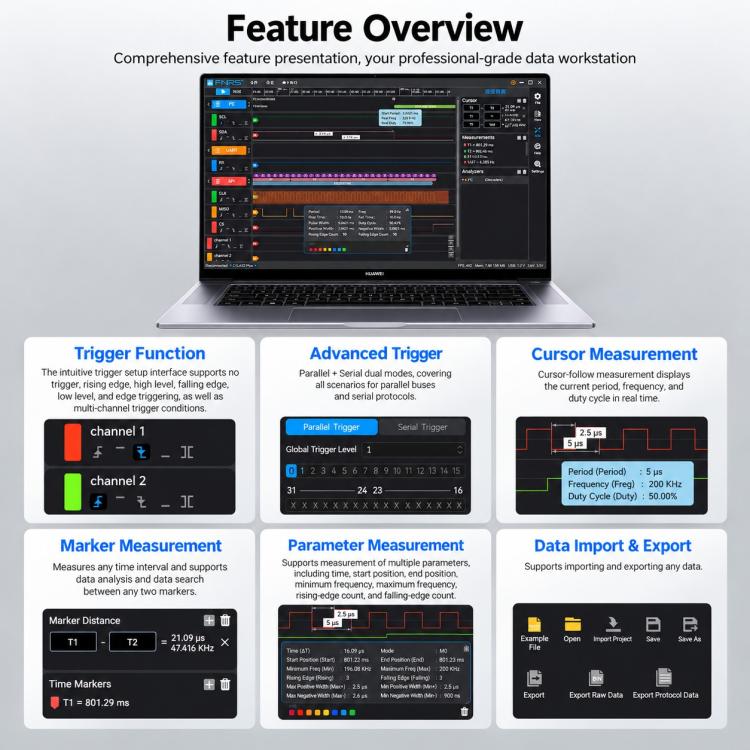

7. Advanced Serial & Parallel Trigger Functions
Specification:
1. Channels: 16CH / 32CH
2. Max Sampling Rate: Up to 1GHz
3. Max Input Frequency: 200MHz
4. Min Detectable Pulse Width: 2ns
5. Hardware Memory Depth: 4Gb
6. Max Sampling Depth: Up to 4Gbit
7. Acquisition Modes: Buffer / Stream / Roll
8. Acquisition Resolution: +/-1 Sample Period
9. Protocol Support: 170+ Protocols, Custom Protocol Supported
10. Trigger Types: Rising Edge / Falling Edge / High Level / Low Level / Any Edge
11. Input Voltage Rating: -40V to +40V
12. Input Impedance: 250K ohm/ 15pF

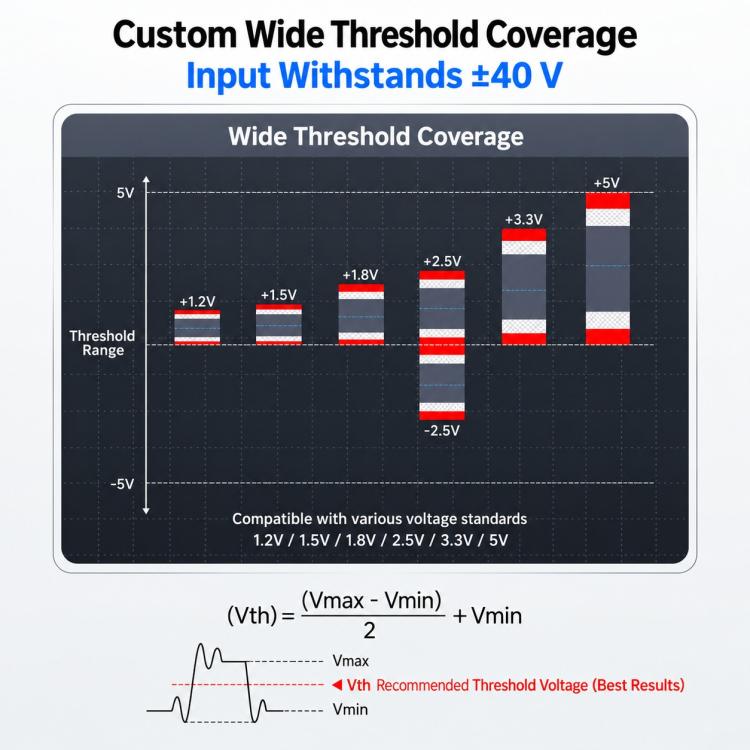

13. Threshold Voltage Range: -5V to +5V, Adjustable in 0.1V Steps
14. Waveform Output: 3.3V, 1Hz–20MHz, 4-Channel PWM

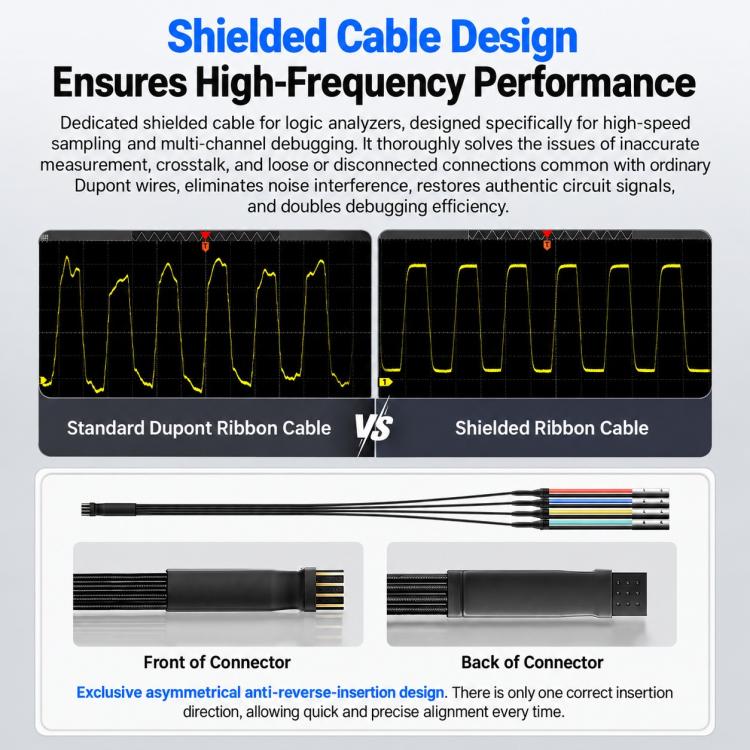

15. Channel Interface: 1.27mm Shielded Cable Connector
16. PC Connection: USB Type-C, USB 3.0 Port Recommended
17. Supply Voltage: 5V+/-0.2V
18. Supply Current: 460mA Max 5V

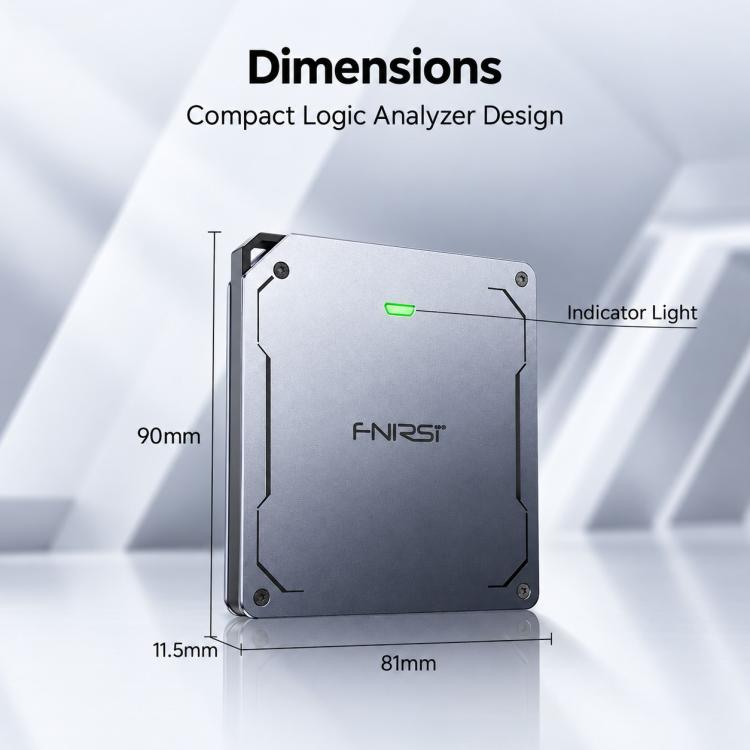

19. Dimensions: Approx. 90 x 81 x 11.5mm
20.Operating Temperature: 0–70°C
Specification:
|
Package Weight
|
| One Package Weight |
0.47kgs / 1.04lb
|
| One Package Size |
20cm * 13cm * 7cm / 7.87inch * 5.12inch * 2.76inch
|
| Carton Weight |
20.00kgs / 44.09lb
|
| Carton Size |
52cm * 41cm * 36cm / 20.47inch * 16.14inch * 14.17inch
|
| Loading Container |
20GP: 347 cartons * 40 pcs = 13880 pcs
40HQ: 806 cartons * 40 pcs = 32240 pcs
|
|
