1. Display Size: 1.4-inch touchscreen
2. Screen Resolution: 240 x 240
3. Screen Brightness and Refresh Rate: 800 cd/m2 ±10% maximum brightness, 60 Hz refresh rate
4. Positioning System: Supports combined positioning via GPS L1, BeiDou B1, Galileo E1, QZSS L1, and GLONASS G1
5. Wi-Fi Video Transmission Range: Up to 25 meters (in an unobstructed, interference-free environment)
6. Bluetooth Remote Control Range: Up to 10 meters
7. Wireless Protocol: Wi-Fi 802.11 a/b/g/n/ac/ax (supports dual-band 2.4 GHz and 5.8 GHz)
8. Battery Type: Built-in rechargeable lithium-ion battery, 320 mAh
9. Operating Time: Approximately 3 to 4 hours of continuous video transmission and control

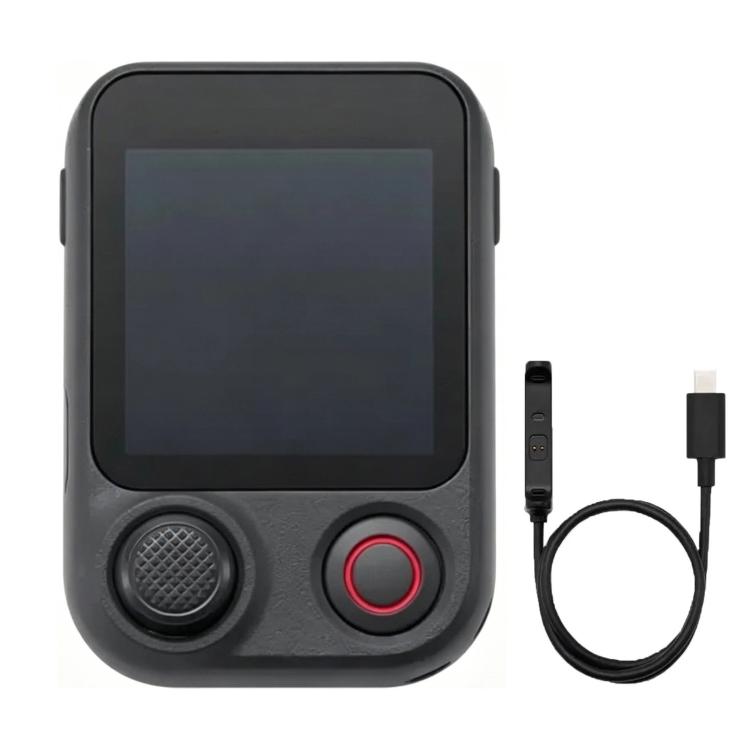

10. Charging Method: Magnetic contact charging cable; charges by attaching to the contacts on the back of the remote control
Input Voltage/Current: 5 V, 1 A
11. Charging Time: Takes approximately 40 to 50 minutes to fully charge

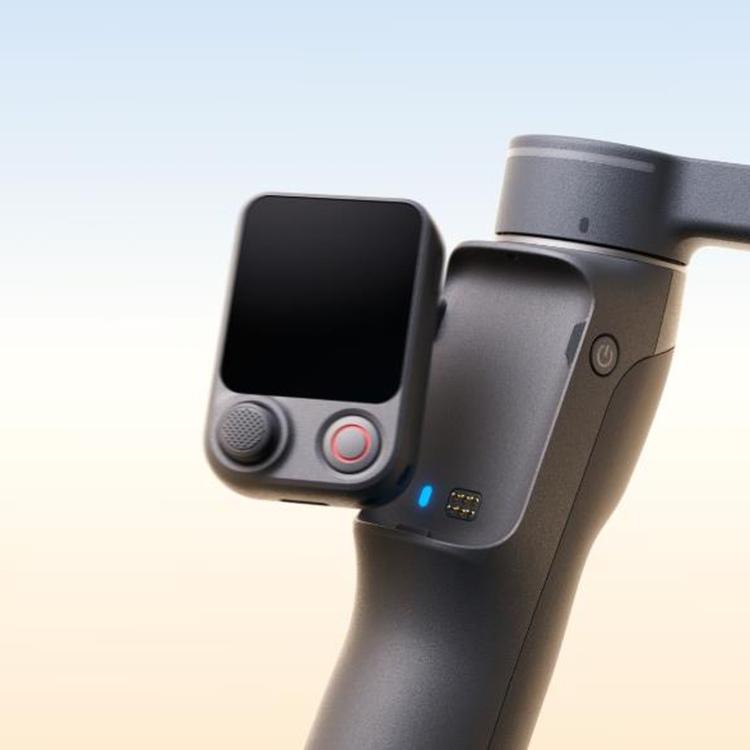

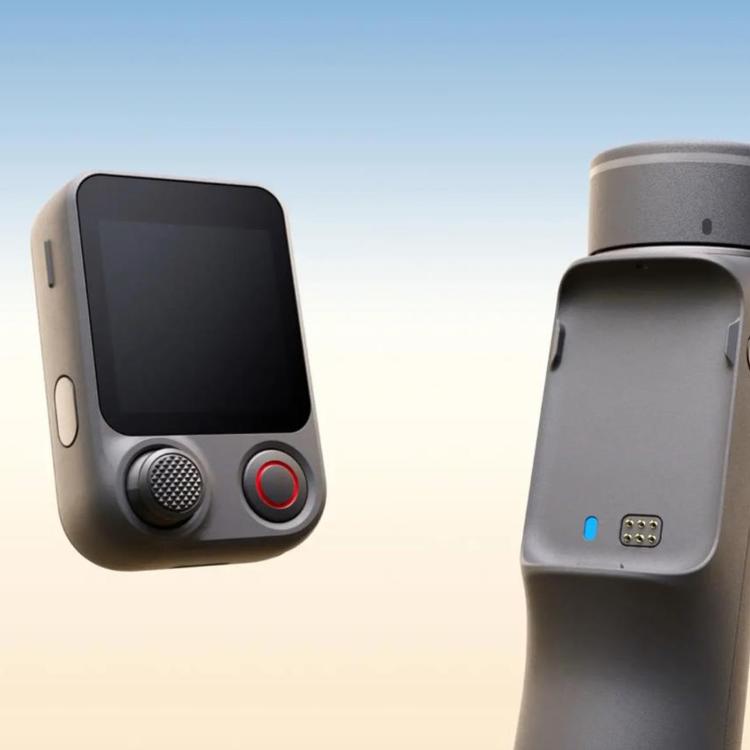

12. Mounting Method: Magnetic attachment at the bottom combined with a latch
13. Dimensions: 5.3 x 3.7 x 1.9 cm
Features:

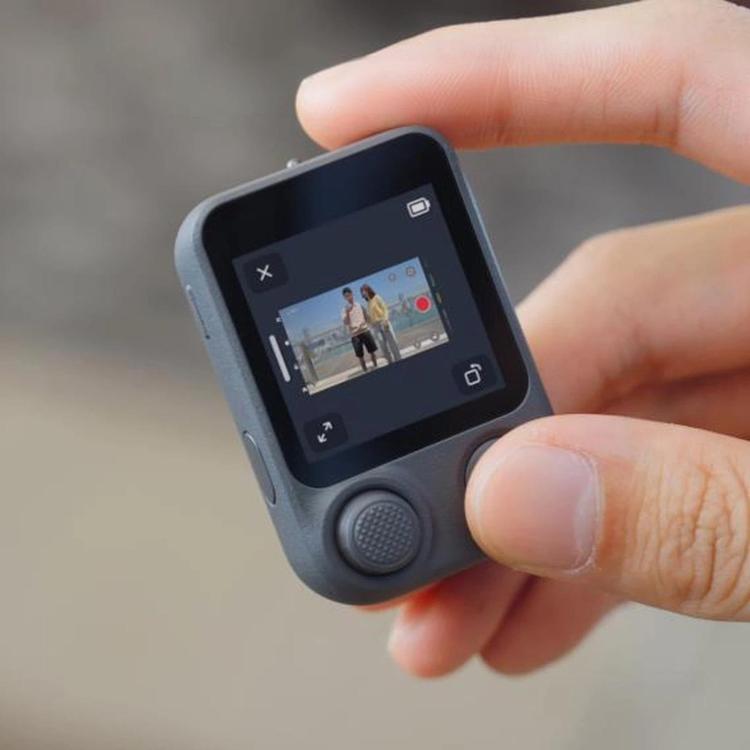

1. Supports real-time viewing of smartphone screens (Android supports direct screen mirroring; iOS requires the Mimo App) or images from the multifunctional tracking module
2. Within a 10-meter range, remotely control photo/video capture, switch between landscape and portrait modes, and control pan/tilt and zoom via the joystick

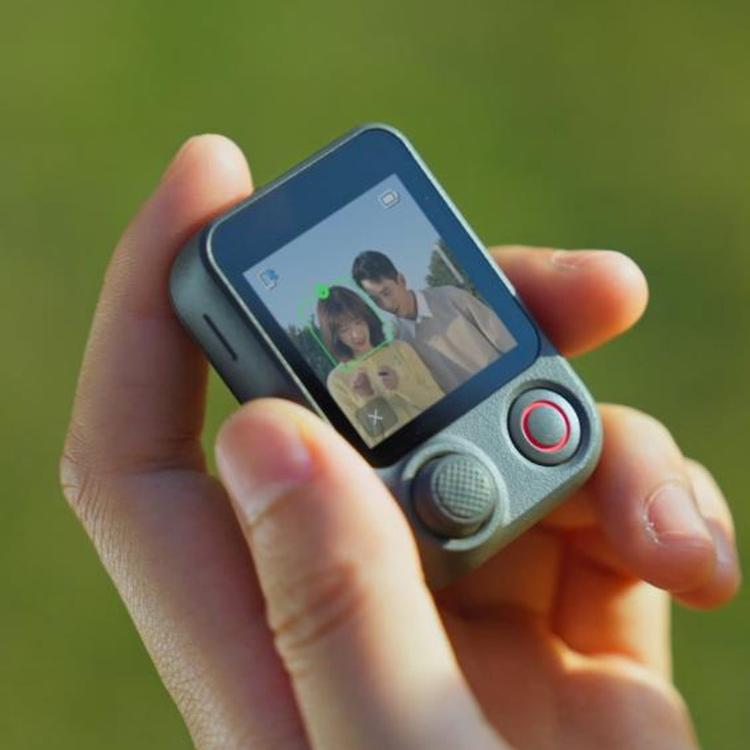

3. Tap or select a target directly on the remote control screen to trigger ActiveTrack
4. Adjust pan/tilt mode parameters directly on the remote control screen, and control the brightness and color temperature of connected lighting
Specification:
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.27lb
|
| One Package Size |
10cm * 8cm * 5cm / 3.94inch * 3.15inch * 1.97inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
40cm * 32cm * 26cm / 15.75inch * 12.6inch * 10.24inch
|
| Loading Container |
20GP: 801 cartons * 100 pcs = 80100 pcs
40HQ: 1860 cartons * 100 pcs = 186000 pcs
|
|
