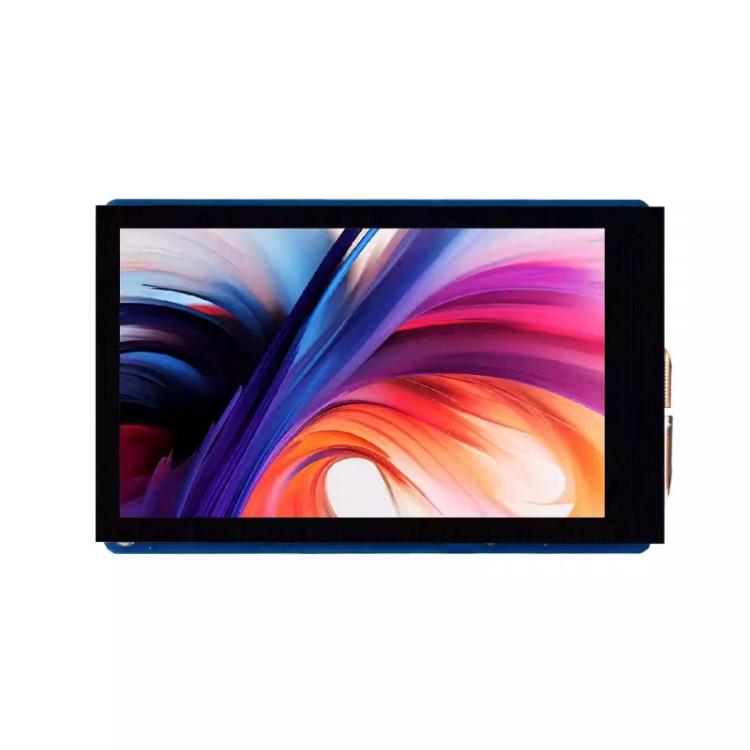

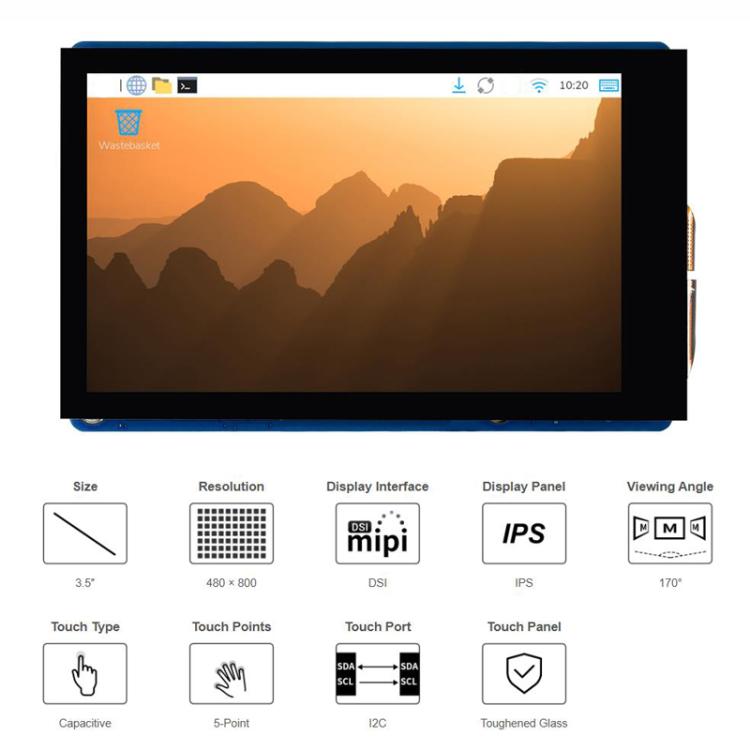

1. Screen size: 3.5 inch
2. Resolution: 480 x 800
3. Display interface: DSI
4. Display panel: IPS
5. Viewing angle: 170 degrees
6. Touch type: capacitive touch
7. Touch points: 5-point touch
8. Touch interface: I2C
9. Touch panel: tempered glass panel

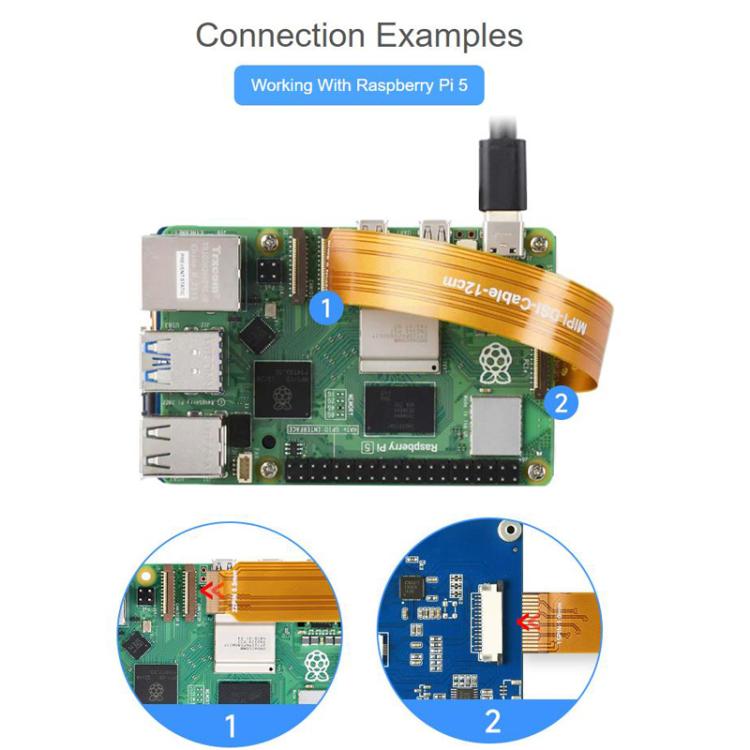

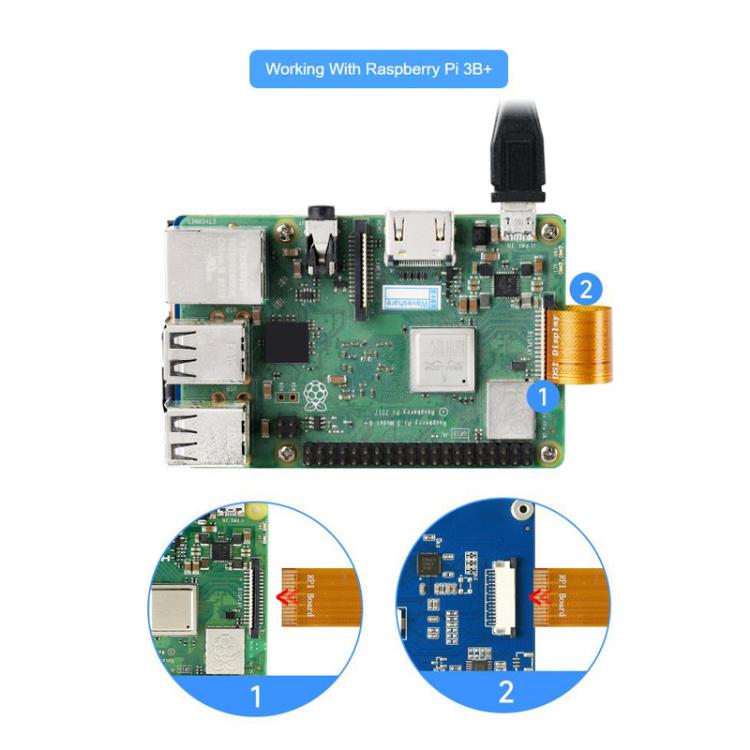

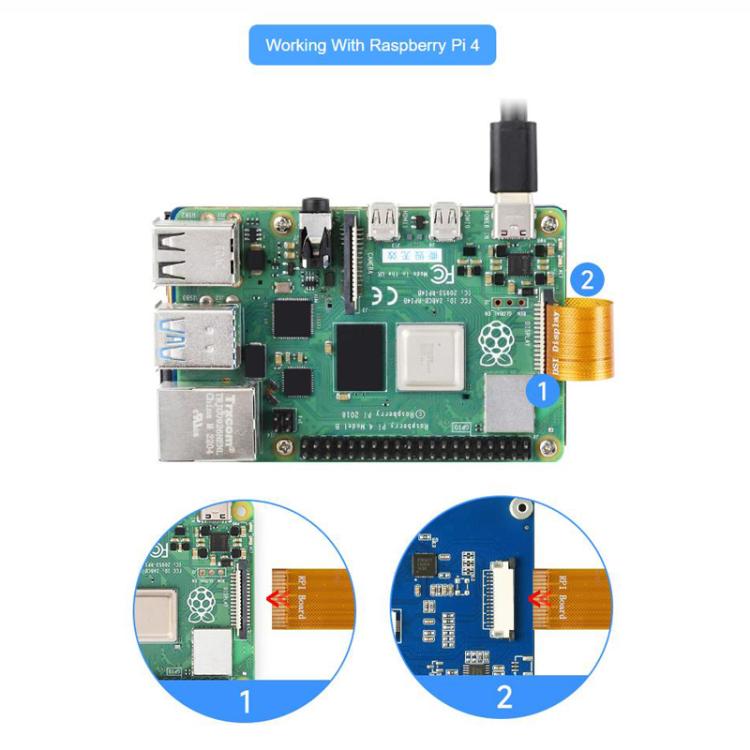

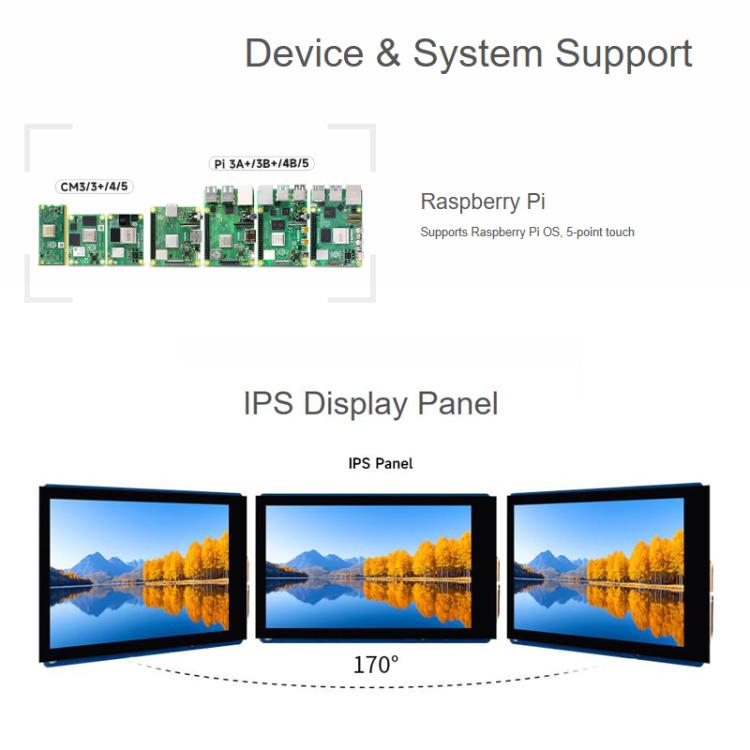

10. Compatible with Raspberry Pi 3A+/3B+/4B/5, CM3/3+/4/5; supports Raspberry Pi OS

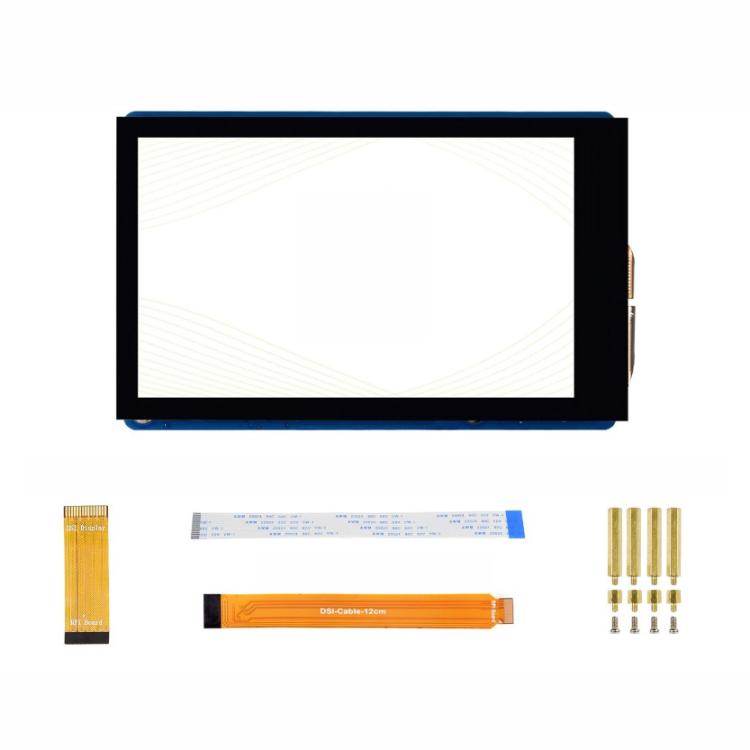

11. Package contents: screen, FPC cable, FFC cable, DSI cable, copper pillar kit

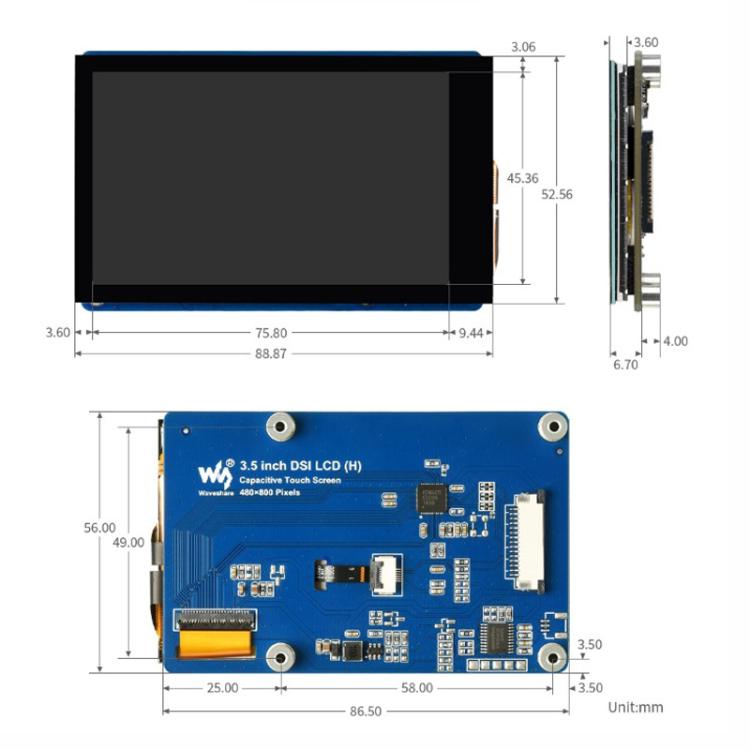

12. Size: about 8.887 x 5.256 x 0.36 cm
Features:
1. IPS display panel with excellent display performance and a viewing angle of up to 170 degrees
2. Supports 5-point touch; the actual number of touch points depends on the software system
3. Suitable for interactive projects such as tablets, entertainment systems, and information dashboards
4. The operating system provides touchscreen drivers that support five-finger touch and on-screen keyboards, eliminating the need for an external keyboard or mouse
5. Default display orientation is portrait with a resolution of 480 x 800 (H x V); landscape orientation can be enabled by modifying software settings
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
12cm * 8cm * 3cm / 4.72inch * 3.15inch * 1.18inch
|
| Carton Weight |
39.00kgs / 85.98lb
|
| Carton Size |
50cm * 38cm * 34cm / 19.69inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 412 cartons * 190 pcs = 78280 pcs
40HQ: 958 cartons * 190 pcs = 182020 pcs
|
|
