1. Screen size: 5 inches
2. Resolution: 720 x 1280

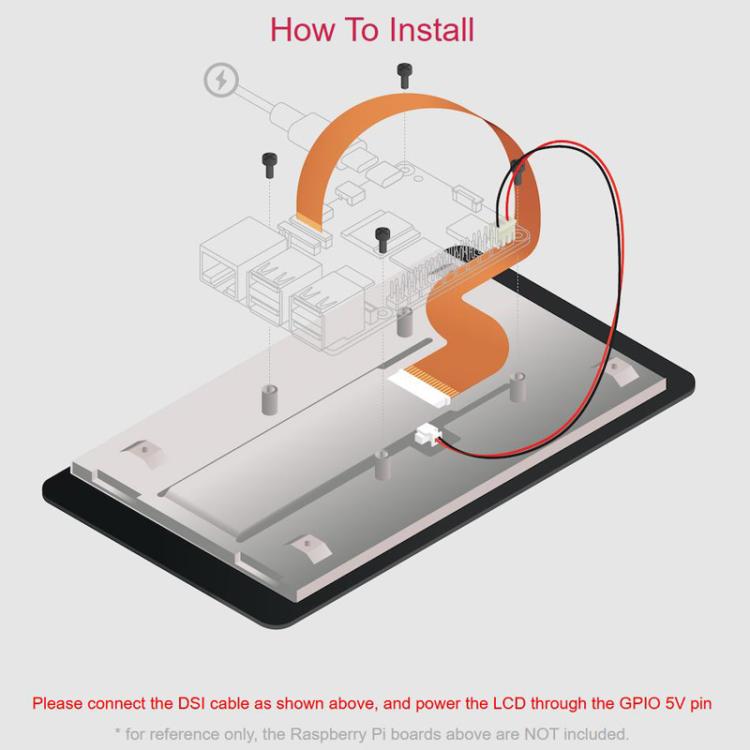

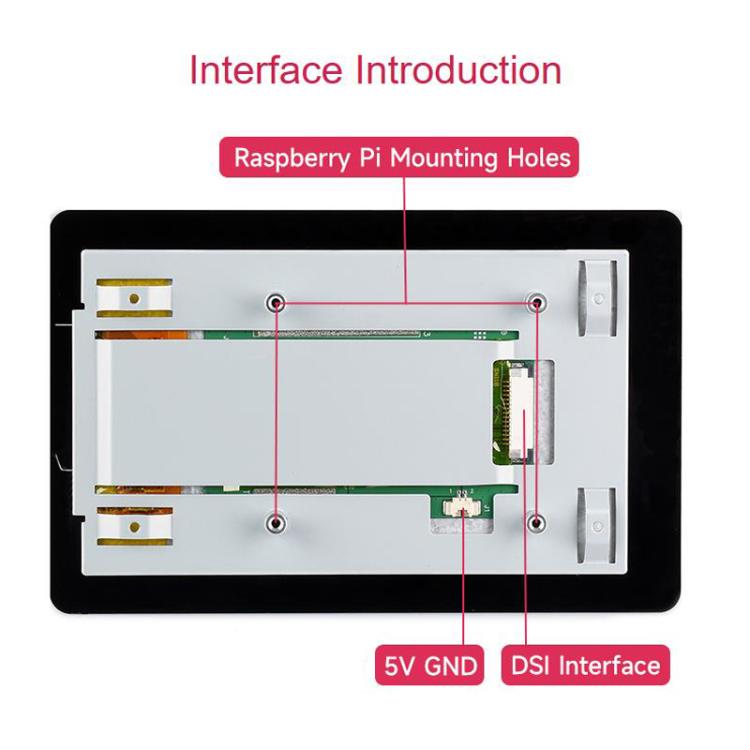

3. Display interface: DSI
4. Display panel: IPS
5. Viewing angle: 160 degrees
6. Touch type: capacitive touch
7. Touch points: five-point touch
8. Touch interface: I2C

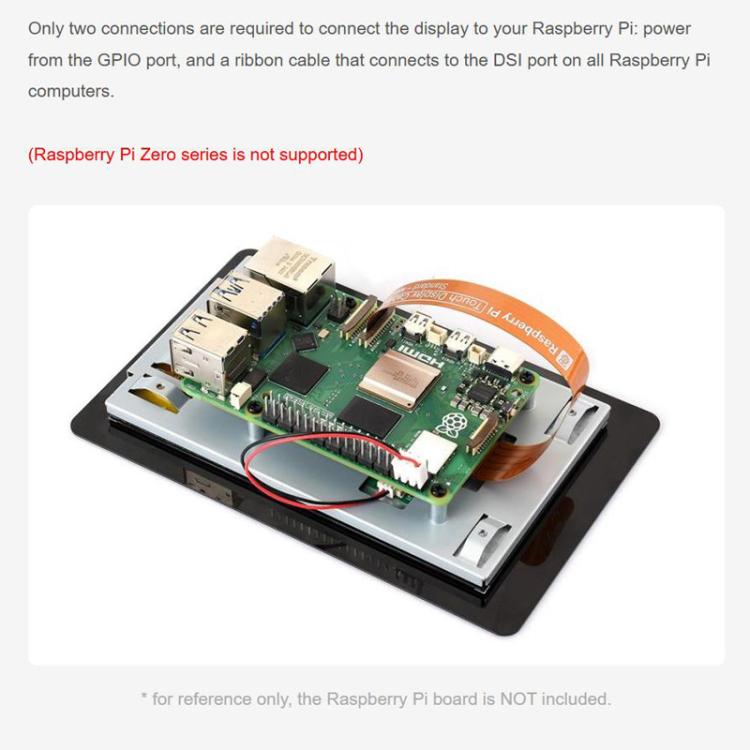

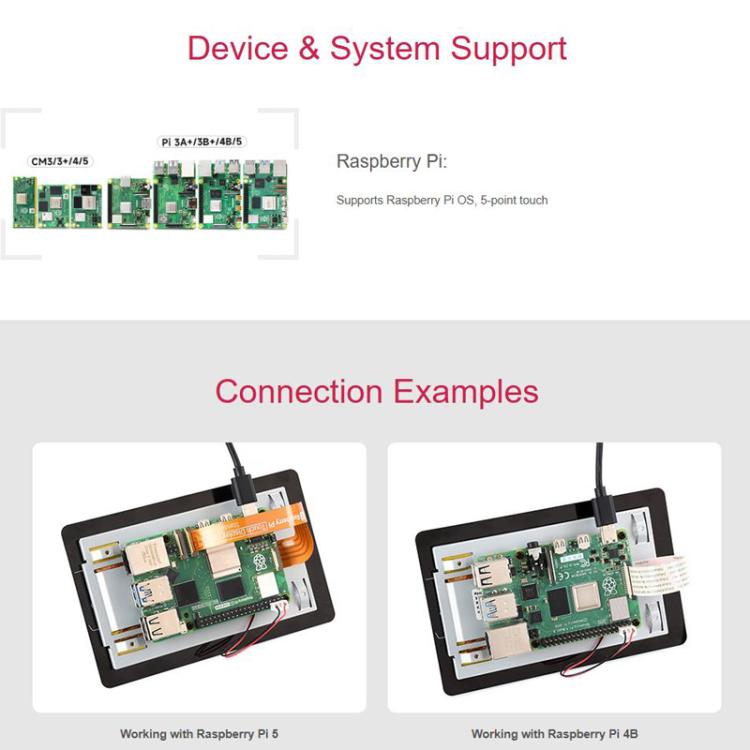

9. For Raspberry Pi 3A + / 3B + / 4B / 5, CM3 / 3 + / 4 / 5, support for Raspberry Pi OS

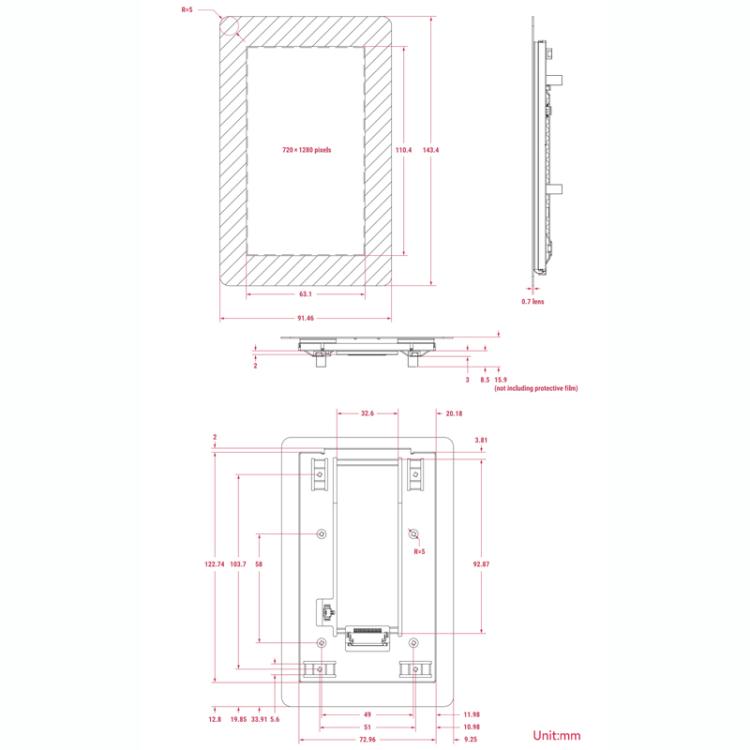

10. Size: about 14.34 x 9.15 x 1.59cm
Features:

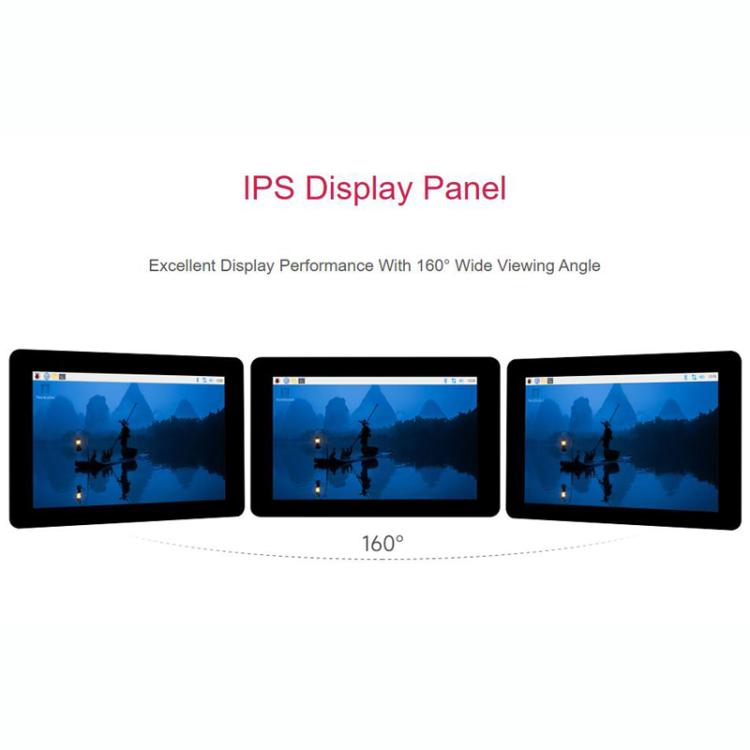

1. IPS display panel, excellent display performance, viewing angle up to 160 degrees

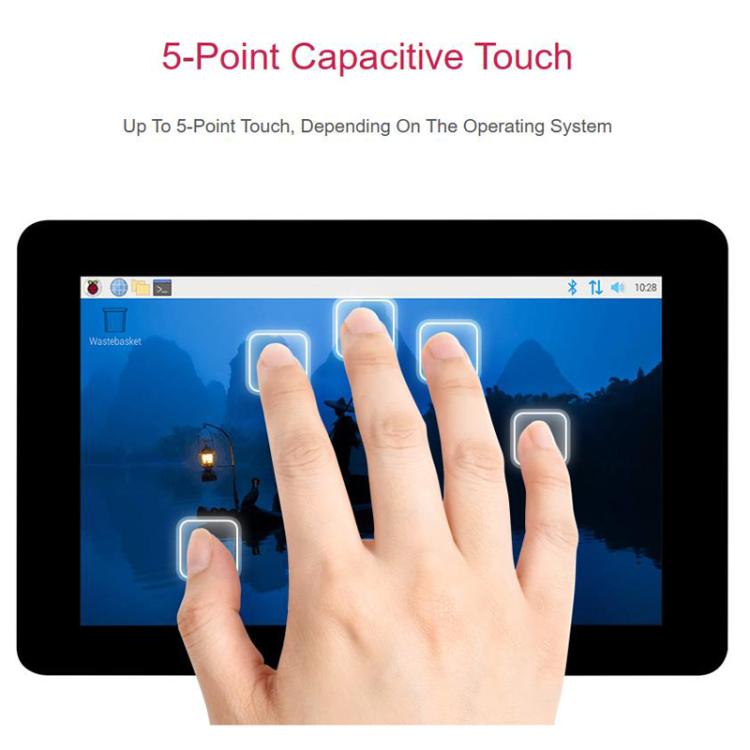

2. 5-point touch support, the actual number of touch points with the software system
3. Suitable for interactive projects, such as tablet PCs, entertainment systems and information dashboards
4. Operating system provides touch screen driver, support five-finger touch and on-screen keyboard, no need to connect additional keyboard or mouse
5. Default is vertical display, the resolution is 720 x 1280 (H x V), you can modify the software settings, for horizontal display
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |
16cm * 10cm * 3cm / 6.3inch * 3.94inch * 1.18inch
|
| Carton Weight |
41.00kgs / 90.39lb
|
| Carton Size |
50cm * 38cm * 32cm / 19.69inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 438 cartons * 100 pcs = 43800 pcs
40HQ: 1018 cartons * 100 pcs = 101800 pcs
|
|
