1. Product material: plastic + brass
2. Working current: 600A
3. Instantaneous current: 2500A
4. Product voltage: 12V-48V
5. Product life: 1000 times
6. Bolt size: M12
7. Product operation: ON and OFF
8. Scope of application: RV, yacht, van, truck, caravan

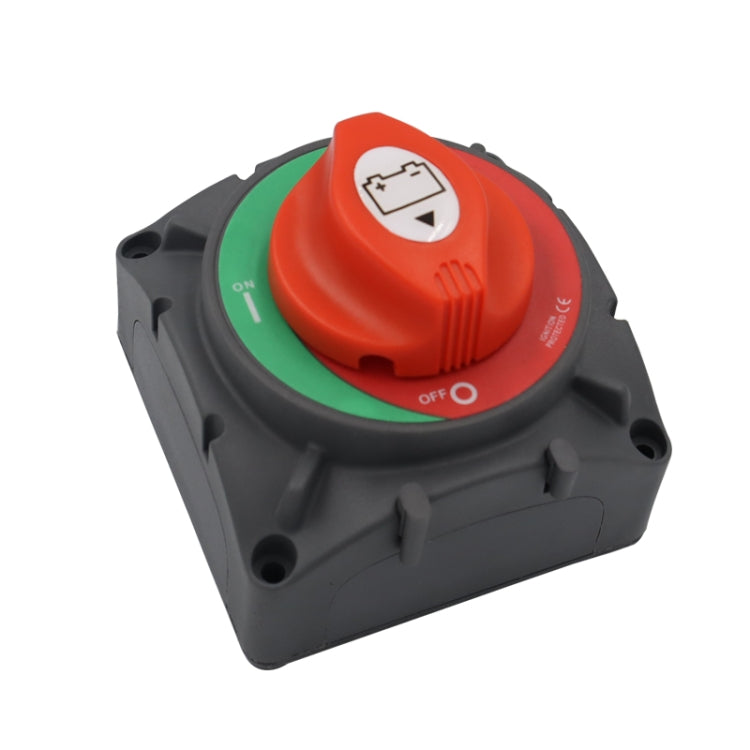

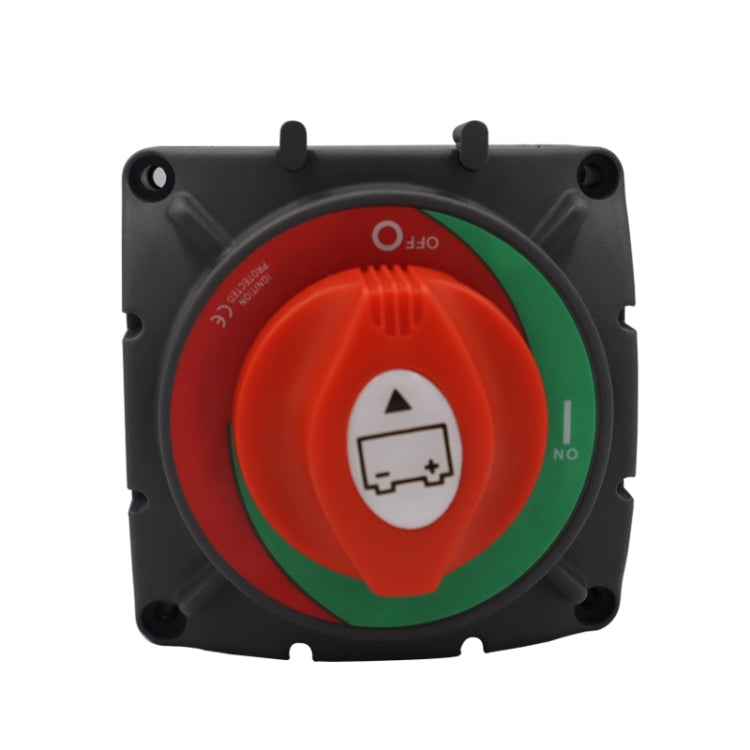

9. Simple operation: just turn the knob to connect or disconnect the power.

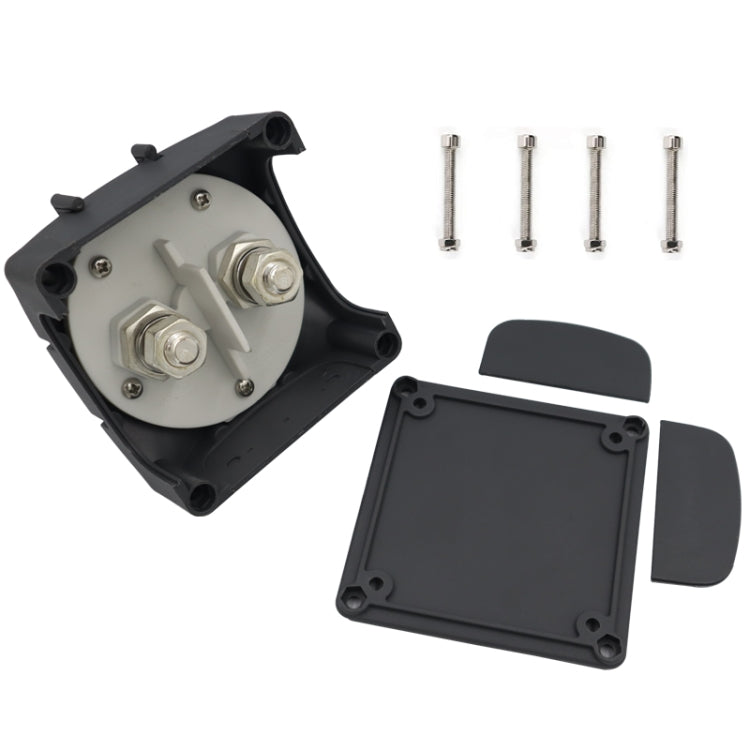

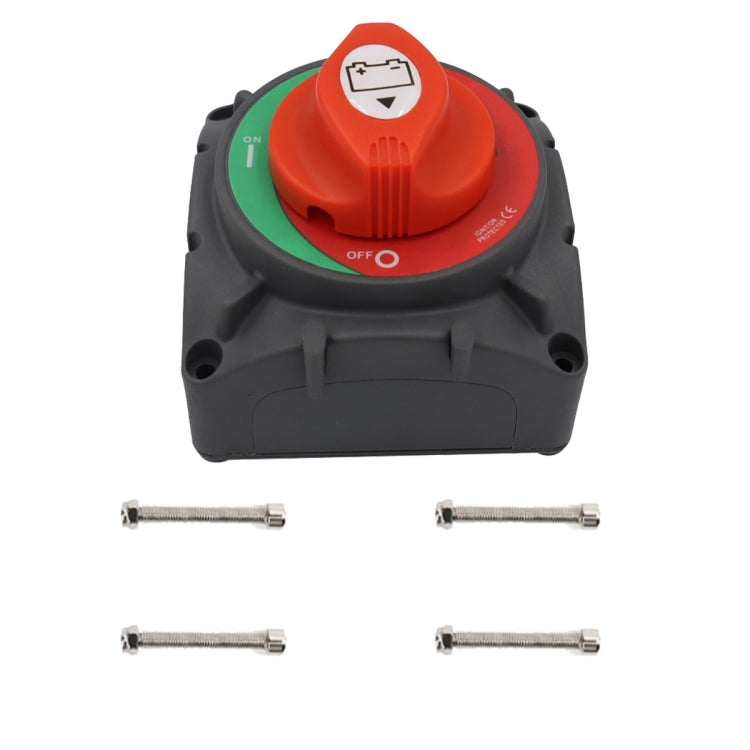

10. Heavy Duty: This battery disconnect switch is designed for high current situations. Made of ABS plastic shell, durable and safe to use, the back cover insulates the terminals to prevent any short circuit, and comes with 4 sets of bolts.
11. Product function: When the vehicle is not in use, eliminate any power consumption of the vehicle or boat without using the battery, and safely disconnect the battery.

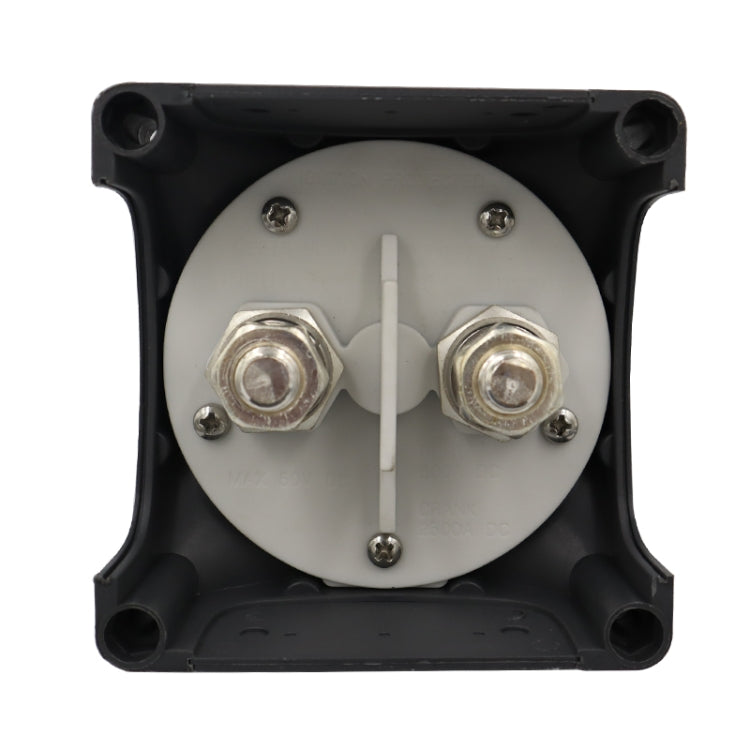

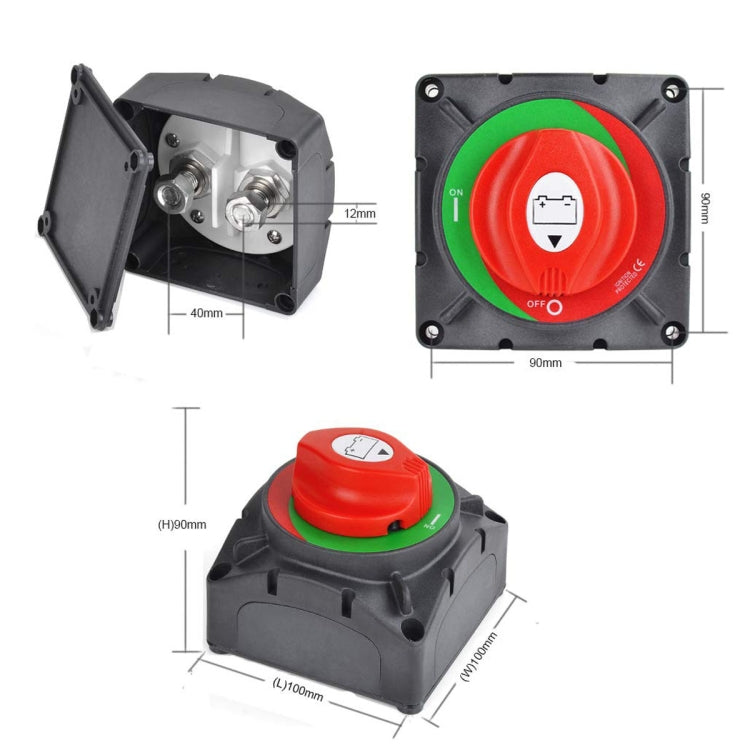

12. Copper terminal size: 1/2(12 mm) x 2, very easy to install, universally used for switches of sea boats, ships, yachts, RVs, trucks and electrical equipment.
Specification:
|
Package Weight
|
| One Package Weight |
0.37kgs / 0.82lb
|
| One Package Size |
7.5cm * 7.5cm * 8cm / 2.95inch * 2.95inch * 3.15inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
30cm * 20cm * 20cm / 11.81inch * 7.87inch * 7.87inch
|
| Loading Container |
20GP: 2222 cartons * 30 pcs = 66660 pcs
40HQ: 5158 cartons * 30 pcs = 154740 pcs
|
|
