1. Wide voltage input: 17V-65V/17V-55V
2. Output voltage: 12V
3. Output current: 10A/15A
4. Power: 120W/180W (Max)
5. Aluminum alloy heat sink shell is integrally formed, with good heat dissipation performance
6. Silicone potting, waterproof, moisture-proof, shock-resistant and impact-resistant
7. Built-in multiple safety protections to ensure safe and reliable use
8. Note:

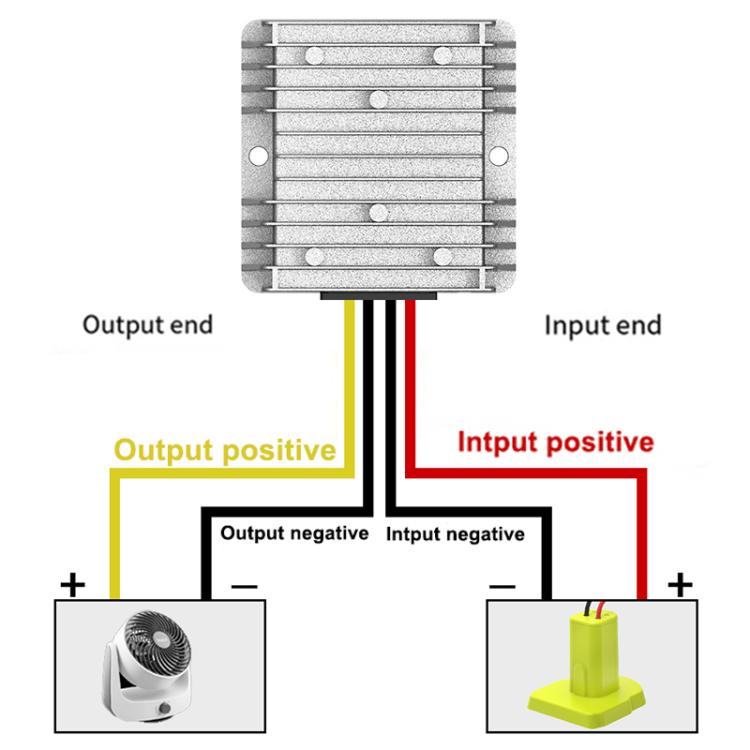

The step-down converter does not have reverse connection protection function. Please be sure to confirm the positive and negative poles of the adapter and the load before wiring to avoid reverse connection and burning the step-down converter and the load;
The input end must ensure sufficient voltage and power to drive the output device;
The device voltage driven by the output end must be the same as the voltage output by the step-down converter, and the power required by the load device cannot be greater than the maximum load power of the converter.
Specification:
|
Package Weight
|
| One Package Weight |
0.41kgs / 0.91lb
|
| One Package Size |
10cm * 8cm * 8cm / 3.94inch * 3.15inch * 3.15inch
|
| Carton Weight |
22.00kgs / 48.50lb
|
| Carton Size |
36cm * 32cm * 30cm / 14.17inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 771 cartons * 50 pcs = 38550 pcs
40HQ: 1791 cartons * 50 pcs = 89550 pcs
|
|
