1. DC 0-80V output, the generator does not have a voltage stabilization circuit, the peak voltage reaches 80V, it can directly charge a 3-12V 10W LED light, and can directly charge a small battery. The peak charging current is about 220mA. Because the power generated during charging is used up in time, the voltage will automatically remain at around 14V, and maintain a suitable voltage so that all the generated power can be used to charge the small battery.
2. Output peak voltage: 80V (1.2Mpa)
3. Output peak current: greater than or equal to 220mA (12V)
4. Line resistance: 10.5+/-0.5Ω
5. Insulation resistance: 10MΩ (DC100 megohmmeter)
6. Peak withstand voltage of closed outlet: 0.6Mpa
7. Peak withstand voltage of open outlet: 1.2Mpa

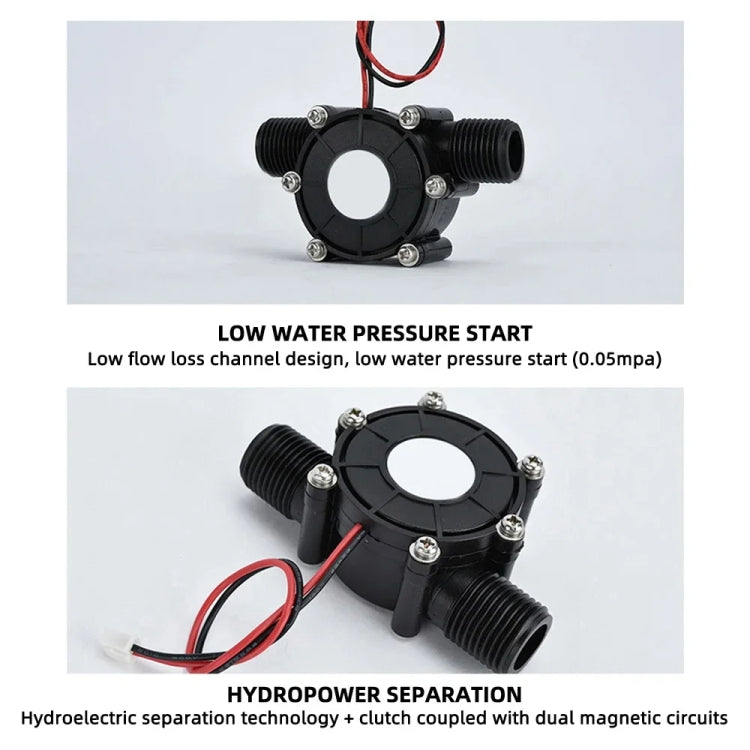

8. Starting water pressure: 0.05Mpa
Mechanical characteristics and operating environment:
1. Axial clearance: 0.2-1.0mm
2. Mechanical noise: less than or equal to 55dB
3. Generator life: greater than or equal to 3000h
Specification:
|
Package Weight
|
| One Package Weight |
0.15kgs / 0.34lb
|
| One Package Size |
15cm * 14cm * 7cm / 5.91inch * 5.51inch * 2.76inch
|
| Carton Weight |
4.70kgs / 10.36lb
|
| Carton Size |
44cm * 32cm * 30cm / 17.32inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 631 cartons * 24 pcs = 15144 pcs
40HQ: 1465 cartons * 24 pcs = 35160 pcs
|
|
