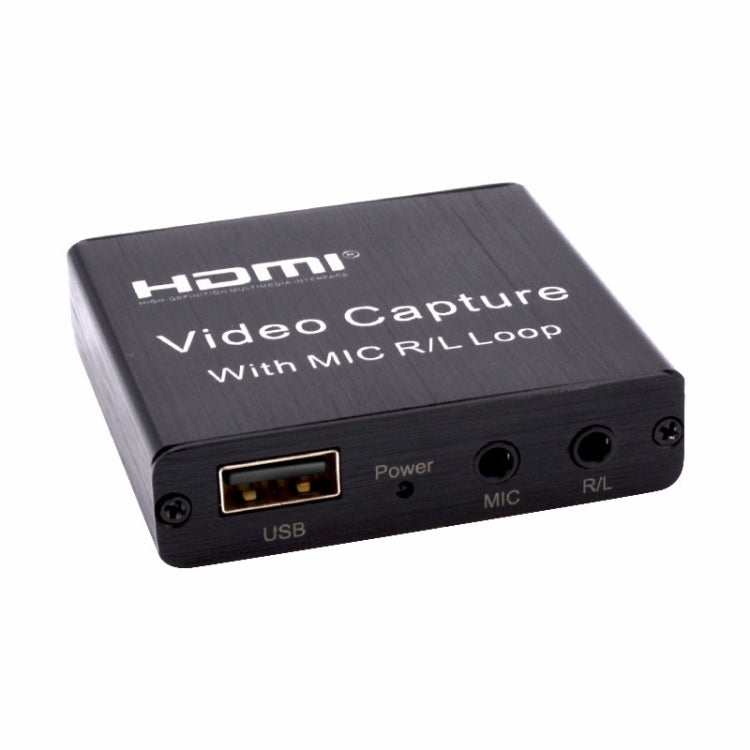

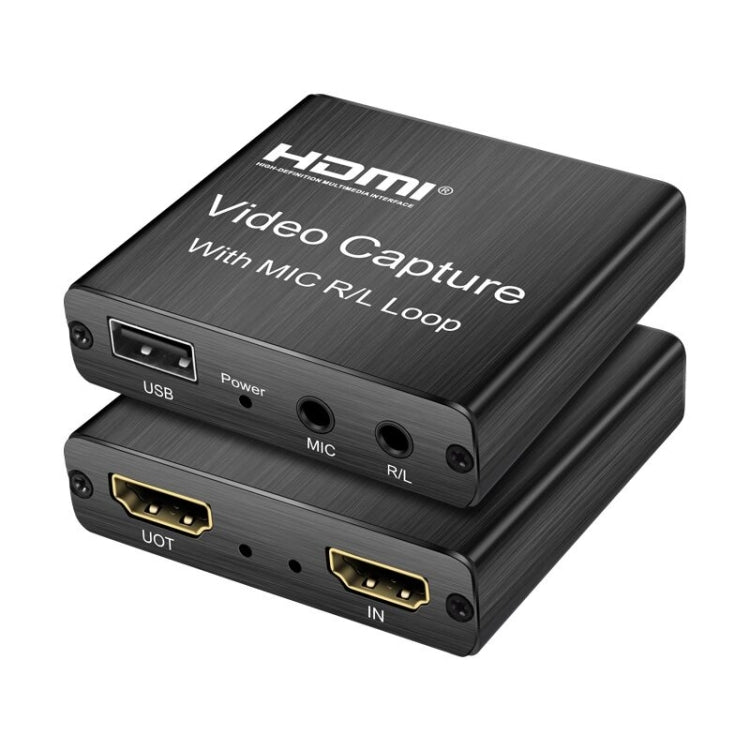

Description:
This USB 2.0 capture card can collect HDMI audio and video. HDMI audio and video signals can be transmitted to the computer and smartphone for preview and storage. Suitable for high-definition acq
Features:
1. Support input resolution up to 4K
2. Support output resolution up to 1080P

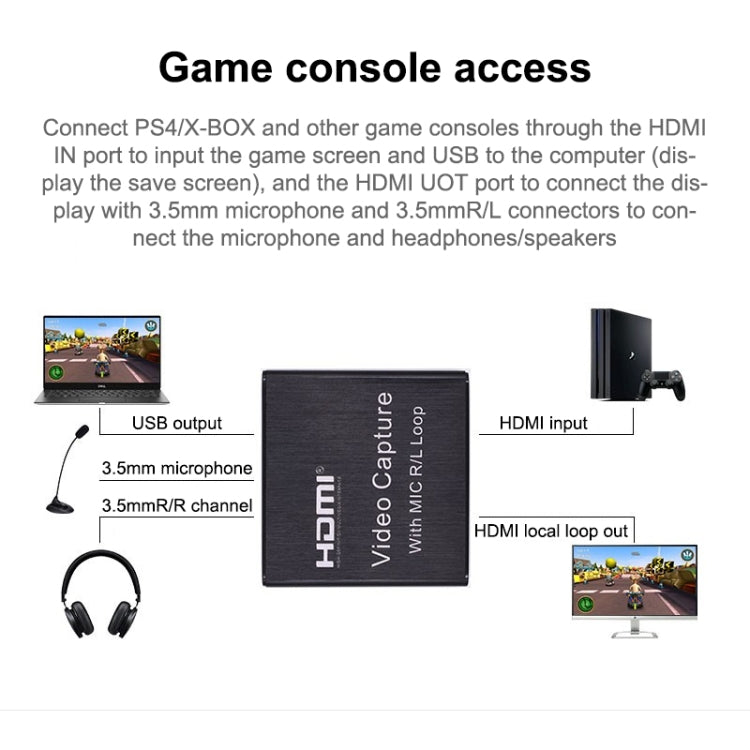

3. One HDMI input, One HDMI loop out, Watching and Recording
4. One Microphone input
5. One 3.5mm stereo output
6. Support 8/10/12 bit color depth
7. Support AWG26 HDMI standard cable, the maximum input transmission distance is 15 meters(1080P and below resolution)
8. Support most acquisition software, such as VLC, OBS, Amcap, etc.
9. Support Windows, Android and Mac OS
10. Complies with USB video UVC specifications
11. Complies with USB audio UAC specifications
12. No external power supply, compact size, easy to carry
Specification:
1. HDTV resolution: Maximum input support 4K
2. Video input format :8/10/12-bit color depth
3. Video output mode: MJPEG
4. Video output resolution: Maximum output resolution1080P 30Hz
5. Support audio format: LPCM
6. Input cable length. ≤15m, AWG26 HDMI standard cable
7. Maximum working current..0.4A / 5V DC
8. Operating temperature ranget: -10 to + 55 degree
Specification:
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.26lb
|
| One Package Size |
15cm * 12cm * 4cm / 5.91inch * 4.72inch * 1.57inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
42cm * 32cm * 62cm / 16.54inch * 12.6inch * 24.41inch
|
| Loading Container |
20GP: 320 cartons * 100 pcs = 32000 pcs
40HQ: 742 cartons * 100 pcs = 74200 pcs
|
|
