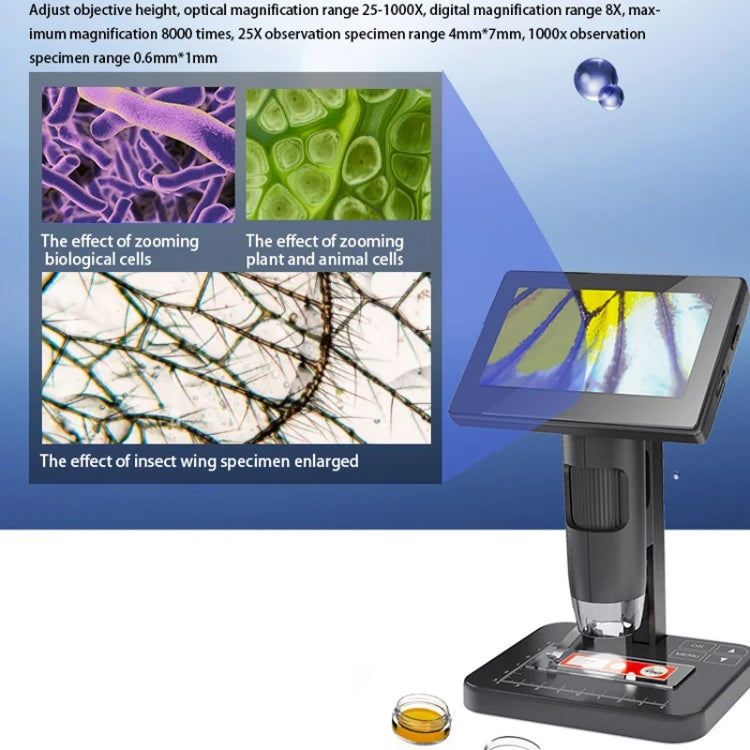

1. Magnification: optical magnification range 25-1000X, digital magnification 8X, the highest magnification 8000 times
2. Observation range: 25X observation specimen range 4mm x 7mm, 1000X observation specimen range 0.6mm x 1mm
3. Objective adjustment range: 7-25mm
4. Focus mode: manual
5. Resolution: 2 microns
6. Illumination: 3 kinds of stepless adjustable brightness illumination modes, transmission illumination to observe transparent specimens (bottom light source); downward illumination to observe opaque specimens (top light source); dark field illumination to observe particulate cells (side light source, adjustable height); fully transparent lampshade and black lampshade
7. Display: 5.0-inch 800x480 high-resolution full-viewing angle IPS screen
8. Key: touch key anti-shake
9. Video pixels: 1920x1080
10. Photo resolution: 5M, 3M, 2M, 1M
11. Video resolution: FHD/30fps, HD/30fps
12. Alignment assistance: the display has a variety of reference vertical and horizontal scales to assist in the display of the harness
13. Continuous photo shooting: 3/5/10 consecutive shots
14. External computer display: can be connected to an external computer through the USB interface output 720P video, to achieve a higher magnification of the display
15. Storage media: TF card (support 32GB, recommended to use Class 10 or above)
16. Auto shutdown: 1/3/5/10 minutes/off
17. Power supply type: 3. 7V, 2600mAh lithium battery
18. Interface: Type-C
19. Body material: aluminum support column, weighted chassis anti-shake, metal adjustment knob
20. Operating temperature: -20 - 50 degrees Celsius
21. Storage temperature: -30 - 60 degrees Celsius

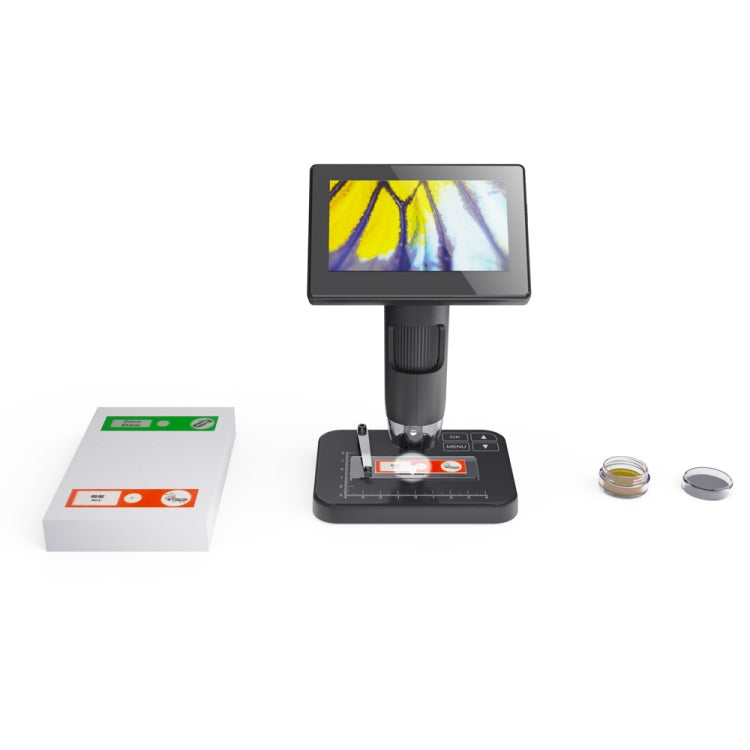

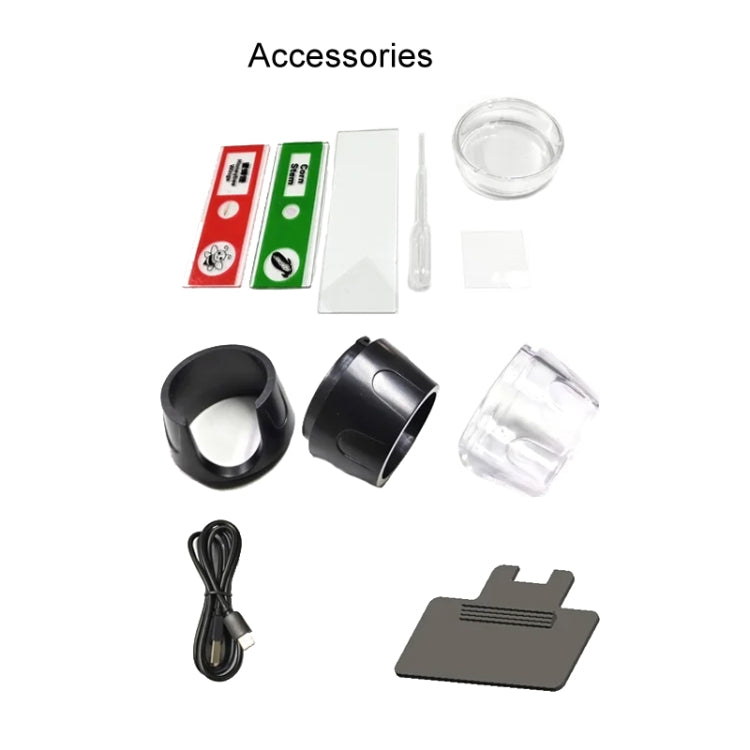

22. Accessories: slides, coverslips, droppers, specimens, utensils, full transparent lampshade, black lampshade, auxiliary support for loads, USB cable, cleaning cloths
23. External dimensions: about 11.6 x 9.2 x 17cm
24. Weight: about 615g
Features:

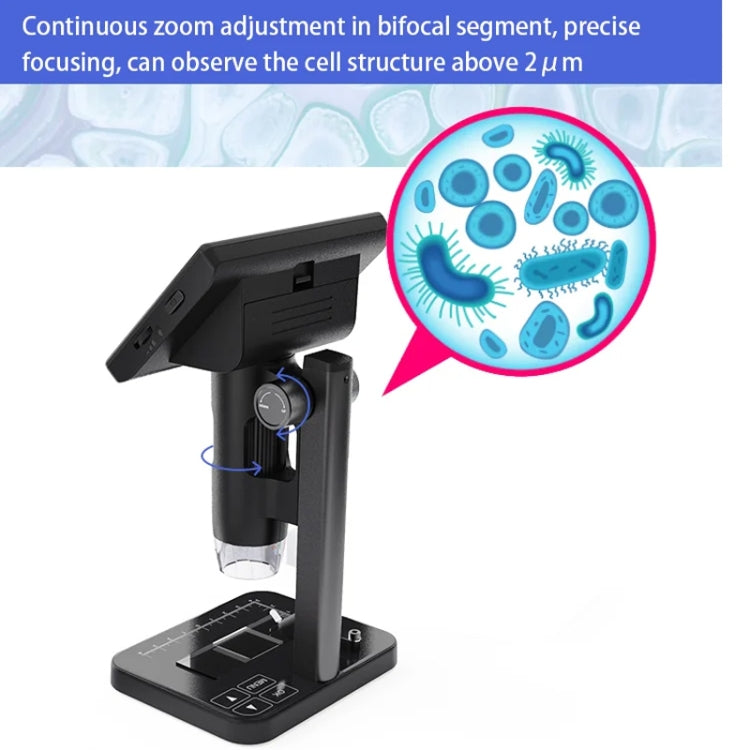

1. Dual focal length continuous zoom adjustment, precise focusing, can observe cell structure over 2 microns

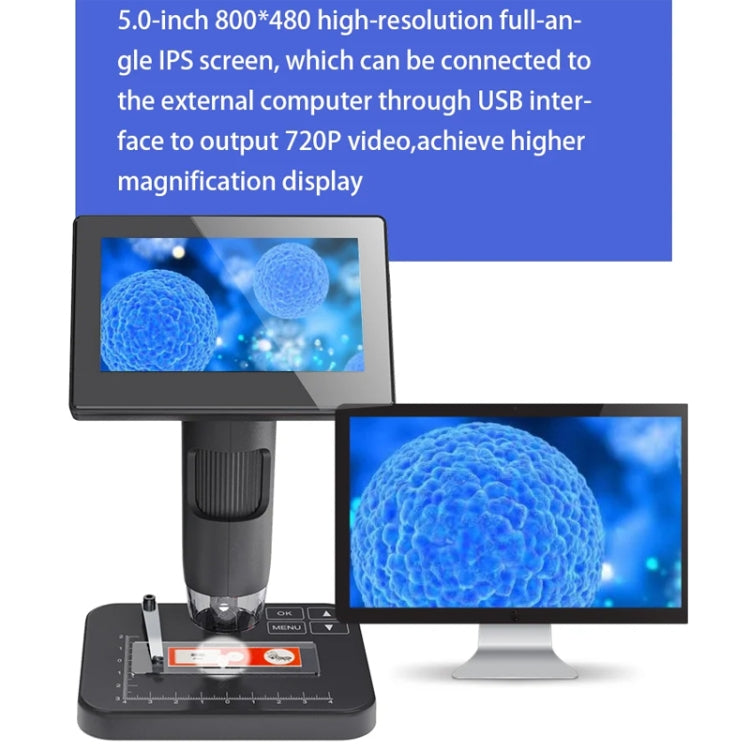

2. 5.0-inch 800x480 high-resolution full-viewing angle IPS screen, can be connected to an external computer via USB interface to output 720P video, to achieve a higher rate of display

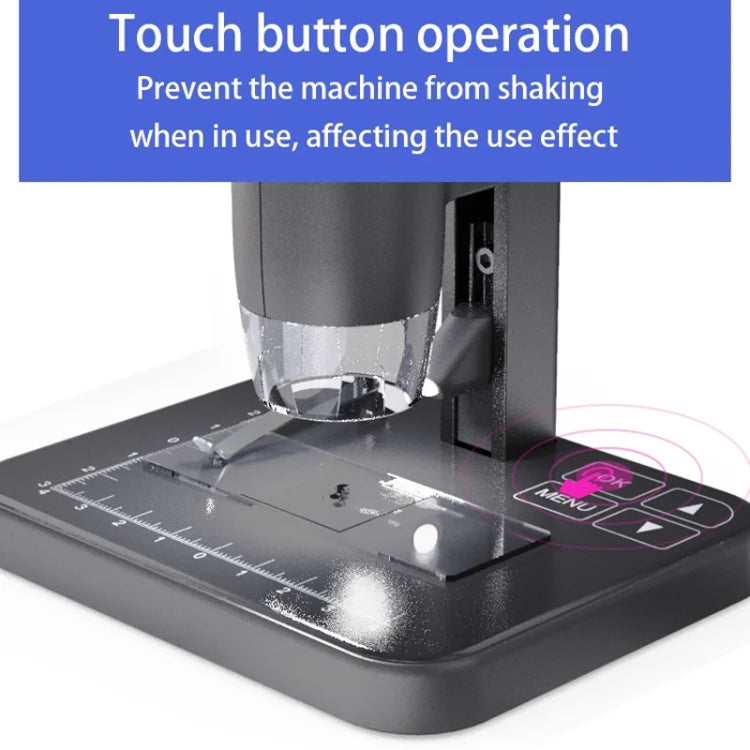

3. Touch button operation, to prevent the machine from shaking when using, affecting the use of results

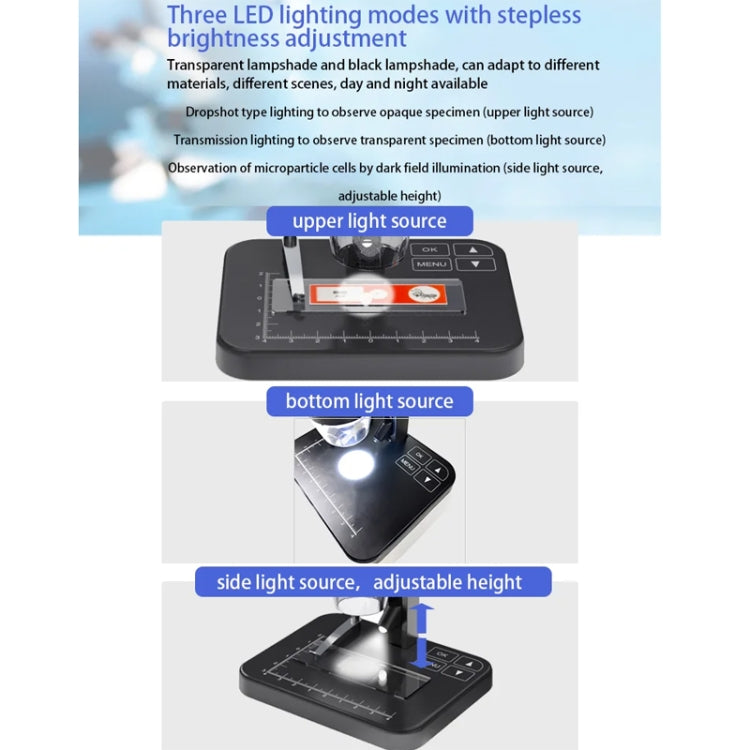

4. Three kinds of stepless adjustable brightness of the LED lighting mode
5. Transparent lampshade and black lampshade, adapting to different materials, different scenes, available day and night

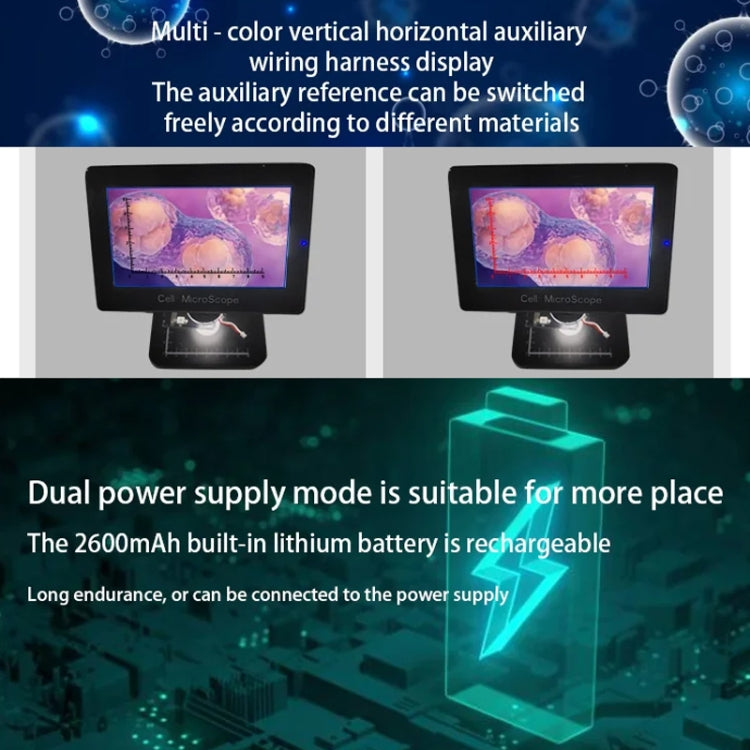

6. Multiple colors of vertical and horizontal auxiliary harness display, according to watch different materials can be switched to auxiliary reference at will

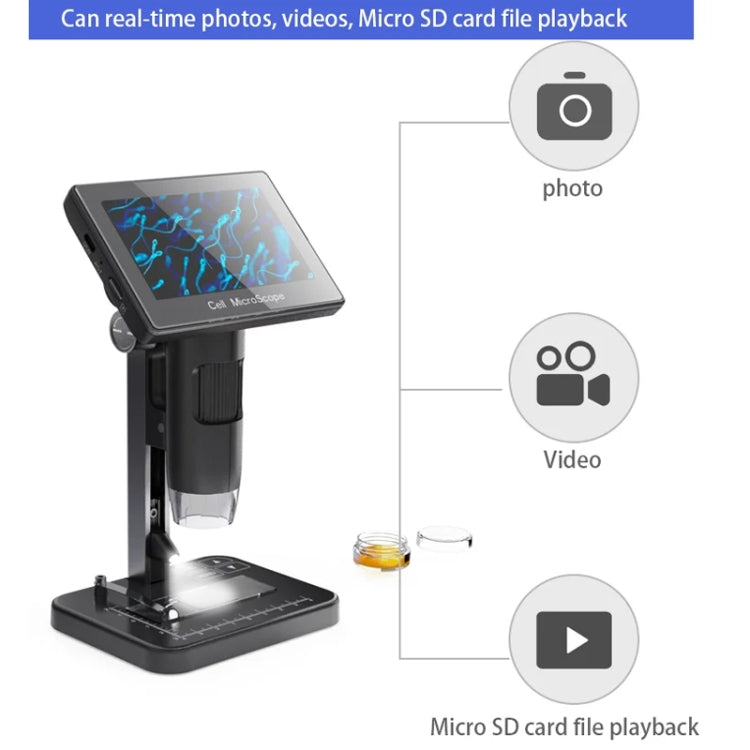

7. Real-time photography, video, TF card archive playback
8. 2600mAh built-in lithium battery can be rechargeable, long battery life, or can be connected to the power supply for power supply

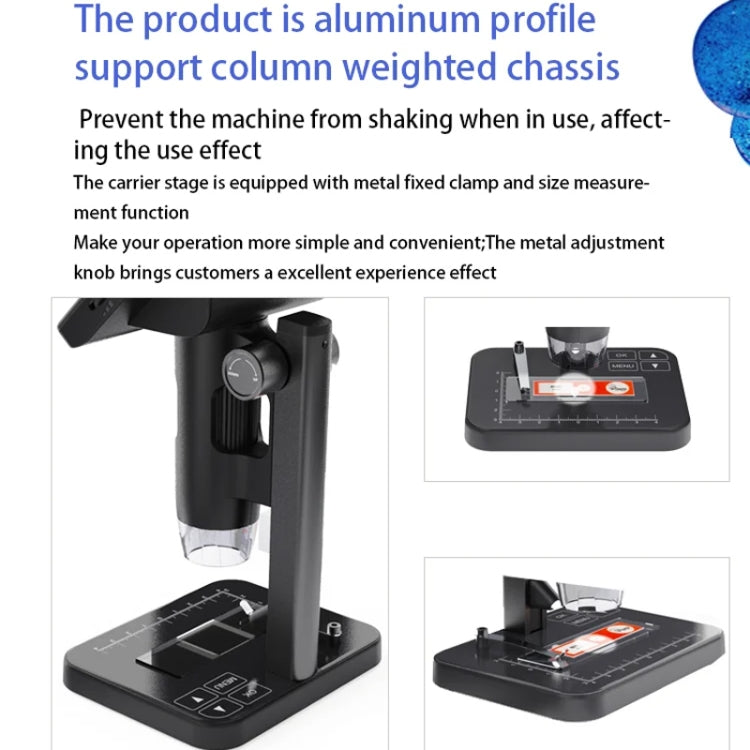

9. Aluminum support column, weighted chassis, to prevent the use of jitter, affecting the viewing effect
10. The carrier table is equipped with metal fixing clips and size measurement function, which makes the operation easier and more convenient
Specification:
|
Package Weight
|
| One Package Weight |
0.90kgs / 1.98lb
|
| One Package Size |
22cm * 14cm * 13cm / 8.66inch * 5.51inch * 5.12inch
|
| Carton Weight |
16.12kgs / 35.54lb
|
| Carton Size |
44cm * 40cm * 42cm / 17.32inch * 15.75inch * 16.54inch
|
| Loading Container |
20GP: 360 cartons * 18 pcs = 6480 pcs
40HQ: 837 cartons * 18 pcs = 15066 pcs
|
|
