1. 2 megapixel, UXGA (1632x1232), support dynamic, with JPEG picture compression
2. Can be used for cell phones, map transfer, PC multimedia, toys, digital cameras, scanning and other devices
3. Low light operation, high sensitivity, embedded portable applications, low operating voltage
4. Body material: FPC
5. Pixels: 2 megapixels (1632x1232)

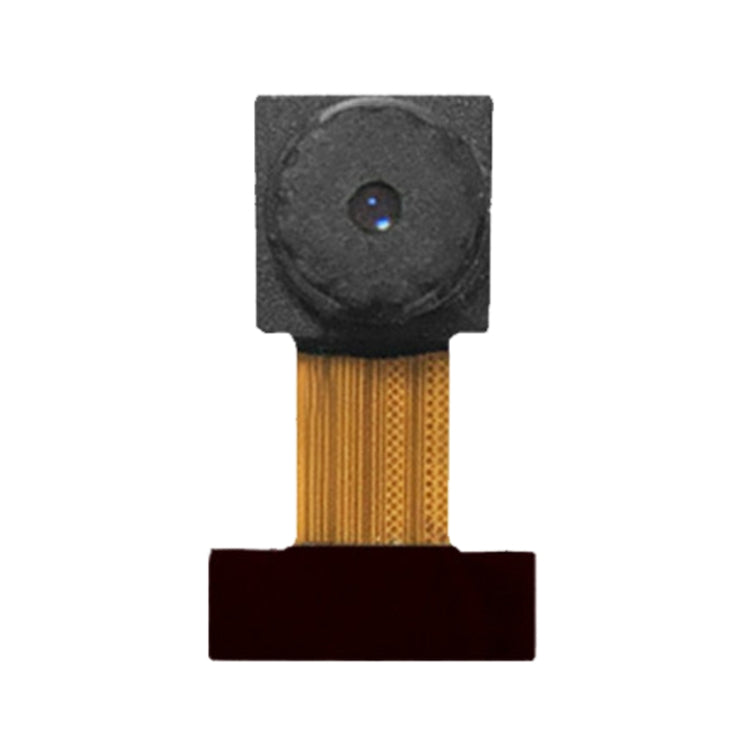

6. Light-sensitive chip: OV2640 (1/4 inch) CMOS
7. Output format: YUV(422/420)/YCbcr422, RGB565/555, 8-bit compressed data, 8/10-bit original RGB data
8. Frame rate: UXGA/SXGA: 15fps; SVGA: 30 fps; CIF: 60 fps
9. Interface: DVP
10. System support: Android, Windows, Linux

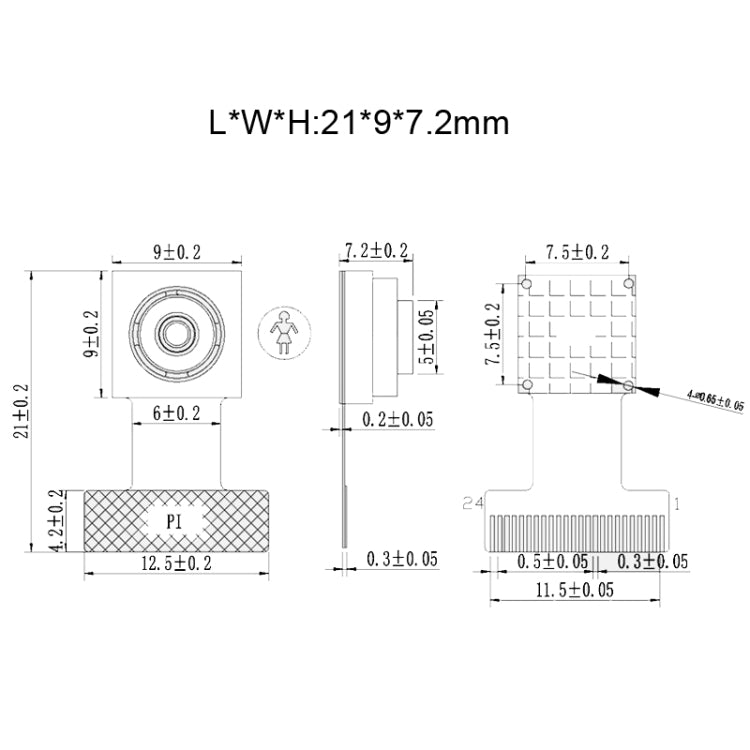

11. Size: about 21 x 9 x 7.2mm
Specification:
|
Package Weight
|
| One Package Weight |
0.02kgs / 0.05lb
|
| One Package Size |
10cm * 7cm * 2cm / 3.94inch * 2.76inch * 0.79inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch
|
| Loading Container |
20GP: 444 cartons * 500 pcs = 222000 pcs
40HQ: 1031 cartons * 500 pcs = 515500 pcs
|
|
