1. Material: 6061 aluminum

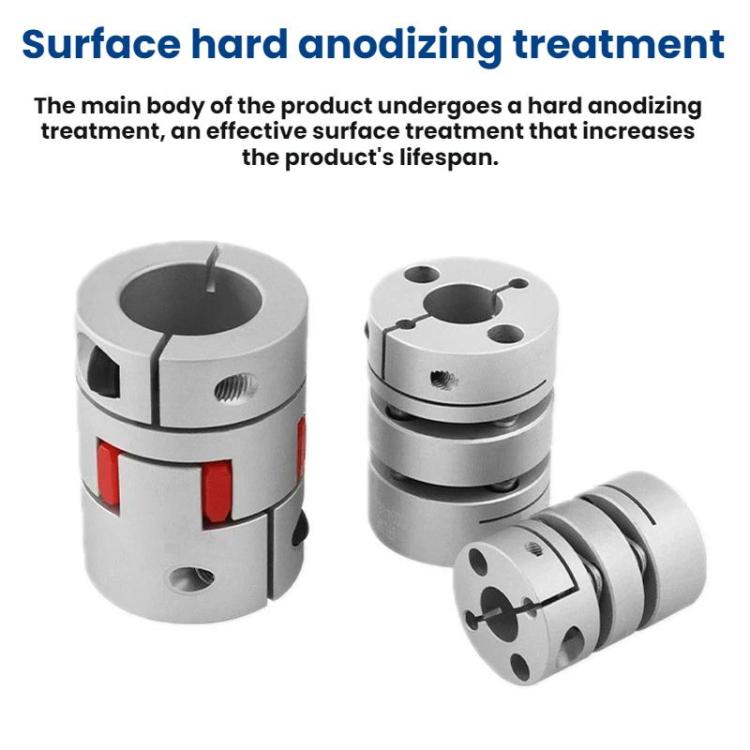

2. Surface treatment: hard anodizing

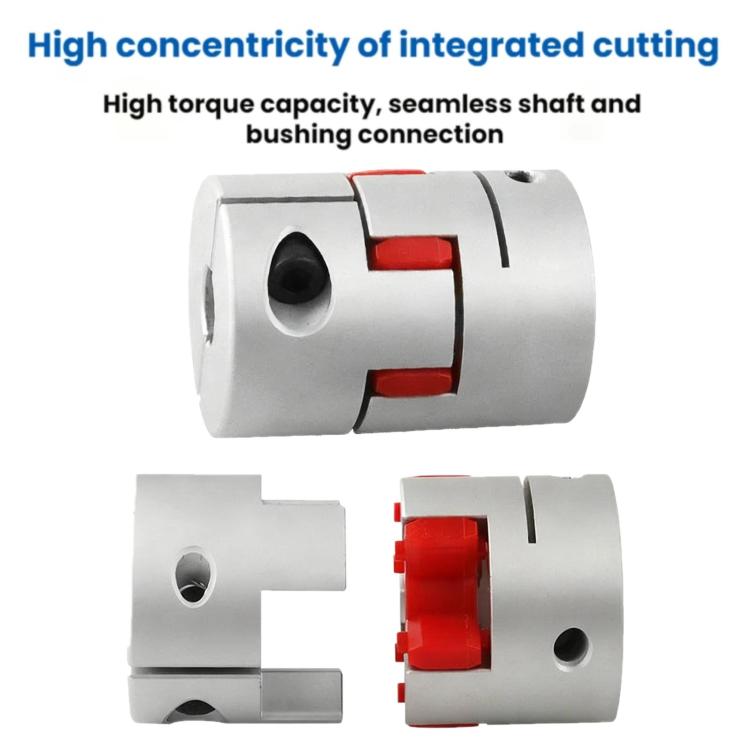

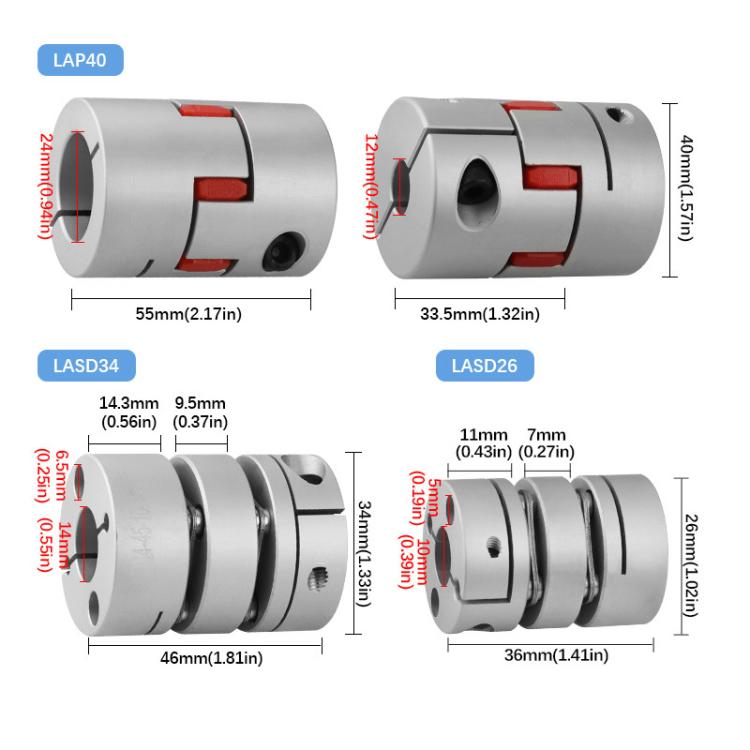

3. Torque: 36NM (LAP40); 10NM (LASD34); 4NM (LASD26)
4. Rated torque: 14NM (LAP40); 5NM (LASD34); 2NM (LASD26)
5. Speed: 8500rpm (LAP40); 10000rpm (LASD34) (LASD26)

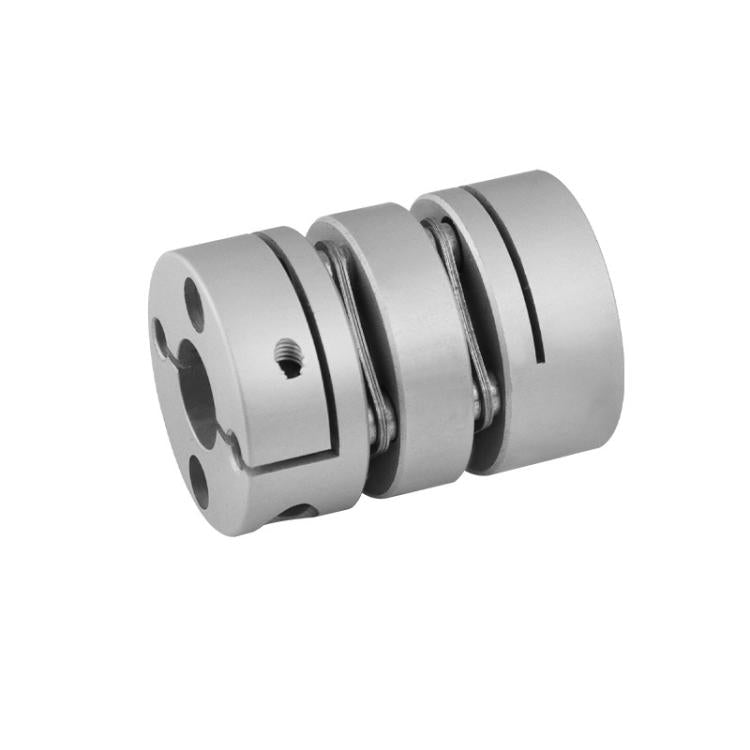

6. Aluminum alloy coupling, elastic compensation for radial, angular and axial misalignment

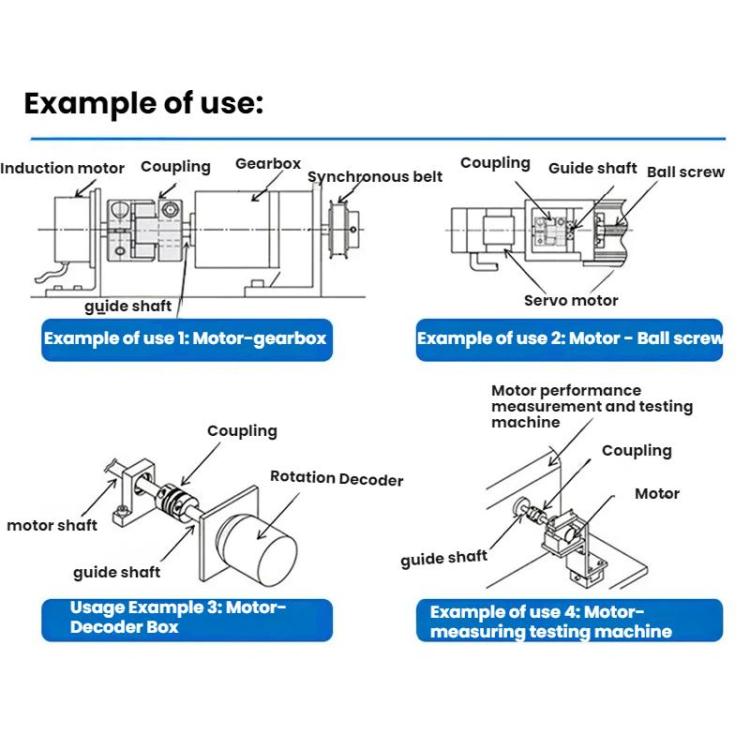

7. Applications: CNC engraving machines, CNC lathes, laser machines, papermaking, printing, packaging machinery, encoder dispensing machines, spraying equipment. High torque; LAP40 is used in heavy-duty equipment; LASD34/LASD26 are more commonly used in automated equipment.

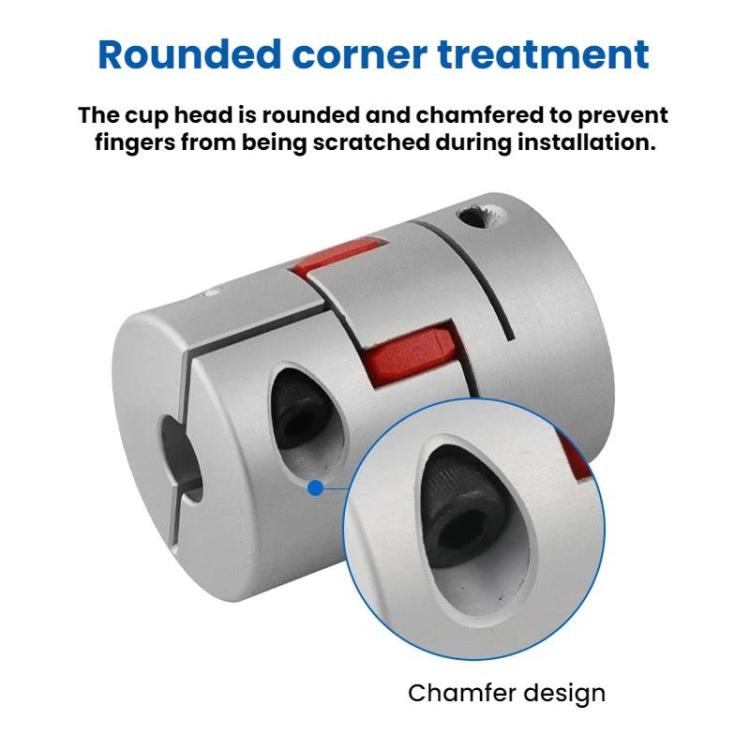

8. The cup head has a rounded chamfer to prevent finger scratches during installation.
9. Weight: 129g (LAP40); 83g (LASD34); 39g (LASD26)
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
10cm * 7cm * 5cm / 3.94inch * 2.76inch * 1.97inch
|
| Carton Weight |
7.10kgs / 15.65lb
|
| Carton Size |
42cm * 37cm * 32cm / 16.54inch * 14.57inch * 12.6inch
|
| Loading Container |
20GP: 536 cartons * 120 pcs = 64320 pcs
40HQ: 1244 cartons * 120 pcs = 149280 pcs
|
|
