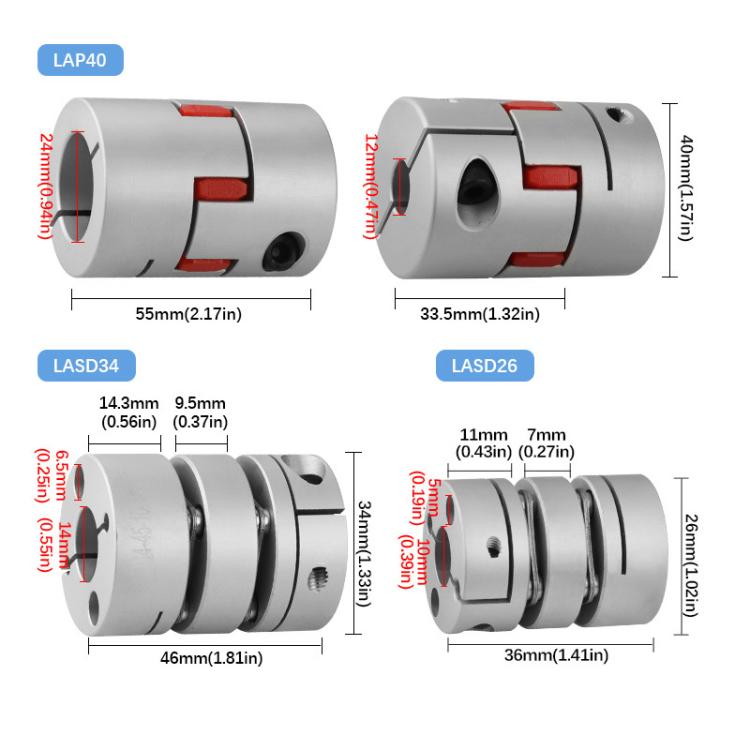

1. Material: 6061 aluminum
2. Surface treatment: hard anodizing
3. Torque: 36NM (LAP40); 10NM (LASD34); 4NM (LASD26)
4. Rated torque: 14NM (LAP40); 5NM (LASD34); 2NM (LASD26)
5. Speed: 8500rpm (LAP40); 10000rpm (LASD34) (LASD26)

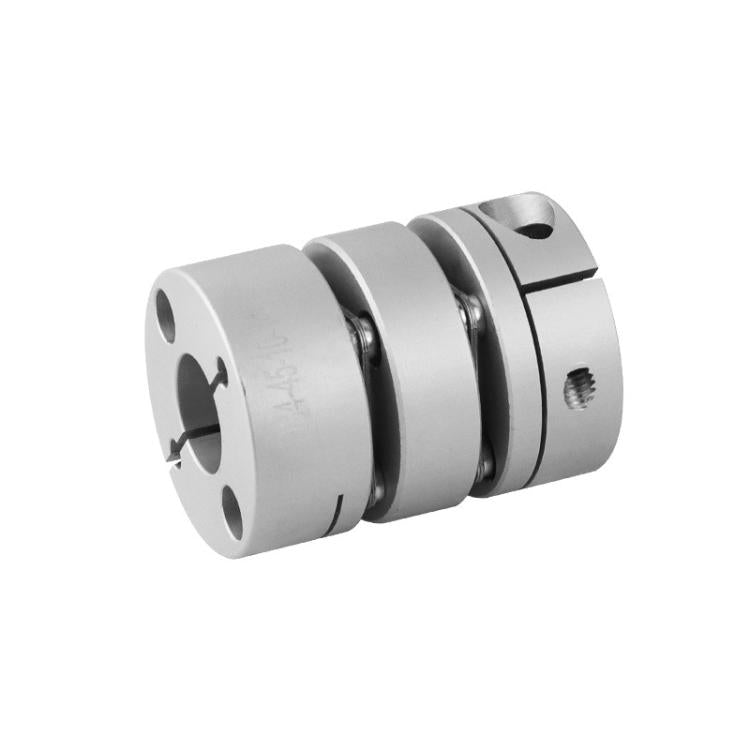

6. Aluminum alloy coupling, elastic compensation for radial, angular and axial misalignment
7. Applications: CNC engraving machines, CNC lathes, laser machines, papermaking, printing, packaging machinery, encoder dispensing machines, spraying equipment. High torque; LAP40 is used in heavy-duty equipment; LASD34/LASD26 are more commonly used in automated equipment.
8. The cup head has a rounded chamfer to prevent finger scratches during installation.
9. Weight: 129g (LAP40); 83g (LASD34); 39g (LASD26)
Specification:
|
Package Weight
|
| One Package Weight |
0.10kgs / 0.22lb
|
| One Package Size |
11cm * 9cm * 5cm / 4.33inch * 3.54inch * 1.97inch
|
| Carton Weight |
10.30kgs / 22.71lb
|
| Carton Size |
46cm * 38cm * 32cm / 18.11inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 476 cartons * 96 pcs = 45696 pcs
40HQ: 1106 cartons * 96 pcs = 106176 pcs
|
|
