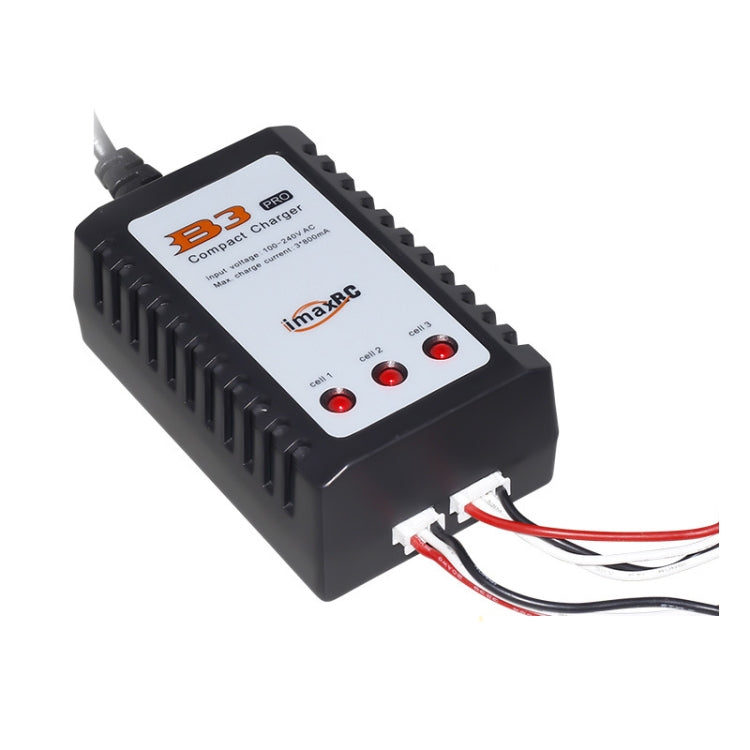

Charge compatible 2S and 3S lithium battery packs with the ImaxRC Intelligent Balance Charger. Designed for 7.4V (2S) and 11.1V (3S) lithium batteries, this compact charger features separate XH-3P and XH-4P balance connectors, allowing two compatible batteries to be charged simultaneously.
The intelligent charging system adjusts the current during charging and is designed to stop automatically when the battery reaches its specified full-charge voltage. LED indicators provide a visual charging status for individual battery cells, making this a practical charging accessory for model aircraft, drones and other compatible equipment.
Key Features
-

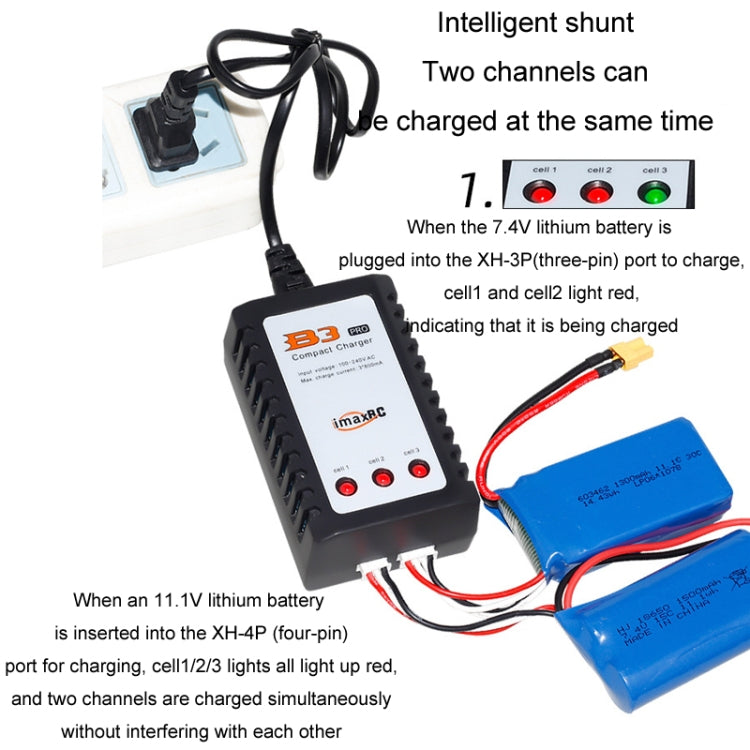

Dual-Channel Charging: Supports simultaneous charging of one 7.4V 2S battery and one 11.1V 3S battery through separate charging connections.
-
2S and 3S Compatibility: Designed for compatible 7.4V and 11.1V lithium battery packs.
-
Intelligent Charging Control: Built-in control circuitry manages charging current and is designed to help prevent overcharging and excessive voltage.
-

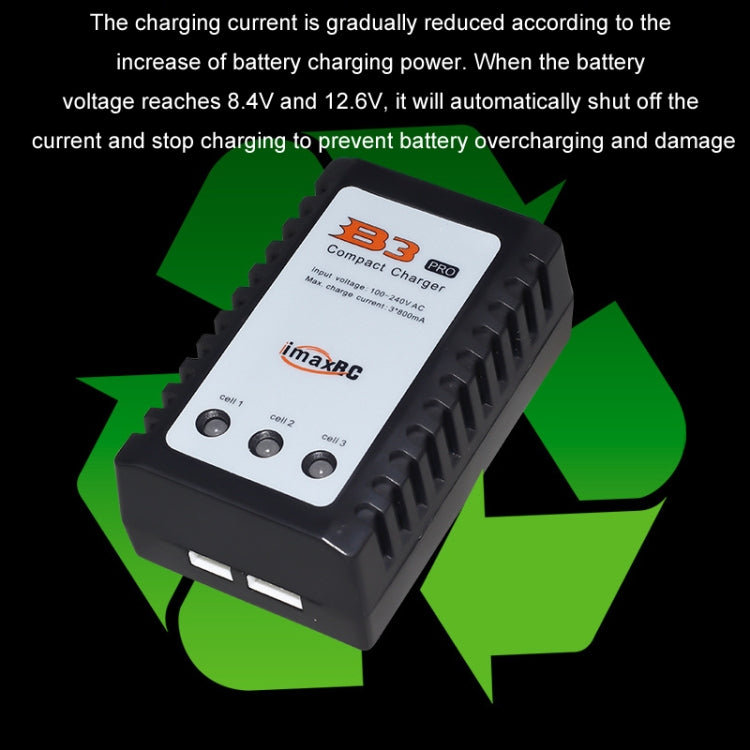

Automatic Charging Stop: Designed to stop charging when the battery reaches 8.4V for 2S packs or 12.6V for 3S packs.
-
LED Charging Indicators: Individual cell indicator lights show charging status.
-
Independent Charging Channels: Separate connections allow the two supported battery types to charge simultaneously.
-

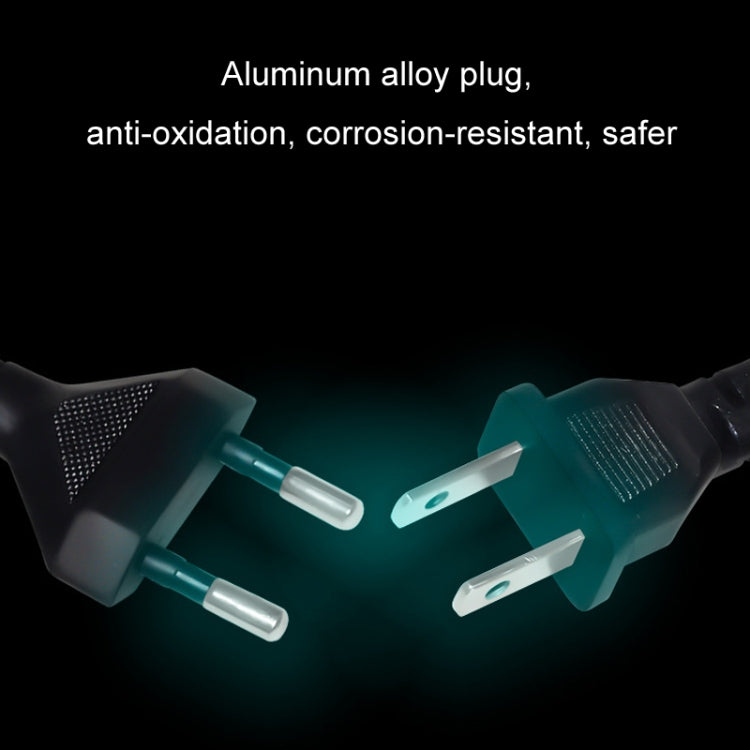

Durable Connectors: Features aluminium alloy plug components designed for oxidation and corrosion resistance.
-

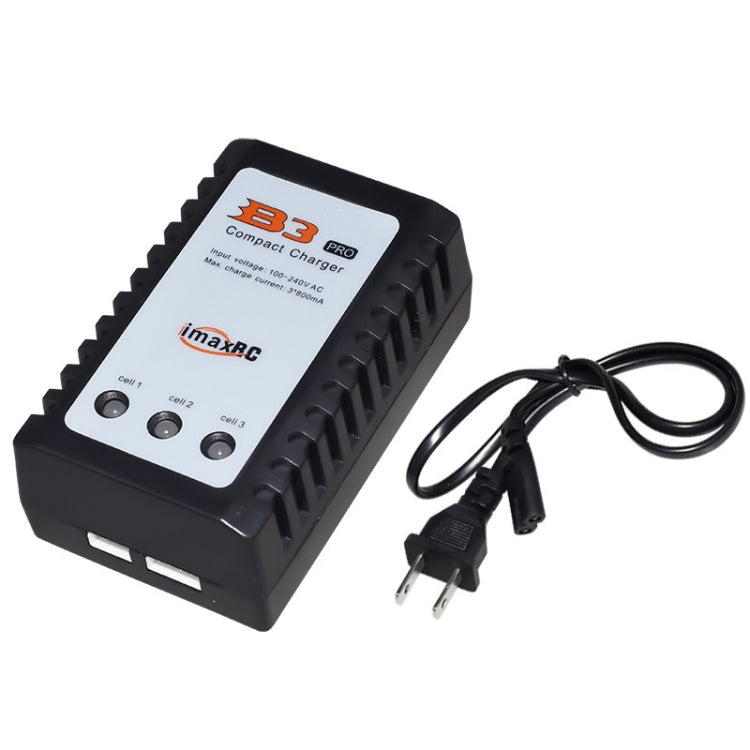

Compact and Lightweight: Small desktop-friendly design for convenient storage and transport.
Specifications
-
Brand: ImaxRC
-
Product Type: Intelligent Lithium Battery Balance Charger
-
Supported Battery Types: Compatible 2S / 3S lithium batteries
-
Battery Voltage: 7.4V / 11.1V
-

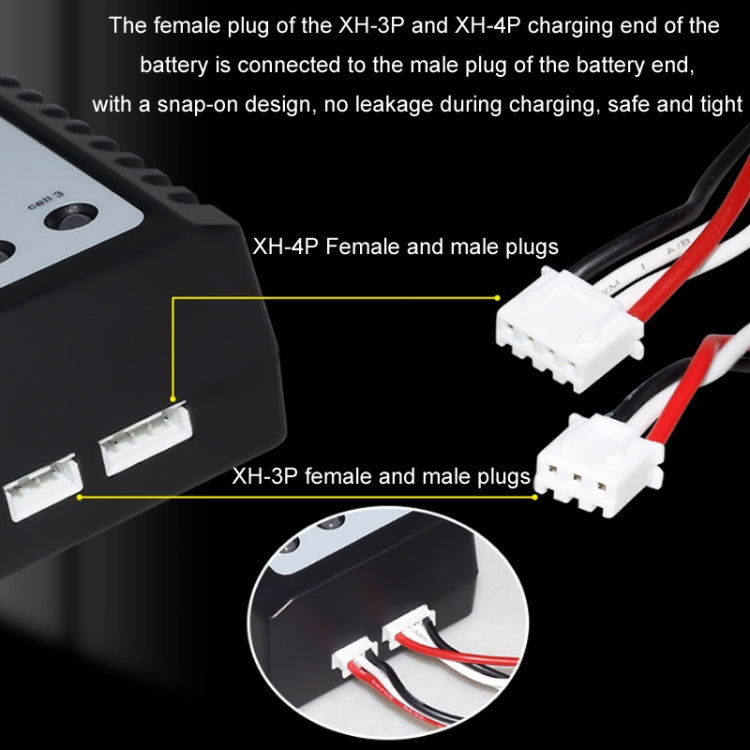

Charging Connectors: XH-3P (2S) and XH-4P (3S)
-
Output Current: 3 × 800mA (as specified)
-
Rated Power: 10W
-
Input Voltage: 100–240V AC
-
Charging Termination Voltage: 8.4V (2S) / 12.6V (3S)
-
Cable Length: Approximately 60cm
-
Dimensions: 92 × 57.5 × 35mm
-
Net Weight: Approximately 89g
Package Contents
Important Battery Compatibility & Safety Notes
-
Designed for compatible 7.4V 2S and 11.1V 3S lithium battery packs with the corresponding XH balance connectors.
-
The supplied specifications also mention 18650 batteries. Compatibility depends on the battery pack configuration, protection circuitry and connector; individual loose 18650 cells are not suitable for direct connection.
-
Check battery voltage, cell count, connector type and polarity before charging.
-
Do not charge damaged, swollen or leaking batteries. Never leave charging batteries unattended, and use the charger on a non-flammable surface.
-
Do not connect batteries with incompatible voltage or connectors.
Specification:
| Package Weight |
| One Package Weight |
0.10kgs / 0.23lb |
| One Package Size |
12cm * 8cm * 6cm / 4.72inch * 3.15inch * 2.36inch |
| Carton Weight |
9.10kgs / 20.06lb |
| Carton Size |
50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch |
| Loading Container |
20GP: 490 cartons * 80 pcs = 39200 pcs 40HQ: 1137 cartons * 80 pcs = 90960 pcs
|
|
