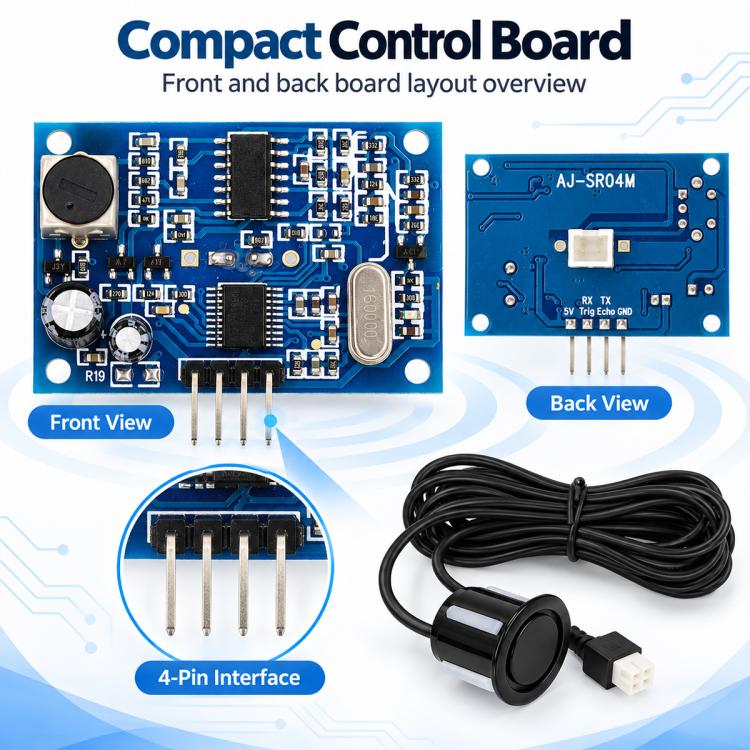

1. Compact And Convenient: Features a compact design for easy installation and use in various distance measurement and detection applications.
2. Low Power Consumption: Designed for low-voltage operation and low power consumption to help reduce overall system energy use.
3. Accurate Distance Measurement: Provides precise ultrasonic distance measurement for object detection, distance sensing, and position monitoring.
4. Strong Anti-Interference Performance: Offers reliable interference resistance to support distance measurement in various operating environments.

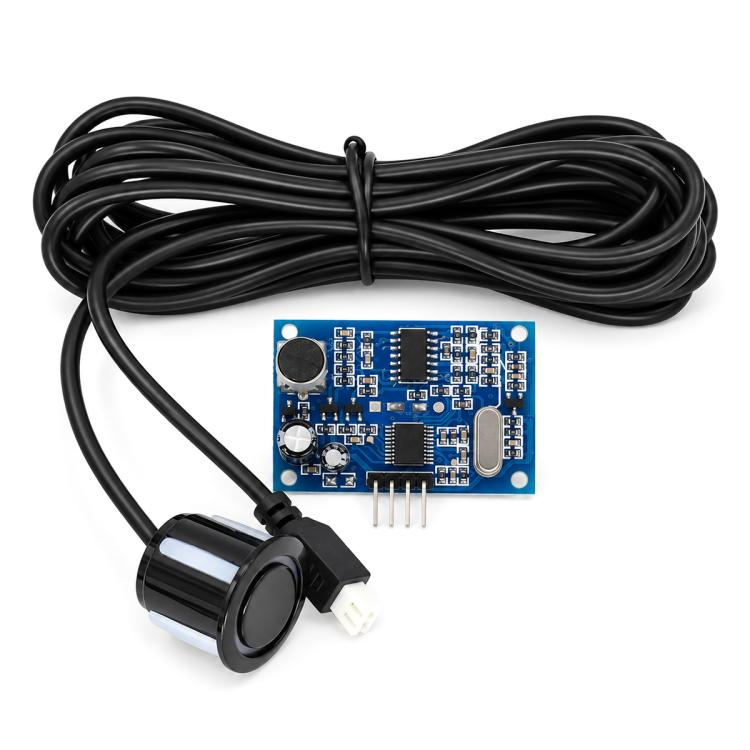

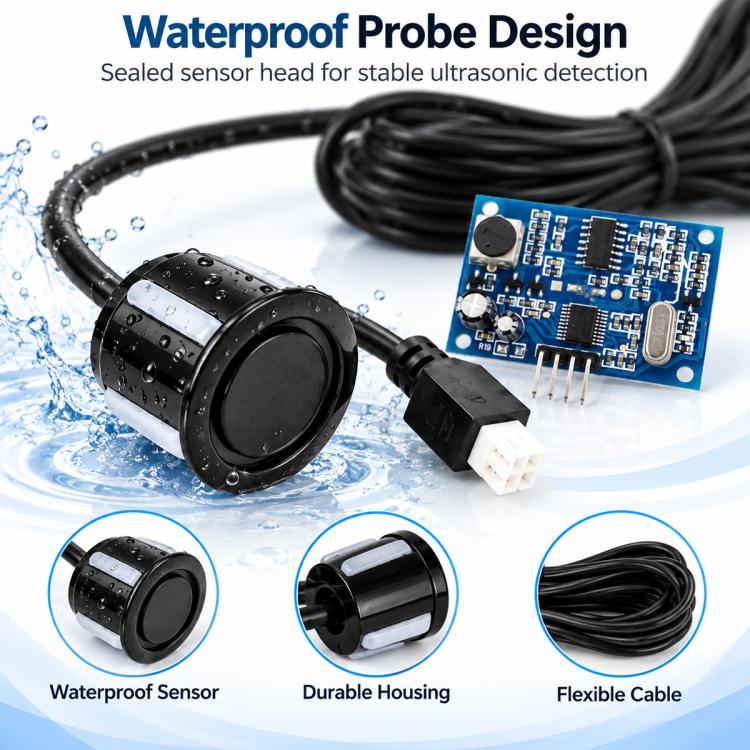

5. Waterproof Probe Design: Comes with an integrated, sealed waterproof probe and connecting cable, suitable for humid and demanding measurement environments. Ideal for obstacle avoidance, automatic control, traffic detection, security systems, and industrial applications.
Parameters
1. Operating Voltage: DC 5V
2. Static Operating Current: 5mA
3. Total Operating Current: 30mA
4. Acoustic Wave Emission Frequency: 40KHz
5. Maximum Ranging Distance: 5m
6. Dead Zone: 25cm
7. Module Dimensions: 41mm x 28.5mm
8. Lead Wire Length: 2.5m
9. Resolution: Approx. 0.5cm
10. Angle: Less than 50 degrees
11. Operating Temperature: -10 degrees Celsius to 70 degrees Celsius
12. Storage Temperature: -20 degrees Celsius to 80 degrees Celsius
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.10lb
|
| One Package Size |
12cm * 8cm * 3cm / 4.72inch * 3.15inch * 1.18inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
45cm * 34cm * 29cm / 17.72inch * 13.39inch * 11.42inch
|
| Loading Container |
20GP: 601 cartons * 300 pcs = 180300 pcs
40HQ: 1395 cartons * 300 pcs = 418500 pcs
|
|
