1. Operating voltage: 8V - 18V
2. Operating current: 131mA - 171mA
3. LCD Display: 2.8-inch 320x240 pixel TFT color screen (day and night mode themes)
4. Power supply: from vehicle battery

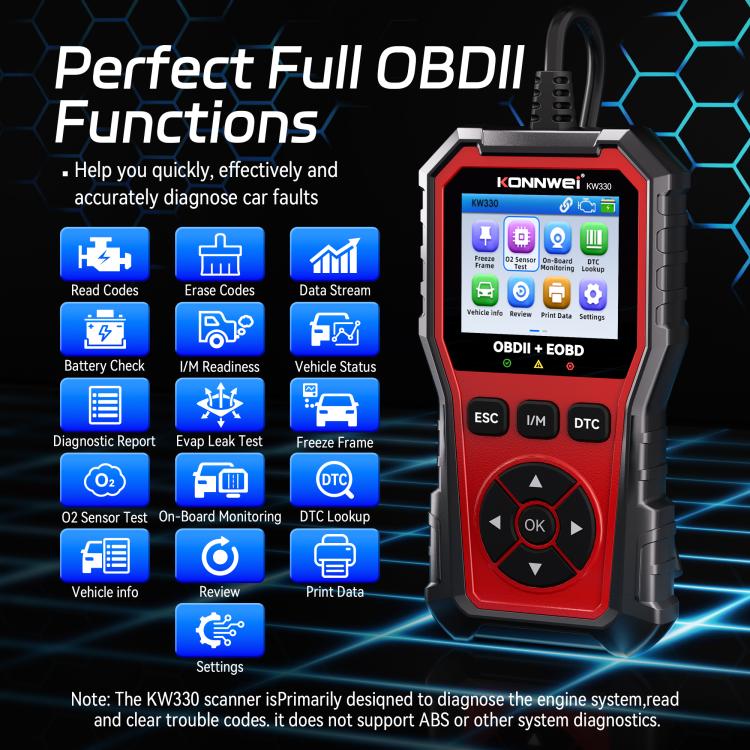

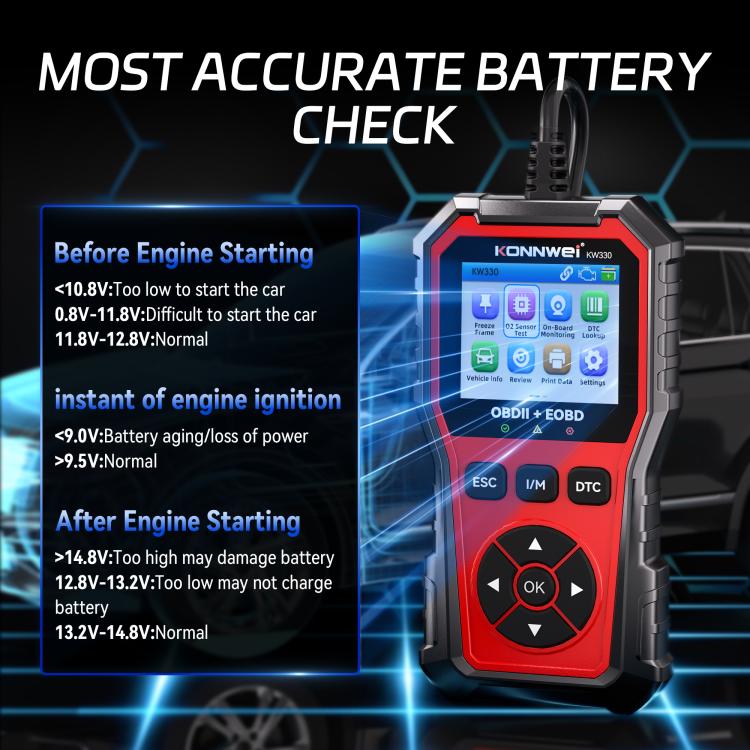

5. Single-button operation: fault codes, indicator lights, vehicle identification number, battery check

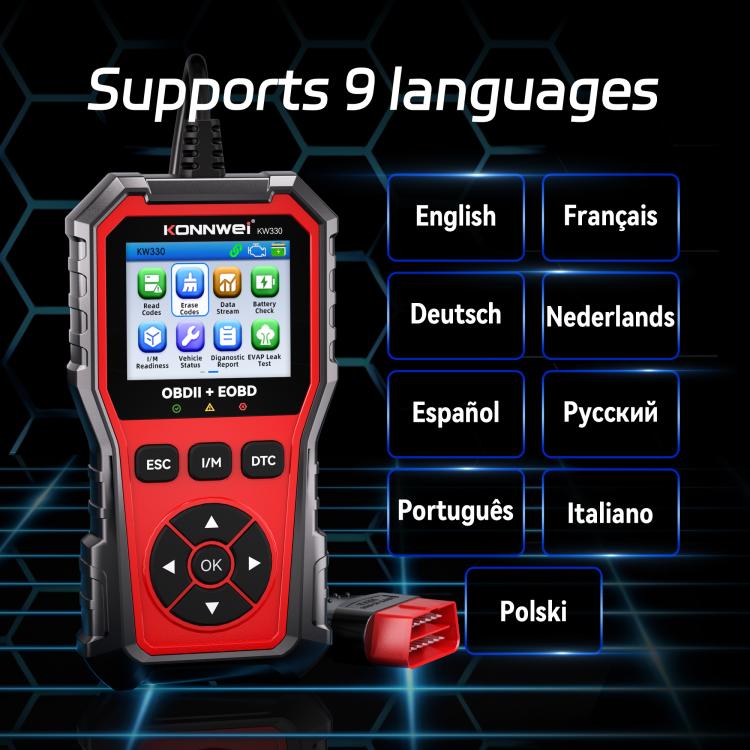

6. 9 Languages: English, German, French, Russian, Spanish, Polish, Italian, Portuguese, Dutch
7. Supported protocols: ISO 9141, KWP2000, SAE J1850, CAN, J1850 VPW, J1850 PWM

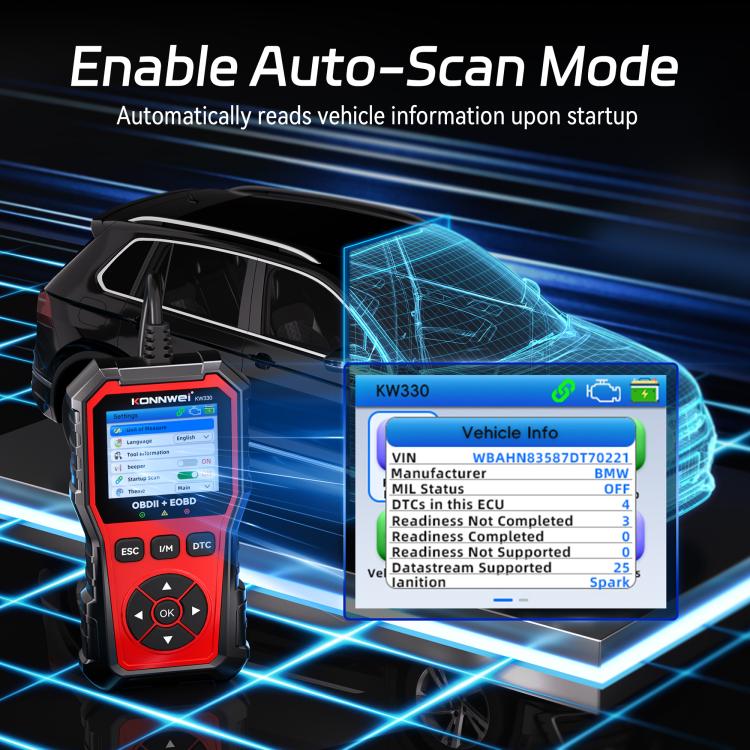

8. Automatic (start scan) or manual connection to the electronic control unit is selectable

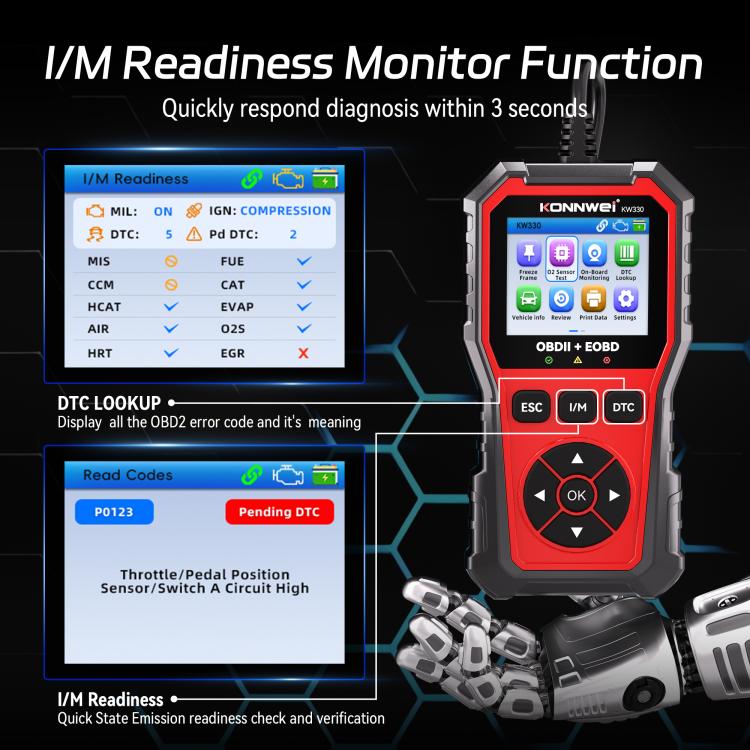

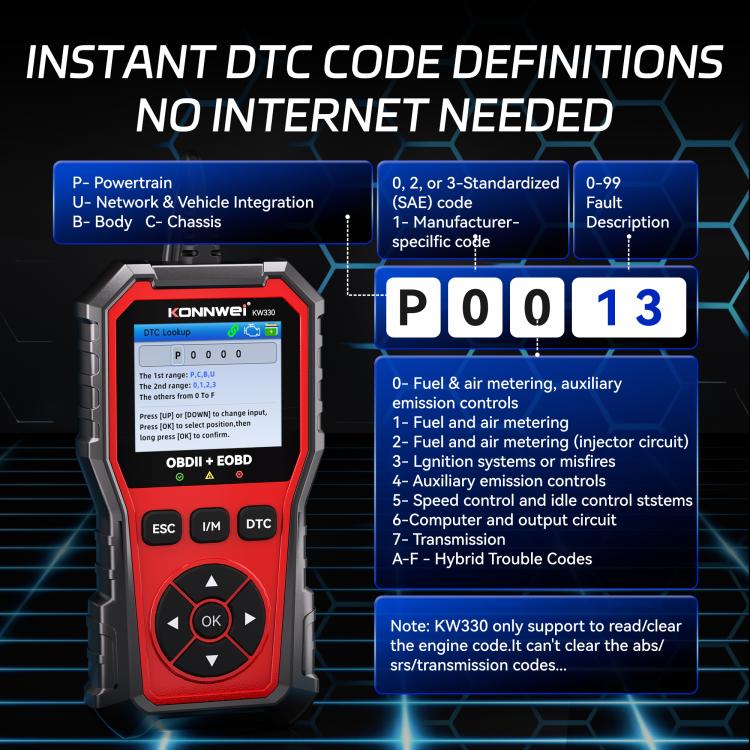

9. Quickly displays engine fault codes, with green/yellow/red LED indicators as fault indicators
10. Reads or clears engine fault codes, dynamically displays sensor data stream information, views freeze frame data and engine status information

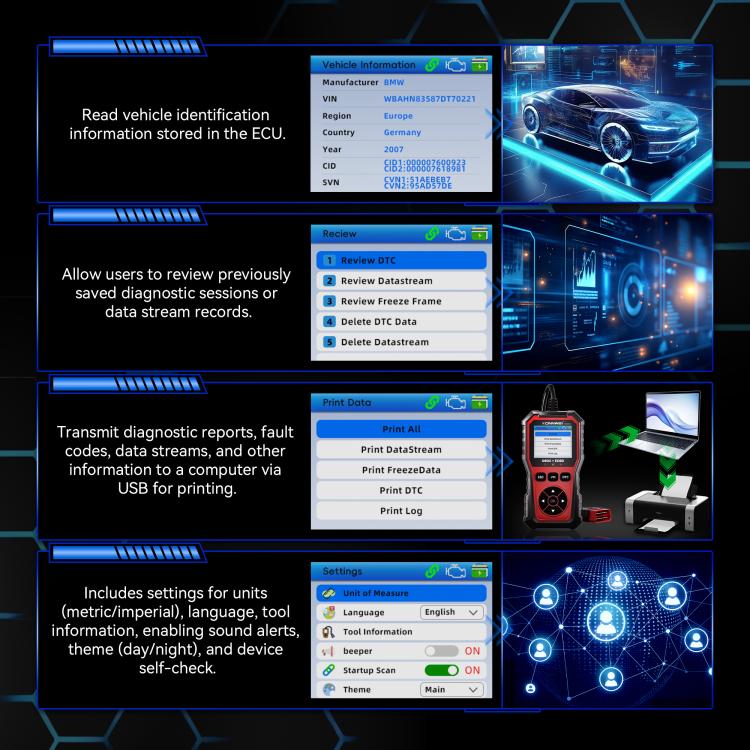

11. Reads vehicle information: Vehicle Identification Number (VIN), Calibration Identification Number (CIN), Calibration Verification Number (CVN)

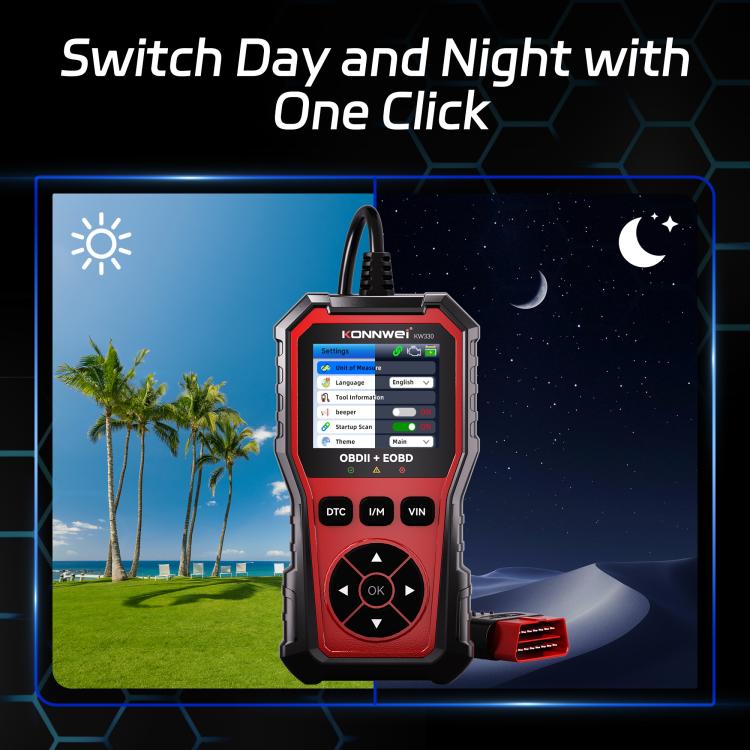

12. Dual-mode theme: Main and sub-modes suitable for day and night modes
13. Dimensions: 163x85.5x23.5 mm
Specification:
|
Package Weight
|
| One Package Weight |
0.36kgs / 0.80lb
|
| One Package Size |
21cm * 17cm * 6cm / 8.27inch * 6.69inch * 2.36inch
|
| Carton Weight |
22.00kgs / 48.50lb
|
| Carton Size |
44cm * 41cm * 51cm / 17.32inch * 16.14inch * 20.08inch
|
| Loading Container |
20GP: 289 cartons * 60 pcs = 17340 pcs
40HQ: 672 cartons * 60 pcs = 40320 pcs
|
|
