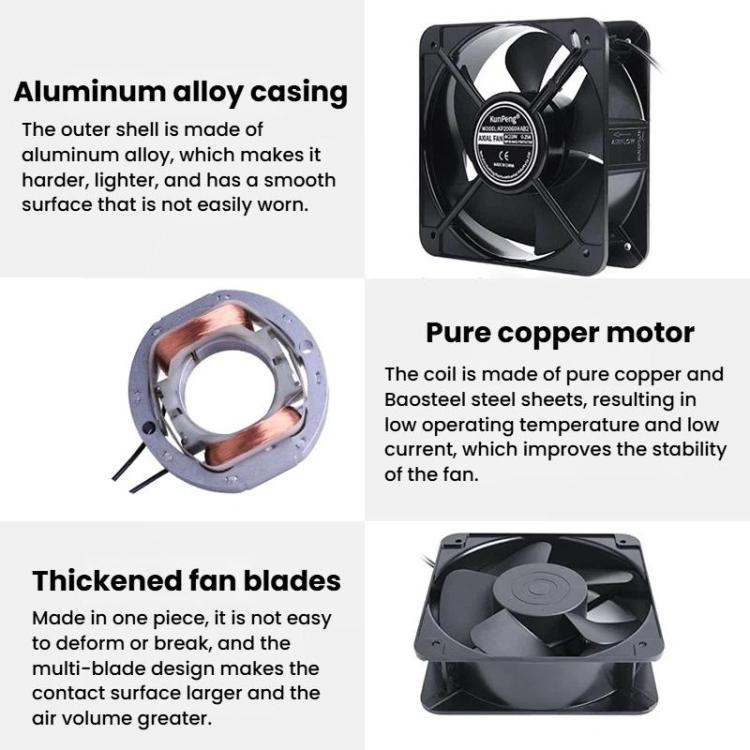

1. The coil is made of pure copper and Baosteel silicon steel sheet materials, which operate at a low temperature and with low current, thereby enhancing the stability of the fan
2. The fan blades are produced by a one-time injection molding process, which makes them less prone to deformation or fracture. The multi-blade design increases the contact area, resulting in a larger air volume and better heat dissipation
3. The housing is made of aluminum alloy, which has higher hardness, lighter weight, and a smooth surface that is less prone to wear
4. The ball bearings have low friction between them, generate less heat, support high-speed operation, have low noise, and have a long lifespan
5. It can be applied in scenarios such as power supply equipment, servers, power supplies, cabinets, security equipment, and household appliances
Parameters
1. Rotational speed: 2300 r/min
2. Motor power: 65W
3. Current:
- 110V: 0.8A
- 220V: 0.45A
- 380V: 0.3A
4. Bearing type: ball
5. Fan blade number: 5 blades
6. Frequency: 50/60Hz
7. Noise: 54dB
8. Material: aluminum, PBT
9. Size: about 20 x 20 x 6 cm
10. Weight: about 1540g
Specification:
|
Package Weight
|
| One Package Weight |
1.61kgs / 3.56lb
|
| One Package Size |
23cm * 23cm * 8cm / 9.06inch * 9.06inch * 3.15inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
48cm * 34cm * 25cm / 18.9inch * 13.39inch * 9.84inch
|
| Loading Container |
20GP: 653 cartons * 8 pcs = 5224 pcs
40HQ: 1517 cartons * 8 pcs = 12136 pcs
|
|
