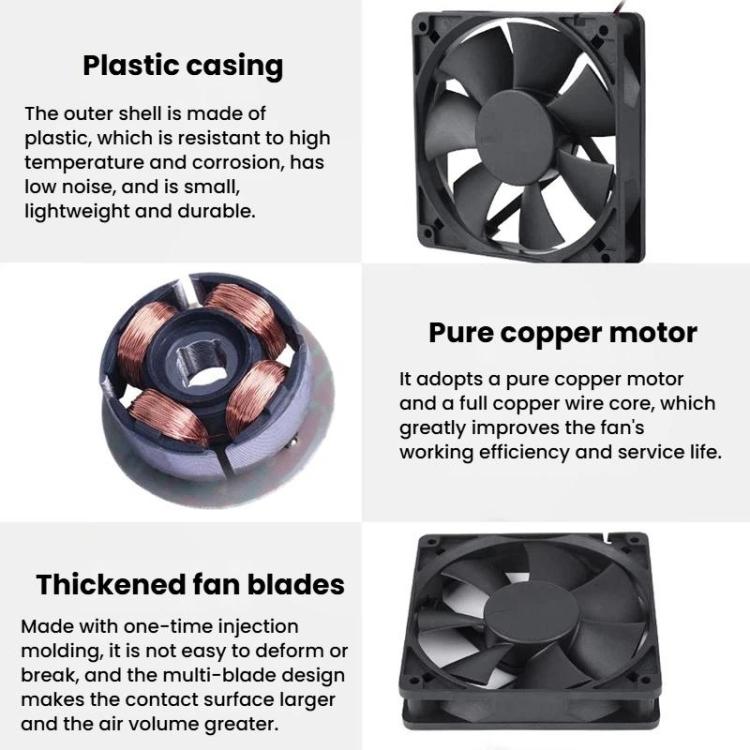

1. The casing is made of plastic material, which is resistant to high temperatures, corrosion, and has low noise. It is small, lightweight and durable
2. The motor is made of pure copper and the circuit board is made of all copper wires, significantly improving the efficiency and lifespan of the fan
3. The thick fan blades are one-time molded and do not deform or break easily. The multi-blade design provides a larger contact surface and greater air volume
4. It can be applied in scenarios such as power supply equipment, servers, power supplies, cabinets, security equipment, household appliances, etc
5. The oil-bearing bearings use lubricating oil in the sleeve to reduce friction loss, resulting in low noise and low cost
Parameters
1. Rotational speed: 3000 r/min
2. Motor power:
- 12V: 6.6W
- 24V: 10.8W
3. Current:
- 12V: 0.55A
- 24V: 0.45A
4. Bearing type: Oil-filled
5. Fan blade count: 7 blades
6. Material: PBT
7. Noise: 50dB
8. Size: about12 x 12 x 2.5 cm
9. Weight: about 145g
Specification:
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.47lb
|
| One Package Size |
14cm * 14cm * 4cm / 5.51inch * 5.51inch * 1.57inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
44cm * 38cm * 30cm / 17.32inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 531 cartons * 54 pcs = 28674 pcs
40HQ: 1234 cartons * 54 pcs = 66636 pcs
|
|
