1. Input voltage range: 4-40V DC;
2. Output voltage range: 1.25-37VDC adjustable;
3. Output current: 2A;
4. Voltmeter range: 0 to 40V, error +/-0.1V;
5. Input reverse polarity protection; Built in output short protection function;
6. Built in thermal shutdown function;

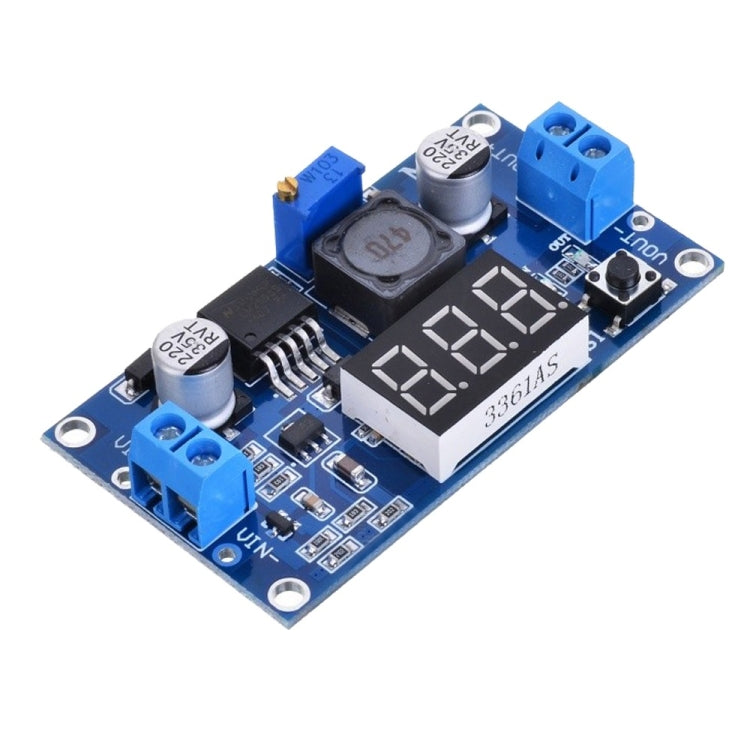

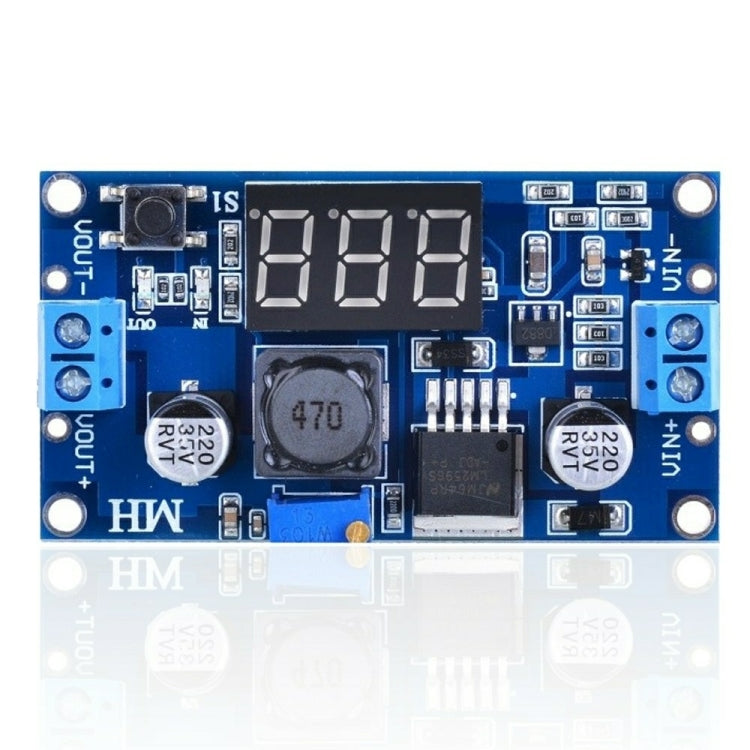

7. Press the rightkey to let the display show the input or output voltage. when the right out led light, it shows output, the left IN led show input.
8. Model: LDTR-WG0178
9. Quantity: 1 piece
10. Form Color: Deep Blue

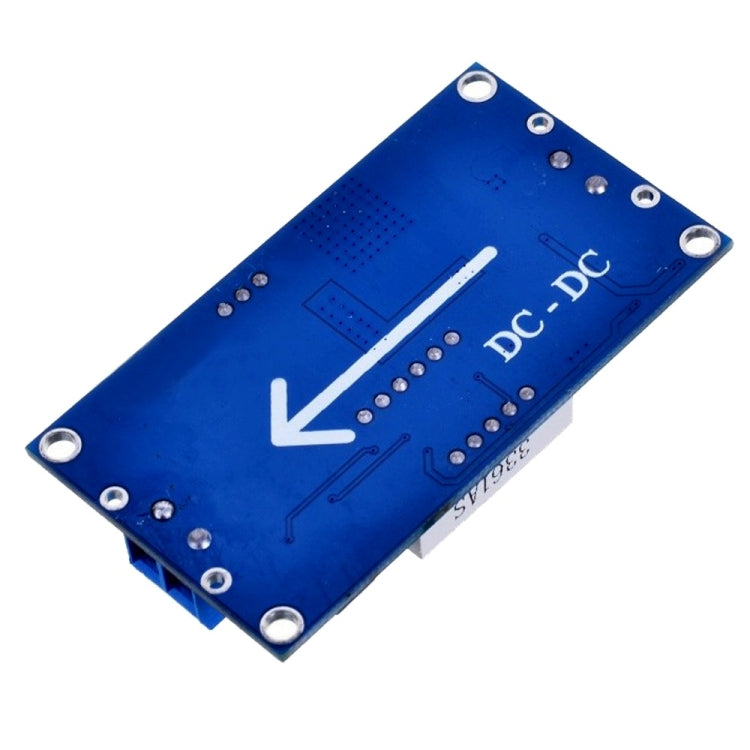

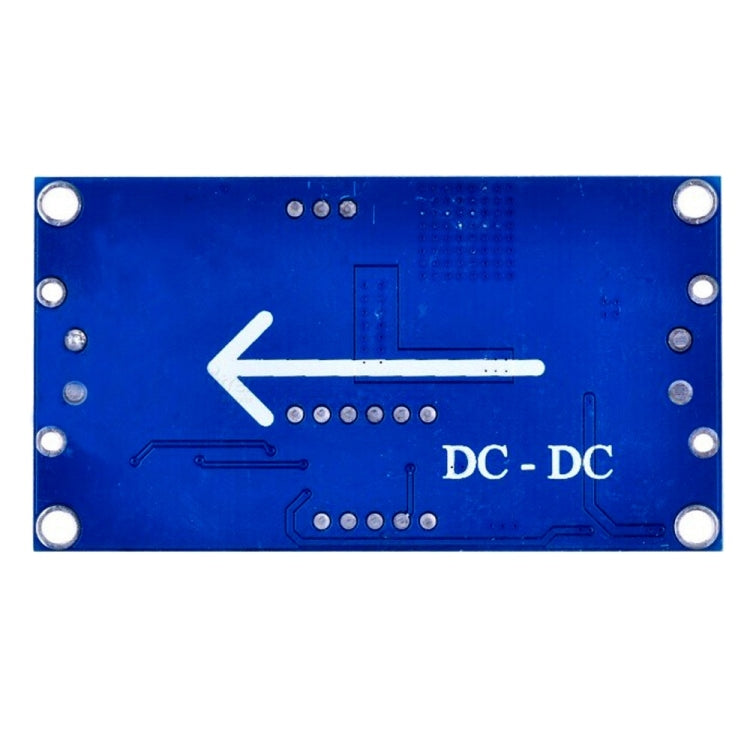

11. Material: PCB + electronic components
12. Dimensions: 2.36 in x 1.38 in x 0.55 in (6 cm x 3.5 cm x 1.4 cm)
13. Weight: 0.74 oz (21 g)
14. Packing List: 1 x Module
Specification:
|
Package Weight
|
| One Package Weight |
0.04kgs / 0.09lb
|
| One Package Size |
6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
|
| Loading Container |
20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs
|
|
