Features:

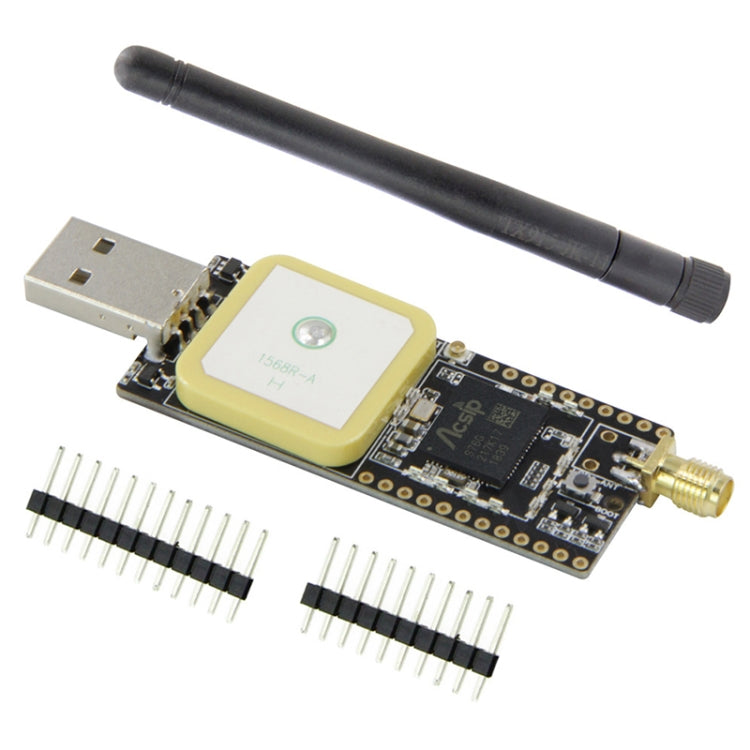

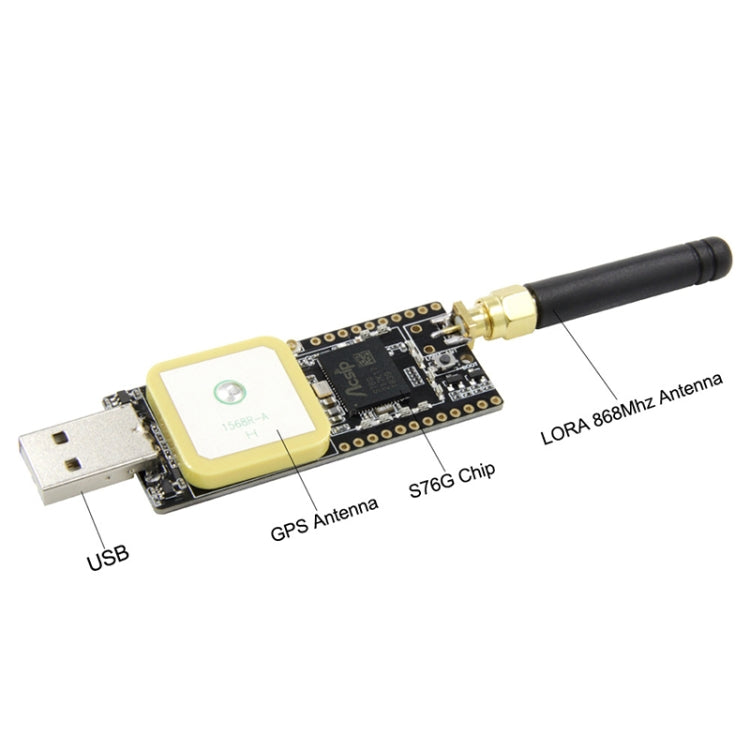

1. Main chip: S76G Lora Chip
2. Button: BOAT
3. Auto clock: 26 MHz active crystal
4. Antenna Model: LORA 868 MHZ GPS Antenna
5. Temperature: -45-80 Degrees C
6. Size: 78.12 x 25.40 x 62.67mm

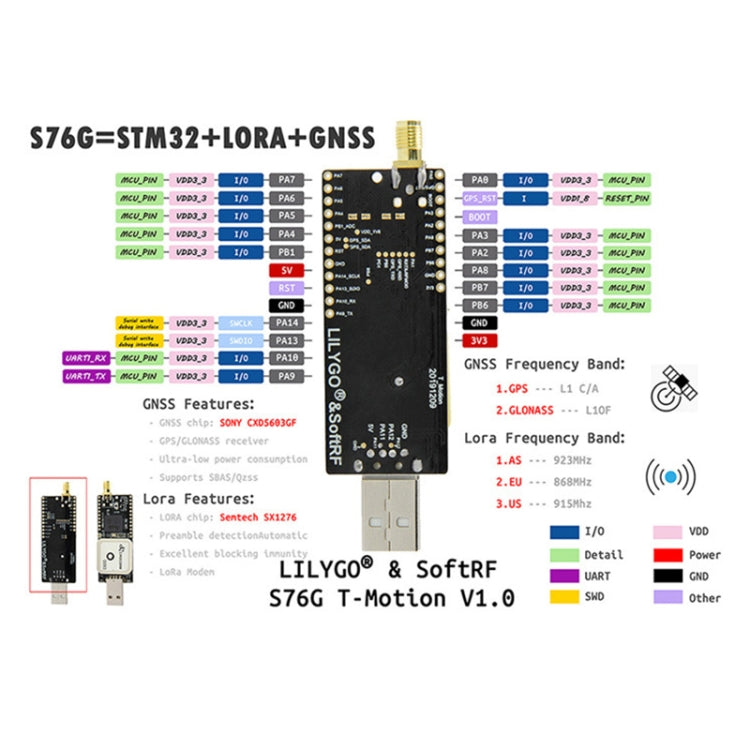

Microcontroller:
1. STM32L073Z
2. High-performance ARM Cortex--M + 32-bit RISC core, working frequency 32MH
3. 192 kilobytes of flash
4. USB2.0 Full Speed a??a??Device / Host
5. 20 kbytes sram
6. Serial Wire Debug (SWD) and JTAG
LORA chip:
1. Semtech SX1276
2. LoRa modem
3. 20dBm constant RF output vs. V power supply
4. Programmable bit rate up to 37500bps
5. High sensitivity: as low as -137dBm
6. Leader detection payload up to 128 bytes, automatic RF sensing with using ultra-high-speed AFC, and CAD anti-blocking ability
GNSS chip:
1. CXD5603GF
2. GPS / GLONASS receiver
3. Ultra-low power
4. Supports SBAS / QZSS
Specification:
|
Package Weight
|
| One Package Weight |
0.07kgs / 0.15lb
|
| One Package Size |
11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch
|
| Carton Weight |
7.50kgs / 16.53lb
|
| Carton Size |
57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch
|
| Loading Container |
20GP: 609 cartons * 100 pcs = 60900 pcs
40HQ: 1414 cartons * 100 pcs = 141400 pcs
|
|
