Product Details
Personal in-ear monitor amplifier, in-ear monitor amplifier for personal monitor applications，

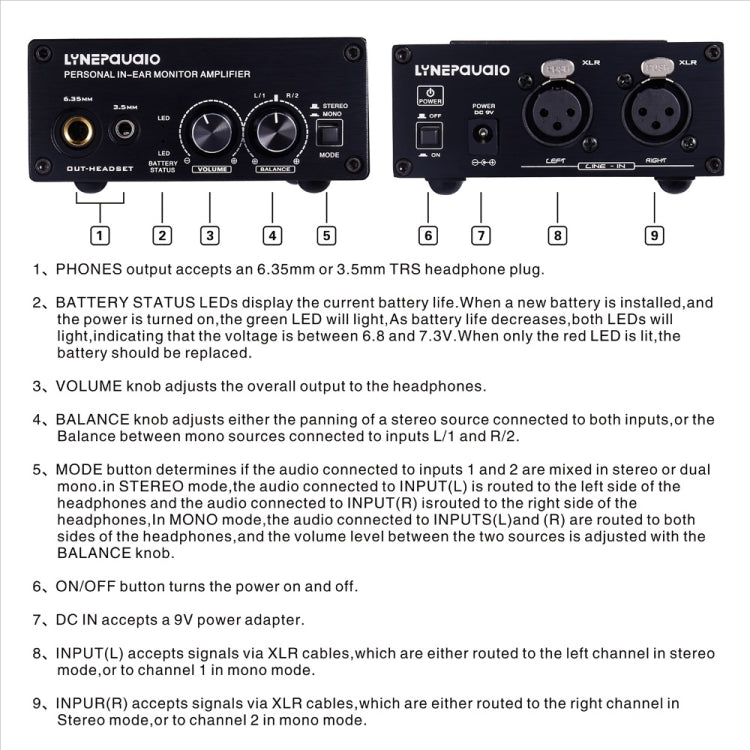

high power and "drummer proof" headphones output, dual XLR inputs allow for 2-channel mono or stereo operation, switchable stereo/mono operation with mix function, level and balance/mix controls, runs up to 12 hours on a 9V battery(not included), battery control with dual LED indicators, operates on DC 9V power supply (included), integrated current limit protects your ears and headphone.
Specification
1. Input: 2 x XLR connector,balanced
2. Output: 6.35mm and 3.5mm TRS connector
3. Input impedance: 20K ohm
4. Output impedance: 10K ohm per channel
5. Frequency response: 20 Hz-80K Hz(+/-0.5 dB)
6. THD + N: 0.01%
7. Signal-to-noise ratio: >90 dB(A-weighted)
8. CMRR: >50 dB
9. Crosstalk: >40dB
10. System Data
- Normal input level: 2 dBu
- Max input level: 6 dBu
- Limit input level: 7 dBu
- Max output level: 9.5 dBu
11. Indicators
- LEDs: Power indicator(green)，battery control indicator(red)
- Voltage: Green LED lit：voltage>7.3V，Both green and red LED lit：voltage = 6.8-7.3V，Red - LED lit: Voltage<6.8V
12. Battery: 9V block alkaline or 8.4V NIMH rechargeable battery

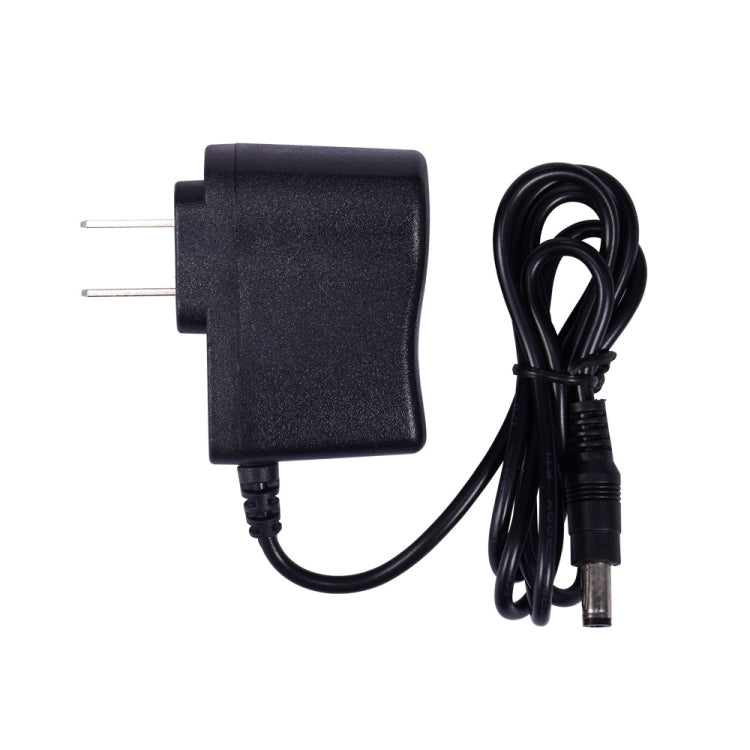

13. Power adapter: Ext. input power DC 9V (pin = pos，ring = neg)
14. Standby power consumption: 300 mW
15. Max operation current: 90 mA
16. Max output power into 20 ohm: 40 mW per channel
17. Product net weight: 0.32kg

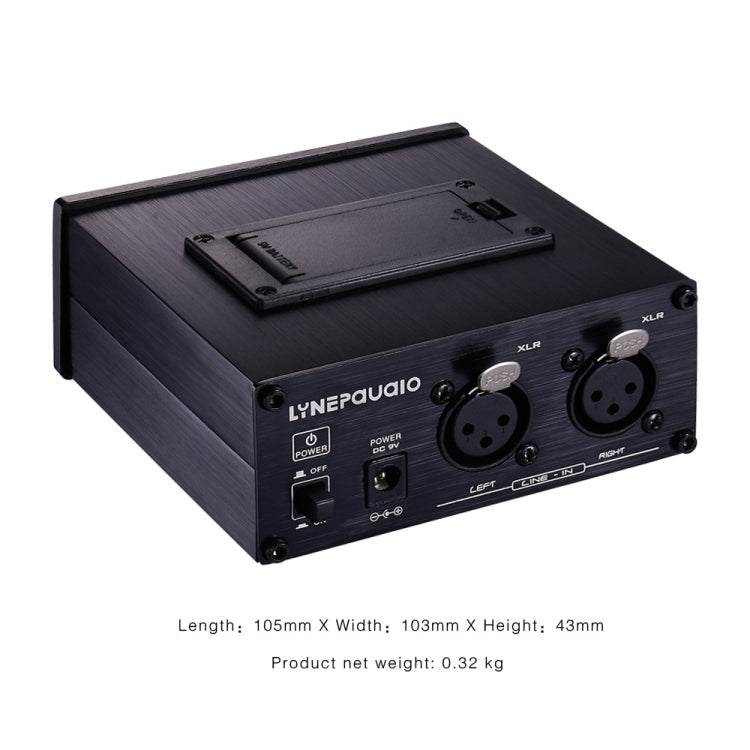

18. Product size: length: 105mm x width: 103mm x height: 43mm
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.09lb
|
| One Package Size |
22cm * 18cm * 6cm / 8.66inch * 7.09inch * 2.36inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
44cm * 36cm * 36cm / 17.32inch * 14.17inch * 14.17inch
|
| Loading Container |
20GP: 467 cartons * 24 pcs = 11208 pcs
40HQ: 1085 cartons * 24 pcs = 26040 pcs
|
|
