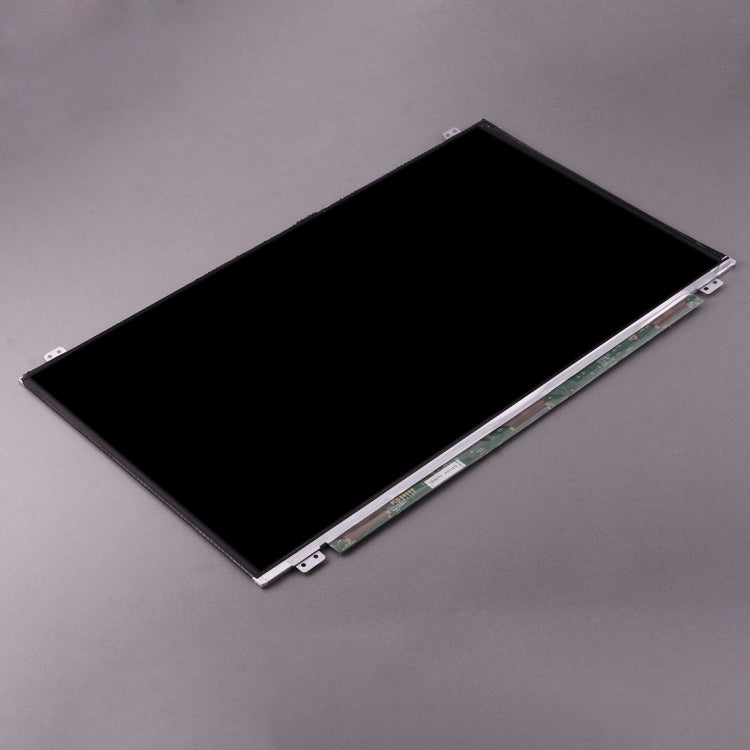

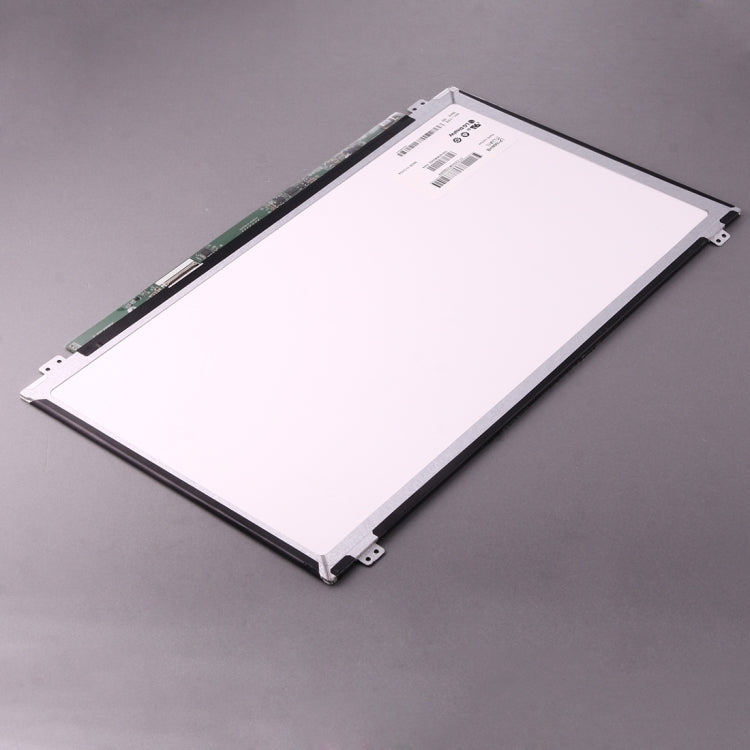

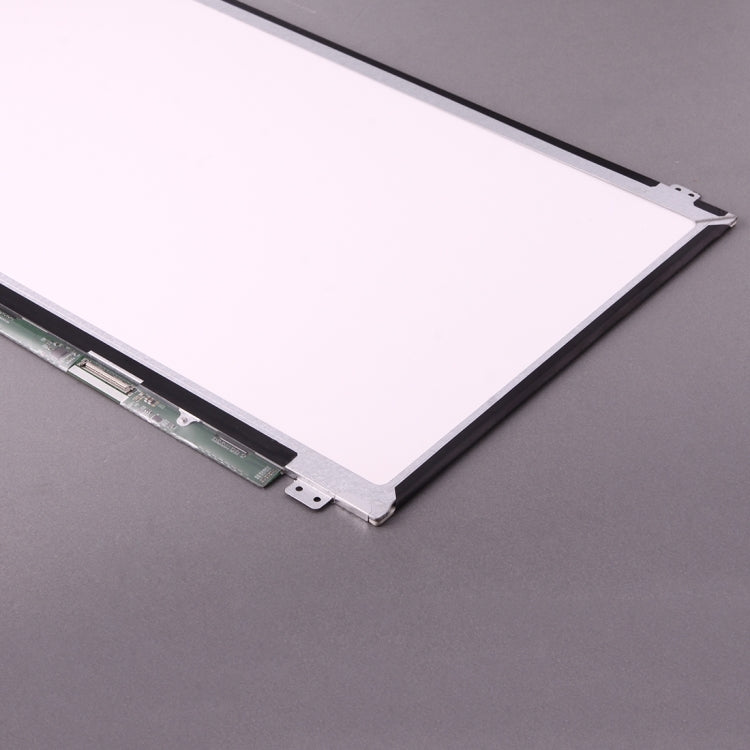

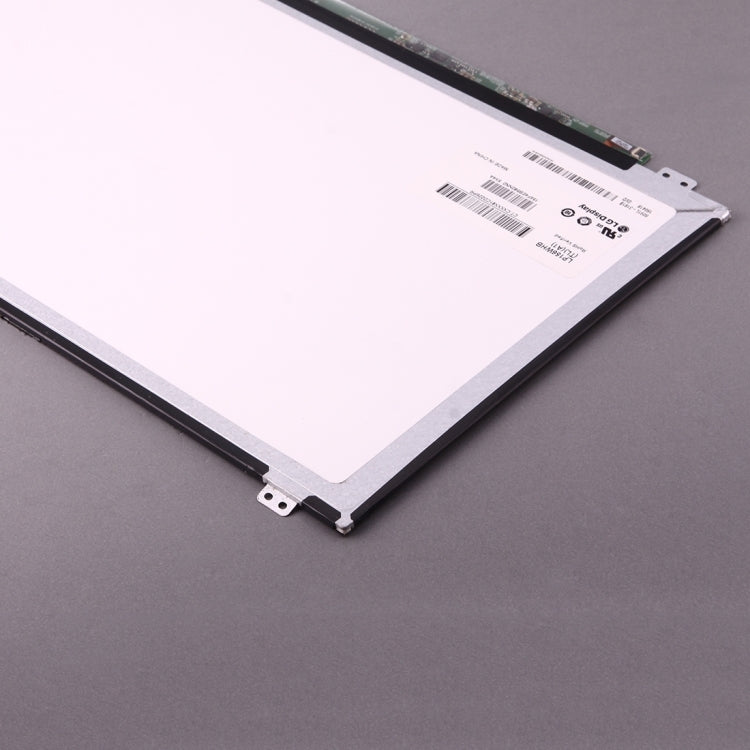

1. High quality replacement screen panel.
2. High resolution 1366 x 768 pixel.
3. 16:9 aspect ratio standard screen.

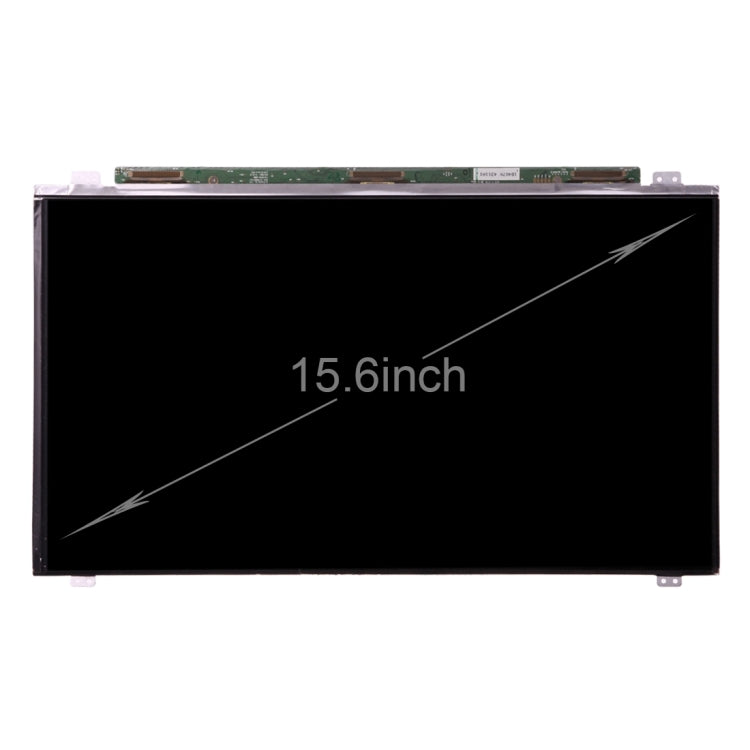

4. 15.6 inch diagonal screen size.
5. Backlight Lamp: LED type.

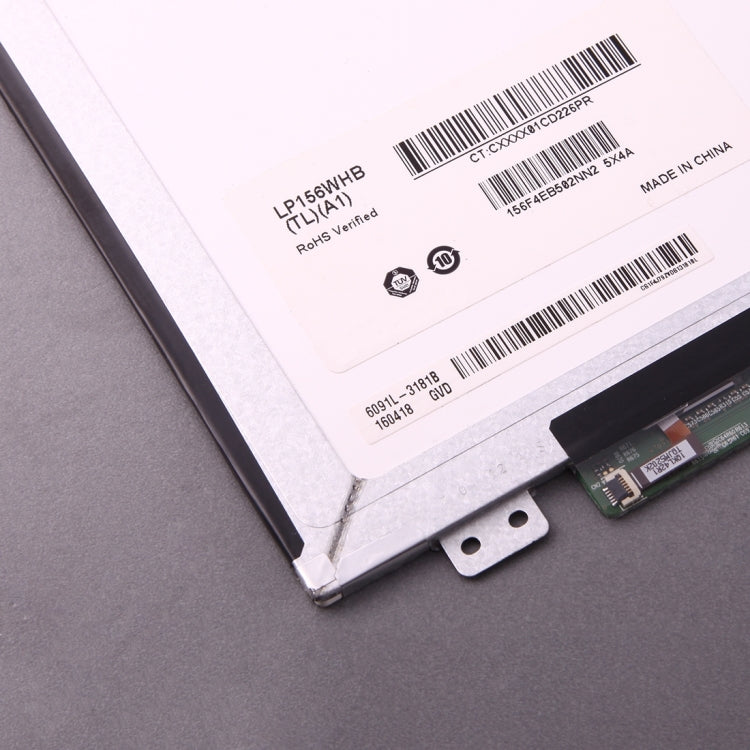

6. Suitable model: NT156WHM-N10 LP156WHB B156XW04/XTN03 LP156WH3/WHU.
Specification:
|
General
|
| Screen Type |
LCD module, a-Si TFT-LCD |
| Resolution |
1366 (RGB) x 768 (WXGA) |

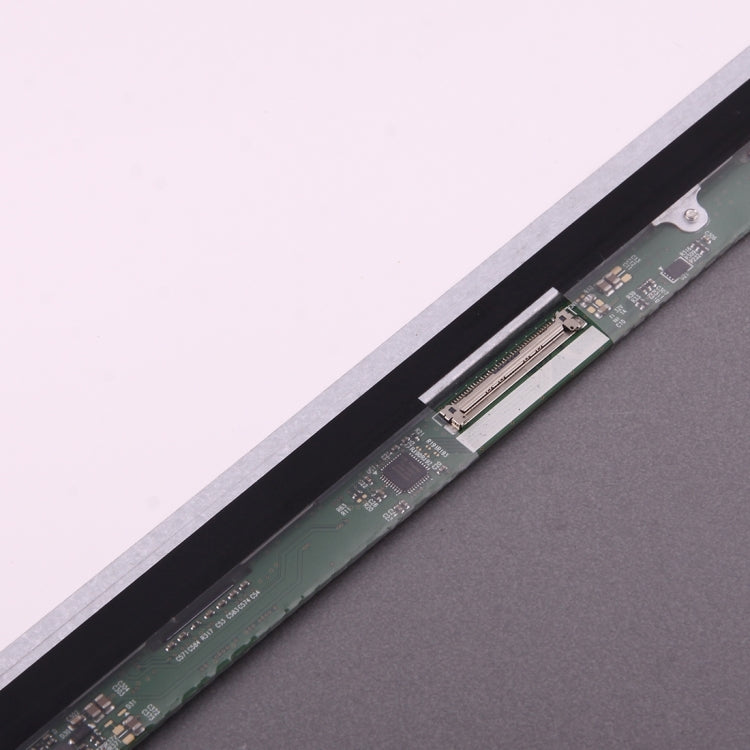

| Connector |
LVD (1 ch, 6 bit), 40 pin, Terminal |
| Working Mode |
TN, Normal white display, Transmissive |
| Display Color |
262k 45%(CIE1931) |
| Viewing Angle |
40/40/15/30(CR>=10) |
| Shape Style |
Medium thick screen (PCBA Straight, 3.4~4mm) |
| Surface |
Mirror (Haze 0%), Hard coating (3H) |
| Backlight Type |
WLED, 12K hours, with LED diver |
| Response Speed |
16 (Typ.) (Tr + Td) ms |
| View Size |
347.5 x 196.8mm |
| Display Size |
344.232 x 193.536mm |
|
|
Environment
|
| Operating Temperature |
0~50 Degrees Celsius |
| Storage Temperature |
-20 ~ 60 Degrees Celsius |
|
|
Package Weight
|
| One Package Weight |
1.15kgs / 2.54lb
|
| One Package Size |
45cm * 33cm * 8cm / 17.72inch * 12.99inch * 3.15inch
|
| Carton Weight |
12.50kgs / 27.56lb
|
| Carton Size |
62cm * 40cm * 30cm / 24.41inch * 15.75inch * 11.81inch
|
| Loading Container |
20GP: 358 cartons * 10 pcs = 3580 pcs
40HQ: 832 cartons * 10 pcs = 8320 pcs
|
|
