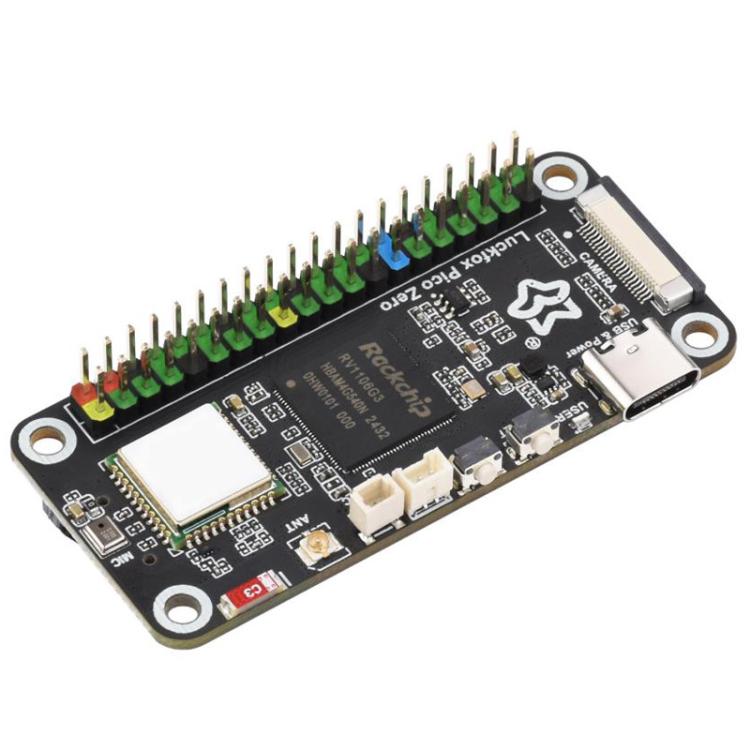

1. Single-core ARM Cortex-A7 32-bit CPU with integrated NEON and FPU

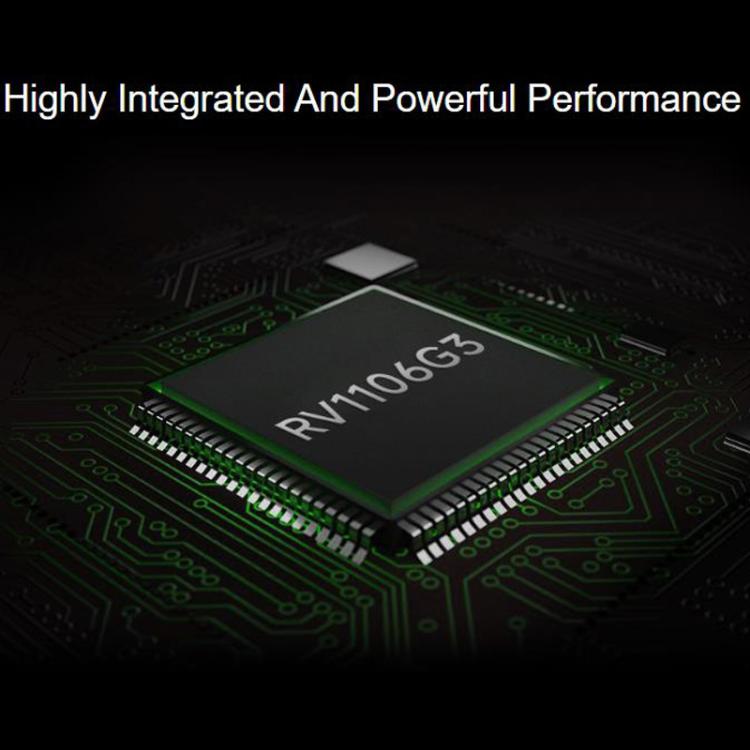

2. RV1106G3 features Rockchip proprietary 4th-generation NPU, delivering high computational precision with support for mixed quantization of int4, int8, and int16. Its int8 computing power reaches 1 TOPS.
3. Integrated proprietary 3rd-generation ISP3.2 supporting 8MP resolution, with HDR, WDR, and multi-level noise reduction among various image enhancement and correction algorithms
4. Powerful encoding performance with intelligent encoding that adapts to scenes to reduce bitrate, achieving over 50% savings compared to conventional CBR mode. Enables high-definition capture with significantly smaller video file sizes
5. Integrated 16-bit 256MB DDR3L DRAM meets demanding memory bandwidth requirements

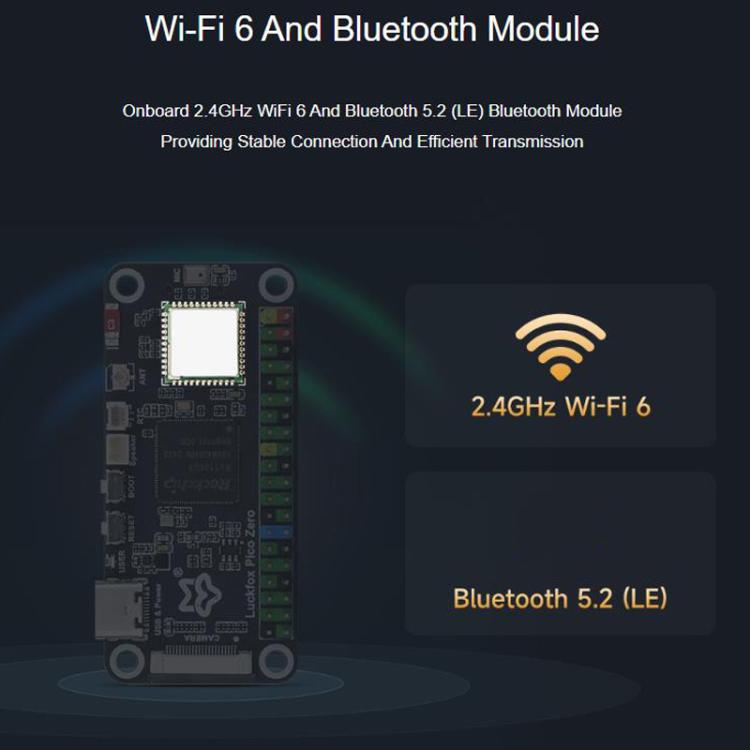

6. Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2 (LE) modules ensure stable connectivity and efficient data transfer

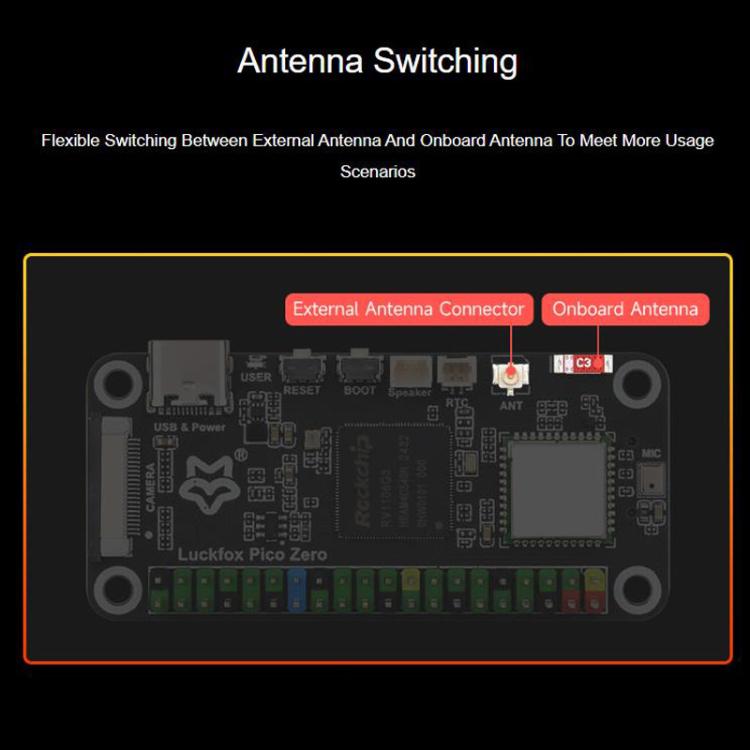

7. Flexible switching between external antennas and onboard surface-mount antennas accommodates diverse application scenarios

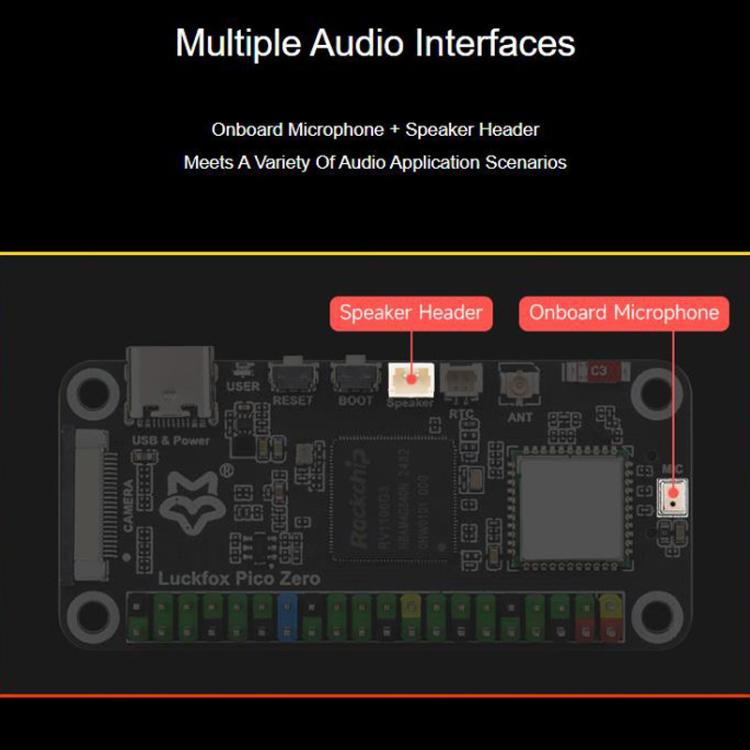

8. Surface-mount microphone + speaker interface for audio applications

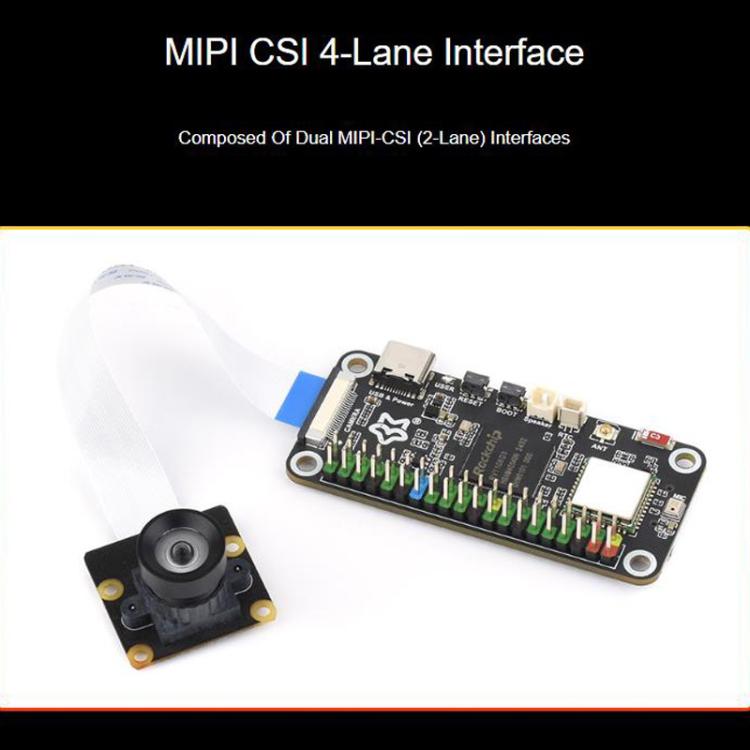

9. Features a MIPI CSI 4-lane interface composed of two MIPI-CSI (2-lane) channels
10. Suitable for diverse applications including smart home devices, industrial automation equipment, smart display devices, robotics, intelligent transportation systems, and new retail solutions

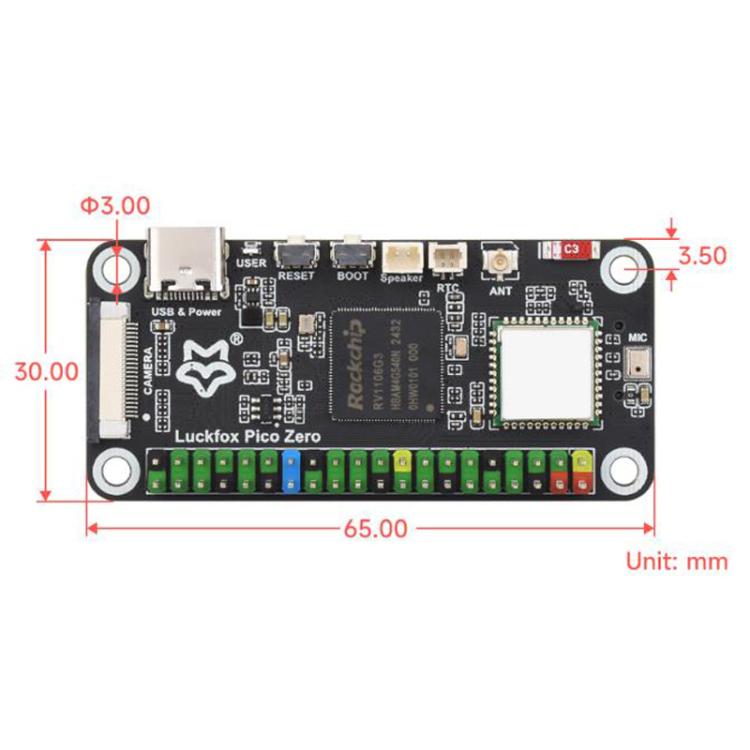

11. Size: about 6.5 x 3cm
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch
|
| Carton Weight |
23.00kgs / 50.71lb
|
| Carton Size |
47cm * 38cm * 34cm / 18.5inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 439 cartons * 432 pcs = 189648 pcs
40HQ: 1019 cartons * 432 pcs = 440208 pcs
|
|
