Specification:

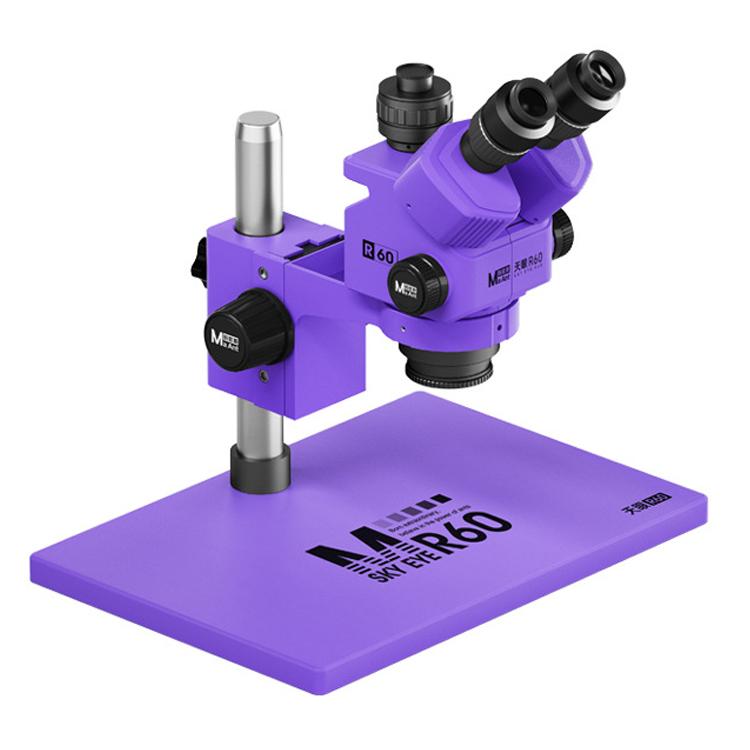

1. Model: Sky Eye R60
2. Optical magnification: 7.0-60X continuously adjustable
3. Magnification of the main objective lens: 0.7X-6.0X
4. Zoom ratio: 1:10
5. Eyepiece magnification: WF10X/23 Adjustable wide-field eyepiece
6. Working distance: about 100mm
7. Interface: Synchronous latch
8. Focusing mechanism: The tightness of the focusing hand wheel is adjustable, with a lifting range of 50mm
9. Base column: The height of the column 330mm
10. The size of the base plate: 32 x 26 x 1.5cm
11. Observation head: 45-degree inclined, hinged three-eye type
12. Interpupillary distance range: 52mm-75mm
13. Lighting method: 26-bead LED adjustable light source
14. Net weight: about 4.5kg

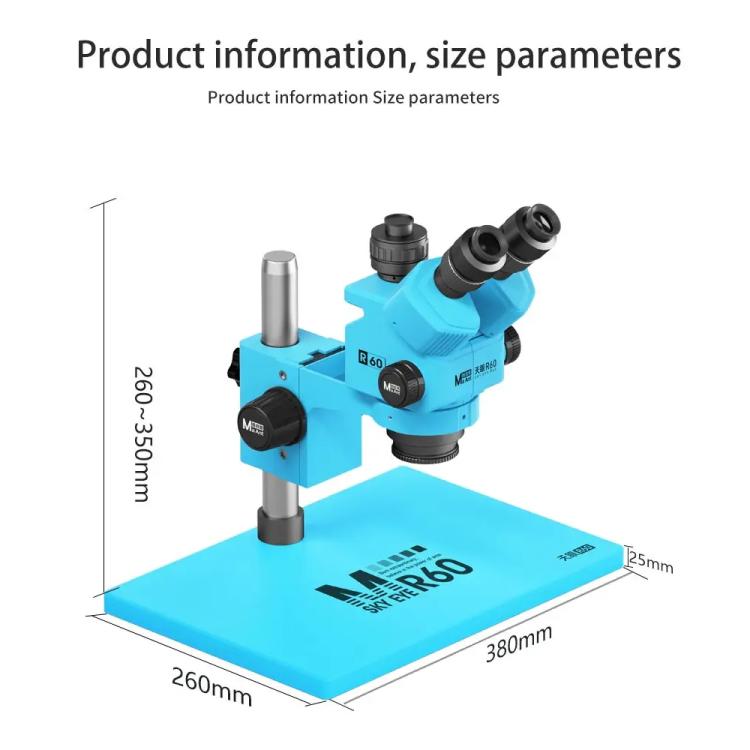

15. Product size: 38 x 35 x 26cm
Features:

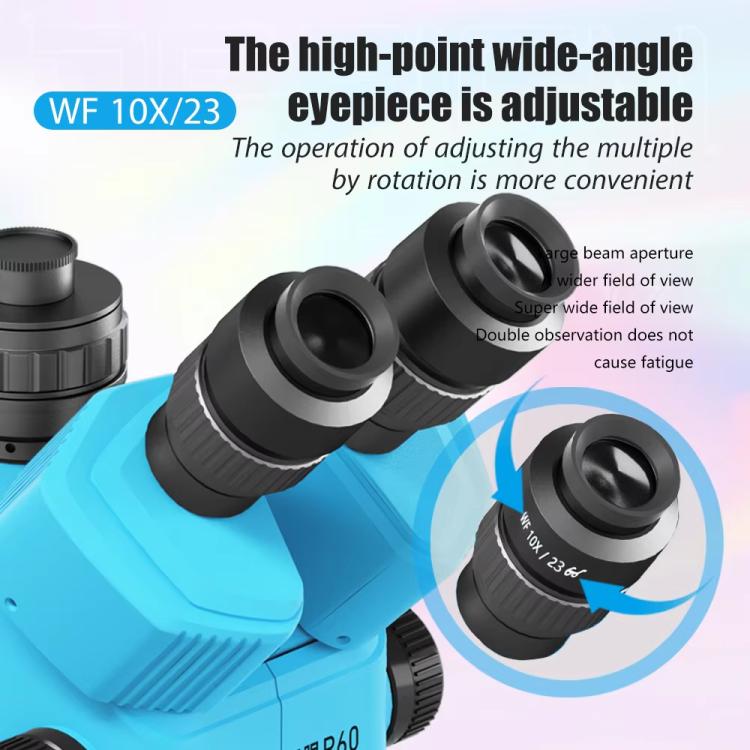

1. High eye point wide-angle eyepiece adjustable, the rotational adjustment ratio is continuously adjustable from 7.0 to 60X
2. Large beam aperture, a wider field of view, super wide field of view, double observation does not cause fatigue
3. 7.0 to 60 times stepless rate adjustment: Through the magnification fine-tuning knob, precisely master the required magnification and control the magnification of the objective lens from 0.7 to 6.0 times

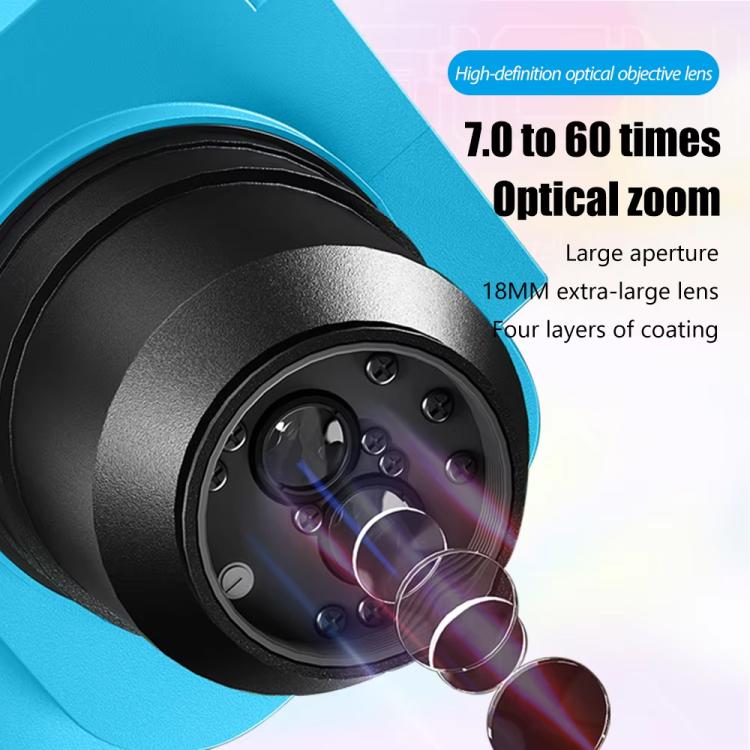

4. 7.0-60X optical zoom: Megapixel high-definition lens, high definition optical objective, large aperture, 18mm super large lens, four layers of coating

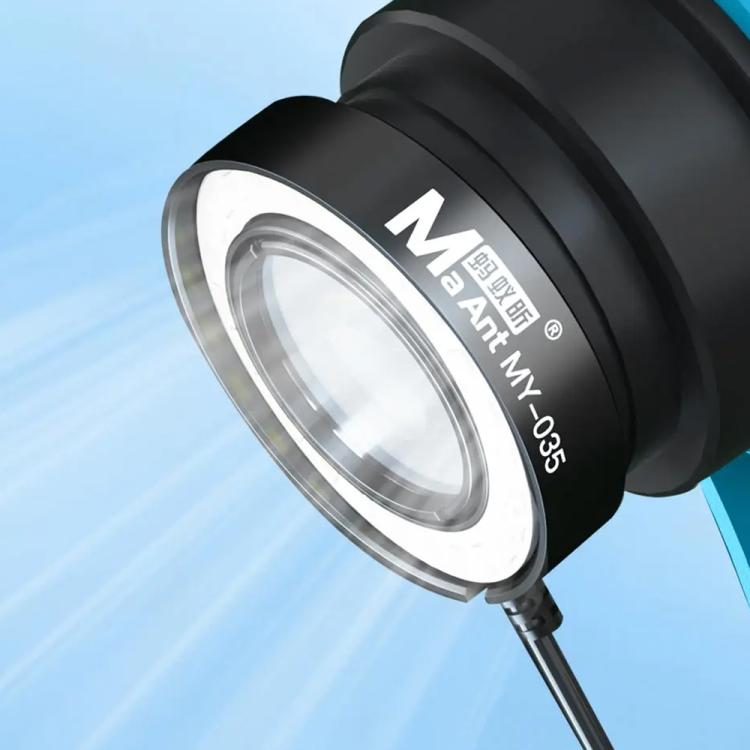

5. It comes with an LED light and the brightness is adjustable, the knob adjustment is convenient and simple to operate, high brightness, no overheating, and oil fume prevention, it has good dust-proof and light-transmitting properties and is energy-saving and power-saving

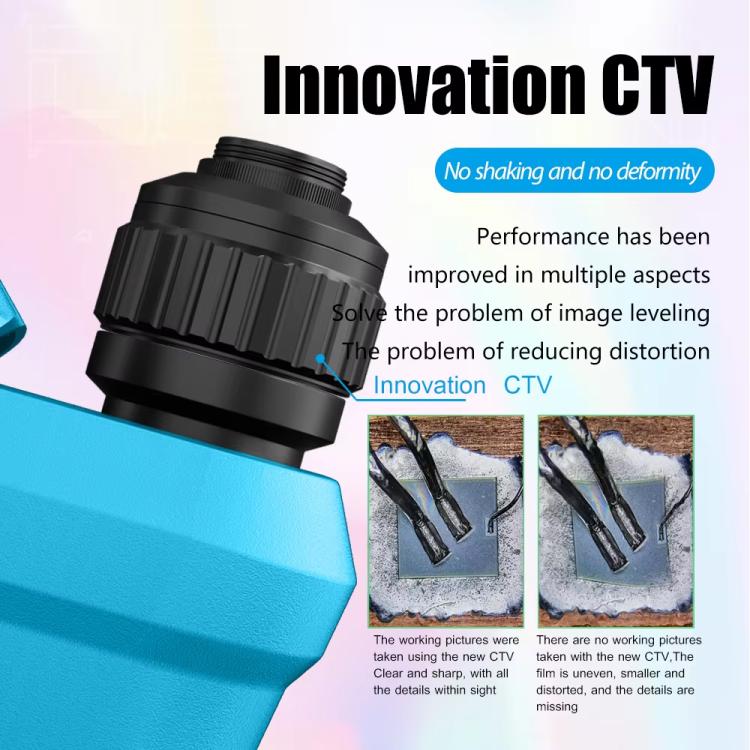

6. Innovation CTV, no shaking and no deformity: The performance is improved in multiple aspects, solving the problems of image flatness and reducing distortion, multi-directional performance improvement, to solve the image flat, reduce the distortion of the problem

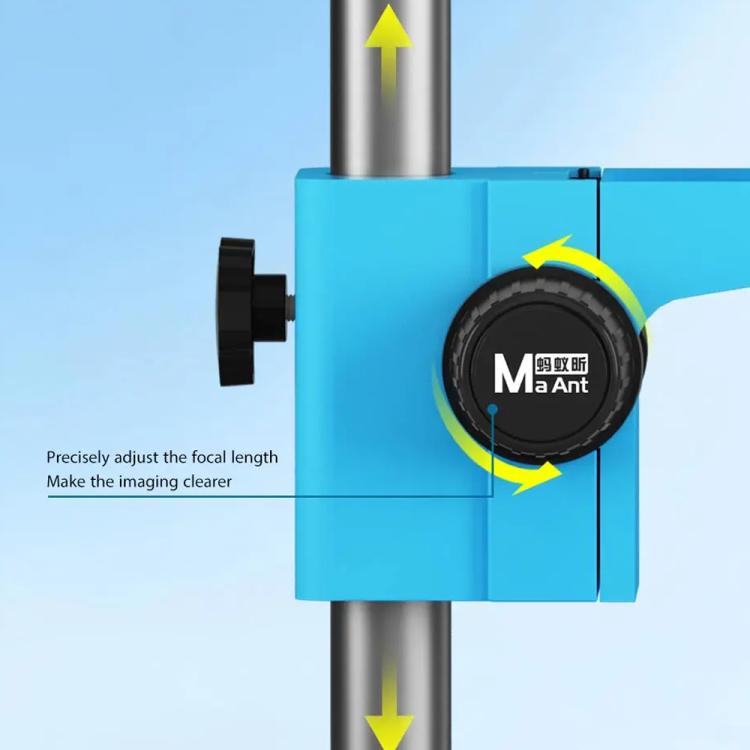

7. Precise focusing, focal length adjustment knob: It can be adjusted up and down by the knob, height, free rise and fall, accurate focusing

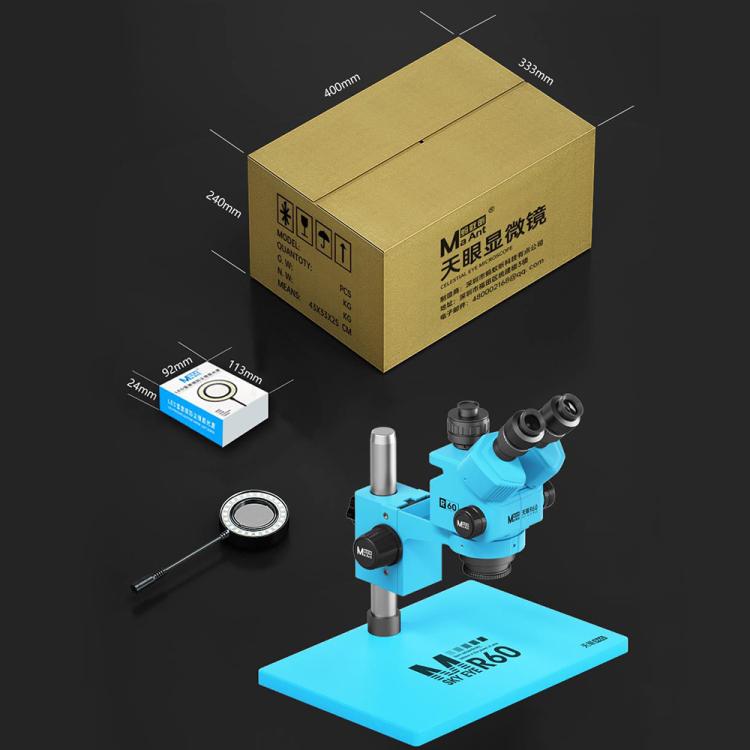

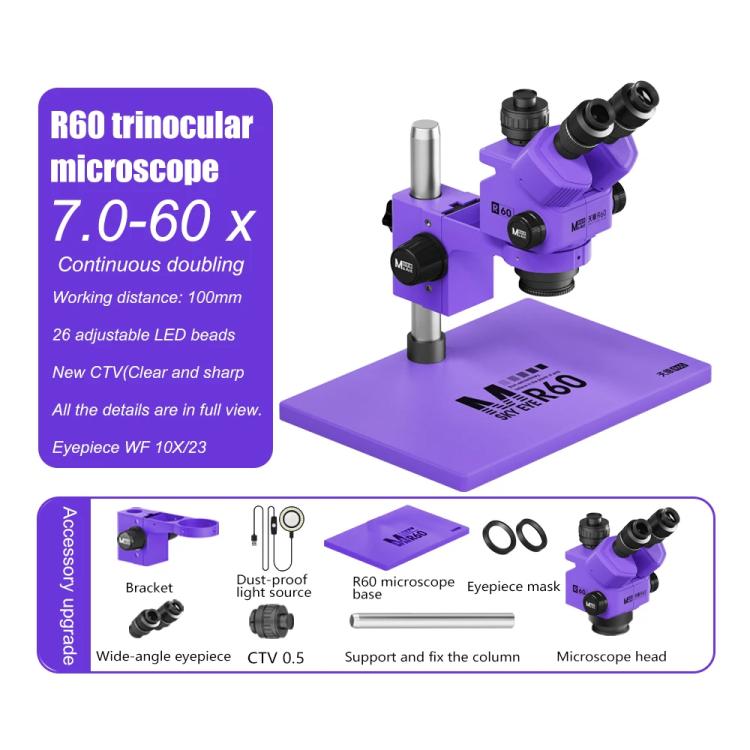

8. Package includes:
1 x Microscope Head
1 x Microscope Bracket
1 x LED Light
2 x WF 10X/23 Eyepiece
1 x Eyepiece Mask
1 x CTV Lens
1 x Column
1 x Base
Specification:
|
Package Weight
|
| One Package Weight |
6.00kgs / 13.24lb
|
| One Package Size |
45cm * 35cm * 28cm / 17.72inch * 13.78inch * 11.02inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
46cm * 36cm * 29cm / 18.11inch * 14.17inch * 11.42inch
|
| Loading Container |
20GP: 555 cartons * 1 pcs = 555 pcs
40HQ: 1289 cartons * 1 pcs = 1289 pcs
|
|
