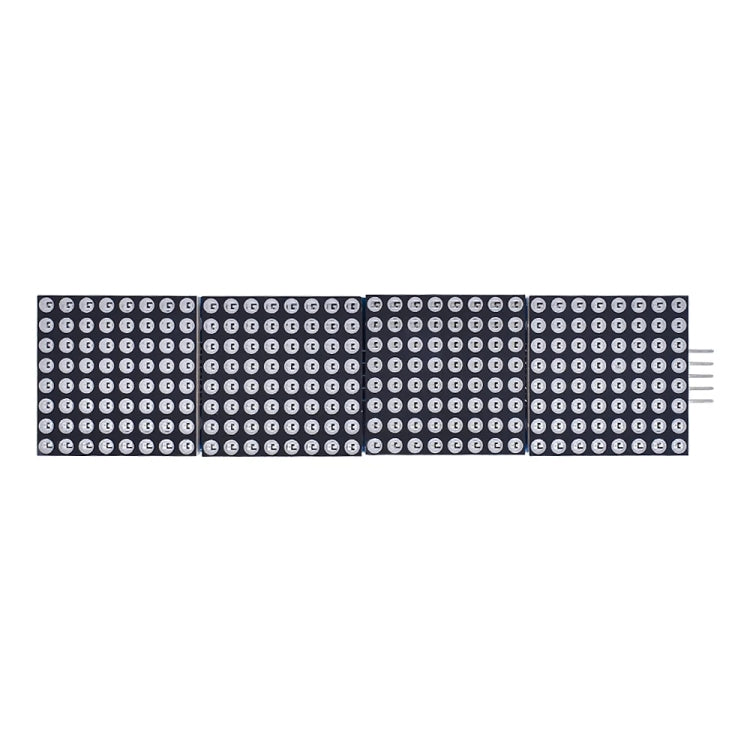

1. A single module can drive an 8x8 common negative dot matrix
2. Module operating voltage: 5V

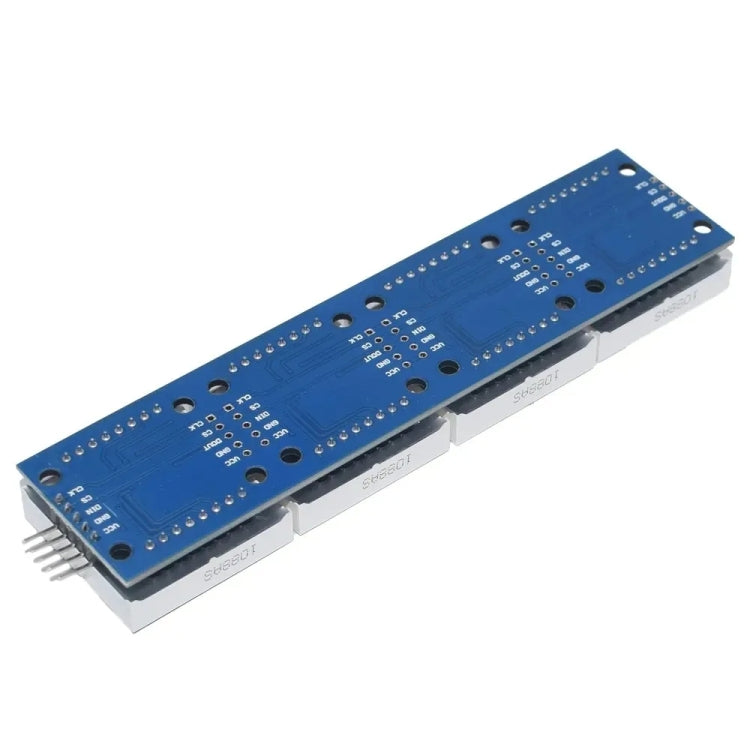

3. With 64 fixed screw holes, hole diameter 3mm

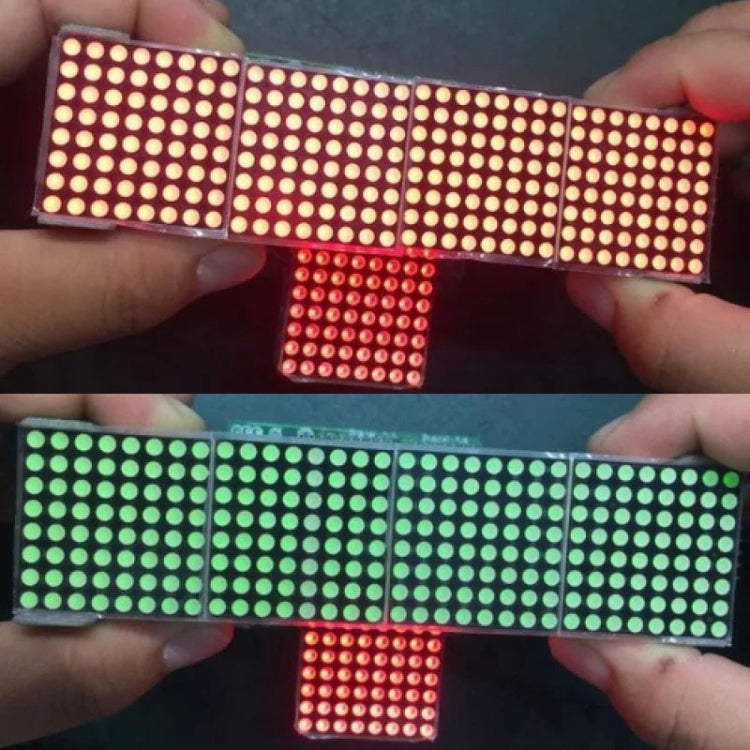

4. With input/output interfaces, support multiple modules cascade.
5. 3 IO ports can drive 1 dot matrix, no flicker when displaying.

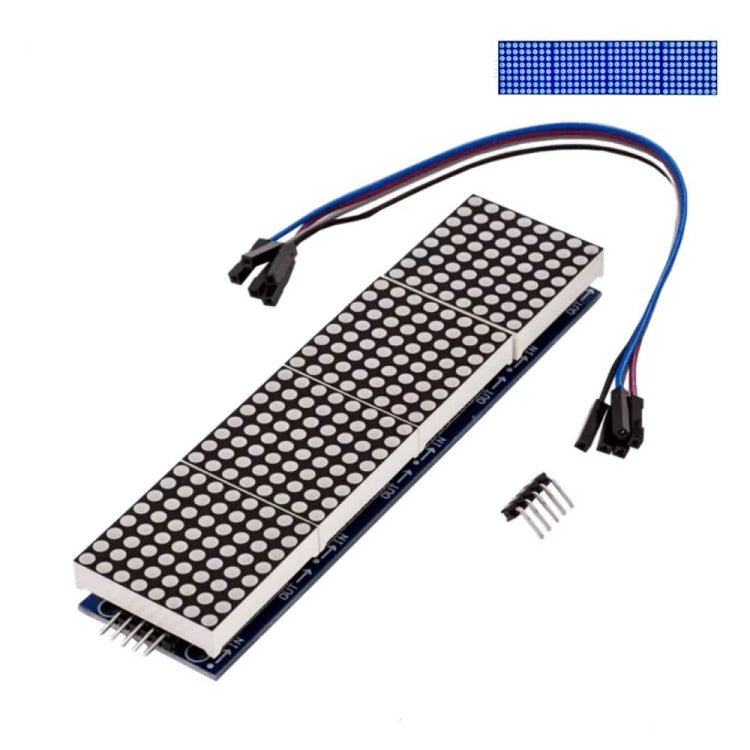

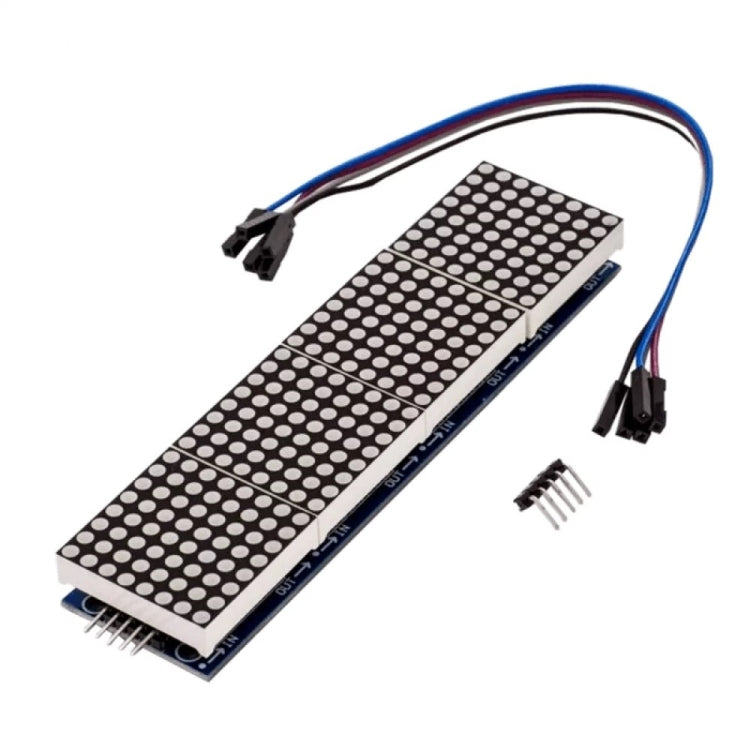

6. Size: 12.8 x 3.2 x 1.3cm, cable length about 20cm
7. Weight: about 45.2g
Wiring instructions:
1. Left side is input port, right side is output port.
2. When controlling a single module, connect the input port to the CPU.
3. When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on.
4. Take 51 microcontroller as an example:
- VCC → 5V
- GND → GND
- DIN → P2.2
- CS → P2.1
- CLK → P2.0
Specification:
|
Package Weight
|
| One Package Weight |
0.06kgs / 0.14lb
|
| One Package Size |
15cm * 6cm * 2cm / 5.91inch * 2.36inch * 0.79inch
|
| Carton Weight |
15.50kgs / 34.17lb
|
| Carton Size |
50cm * 32cm * 32cm / 19.69inch * 12.6inch * 12.6inch
|
| Loading Container |
20GP: 520 cartons * 240 pcs = 124800 pcs
40HQ: 1209 cartons * 240 pcs = 290160 pcs
|
|
