Model Number:EU
-
Connection:Plug In
-
Output Type:DC
-
Brand Name:ZOORUI
-
Usage:Electric Tool
-
Output voltage:DC1000V
-
Usage:solar
Specification

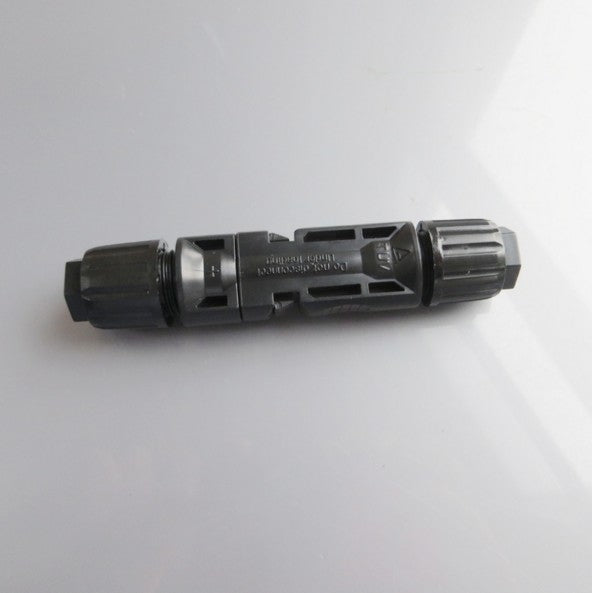

Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II

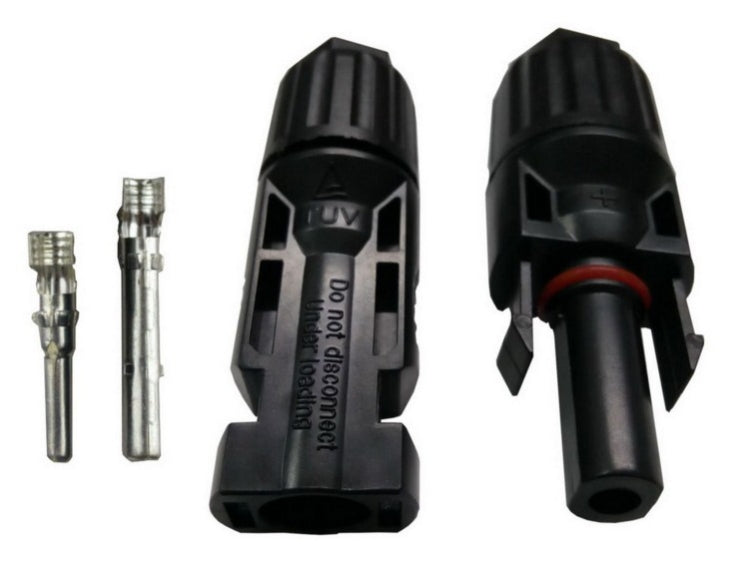

Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
8cm * 5cm * 2cm / 3.15inch * 1.97inch * 0.79inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
60cm * 38cm * 15cm / 23.62inch * 14.96inch * 5.91inch
|
| Loading Container |
20GP: 779 cartons * 441 pcs = 343539 pcs
40HQ: 1810 cartons * 441 pcs = 798210 pcs
|
|
