1. Shell material: plastic
2. Lens material: PC
3. Light source type: LED/H4 halogen bulb
4. Lamp bead type: SMD patch lamp bead/1157H4
5. Working voltage: DC12V
6. Power: 35W for headlights, 1.7W for turn signals
7. Current: 2.91A
8. Waterproof grade: IPX66
9. Weight: 669 grams
10. Size: 7 inches

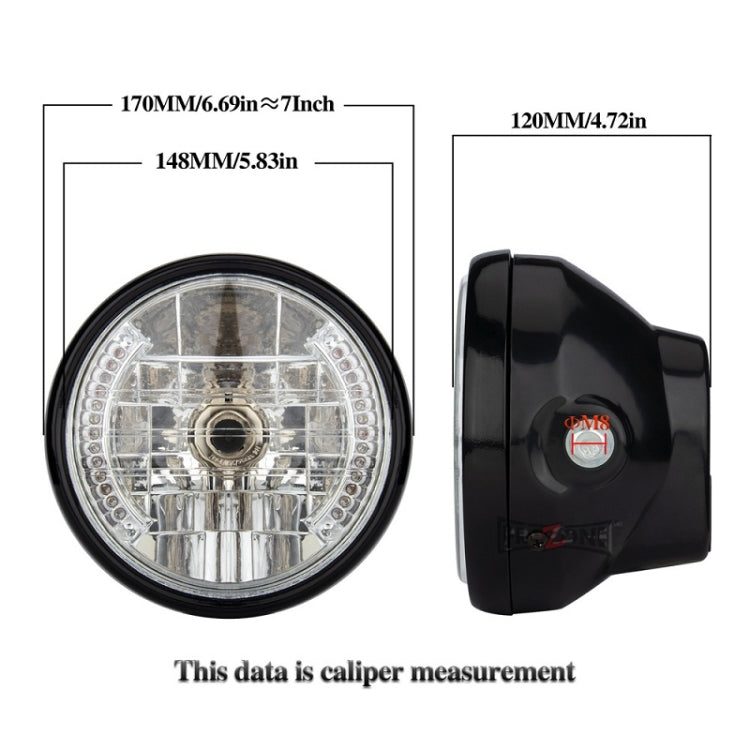

11. Diameter: 170mm

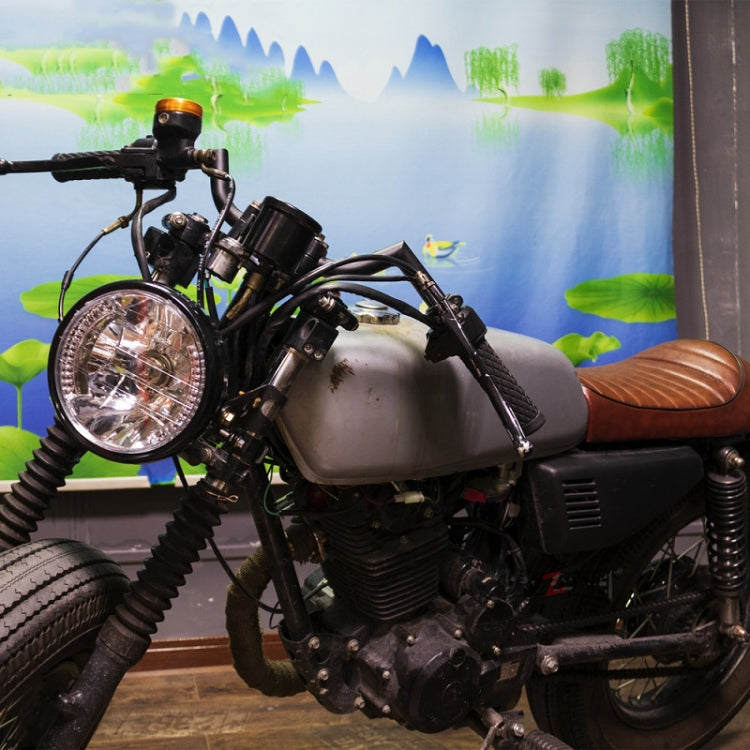

12. Applicable models: scooter, straddle bike, street bike, sports car, wagon, underbone bike, off-road bike, retro bike, ATV/UTV, etc.
Wiring method:

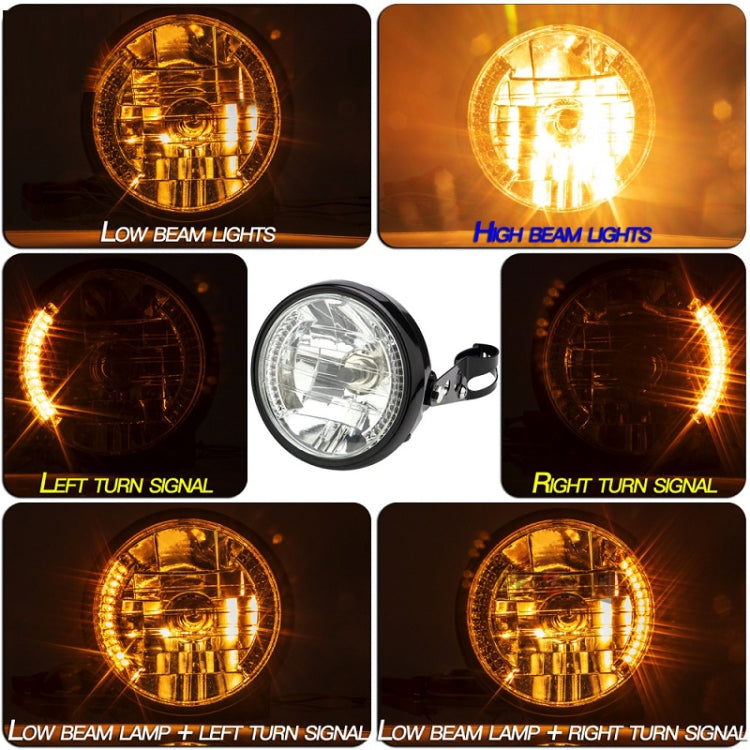

1. Headlights and left and right turn signals are divided into different layouts

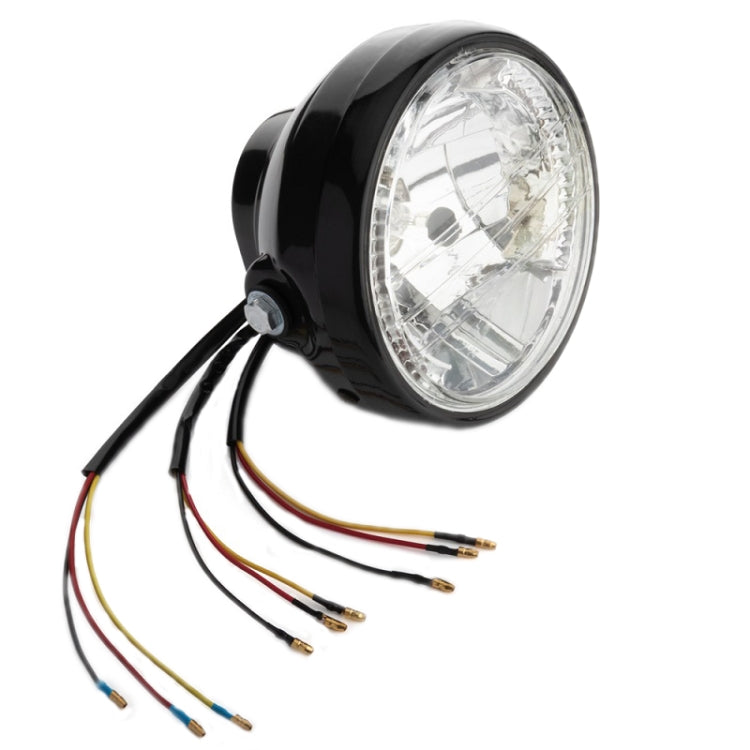

2. There are blue rubber sleeves belonging to the headlights. There are three wires. The black wire is connected to the negative pole, the yellow wire is connected to the close beam, and the red wire is connected to the high beam.
3. There are three wires for each of the left and right turn signals, the black wire is connected to the negative pole, and the red/yellow wire is connected to the positive pole of the turn signal lamp
Specification:
|
Package Weight
|
| One Package Weight |
0.73kgs / 1.60lb
|
| One Package Size |
17cm * 17cm * 15cm / 6.69inch * 6.69inch * 5.91inch
|
| Carton Weight |
24.00kgs / 52.91lb
|
| Carton Size |
50cm * 50cm * 48cm / 19.69inch * 19.69inch * 18.9inch
|
| Loading Container |
20GP: 222 cartons * 30 pcs = 6660 pcs
40HQ: 515 cartons * 30 pcs = 15450 pcs
|
|
