Features:
1. Stable performance: Built-in industrial microcontroller, it can run stably in cold, high temperature and humid environment.

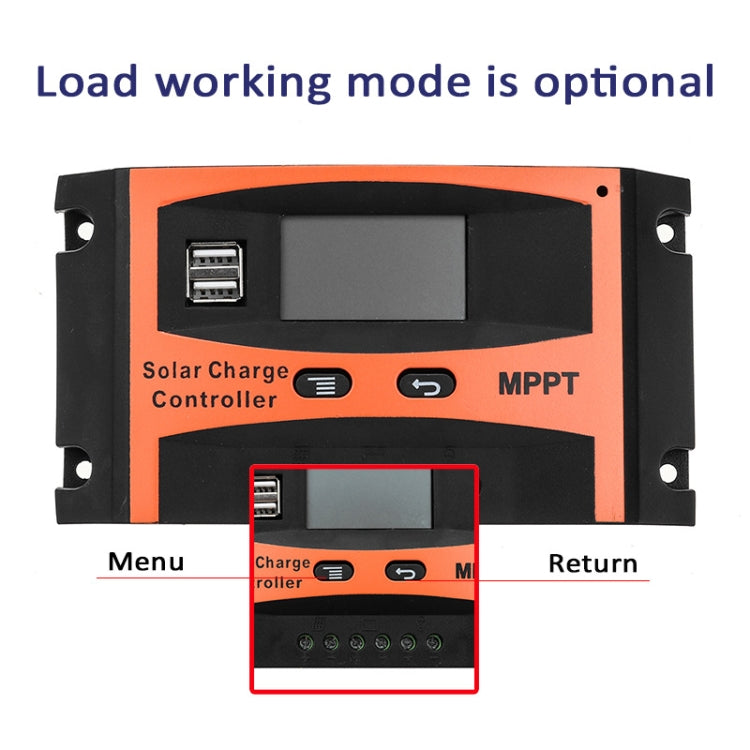

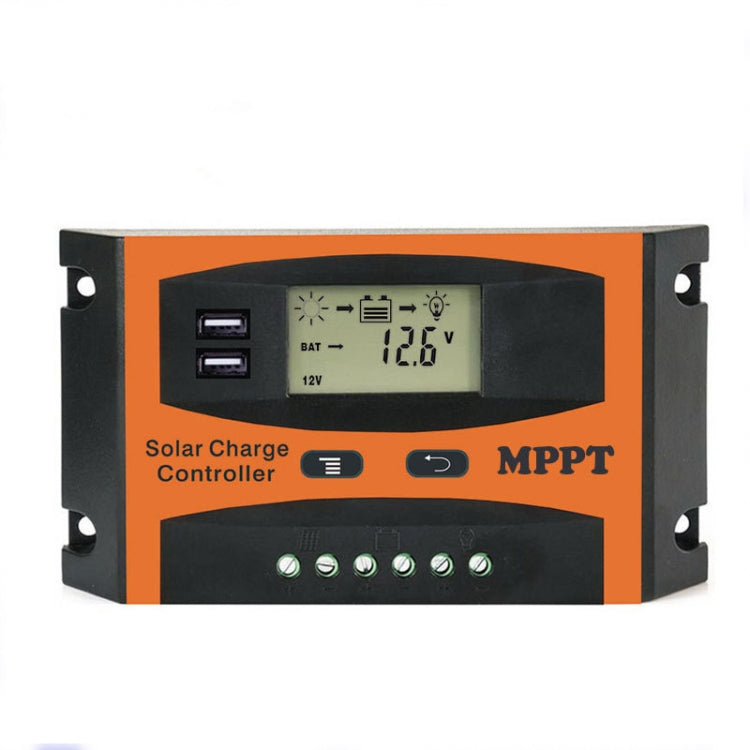

2. The 12V/24V voltage can be automatically identified and intelligentized, providing more convenience for your life.

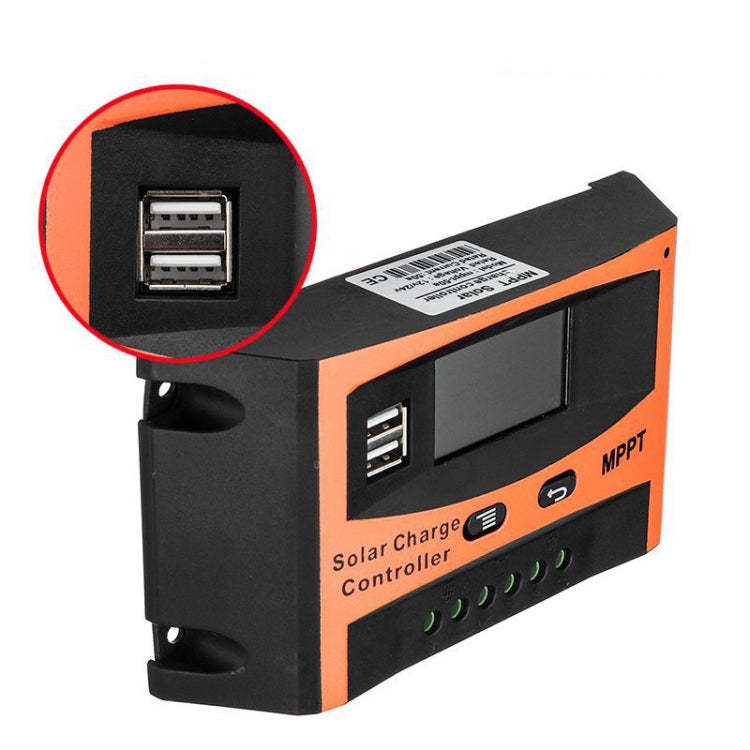

3. Large LCD display: to ensure simple and intuitive operation.

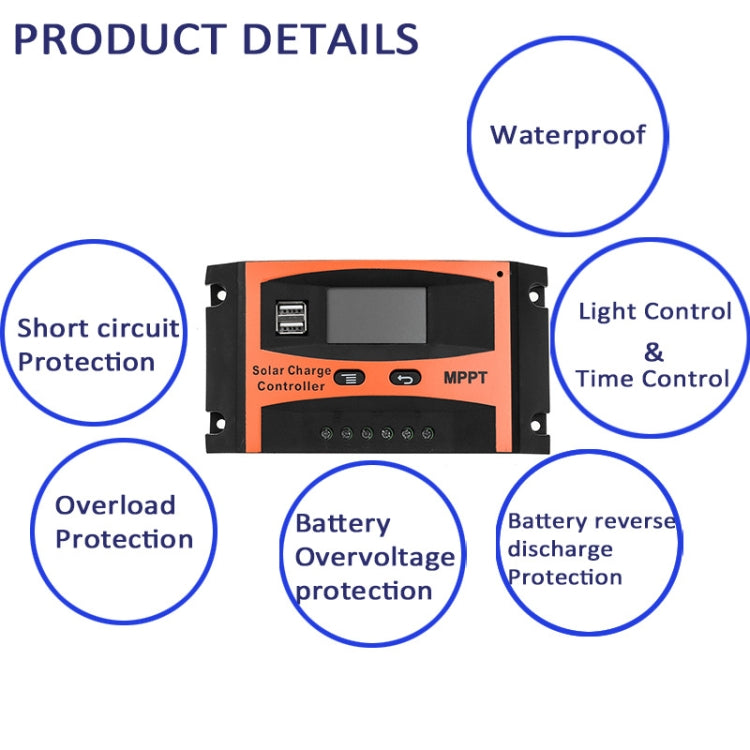

4. Dual USB output: easily connect to the mobile phone, you can quickly and powerfully charge the mobile phone.
5. Comprehensive protection: provide overcharge, overdischarge, overload protection and short circuit and reverse connection protection.
6. Wide load work: easy to apply to different types of street lights and monitoring equipment.
7. Wide range of applications: used for solar green light, solar billboards, solar insecticidal lights, solar power systems, ship solar power systems, solar power systems, etc.
parameter:
1. Rated charging current: 30A 40A 50A 60A
2. Rated load current: 30A 40A 50A 60A
3. Working voltage: 12V / 24V
4. Floating charging voltage: 13.8V / 27.6V (adjustable)
5. Undervoltage protection: 10.7V / 21.4V (adjustable)
6. Charger controller specification charging method: 3 kinds
7. Working temperature: 35-60 degrees Celsius
8. Storage temperature: 40 -70 degrees Celsius
Specification:
|
Package Weight
|
| One Package Weight |
0.34kgs / 0.75lb
|
| One Package Size |
19cm * 11cm * 5cm / 7.48inch * 4.33inch * 1.97inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 78 pcs = 13806 pcs
40HQ: 412 cartons * 78 pcs = 32136 pcs
|
|
