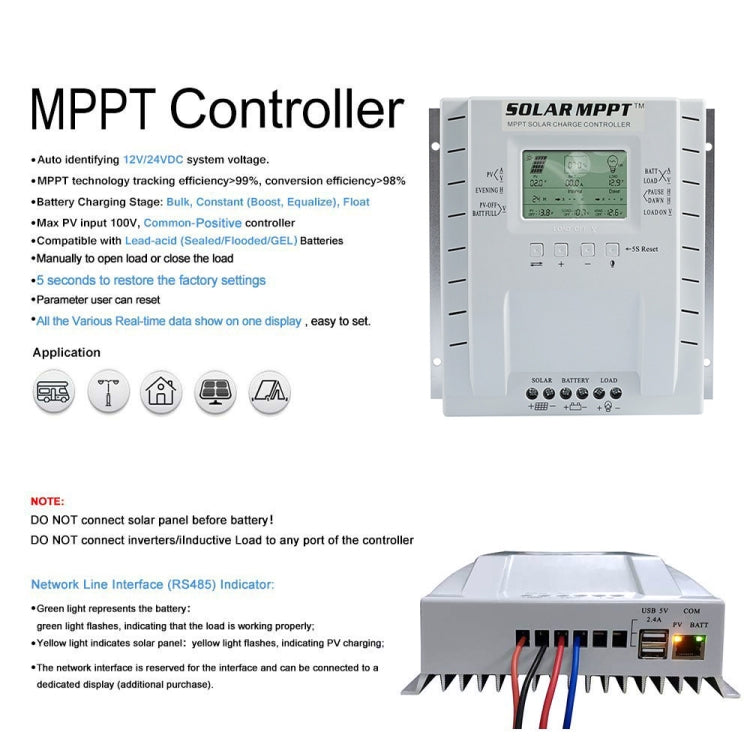

Features:
1. The 12V/24V voltage can be automatically identified and intelligentized, providing more convenience for your life.

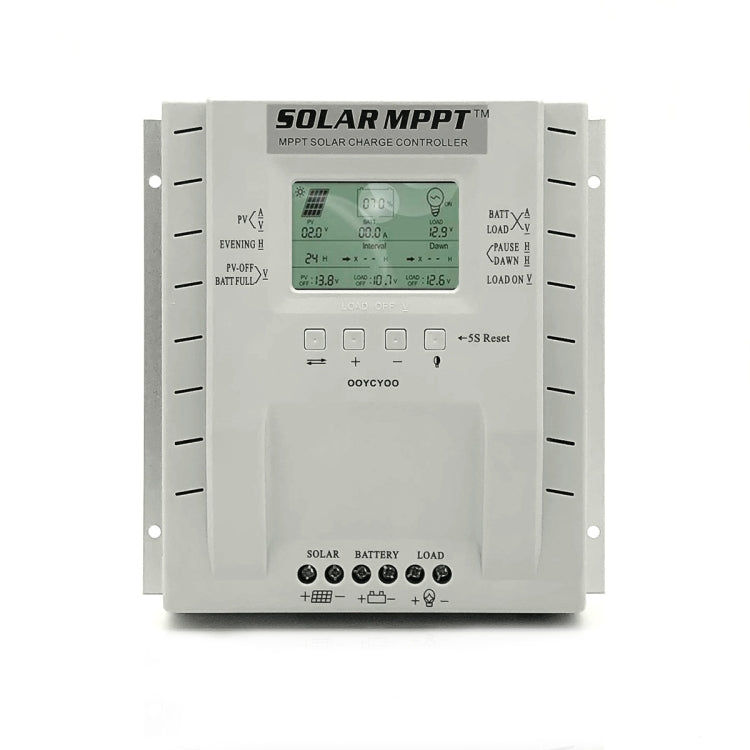

2. Large LCD display: to ensure simple and intuitive operation.
3. The input voltage of the solar panel is up to 100V, which is suitable for various specifications of solar panels
4. The power supply adopts ultra-low power consumption chips to reduce static standby power consumption and reduce energy consumption
5. USB 5V output for charging mobile phones and fans
6. Dual time control mode
7. Comprehensive protection: provide overcharge, overdischarge, overload protection and short circuit and reverse connection protection.

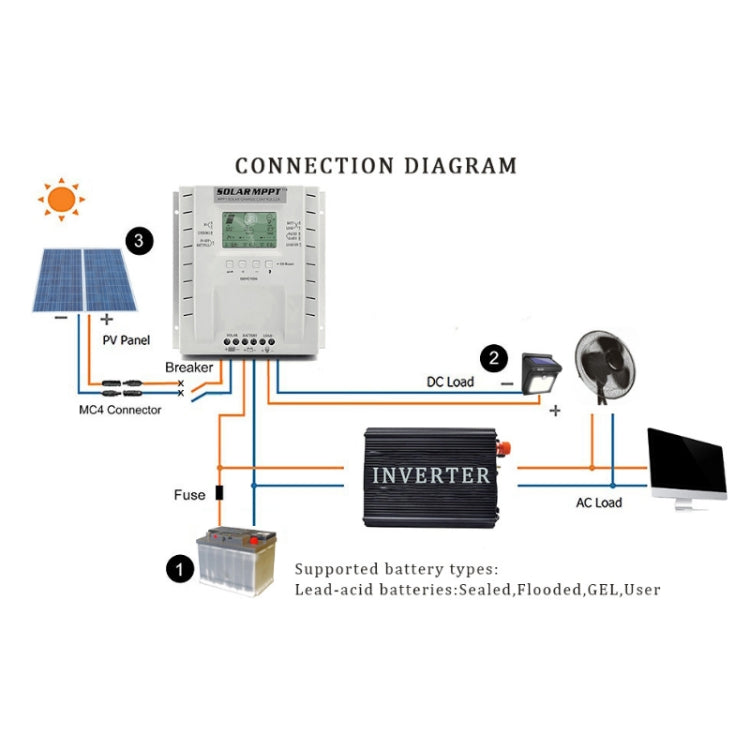

8. Wide range of applications: used for solar green light, solar billboards, solar insecticidal lights, solar power systems, ship solar power systems, solar power systems, etc.
parameter:
1. Rated charging current: 60A
2. Working voltage: 12V / 24V
3. Floating charge voltage: 13.8V / 27.6V
4. Undervoltage protection: 10.6V / 21.2V
5. Over-discharge recovery voltage: 12.6V/25.2V
6. Working temperature: -10-60 degrees Celsius
7. Storage temperature: -30 -70 degrees Celsius
8. Wiring specification: less than or equal to No. 10 AWG (10 square millimeters)
9. Weight: 1400 grams

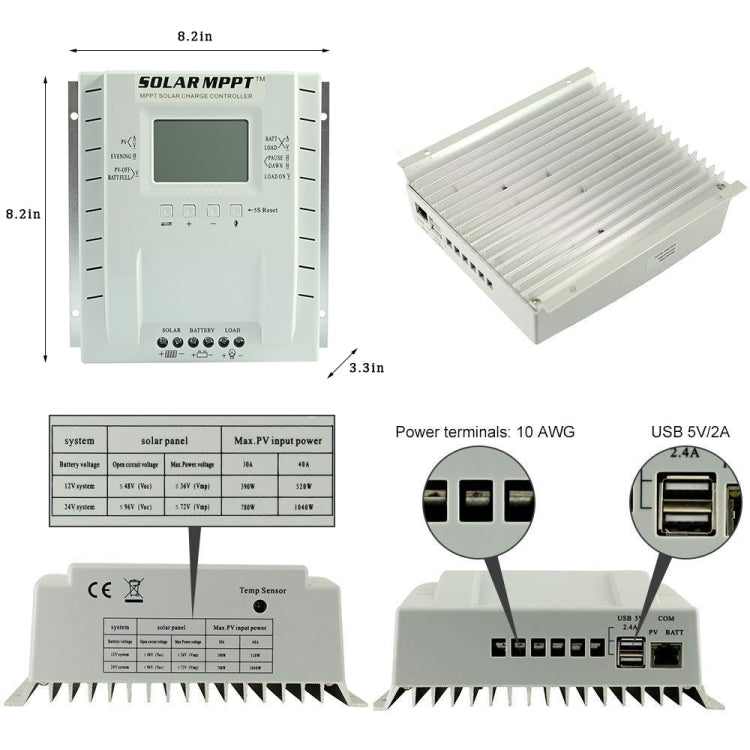

10. Dimensions: 195x195x80 mm
Specification:
|
Package Weight
|
| One Package Weight |
1.34kgs / 2.95lb
|
| One Package Size |
25cm * 25cm * 10cm / 9.84inch * 9.84inch * 3.94inch
|
| Carton Weight |
22.72kgs / 50.09lb
|
| Carton Size |
50cm * 50cm * 45.4cm / 19.69inch * 19.69inch * 17.87inch
|
| Loading Container |
20GP: 234 cartons * 20 pcs = 4680 pcs
40HQ: 545 cartons * 20 pcs = 10900 pcs
|
|
