About that product

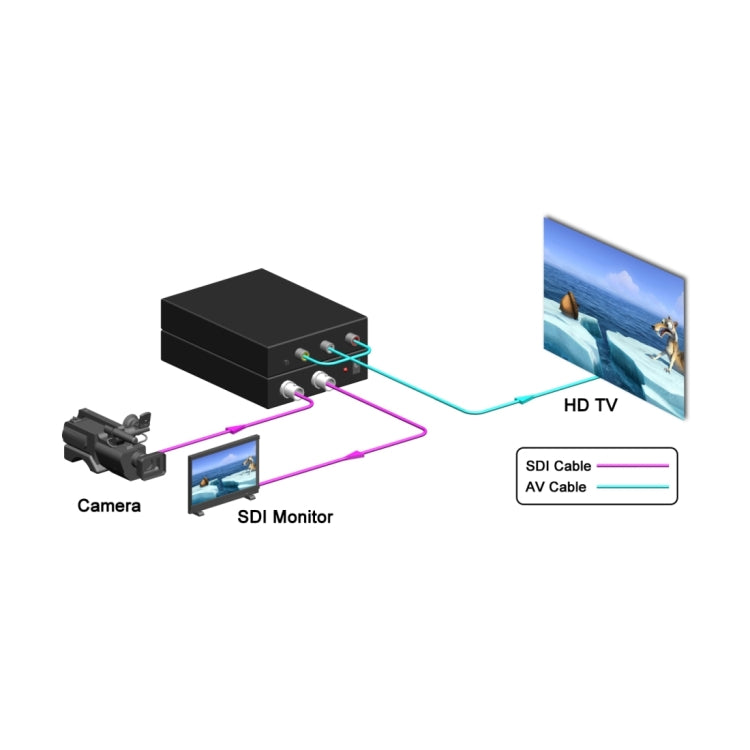

The SDI to AV converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on CRT or HDTV, while ensuring that the high bit rate of 2.970Gbit / s gives you fast signal transmission without any loss. For professionals, this means that it is now easier to distribute and extend your 3GSDI signal, and because of the built-in converter, you can display your work on your TV. In addition, due to the loop designed through 3G-SDI, users can enjoy SDI and AV at the same time.
Parameter:
1. SMPTE standard: 425M Class A and B, 424M, 292M, 259M-C
2. SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
3. SDI input / output resolution: SD: 480i @ 60,576i @ 50; HD: 720p @ 50 / 60,1080i @ 50/60; 3G: 1080p@24/25/29.97/30/50/59.94/60
4. CVBS output resolution: PAL / NTSC

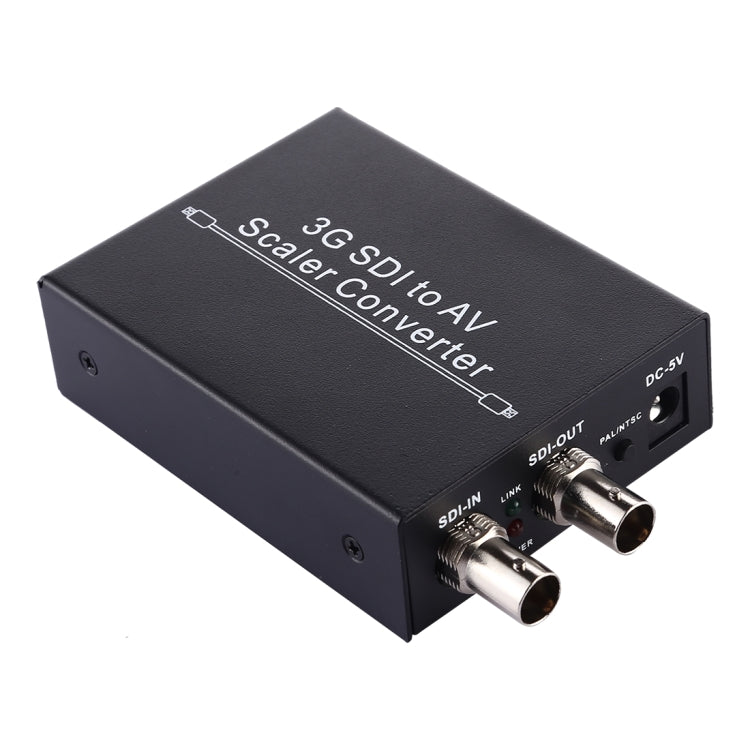

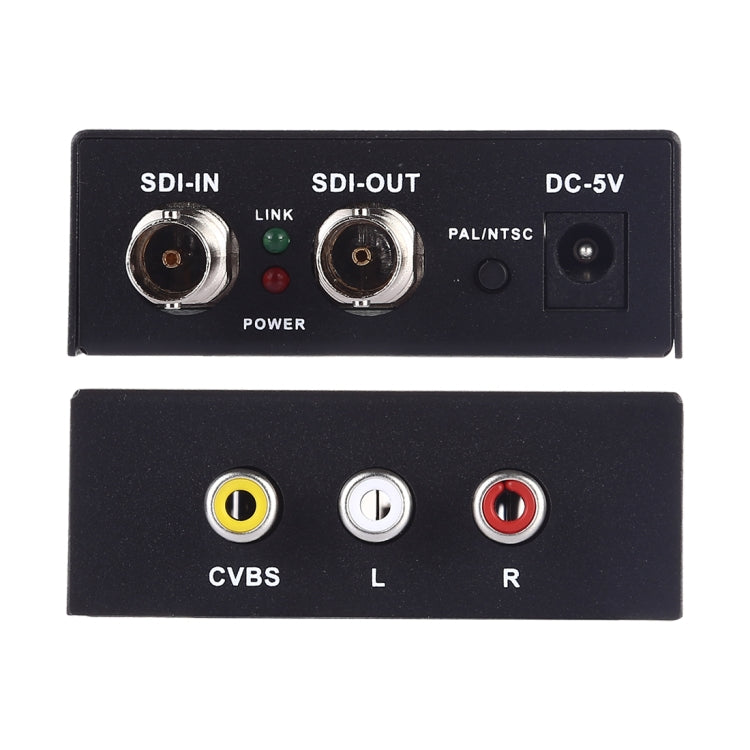

5. Input port: 1 x BNC (SD / HD / 3G-SDI)

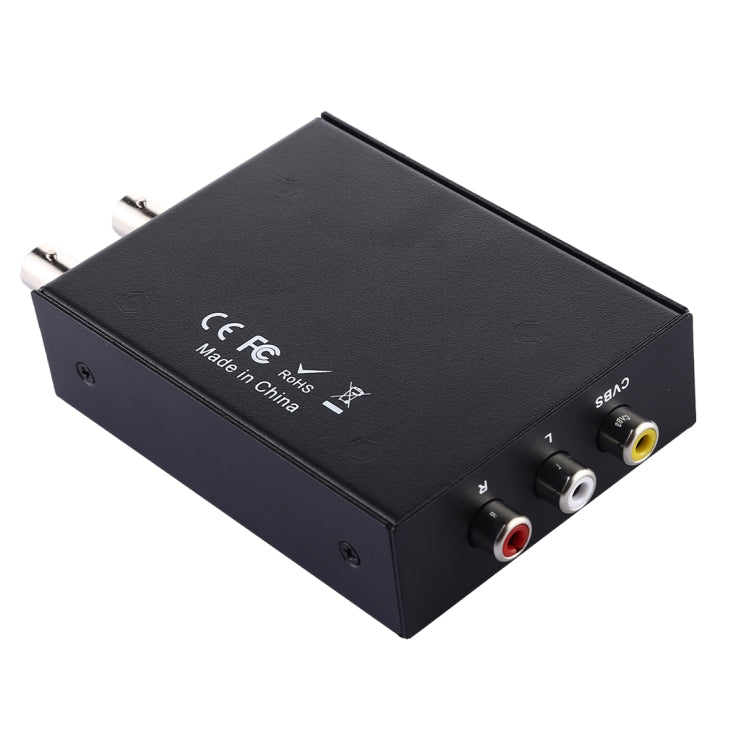

6. Output port: 1 x BNC (SD / HD / 3G-SDI), 3 x RCA (CVBS, L / R)
7. Power supply: DC 5V
8. ESD protection human body model: +/- 8kV (air gap discharge), +/- 4kV (contact discharge)
9. Dimensions: 92mm x 67mm x 25 mm
10. Weight: 180g
11. Working temperature: 0 ~ 40 degrees Celsius
12. Storage temperature: -20 ~ 60 degrees Celsius
13. Power consumption: up to 5W

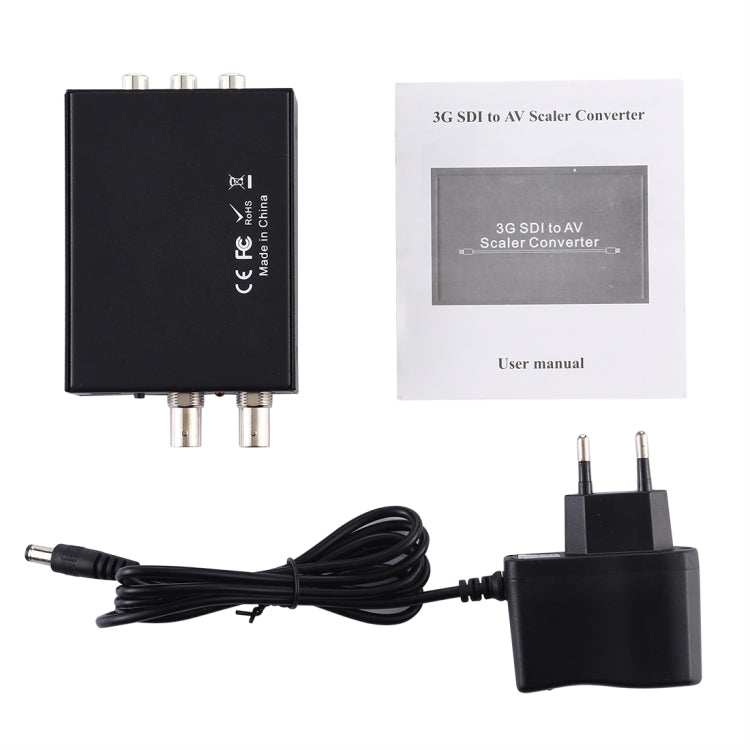

Packing list:
3G SDI to AV SCDMA converter x 1
5V DC power adapter x 1
Operation Manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.88lb
|
| One Package Size |
21cm * 15cm * 5cm / 8.27inch * 5.91inch * 1.97inch
|
| Carton Weight |
8.50kgs / 18.74lb
|
| Carton Size |
45cm * 32cm * 27cm / 17.72inch * 12.6inch * 10.63inch
|
| Loading Container |
20GP: 685 cartons * 20 pcs = 13700 pcs
40HQ: 1592 cartons * 20 pcs = 31840 pcs
|
|
