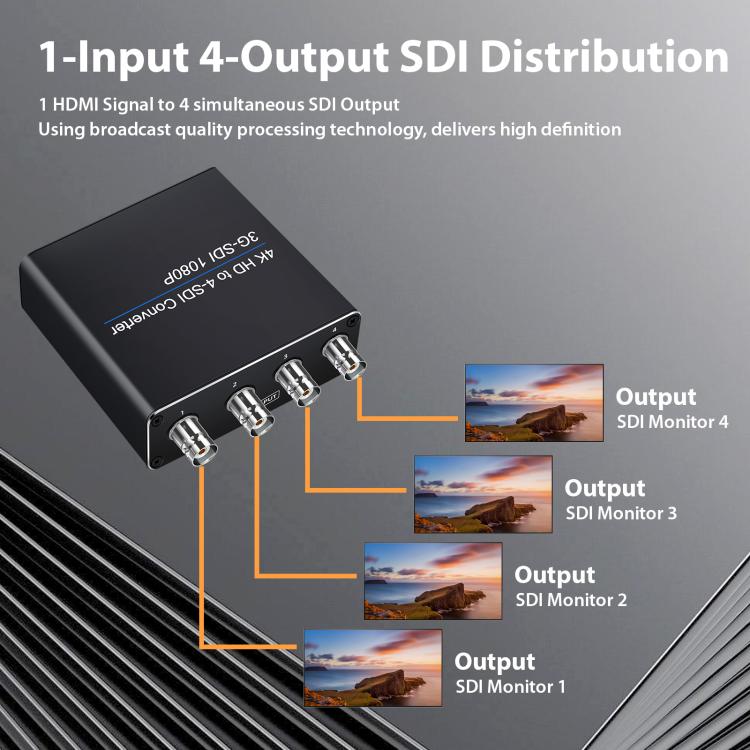

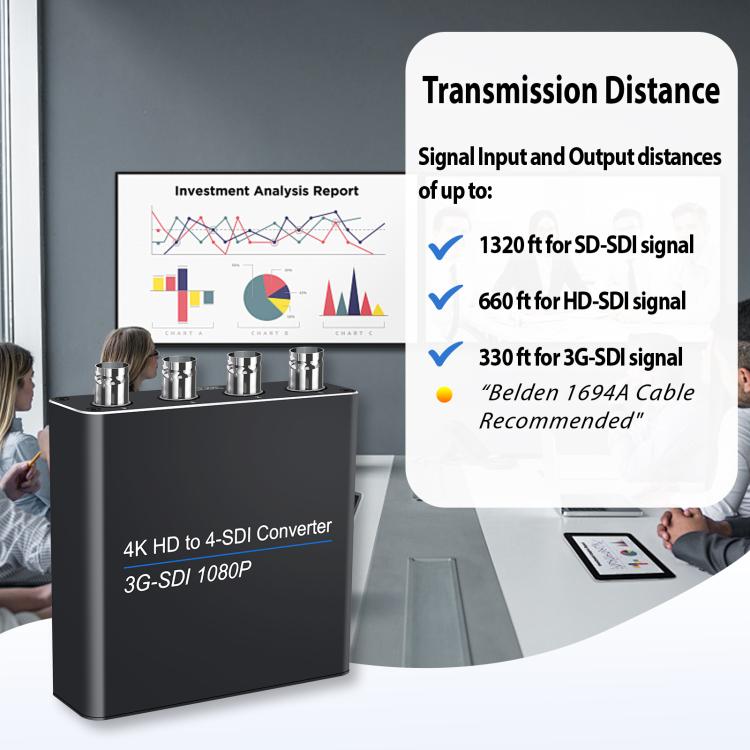

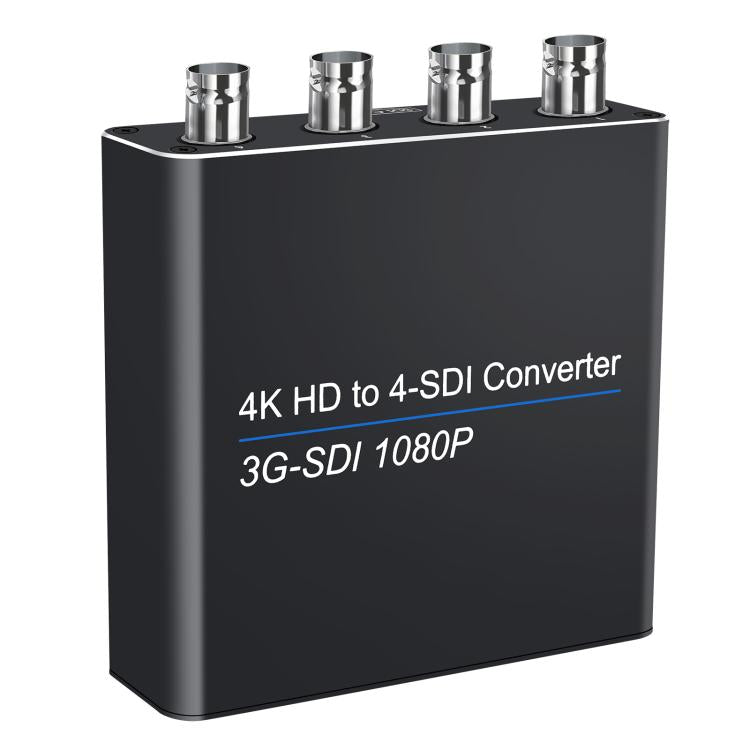

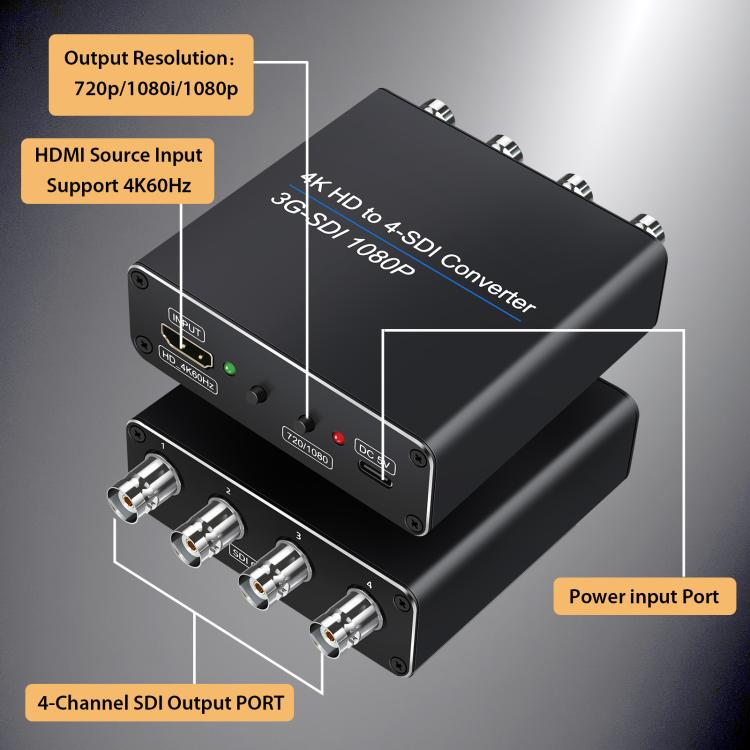

This product allows one HDMI video source to be converted into four SDI outputs for simultaneous display. It features built-in automatic recognition of all HD-SDI and 3G-SDI signal formats, supporting 2.97Gbps bandwidth and lossless transmission over long distances.
Features:
1. Supports one HDMI input signal and four SDI outputs.
2. Supports HD-SDI (1.485Gb/s) and 3G-SDI (2.97Gb/s) video formats.
3. Built-in cable equalization, clock recovery, and driver.

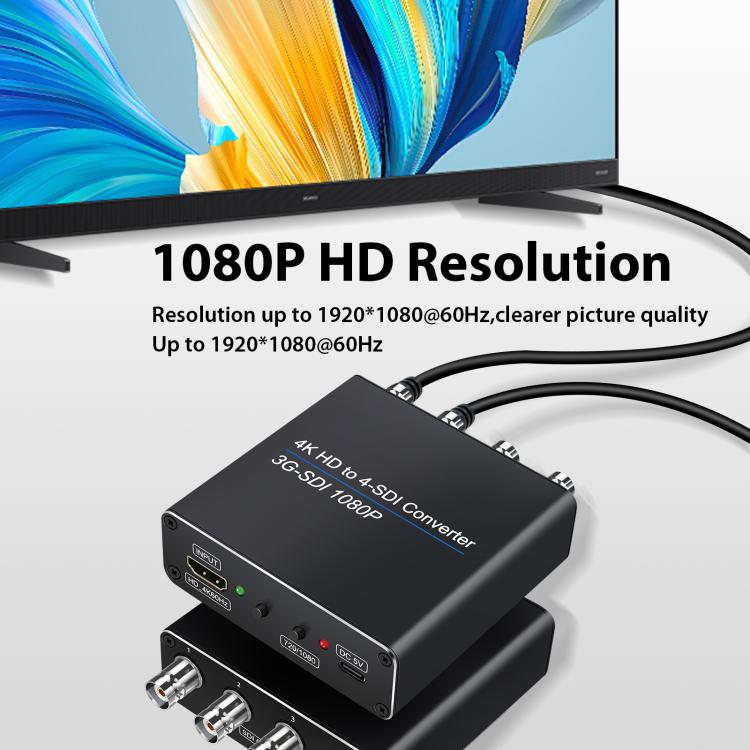

4. HDMI supports resolutions up to 4K 60Hz for clear and detailed images.
5. Supports 5V power supply.
Specifications:
1. Bandwidth: 3Gbps
2. HDMI Input Port: 1 x HDMI female input port
3. SDI Split Output Ports: 4 x BNC female output ports
4. Power Input: 5V 1A
5. ESD Protection Human Body Model: +/-8kV (air gap discharge) +/-4kV (contact discharge)
6. Operating Temperature: 0 degrees Celsius to 40 degrees Celsius
7. Storage Temperature: -20 degrees Celsius to 60 degrees Celsius
8. Relative Humidity: 20-90%RH (non-condensing)

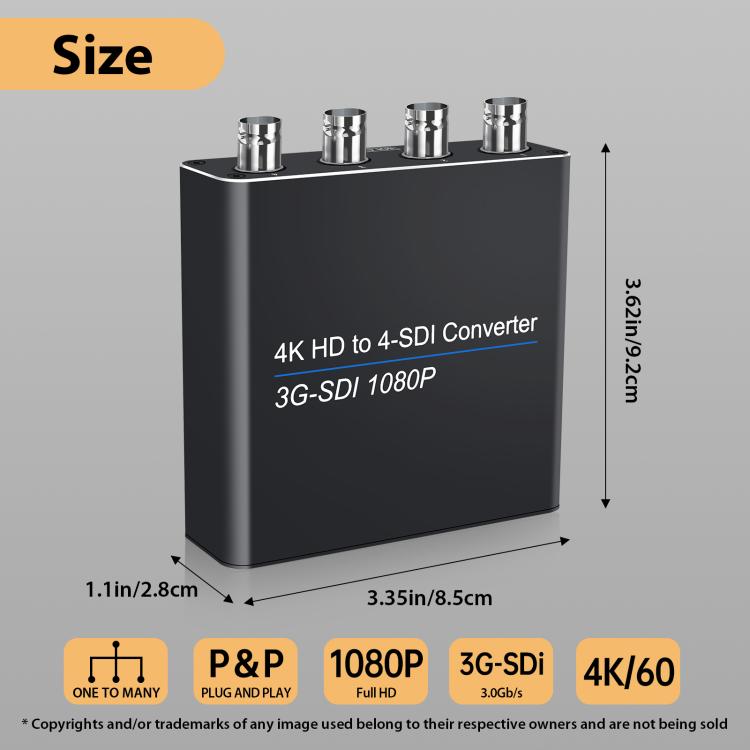

9. Dimensions: 8.5 x 9.2 x 2.8cm
10. Material: Aluminum casing
Specification:
|
Package Weight
|
| One Package Weight |
0.21kgs / 0.47lb
|
| One Package Size |
14cm * 10cm * 4cm / 5.51inch * 3.94inch * 1.57inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
38cm * 32cm * 28cm / 14.96inch * 12.6inch * 11.02inch
|
| Loading Container |
20GP: 783 cartons * 50 pcs = 39150 pcs
40HQ: 1818 cartons * 50 pcs = 90900 pcs
|
|
