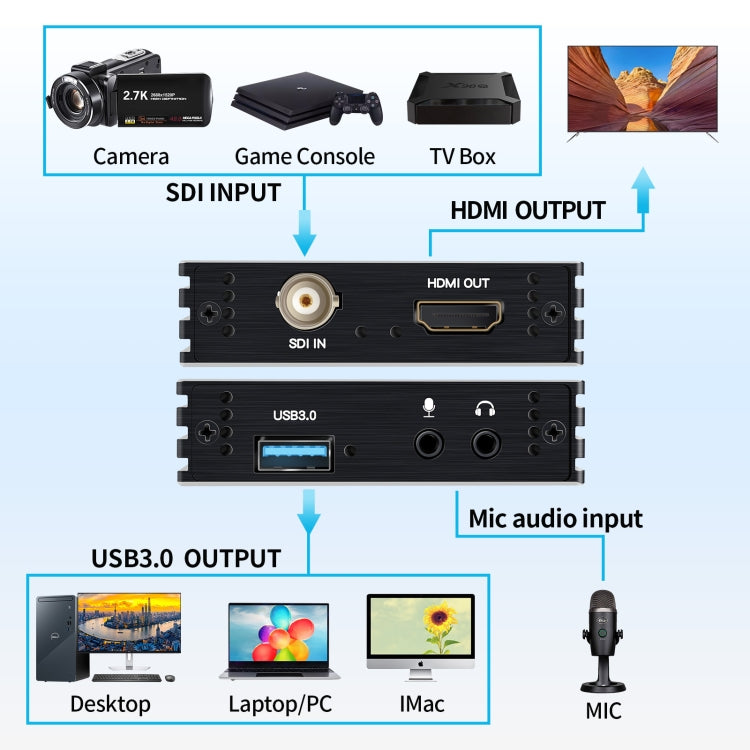

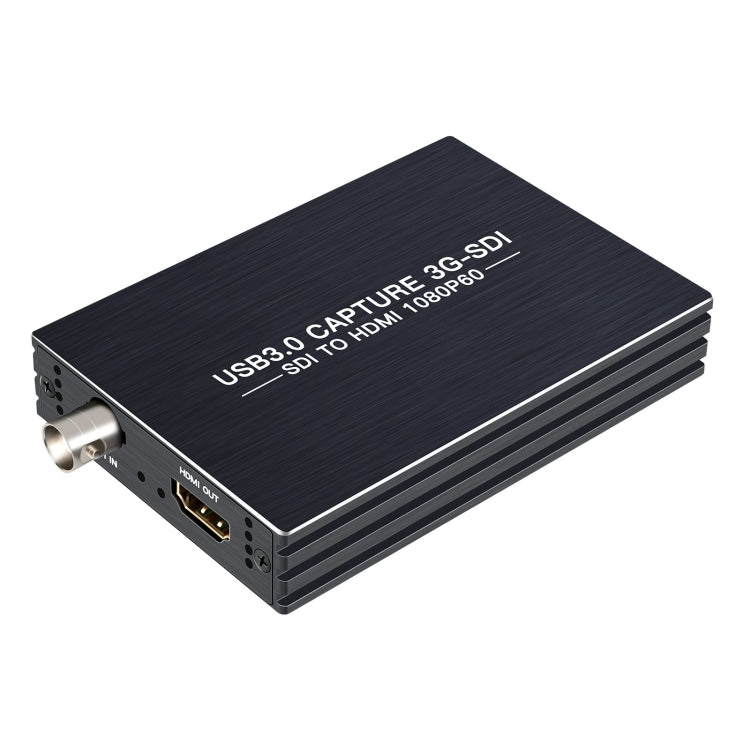

1. Can capture a 3G-SDI input, output HDMI 1080P and USB 1080P60 signals
2. No need to install drivers and settings, easy to use
3. It can automatically detect the input video format and automatically adjust to the set output size and frame rate
4. Support SD-SDI / HD-SDI / 3G-SDI input
5. Support SDI TO HDMI 1080P60 (HDMI loop output 1080P60)
6. Support MIC input and audio output
7. Size: 112x72x19mm
8. Weight: 130g
9. Packing list:
Host x1
HDMI cable x1
USB3.0 cable x1
Manual x1
Specification:
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
19cm * 6.5cm * 5.5cm / 7.48inch * 2.56inch * 2.17inch
|
| Carton Weight |
26.00kgs / 57.32lb
|
| Carton Size |
38cm * 38cm * 50cm / 14.96inch * 14.96inch * 19.69inch
|
| Loading Container |
20GP: 369 cartons * 80 pcs = 29520 pcs
40HQ: 857 cartons * 80 pcs = 68560 pcs
|
|
