1. Output form: DC NPN three-wire normally open
2. Detection distance: about 8mm
3. Detecting object: metal object
4. Current: 300mA
5. Power supply voltage: DC12-24V (6-36V)
6. Weight: about 86.2 g
7. Wire length: about 1.1m
Features:

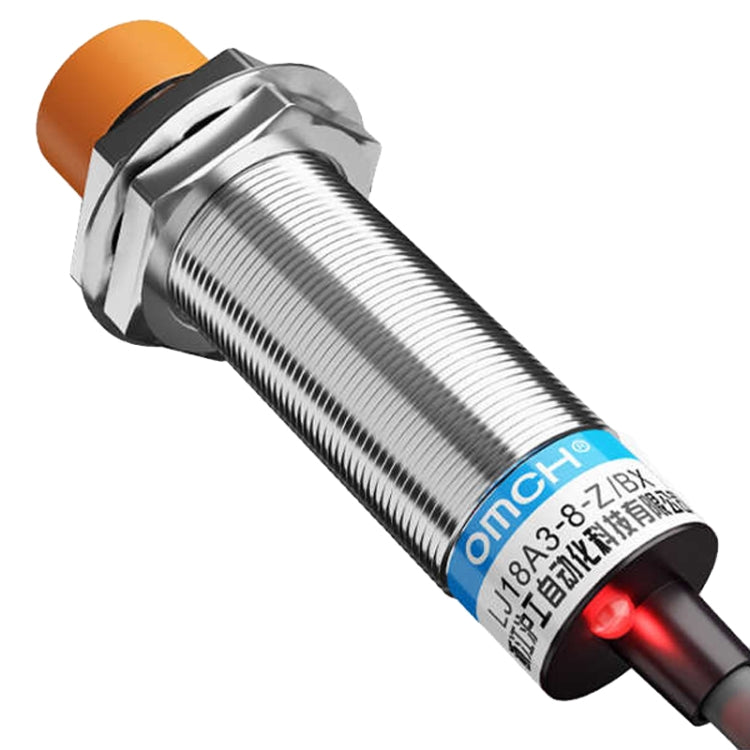

1. Proximity switch detects metal objects, the detection distance is about 8mm (when the proximity switch detects metal objects, the red light at the end will light up)
2. Built-in smart sensor chip on the top of the product, more sensitive to detect metal objects
3. Threaded design, solid and reliable, nickel-plated brass

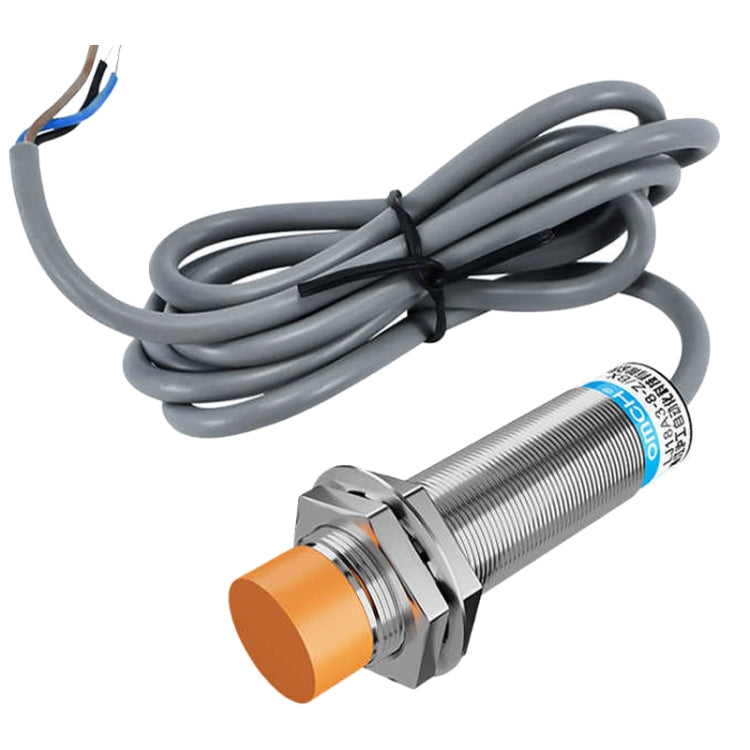

4. Selection of wire, the standard line length of about 1.1 meters, the application of thicker cable, durable, good conductivity

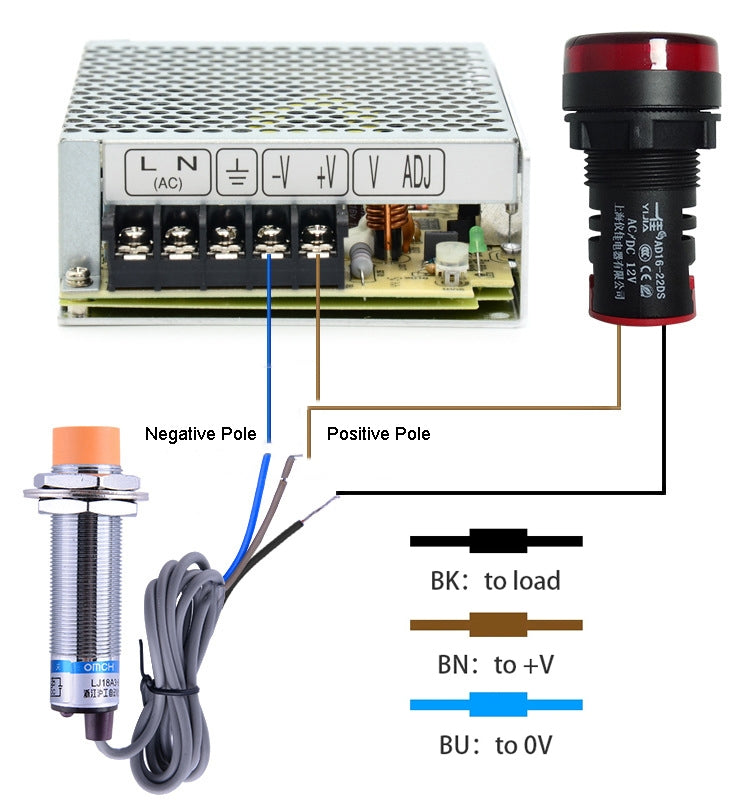

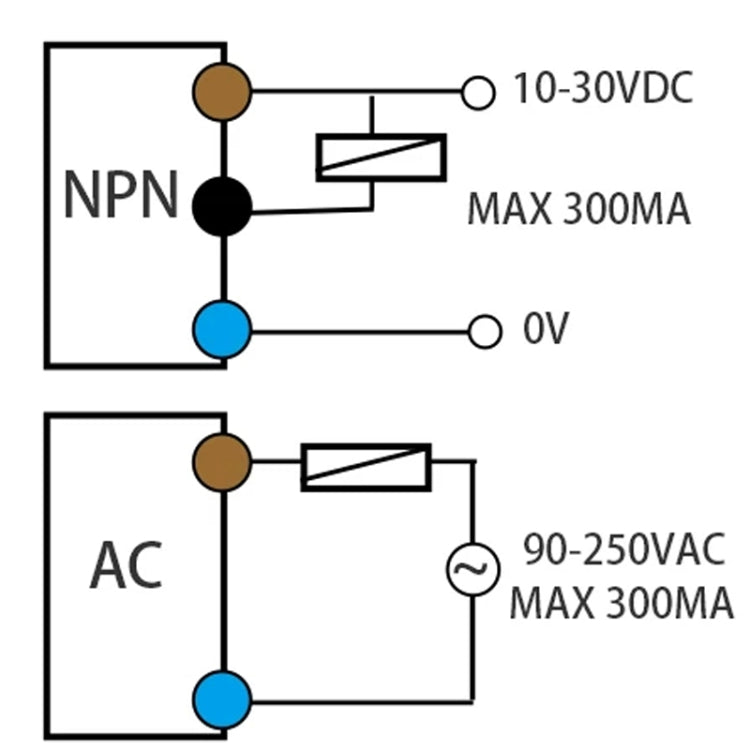

5. NPN: indicates a common positive voltage, negative voltage output; NPN NO: indicates that the normal is normally open, when the object is detected, the black line outputs a negative voltage signal
Specification:
|
Package Weight
|
| One Package Weight |
0.10kgs / 0.23lb
|
| One Package Size |
10cm * 6cm * 5cm / 3.94inch * 2.36inch * 1.97inch
|
| Carton Weight |
13.10kgs / 28.88lb
|
| Carton Size |
50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch
|
| Loading Container |
20GP: 617 cartons * 120 pcs = 74040 pcs
40HQ: 1432 cartons * 120 pcs = 171840 pcs
|
|
