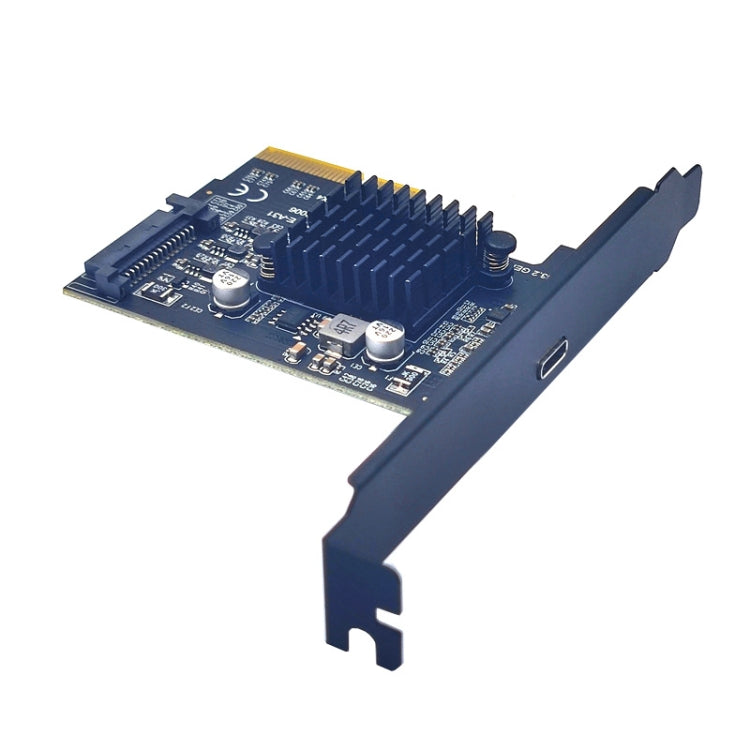

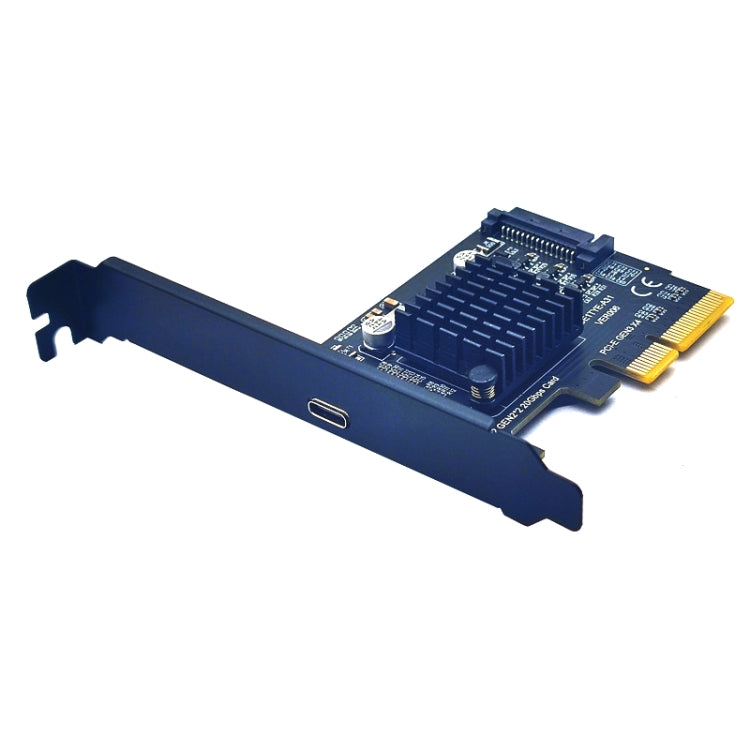

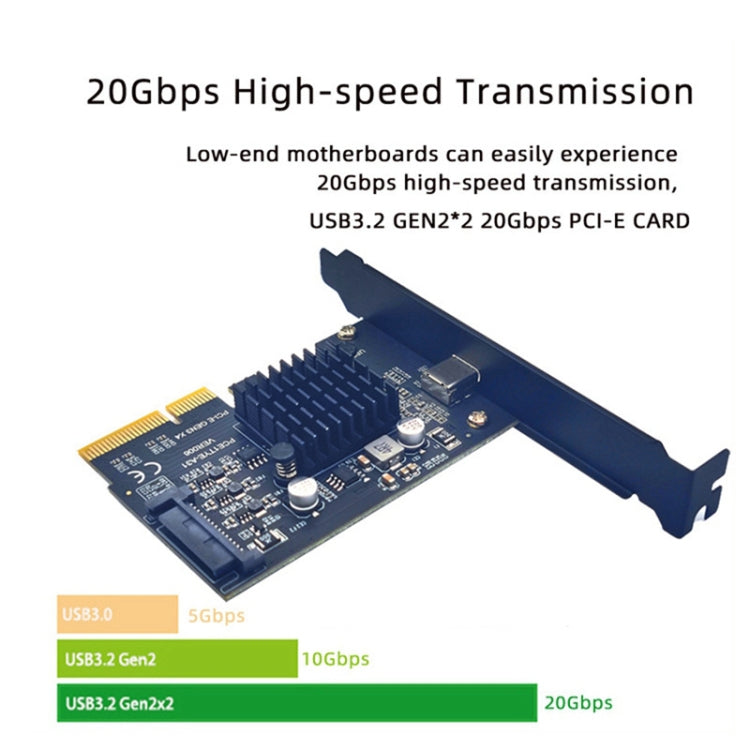

1. This adapter card can convert the PCIe interface on the motherboard to a USB3.2 Type-C high-speed data transmission interface, and the theoretical transmission speed can reach 20Gbps.
2. This expansion card belongs to the USB3.2 GEN2 x 2 standard and is backward compatible with USB3.0 and USB2.0

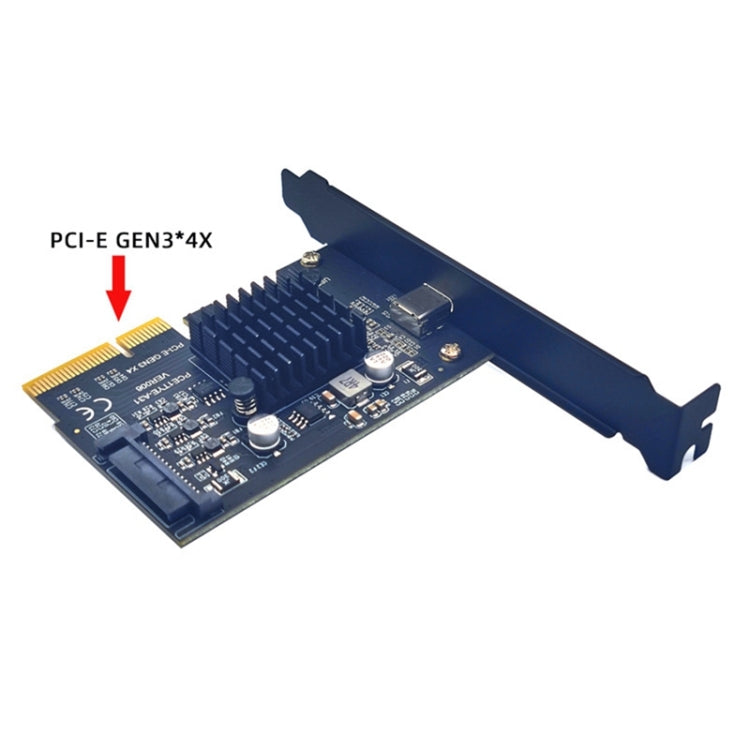

3. USB3.2 is a 4X interface, which can be inserted into 4X 8X 16X slots
4. To achieve 20Gbps high speed, the motherboard must support PCI-E 3.0 4X, and the hard disk box and TYPE-C cable must also be 20Gbps
5. The system only supports systems above WIN10/11, use the systems own driver, no need to install it separately
6. Material: PCB+metal
7. Main control chip: ASMedia ASM3242

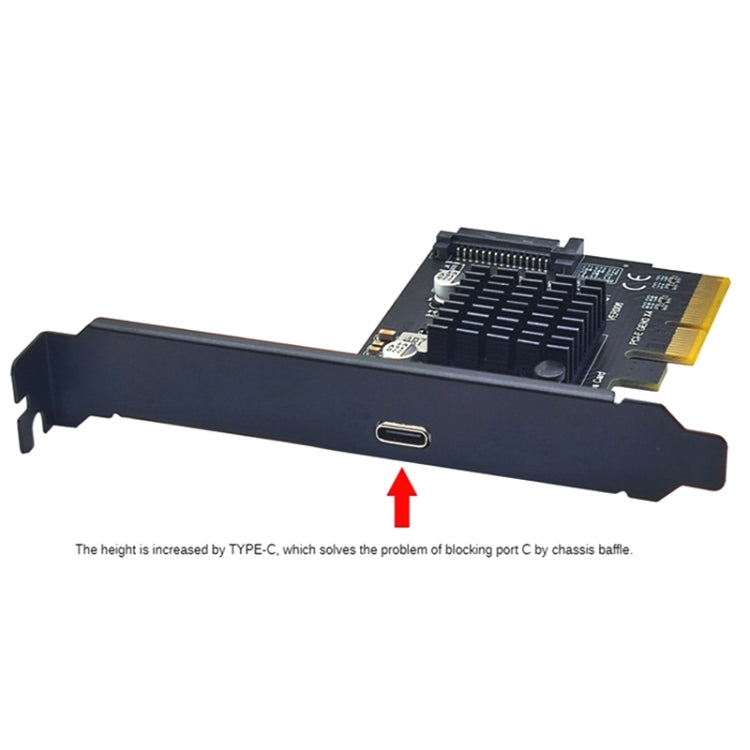

8. Product interface: single port Type-C
9. Support system: WIN10 / WIN11 32/64 BIT / MAC / Linux
Specification:
|
Package Weight
|
| One Package Weight |
0.14kgs / 0.32lb
|
| One Package Size |
17cm * 12cm * 5cm / 6.69inch * 4.72inch * 1.97inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 208 pcs = 36816 pcs
40HQ: 412 cartons * 208 pcs = 85696 pcs
|
|
