1. The PCI-E desktop computer will automatically turn on the machine when the power is restored, and it will automatically press the power-on button to start the machine when it is powered on, which does not affect the power-on/off function of the original machine.
2. Power supply: DC3-5V (blue light after normal power supply)

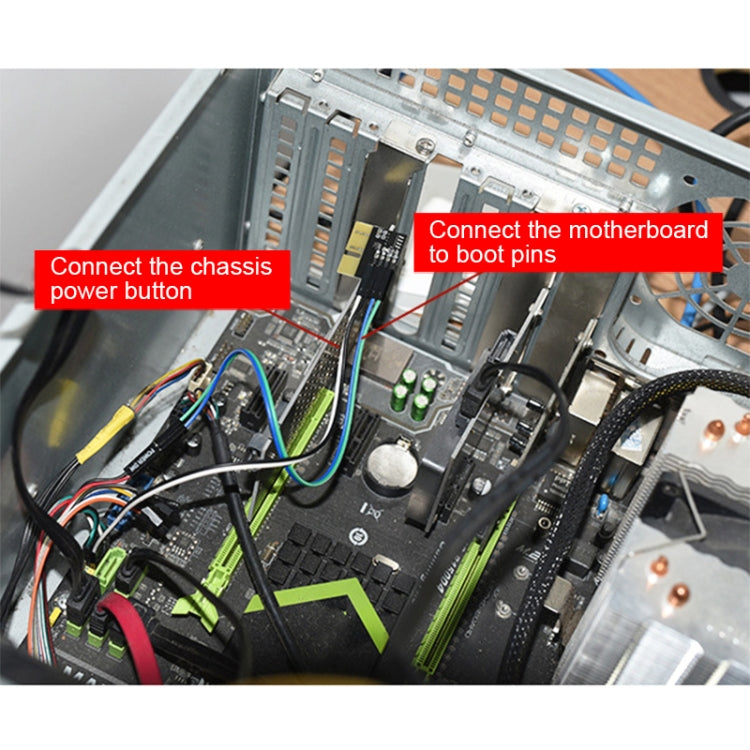

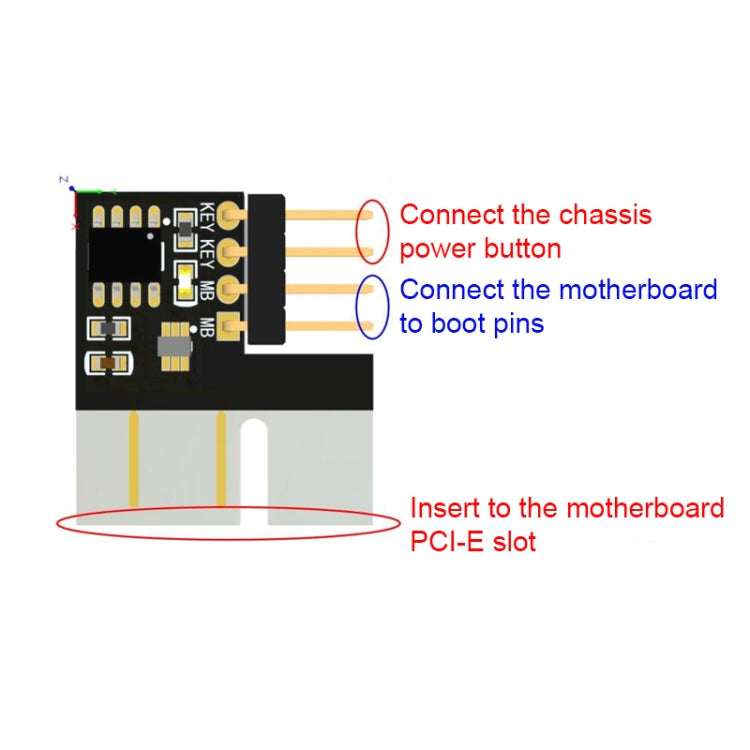

3. How to use: Turn off the 220V power supply of the computer, insert the module into the free PCI-E slot of the motherboard, and connect the power-on pins of the motherboard and the power-on button of the chassis with the supplied Dupont cable. Turn on the 220V power supply, and the blue light on the module lights up to indicate that the module has a normal power supply. After 2 seconds, the power-on signal will be automatically triggered, and the computer can be automatically turned on.
4. Purpose: computer automatically boots
5. Material: plastic
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
8cm * 5cm * 1cm / 3.15inch * 1.97inch * 0.39inch
|
| Carton Weight |
15.00kgs / 33.07lb
|
| Carton Size |
32cm * 26cm * 22cm / 12.6inch * 10.24inch * 8.66inch
|
| Loading Container |
20GP: 1456 cartons * 450 pcs = 655200 pcs
40HQ: 3382 cartons * 450 pcs = 1521900 pcs
|
|
