1. High sensitivity rare-earth magnetoelectric sensor head, carefully calibrated, accurately measuring and with excellent response.

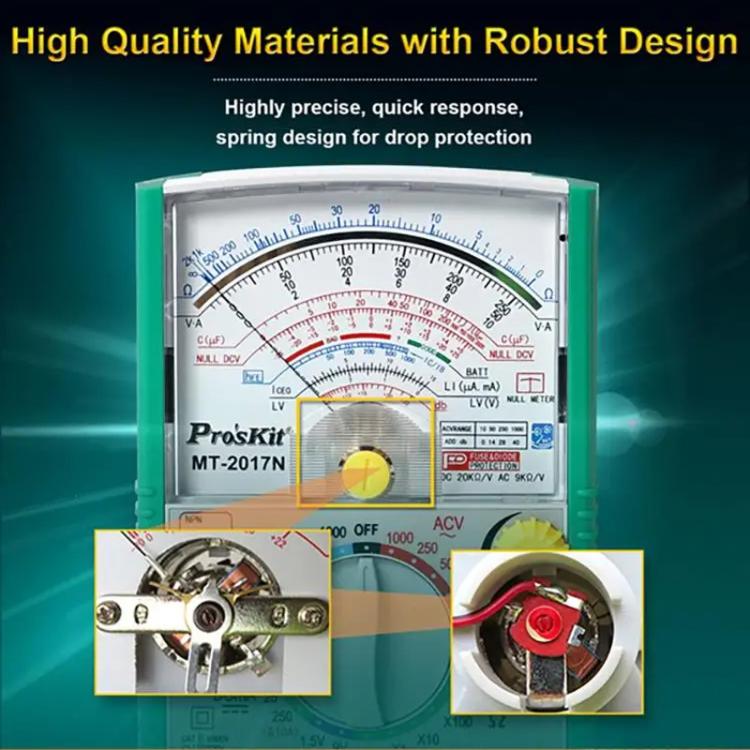

2. Spring design, shock-resistant, does not cause the sensor head to fail due to dropping or vibration.

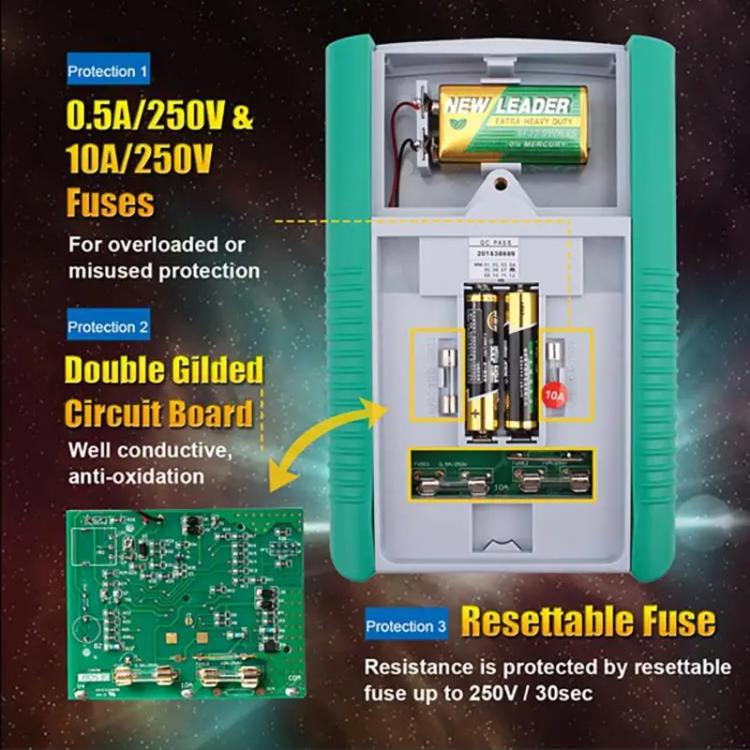

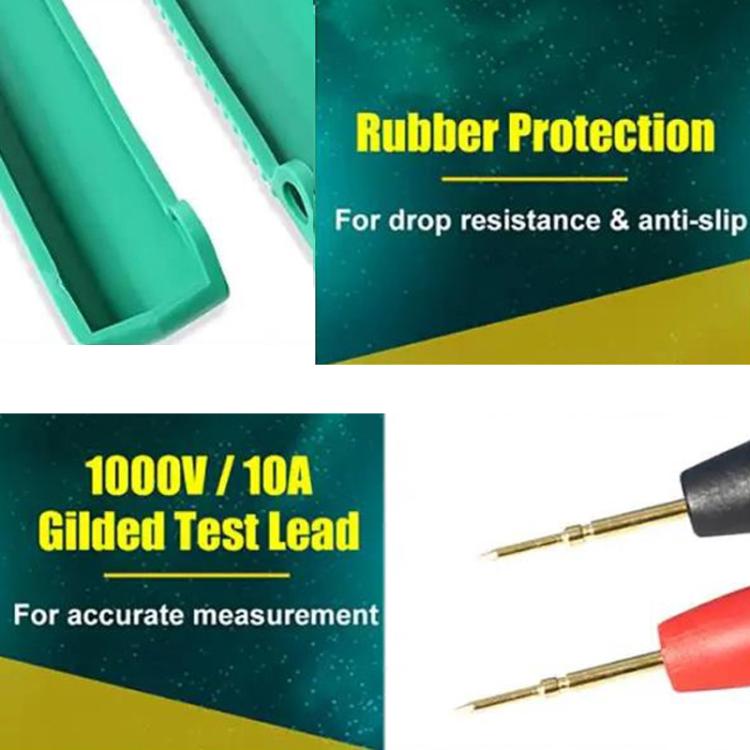

3. Multiple layers of protection, anti-slip shock-absorbing soft rubber sleeve, resistant to damage from falling, 0.5A/250V and 10A/250V fuse with rapid melting, overloading or incorrect measurement will not cause the instrument to burn out.
4. Gold-plated circuit board, excellent conductivity, resistant to oxidation, well-arranged layout.
5. Resistance range uses self-recovery fuse, anti-mistake measurement up to 250V/30 seconds, returns to normal after removal for 1 minute.

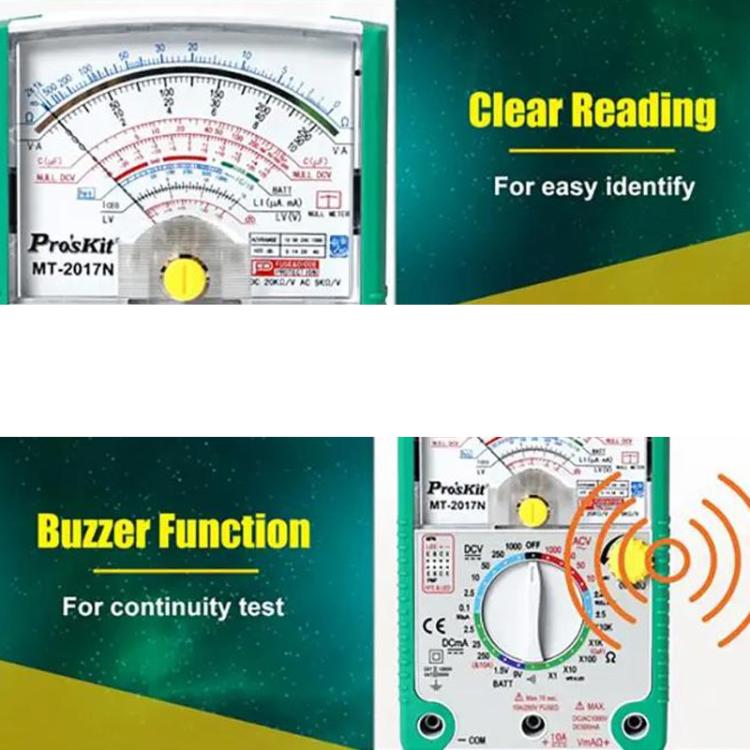

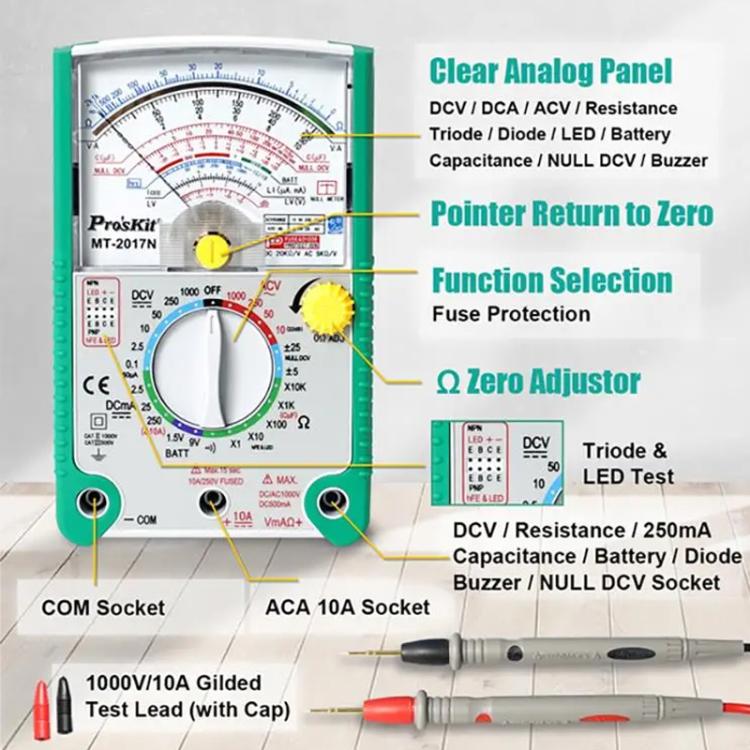

6. High definition dial, distinct gears, clear readings.
7. Short-circuit beeping function, convenient for detecting the connection status of circuits or conductors.

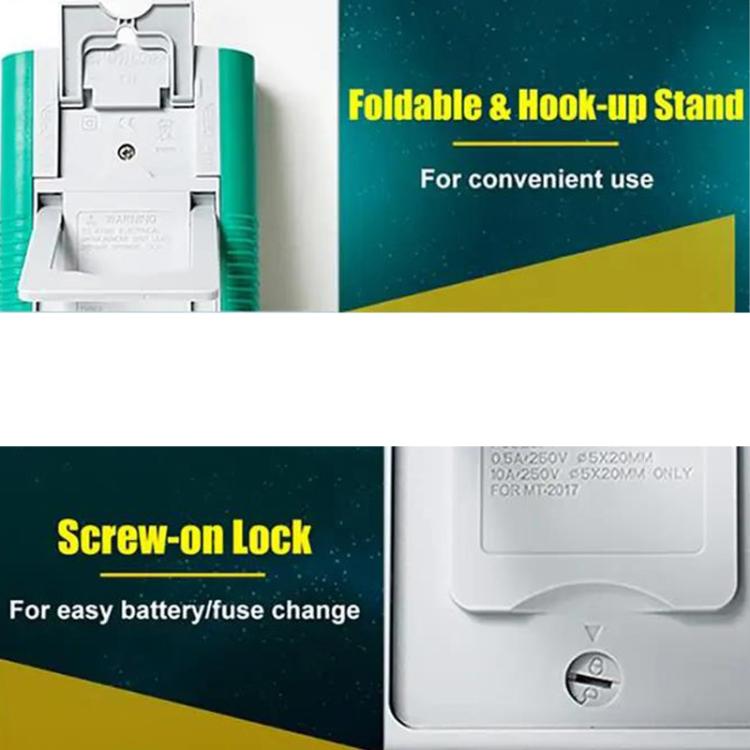

8. Rear cover rotating latch, convenient for replacing batteries and fuses.
9. Inclined stand/suspended double bracket, can be adjusted freely.

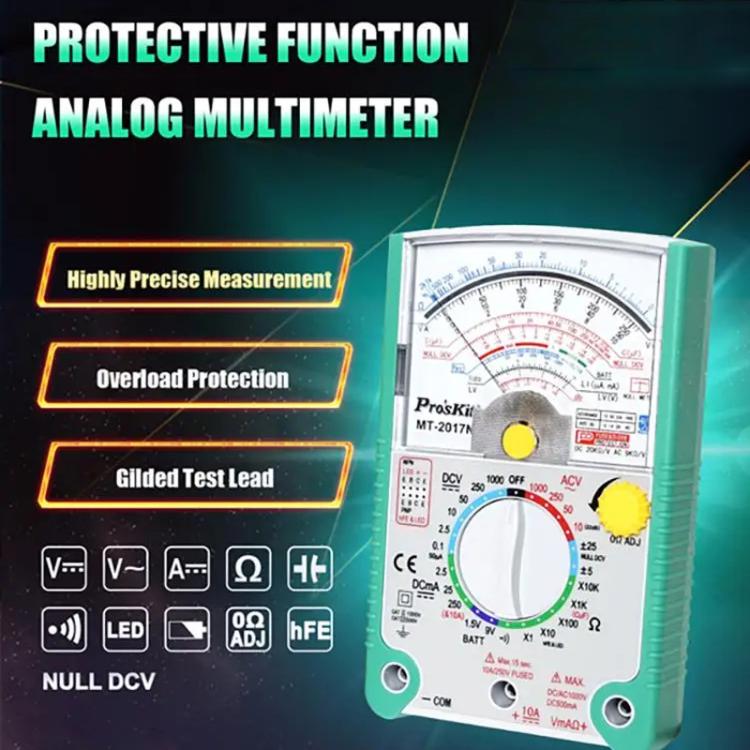

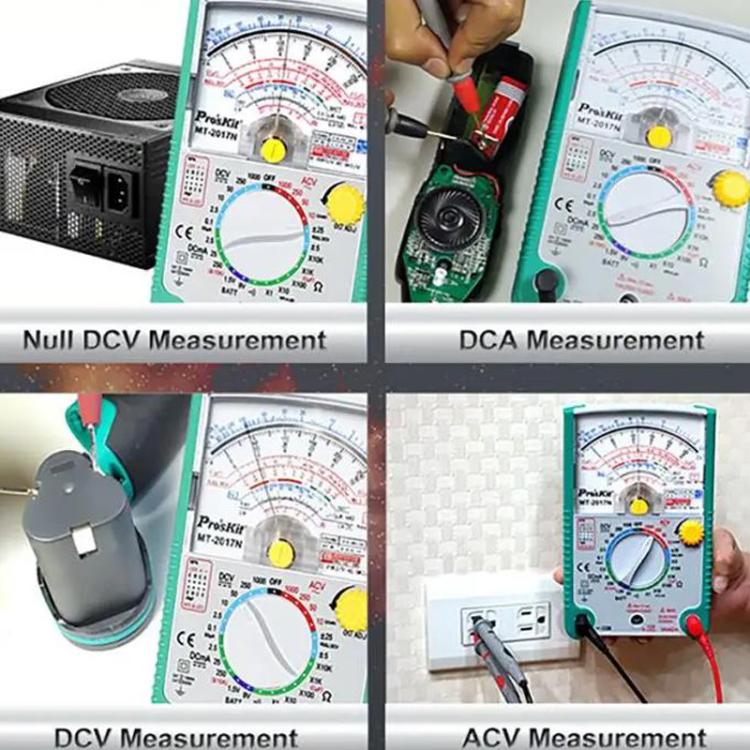

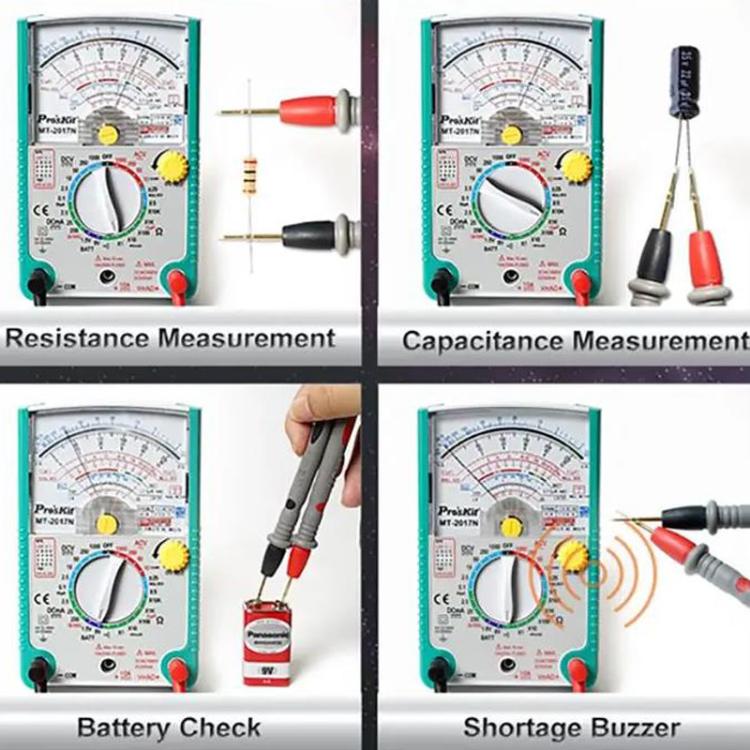

10. Functions: can perform zero position positive and negative voltage test / DC current test / DC voltage measurement / AC voltage test / resistance measurement / capacitance measurement / battery capacity measurement / short-circuit beeping / LED light-emitting diode measurement / transistor measurement
Parameters
1. DC voltage: 0.1/2.5/10/50/250V; +/-percent 3.0 FSD; 1000V; +/-percent 4.0 FSD
2. Intermediate zero positive/negative DC voltage: DC +5V, +/-25V, +/-percent 5.0 FSD
3. AC voltage: 10/50/250V, +/-percent 4.0 FSD, 1000V, +/-percent 5.0 FSD
4. DC current: 50 microamperes/2.5m/25m/250mA, +/-percent 3.0 FSD, 10A, +/-percent4.0 FSD
5. Resistance:
- x1 (0.2 - 2k ohms)
- x10 (2 - 20k ohms)
- x100 (20 - 200k ohms)
- x1k (200 - 2M ohms)
- x10k ohms (2k - 20M ohms)
- +/-percent 4.0 ARC of scale length
6. Capacitance: C (R x 1k): 2000 microfarads (approx.) max

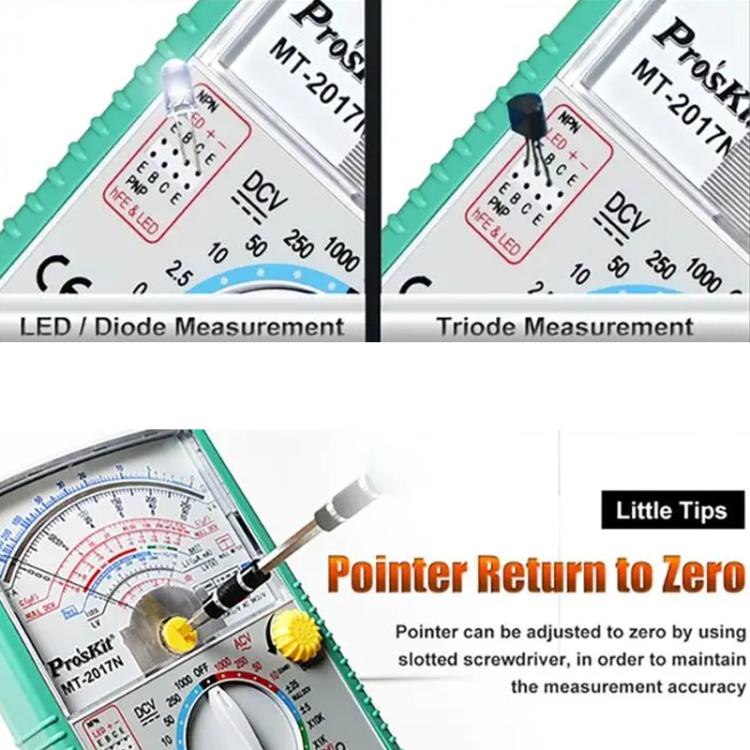

7. Function: transistor test / diode test / LED test / short circuit beep
8. Power supply: 1.5V AAA battery x 2; 9V 6F22 battery x 1 (not Included)

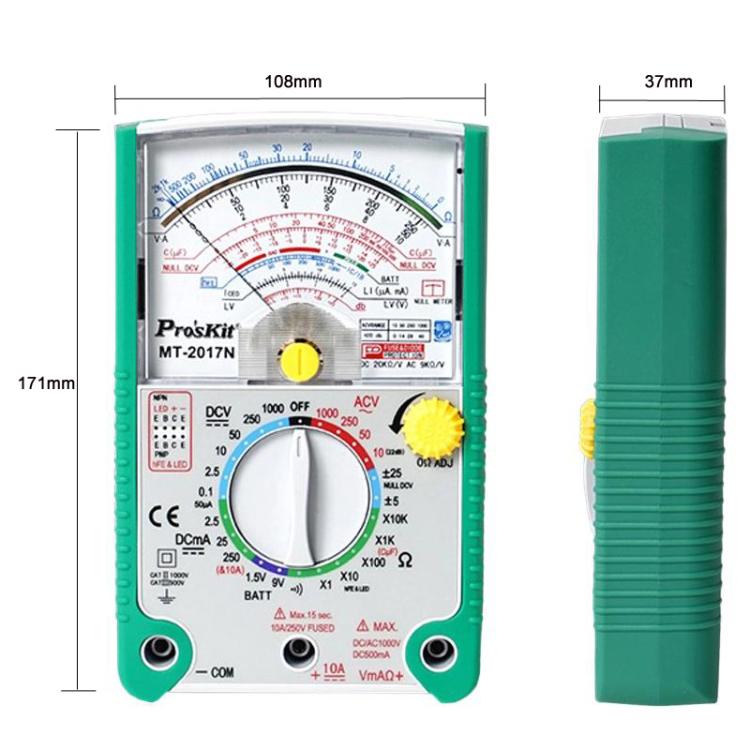

9. Size: about 17.1 x 10.8 x 3.7 cm
10. Weight: about 390g
Specification:
|
Package Weight
|
| One Package Weight |
0.65kgs / 1.44lb
|
| One Package Size |
23cm * 16cm * 6cm / 9.06inch * 6.3inch * 2.36inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
48cm * 38cm * 34cm / 18.9inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 429 cartons * 24 pcs = 10296 pcs
40HQ: 998 cartons * 24 pcs = 23952 pcs
|
|
