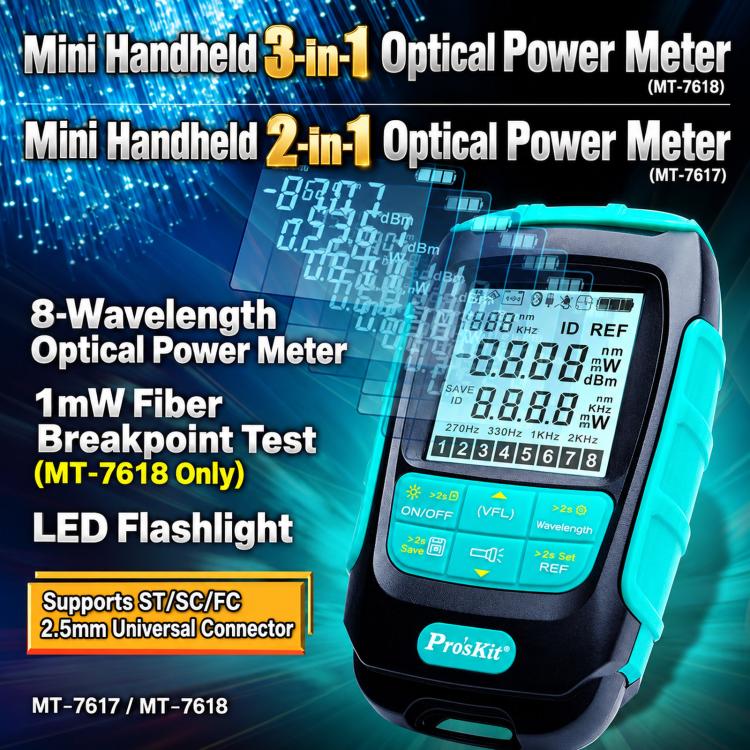

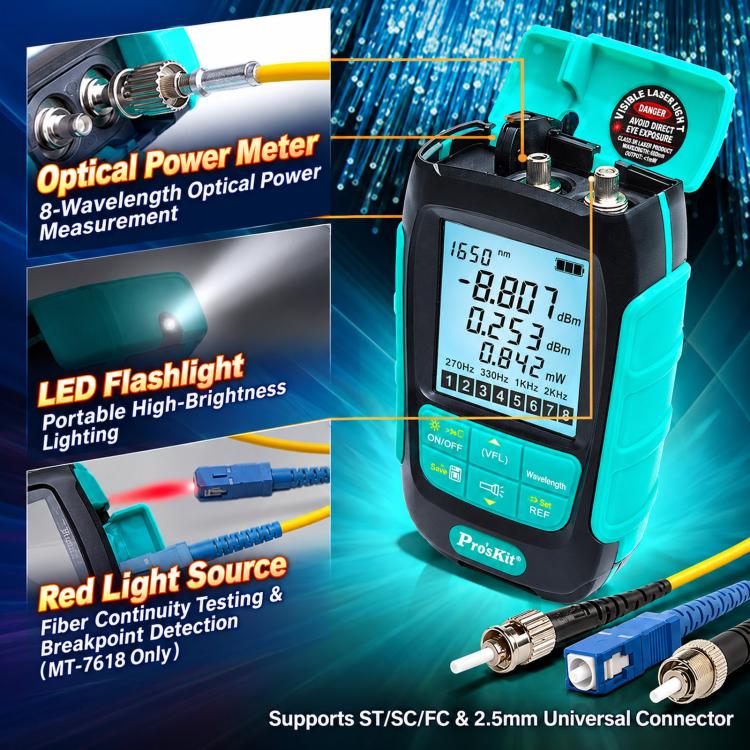

1. The integrated optical power meter, red light source, and LED flashlight (only the MT-7618 model is equipped with the red light source) can complete fiber power detection, breakpoint location, and on-site lighting, meeting various fiber construction requirements.
2. 8-wavelength measurement, wide compatibility: supports 8 commonly used fiber wavelengths (850/980/1300/1310/1490/1550/1625/1650nm)
3. Equipped with a 2.5mm universal interface, compatible with ST/SC/FC connectors, suitable for most fiber link testing scenarios
4. Large-capacity data storage, with wavelength memory: can store 500 sets of measurement data, supports circular coverage, and can be browsed and viewed; the wavelength memory function automatically restores the last shutdown set wavelength upon startup, eliminating the need for repetitive settings

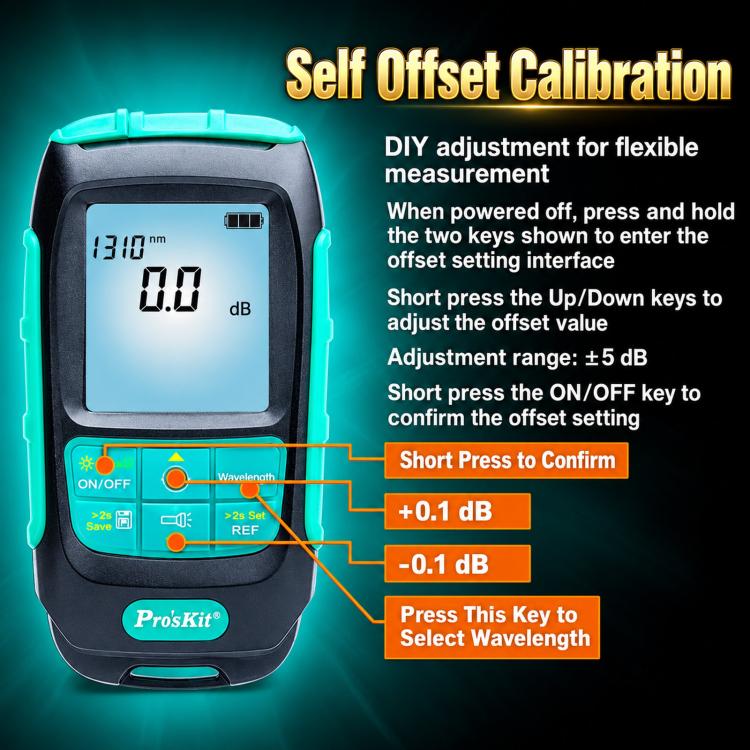

5. Supports user self-calibration and relative value measurement: comes with an offset self-calibration function, adjustable within ±5dB range, flexible measurement
6. Supports relative value measurement, meeting comparison test requirements, with stable measurement accuracy
7. Soft rubber anti-slip cover + ABS body, can withstand a 1-meter drop

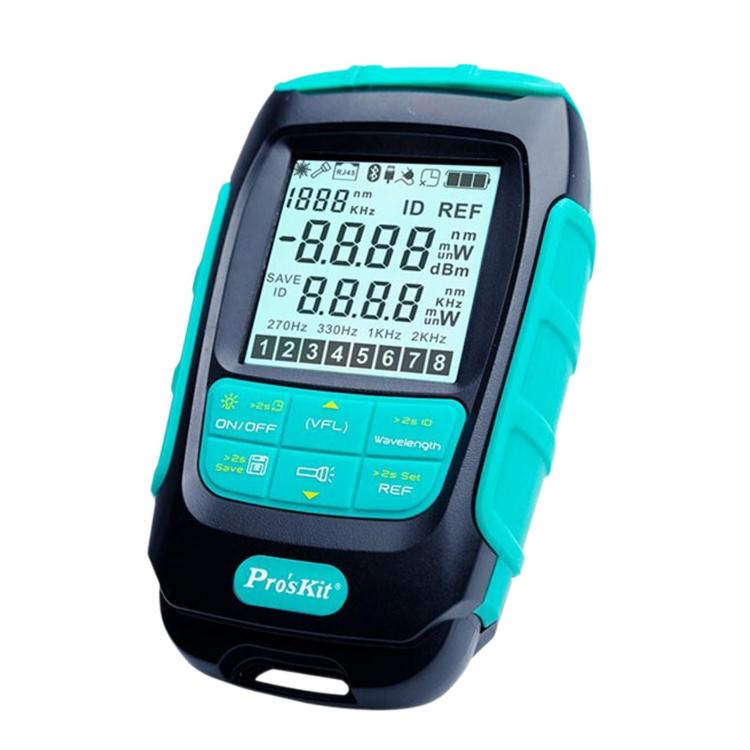

8. Large screen with backlight, clear reading even in dim environments, automatically shuts down after 10 minutes of inactivity to save power
Parameters
1. Detector type: InGaAs
2. Wavelength response range: 700 - 1700nm
3. Power meter interface: 2.5mm universal interface
4. Measured wavelength: 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm
5. Measurement range: -70 to +10dB
6. Resolution: 0.01d
7. Display units: dB, dBm, mW, uW, nW
8. Frequency identification: 270/1k/2kHz
9. Data storage: 500 groups
10. Functions: wavelength memory, user self-calibration, relative value measurement, screen backlight
11. Lighting mode: LED lamp
12. Automatic shutdown: 10 minutes
13. Battery remaining voltage indication: battery low voltage indication
14. Charging interface: Micro USB
15. Working power supply: 1.5V AAA x 2 (without battery)
16. Working environment: 10 - 50℃, less than 90% RH
17. MT-7618 output power: 1mW
18. MT-7618 test distance: 3 - 5km single-mode optical fiber
19. MT-7618 red light source interface: 2.5mm universal interface
20. MT-7618 red light wavelength: 650 ± 20nm
21. MT-7618 output mode: constant brightness / 2Hz flashing

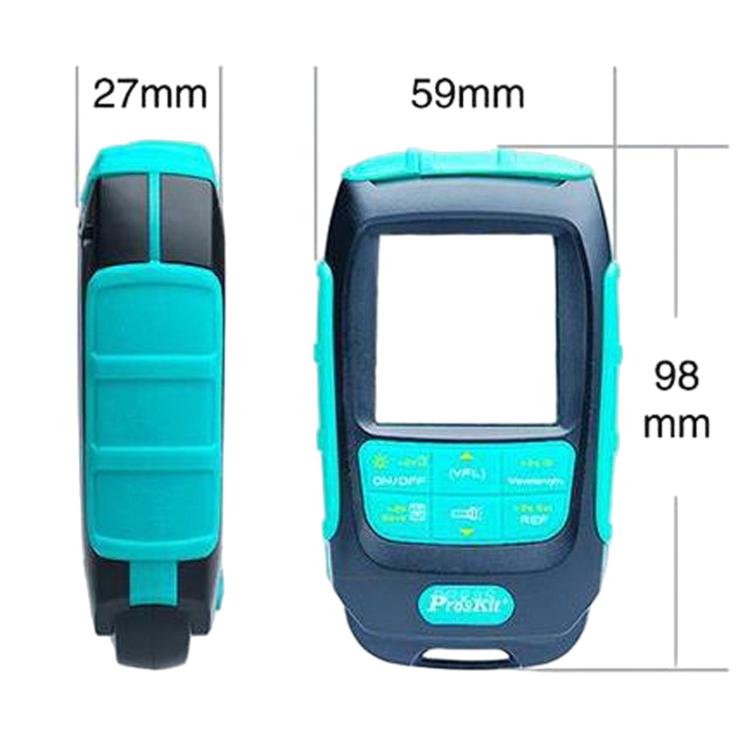

22. Size: about 9.8 x 5.9 x 2.7cm
Specification:
|
Package Weight
|
| One Package Weight |
0.31kgs / 0.69lb
|
| One Package Size |
20cm * 14cm * 7cm / 7.87inch * 5.51inch * 2.76inch
|
| Carton Weight |
22.00kgs / 48.50lb
|
| Carton Size |
47cm * 37cm * 32cm / 18.5inch * 14.57inch * 12.6inch
|
| Loading Container |
20GP: 479 cartons * 60 pcs = 28740 pcs
40HQ: 1112 cartons * 60 pcs = 66720 pcs
|
|
