Features:
1. Built-in automatic equalization system to make the playback picture smoother/clearer/stable
2. 1080P high-definition delay-free transmission, high-definition lossless 120-meter transmission, support EDID learning, POC function
3. Simple and convenient installation, plug and play, no need to set up

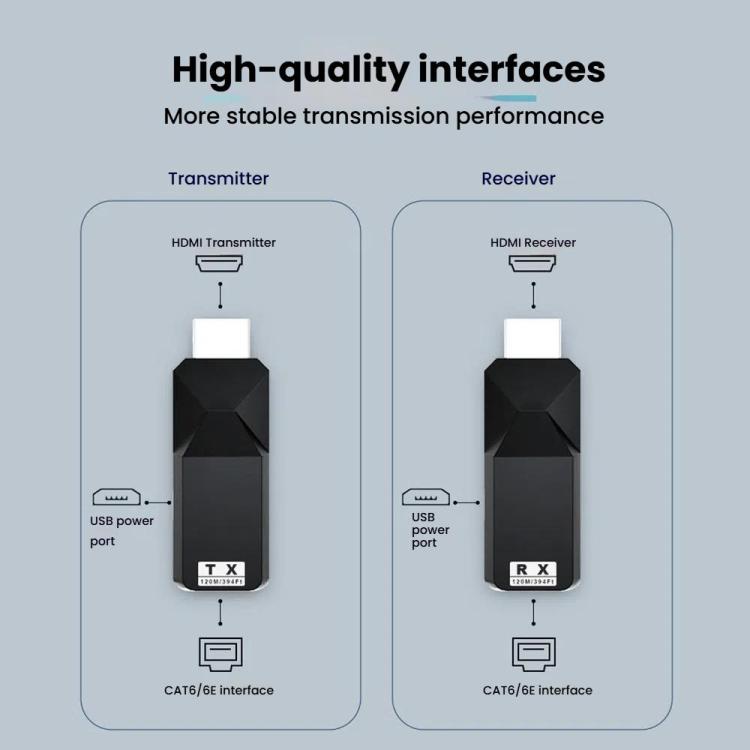

4. Anti-static protection, safe and worry-free, stable performance
5. High-quality interface, more stable transmission performance
6. Audio and video synchronous transmission, no need for manual adjustment
Product parameters:
1. Support protocol: HDMI-compatible 1.3; HDCP 1.2
2. Pixel bandwidth: 165MHz, full digital
3. Interface bandwidth: Total bandwidth 6.75Gbps
4. Supported resolution: 1920 x 1080P@60Hz
5. Interface: HDMI-A interface
6. Compression encoding method: H.264
7. Recommended HDMI-compatible (input/output distance): less than 5 meters, at 1920X1080P@60Hz
8. Network port interface: standard RJ45 interface
9. Recommended transmission distance: Category 6 network cable can reach 120 meters
10. Power supply: USB 5V
11. Power consumption: MAX 1.4W
12. Product size: 70 x 25 x 16mm
13. This product is manually measured, and there may be an error of 0.1-0.2 mm and 0.1-0.2 grams in length and weight; there may be a slight color difference due to display and light problems. Please refer to the actual product!
Packing list:
-Transmitter x 1
-Receiver x 1
-Instruction manual x 1
-Micro USB cable x 2
Specification:
|
Package Weight
|
| One Package Weight |
0.10kgs / 0.23lb
|
| One Package Size |
12cm * 12cm * 5cm / 4.72inch * 4.72inch * 1.97inch
|
| Carton Weight |
15.20kgs / 33.51lb
|
| Carton Size |
33cm * 30cm * 49cm / 12.99inch * 11.81inch * 19.29inch
|
| Loading Container |
20GP: 549 cartons * 132 pcs = 72468 pcs
40HQ: 1276 cartons * 132 pcs = 168432 pcs
|
|
