1. Wiring terminal: 3L+3N
2. Measuring voltage range: AC 80-500V
3. Measuring accuracy: 1 percent
4. Measurement rate: 200MS/time
5. Protection level: IP20
6. Electrical life: more than 15000 hours
7. Operating temperature: -5 to 40 degrees celsius
8. Storage temperature: -25-70 degrees celsius
9. Air relative humidity: 1-80 percent
10. Working pressure: 80-160Kpa

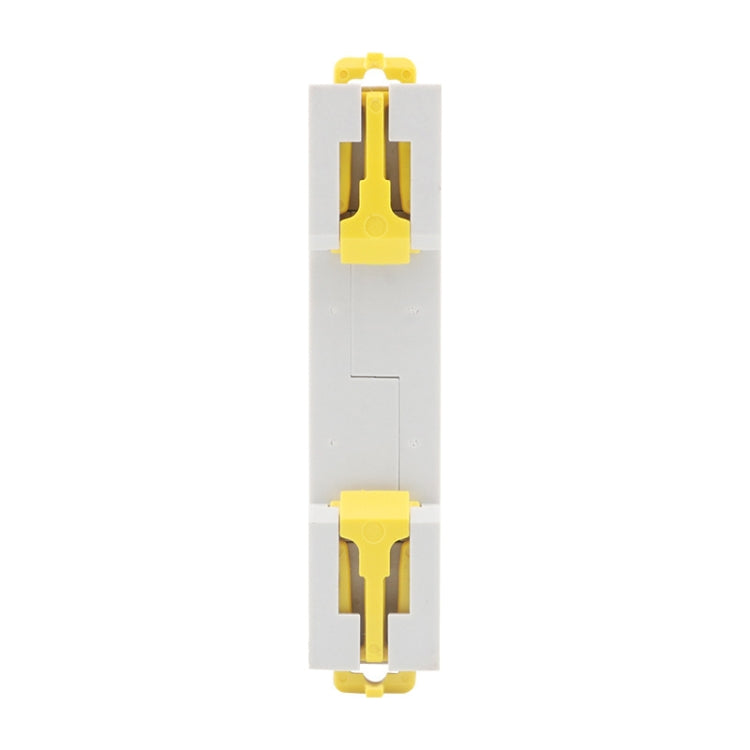

11. Installation: guide rail (18mm)

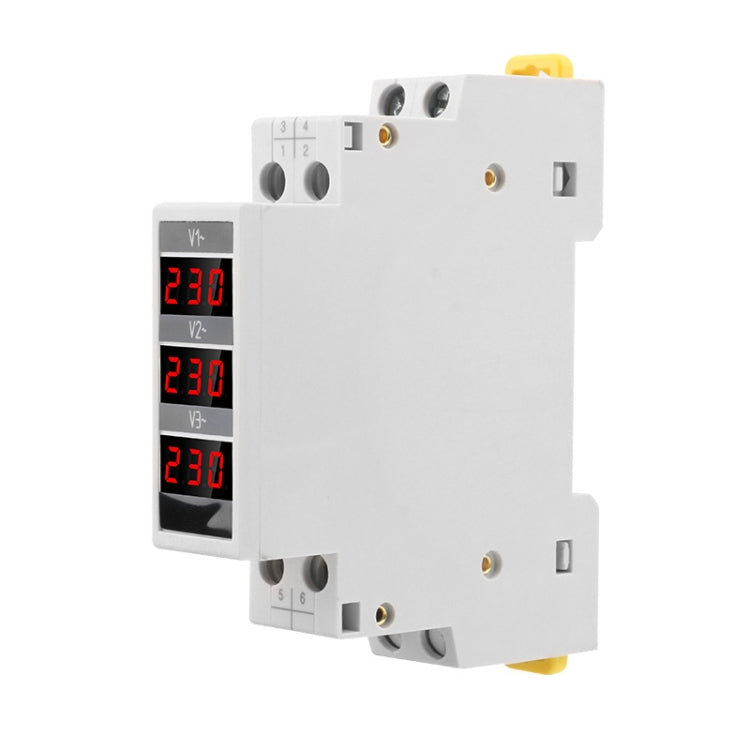

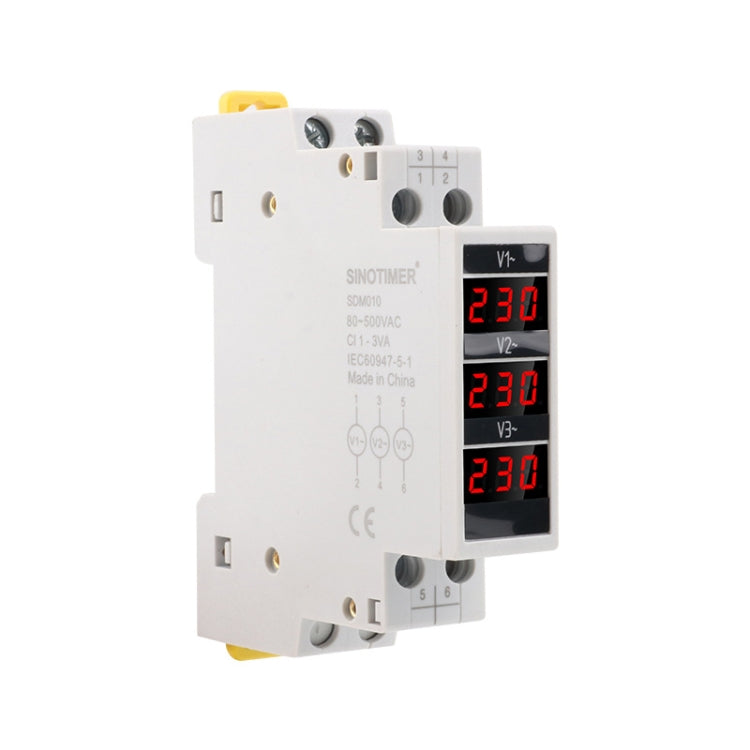

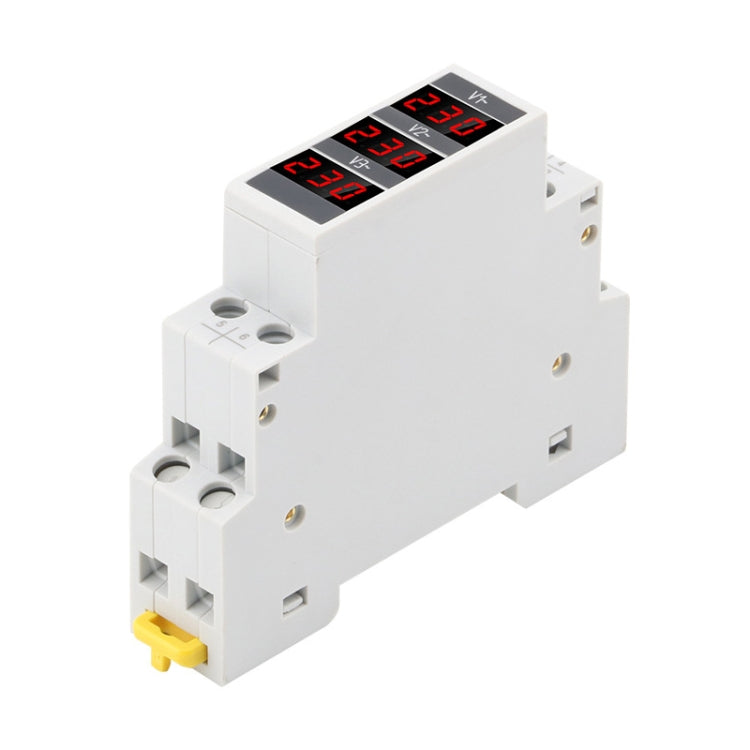

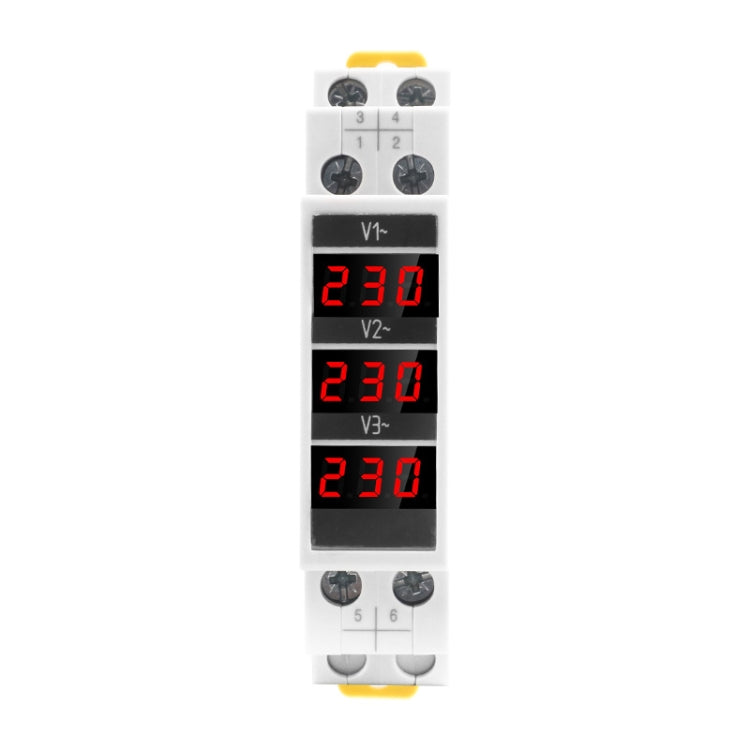

12. Function: measure three-phase AC voltage and display the voltage value of each phase through digital tube
13. Size: 81 x 66 x 18mm
Specification:
|
Package Weight
|
| One Package Weight |
0.08kgs / 0.19lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
51cm * 38cm * 34cm / 20.08inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 404 cartons * 360 pcs = 145440 pcs
40HQ: 939 cartons * 360 pcs = 338040 pcs
|
|
