1. Remotely control the power on and off through the APP anytime, anywhere
2. Check the power consumption in real time through the mobile phone
3. Schedule/Timer, 100 timer modes per day or week (off/on)

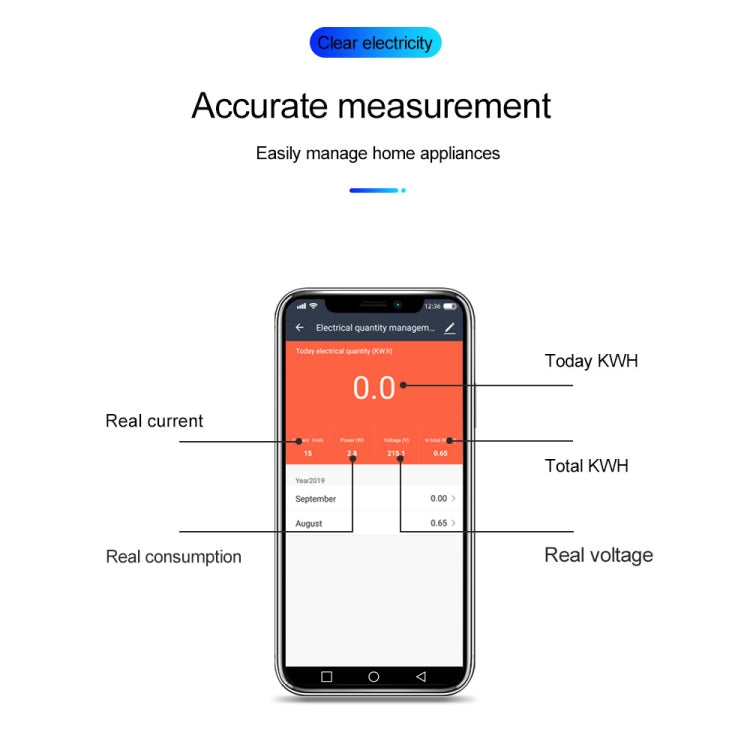

4. The voltage, current, power and total power kWh are displayed on the mobile APP
5. If the network is disconnected, the timer will select all the schedules set by the mobile app and work according to the set schedule
6. With memory function

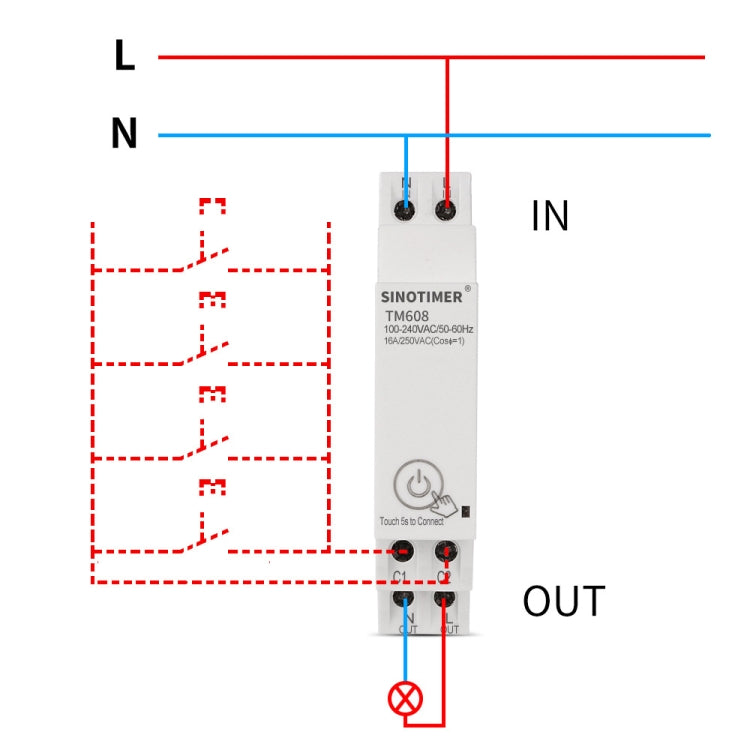

7. Can be controlled by the tact switches of C1 and C2
8. Each mobile app can be used with 100 people
9. When the load exceeds 17A, the load circuit will be automatically disconnected
10. Power supply: 100-240V AC 50-60Hz
11. WIFI frequency: 2.4GHz

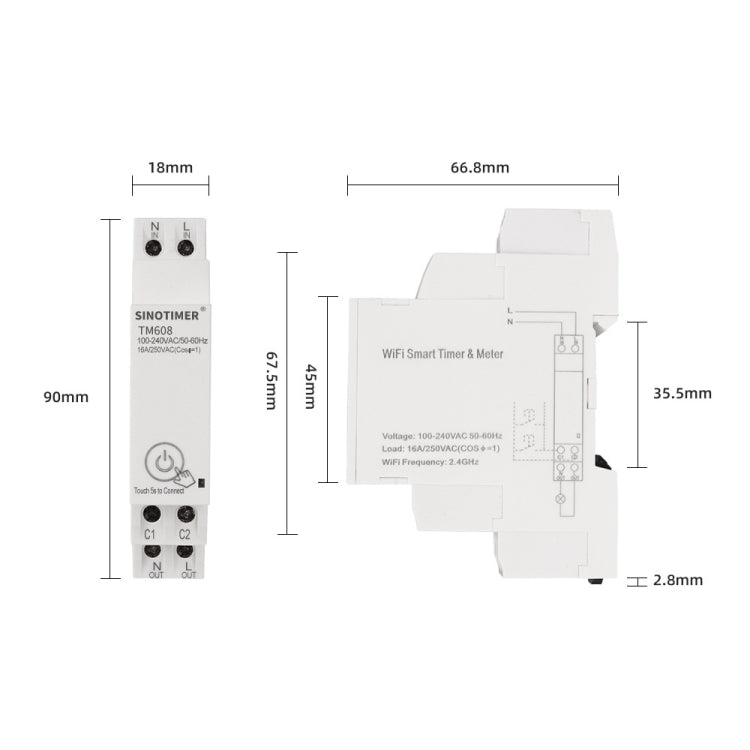

12. Size: about 66.8x90x18mm
13. Installation: 35mm DIN rail
Specification:
|
Package Weight
|
| One Package Weight |
0.11kgs / 0.25lb
|
| One Package Size |
12cm * 8cm * 2cm / 4.72inch * 3.15inch * 0.79inch
|
| Carton Weight |
30.00kgs / 66.14lb
|
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
|
| Loading Container |
20GP: 177 cartons * 242 pcs = 42834 pcs
40HQ: 412 cartons * 242 pcs = 99704 pcs
|
|
