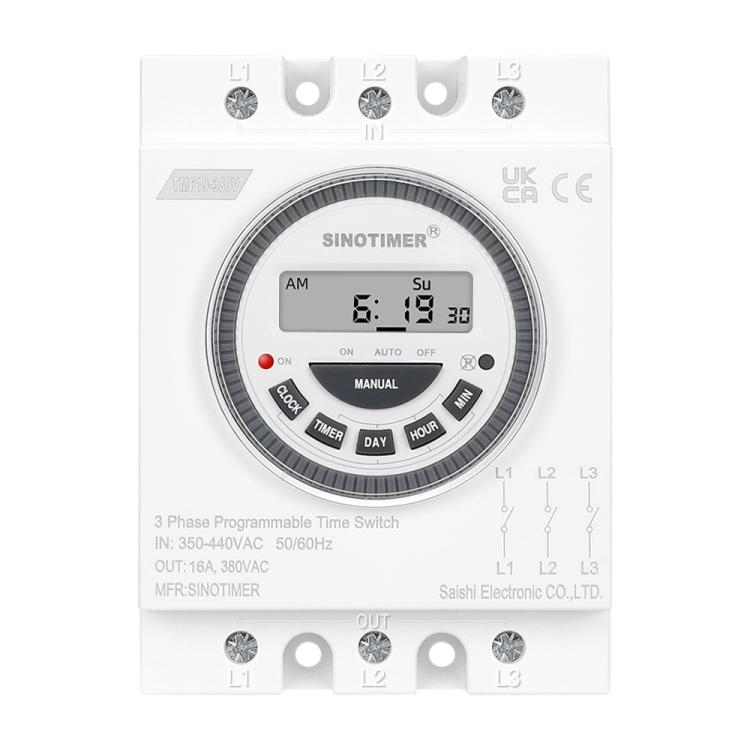

1. 7-day programmable stable three-phase high-performance timer switch, three live wire input, three live wire output, without neutral wire, which solves the disadvantage of inconvenient neutral wire for some customers, just set a few on/off points.
2. A total of 18 on/off points can be set, and can be set arbitrarily from Monday to Sunday, with a minimum interval of one minute and a maximum of 168 hours (equivalent to one week). It can be manually opened and closed temporarily, and a permanent cycle can be formed by setting one.
3. It is widely used in equipment such as water pumps, pond aerators, steamers, water heaters, billboards, neon lights, exhaust fans, and other three-phase 350V-420VAC motors, realizing unmanned management, safe and reliable, and stable performance. It is a good choice.
4. Preset one week in advance
5. 18 daily and weekly on/off programs
6. Single channel, voltage output.
7. Control with precision to the minute
8. LED power indicator, high contrast LCD display
9. Reset function and manual operation
10. Battery backup in case of power failure
11. Output: 16A, 380VAC
12. Input: 350-440VAC 50/60Hz
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.11lb
|
| One Package Size |
16cm * 12cm * 10cm / 6.3inch * 4.72inch * 3.94inch
|
| Carton Weight |
19.10kgs / 42.11lb
|
| Carton Size |
44cm * 32cm * 34cm / 17.32inch * 12.6inch * 13.39inch
|
| Loading Container |
20GP: 557 cartons * 36 pcs = 20052 pcs
40HQ: 1293 cartons * 36 pcs = 46548 pcs
|
|
