1. Voltage: 220V
2. Power: 160W
3. Current: 0.73A/1.45A
4. Temperature setting range: 0-260 degrees Celsius
5. Working size: about 7 x 10cm

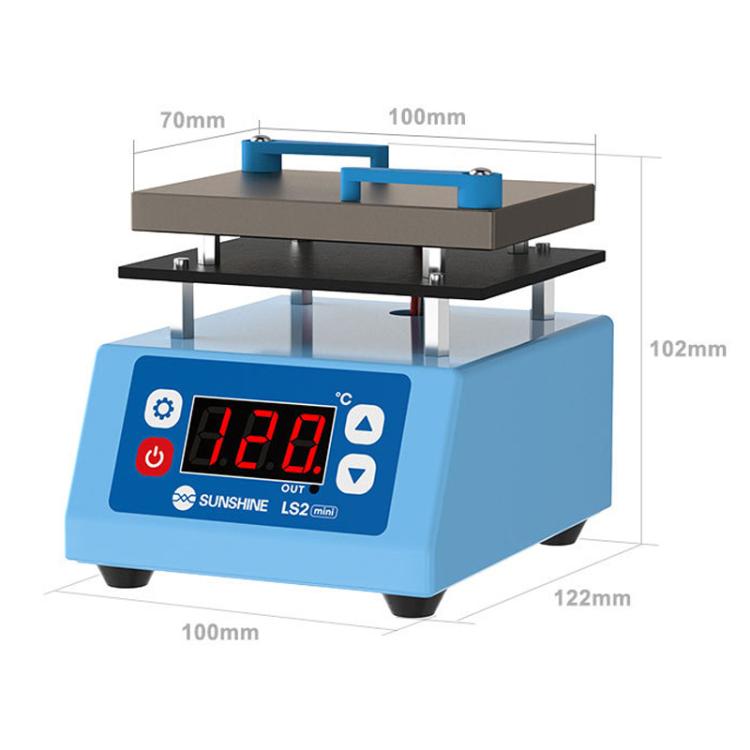

6. Size: about 10 x 12.2 x 10.2cm
7. Weight: about 250g
Features:

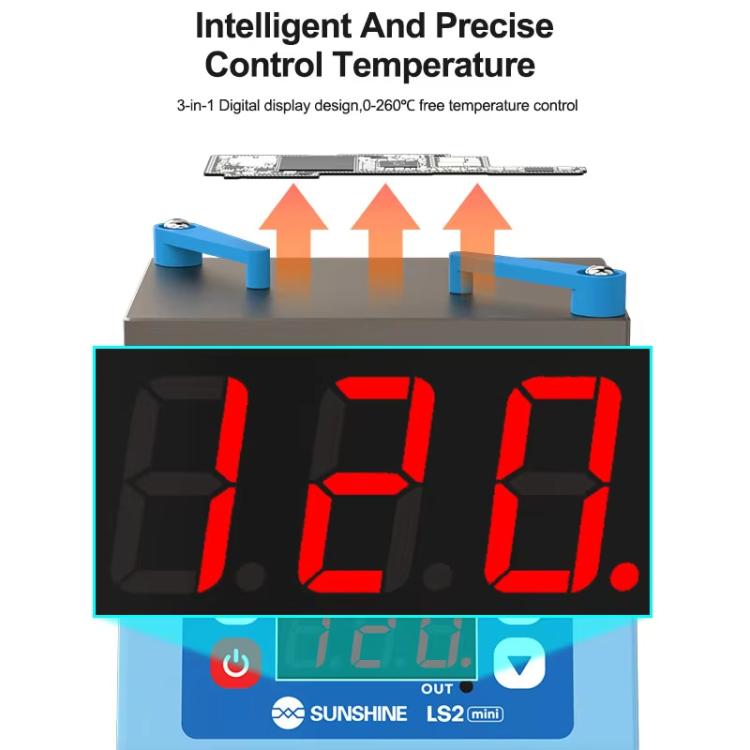

1. Intelligent temperature control, 0-260 degrees Celsius free temperature control, precise temperature control
2. Precise positioning, suitable for mobile phone motherboards of various sizes
3. Small and light, mini and space-saving

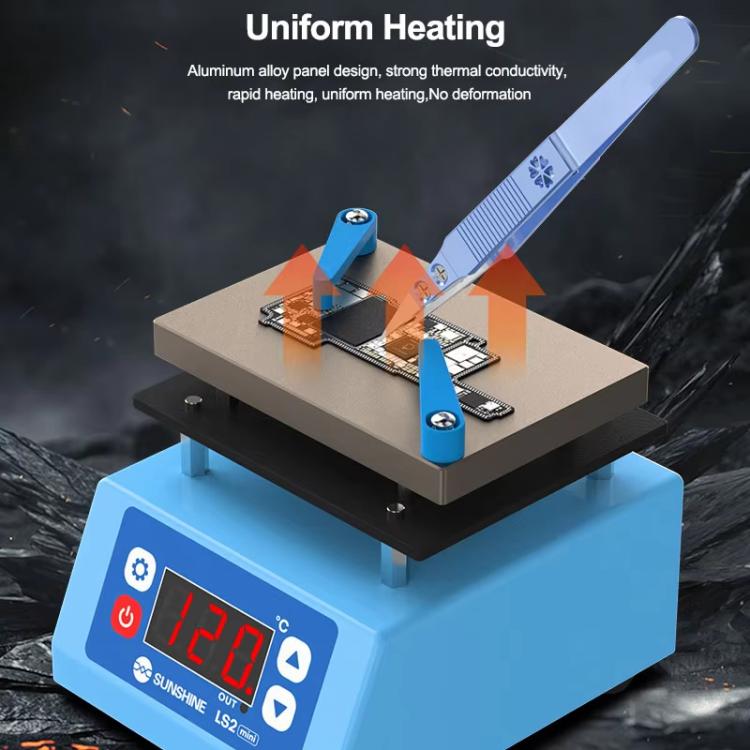

4. Uniform heating, aluminum alloy panel design, good thermal conductivity
5. Suitable for special-shaped motherboards of mobile phones, supporting layering, lamination, tinning, glue removal, etc.

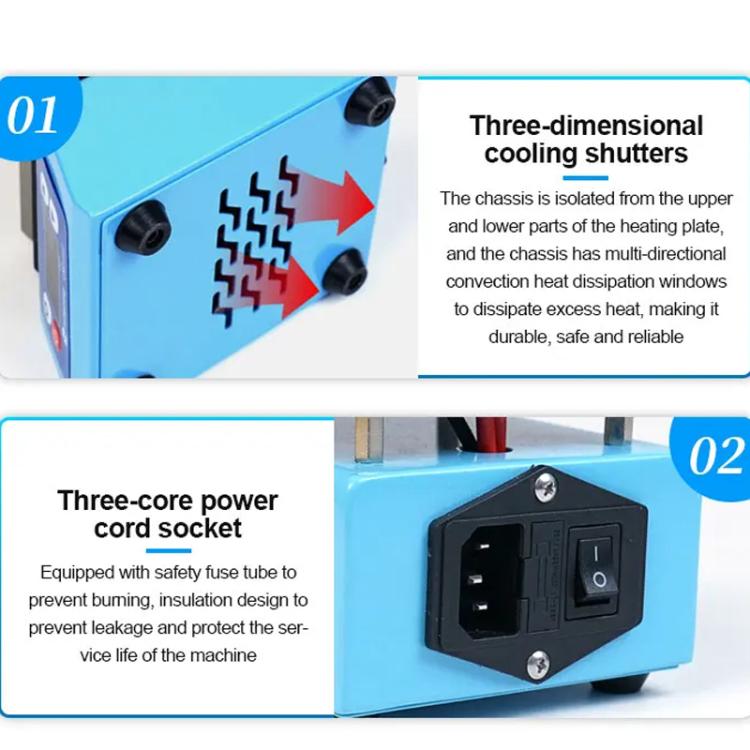

6. Three-dimensional heat dissipation shutters, upper and lower isolation of the chassis and the heating plate, multi-directional convection heat dissipation windows of the chassis, dissipation of excess heat, durable and safe
7. Three-core power cord socket, equipped with a safety fuse tube, burn-proof, insulation design to prevent leakage, protect the service life of the machine
Specification:
|
Package Weight
|
| One Package Weight |
0.85kgs / 1.88lb
|
| One Package Size |
18cm * 15cm * 13cm / 7.09inch * 5.91inch * 5.12inch
|
| Carton Weight |
16.40kgs / 36.16lb
|
| Carton Size |
50cm * 35cm * 32cm / 19.69inch * 13.78inch * 12.6inch
|
| Loading Container |
20GP: 476 cartons * 18 pcs = 8568 pcs
40HQ: 1105 cartons * 18 pcs = 19890 pcs
|
|
