SUNWEIT ST45 PCIe X1 To 1-PCI Slot ASM1083 Bridge Card

1. Allows the PCI bus to be used with high-performance PCI Express networks
2. Enables users to connect legacy parallel bus devices to serial PCI Express interfaces

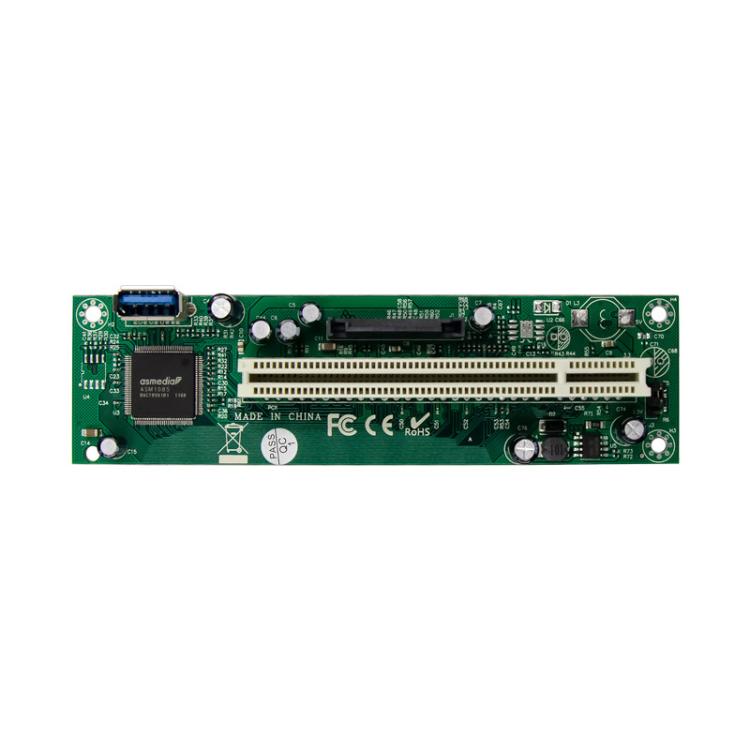

3. ASM1083 is a PCI Express-to-PCI forward bridge that fully complies with PCI-SIG PCI Express-to-PCI bridge specification 1.0
4. Main chipset: ASM1083
5. Bus type: PCI Express x1 (1xLane virtual channel)
6. Slot interface:
- 1 x PCI 32bit 33/66MHz (split)
- 1 x USB3.0 port
- 1 x 15Pin SATA interface
7. PCI card slot: 3.3V/1A, 3.3V/100mA, 12V/500mA (adjustable)
8. Features: no need to connect an additional power supply (in special cases, the onboard SATA power interface is available)
9. Driver-free, plug and play
10. Wide range of applications: commonly used for network cards, sound cards, serial and parallel port cards, video capture cards, array cards, industrial boards and other PCI device cards

Warm Tips:
1. The adapter card is tested before shipment. Remember not to hot-swap it with power on. Please turn off the power before operation
2. When using the adapter card, the computer needs to be turned off to hot-swap it.

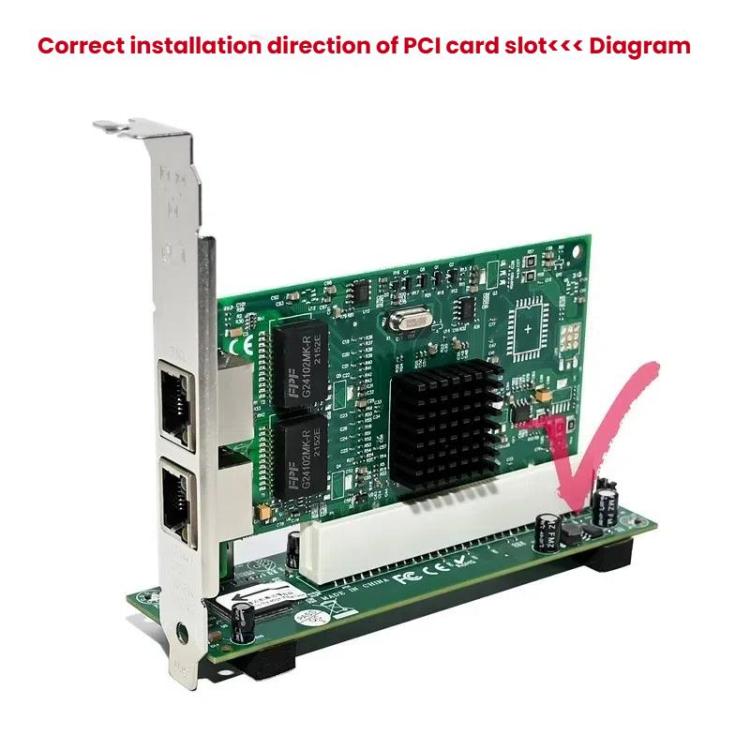

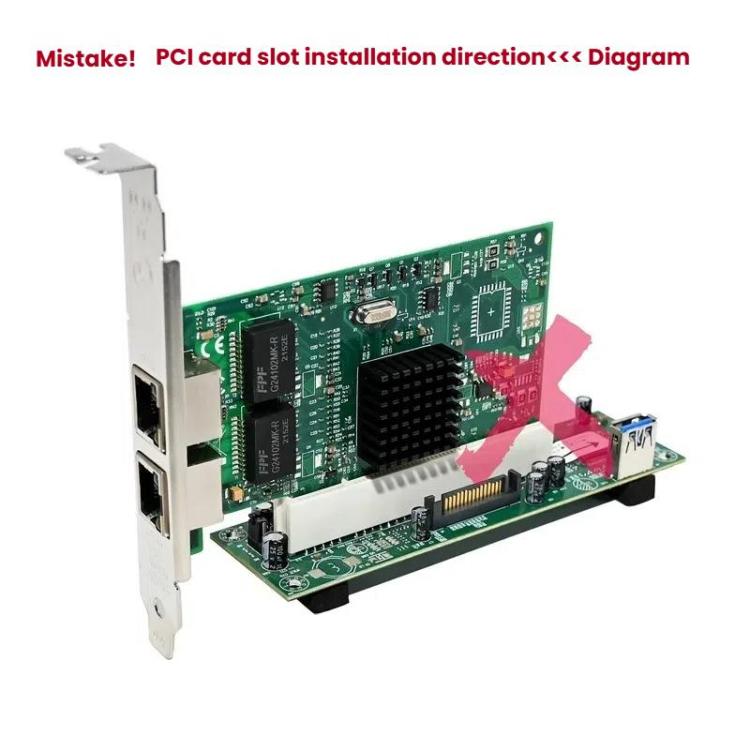

3. When installing the PCI device card, pay attention to the direction of the card (the board has an arrow indicating the direction). Do not insert it in reverse. Inserting it in reverse may cause the chip to burn and damage
4. Correct installation method: Turn off the computer host, follow the arrow on the board, and insert the PCI device card into the PCI card slot split converter

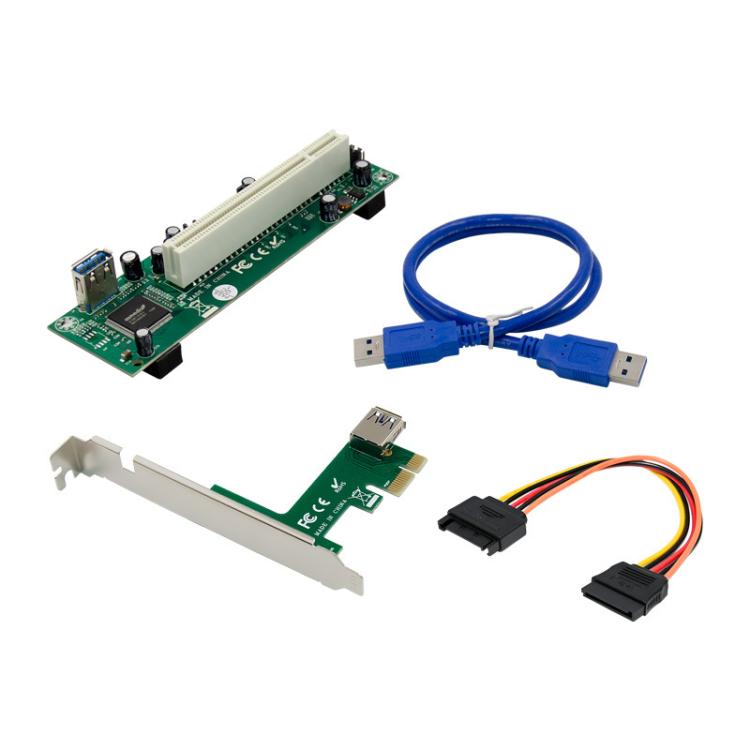

Packing list:
- PCI Express x1 board x 1
- Split (1xPCI) card slot x 1
- USB3.0 data cable x 1
- 4 Pin to 15 Pin power cable x 1
