1. Measuring range: non-contact: 3-100000RPM; contact: 3-19999RPM, 0-99999m, 0-1999.9m/min, 0-9999.9ft/min
2. Accuracy: non-contact: 0.05%FS+1RPM; contact: 0.1%FS+1RPM
3. Speed display: 6-digit display, up to 99999
4. Measuring distance: 50-500mm

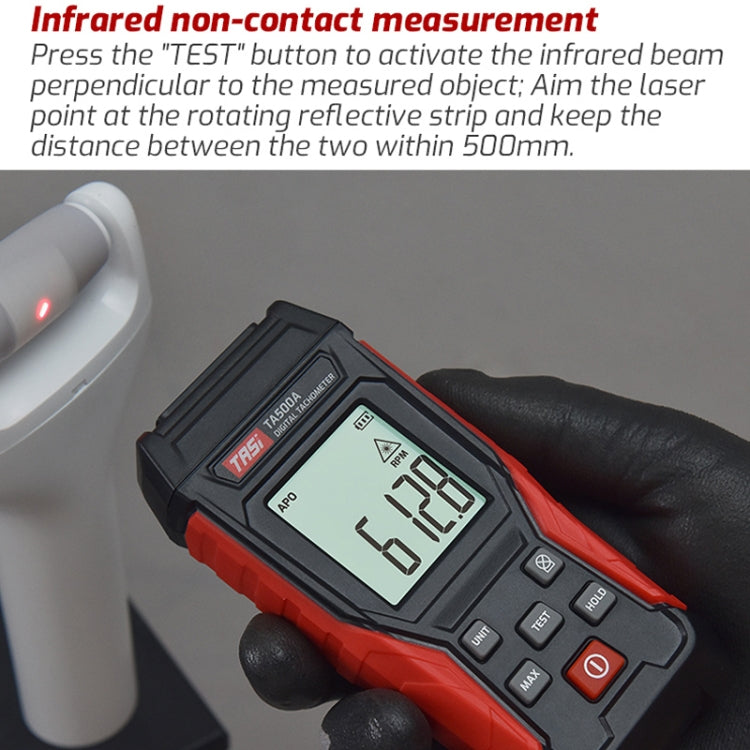

5. Measuring method: TA500A: non-contact; TA500C: non-contact/contact.
6. Sampling time: 0.8 seconds (above 60 rpm)
7. Operating environment: -10 - 50 degrees Celsius, 80% relative humidity or less, indoor altitude of less than 2000m
8. Storage environment: -10 - 50 degrees Celsius, within 70% relative humidity (remove batteries)

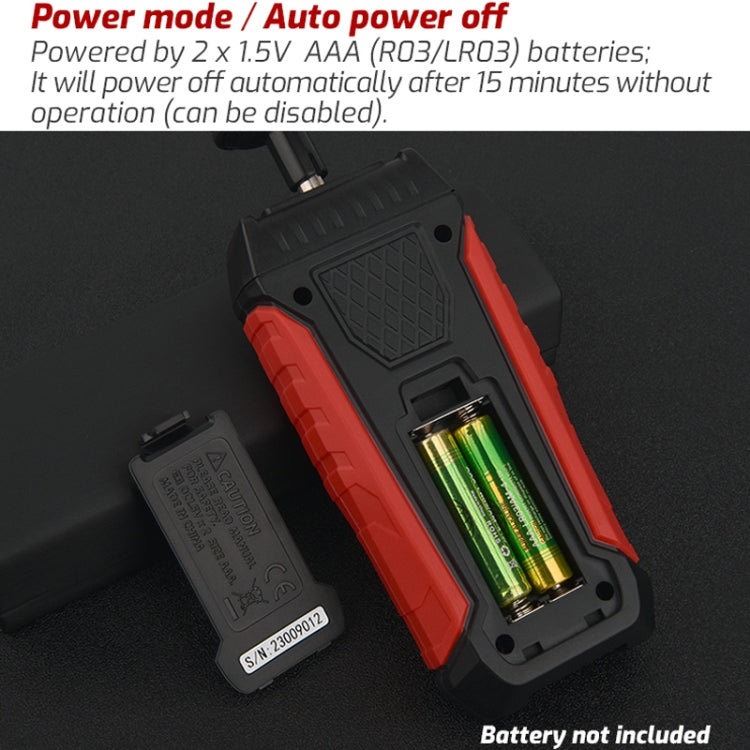

9. Power supply: 2 x 1.5V AAA (R03/LR03) batteries (not included)
10. Display size: about 3.4 x 3.1cm

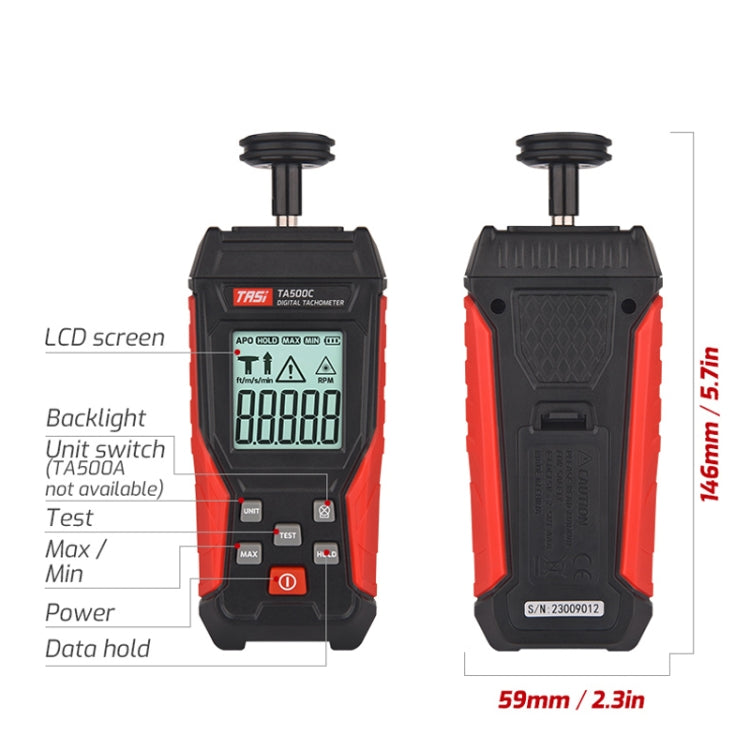

11. Dimensions: TA500A: about 13 x 5.9 x 2.9cm; TA500C: about 14.6 x 5.9 x 2.9cm
12. Weight: TA500A: about 110g; TA500C: about 120g
Features:

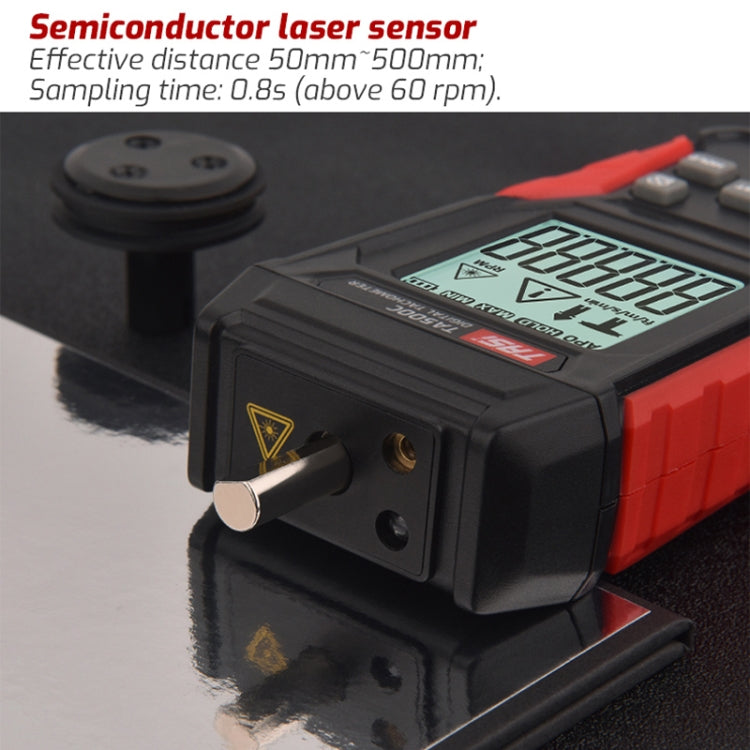

1. Semiconductor laser sensor

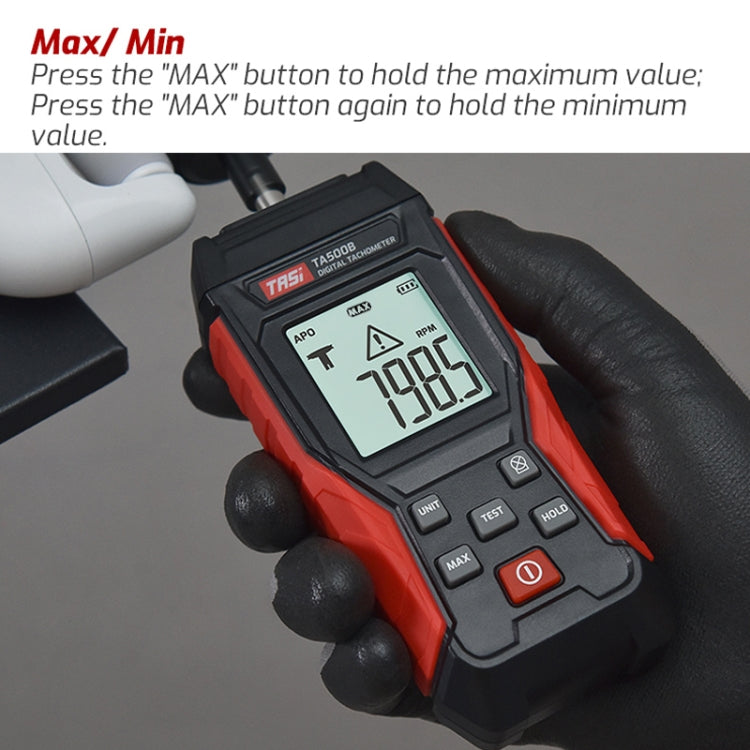

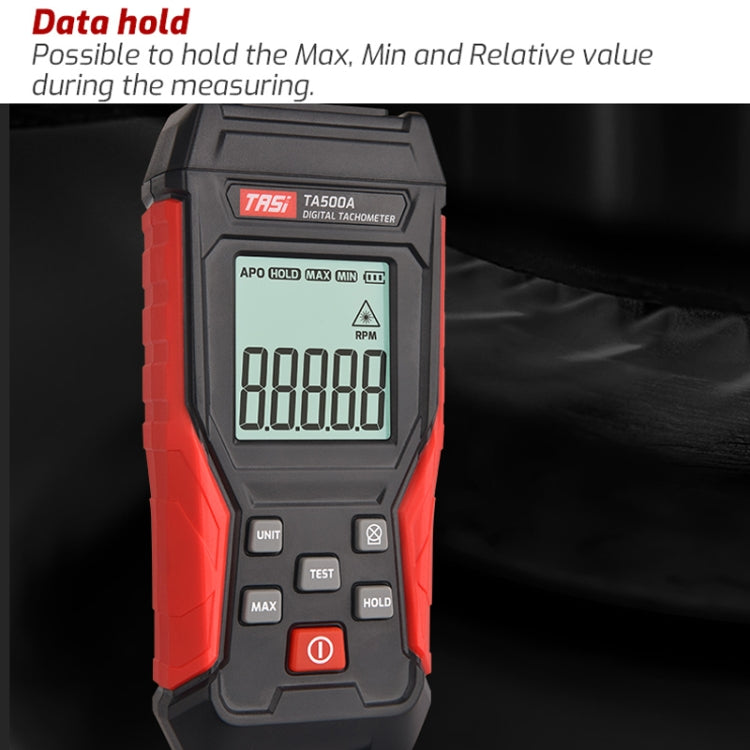

2. Can lock the maximum value, minimum value and real-time value during the measuring process

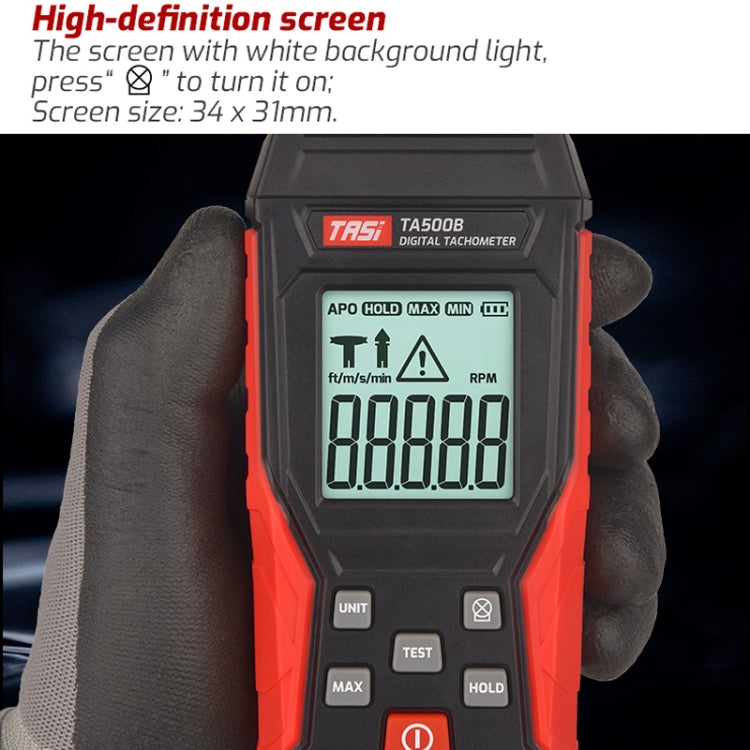

3. Large HD display with white background lighting
4. 15 minutes without operation after the automatic shutdown (can be canceled manually)
Packing list:
- Main unit x 1
- Reflective paper x 2
- Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.45lb
|
| One Package Size |
20cm * 8cm * 5cm / 7.87inch * 3.15inch * 1.97inch
|
| Carton Weight |
12.00kgs / 26.46lb
|
| Carton Size |
48cm * 43cm * 28cm / 18.9inch * 16.93inch * 11.02inch
|
| Loading Container |
20GP: 461 cartons * 60 pcs = 27660 pcs
40HQ: 1071 cartons * 60 pcs = 64260 pcs
|
|
