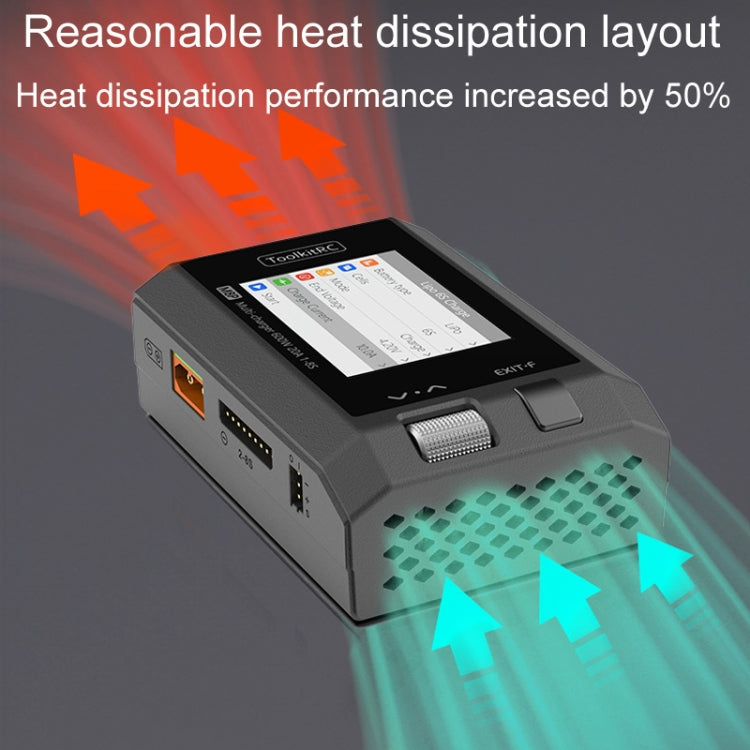

1. More reasonable heat dissipation layout, heat dissipation performance has been improved

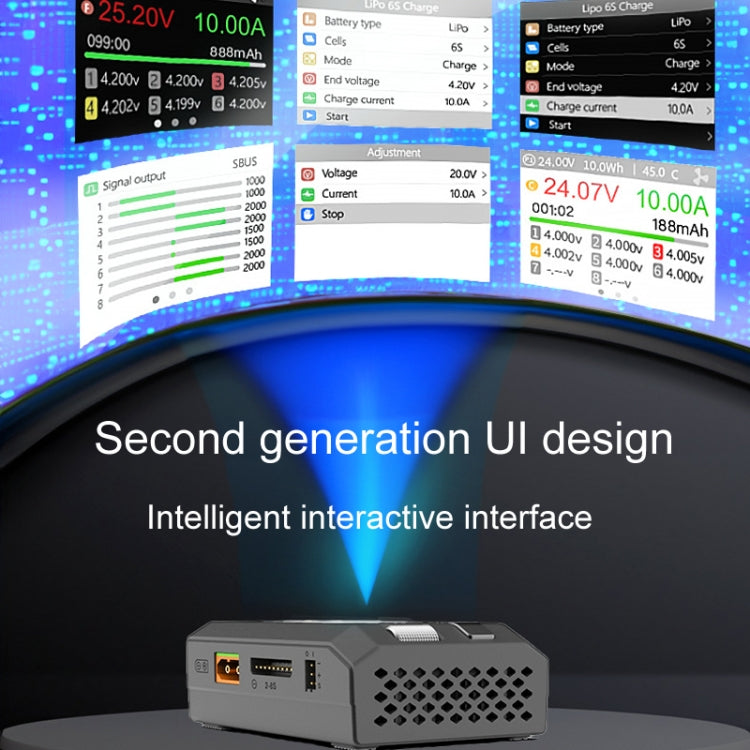

2. Second-generation UI design, intelligent interactive interface, simple and intuitive

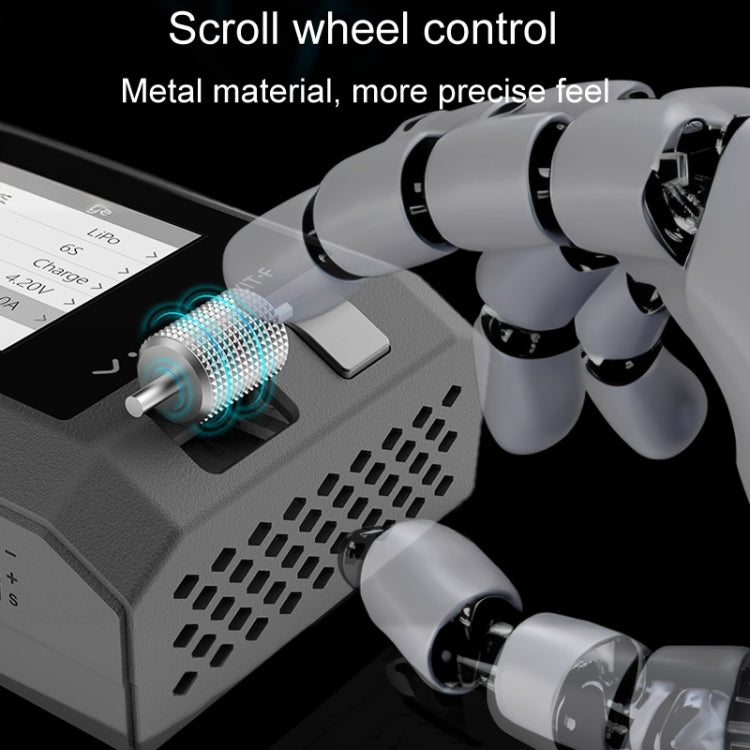

3. Roller control design, metal material, comfortable and more accurate

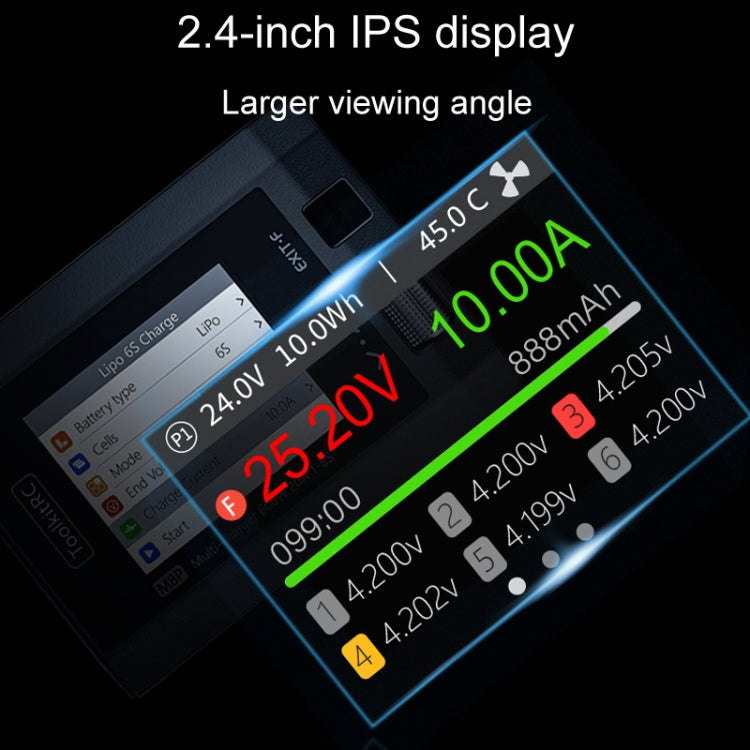

4. Wider viewing range, better viewing angle under bright light
Parameters:
1. Input voltage: 7.0-35.0V
2. Charging current: MAX 20A 600
3. Discharge current: recycle mode: MAX 20A 600W; normal mode: MAX 5A 20W
4. Balance current: 1000mA 2-8S
5. Voltage range: 0.5-5.0V 8S
6. Power mode: 1-20A 1-30V Mode: CC+CV
7. ESC: 0.1A-18A MAX 400W

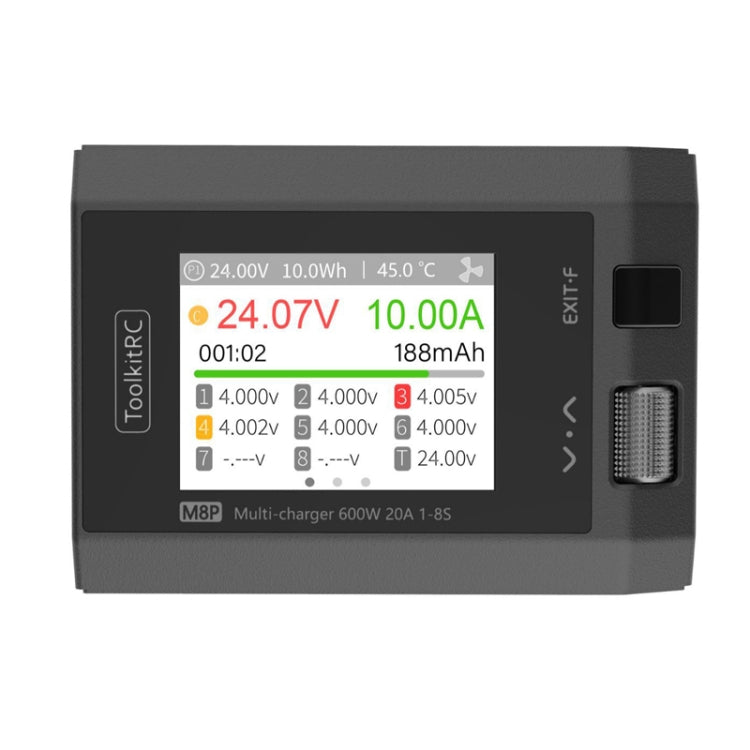

8. Display: 2.4inch IPS full color LCD, resolution 240 x 320
9. USB: 2.1A 5V firmware upgrade USB3.0
Specification:
|
Package Weight
|
| One Package Weight |
0.25kgs / 0.56lb
|
| One Package Size |
12cm * 9cm * 5cm / 4.72inch * 3.54inch * 1.97inch
|
| Carton Weight |
7.50kgs / 16.53lb
|
| Carton Size |
44cm * 22cm * 20cm / 17.32inch * 8.66inch * 7.87inch
|
| Loading Container |
20GP: 1377 cartons * 26 pcs = 35802 pcs
40HQ: 3197 cartons * 26 pcs = 83122 pcs
|
|
