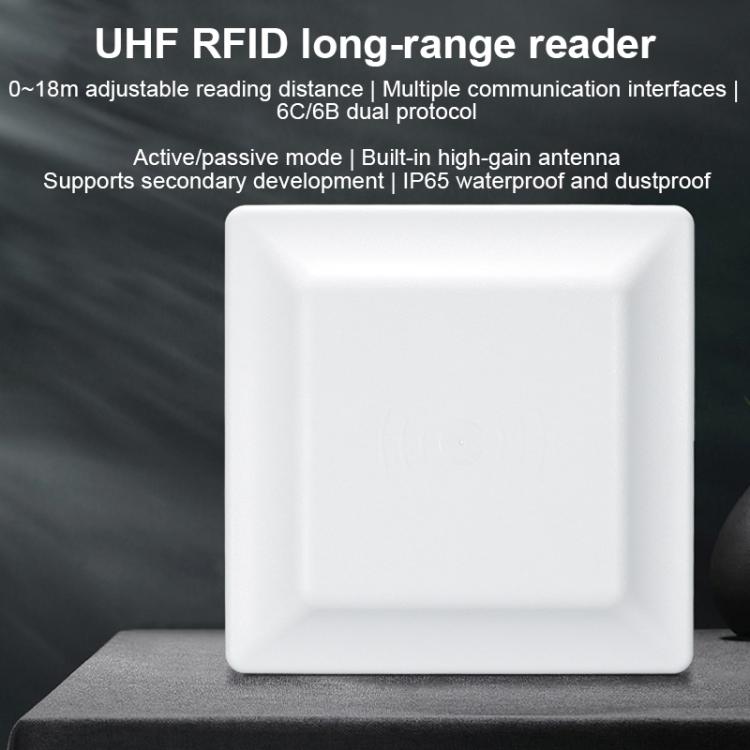

UHF RFID Reader Long Range Integrated Reader Writer With E710 Chip, Style: Add 4G Communication (EU Plug)

1. Equipped with the Impinj E710 chip, it boasts a peak read rate exceeding 700 tags per second and a long read distance.

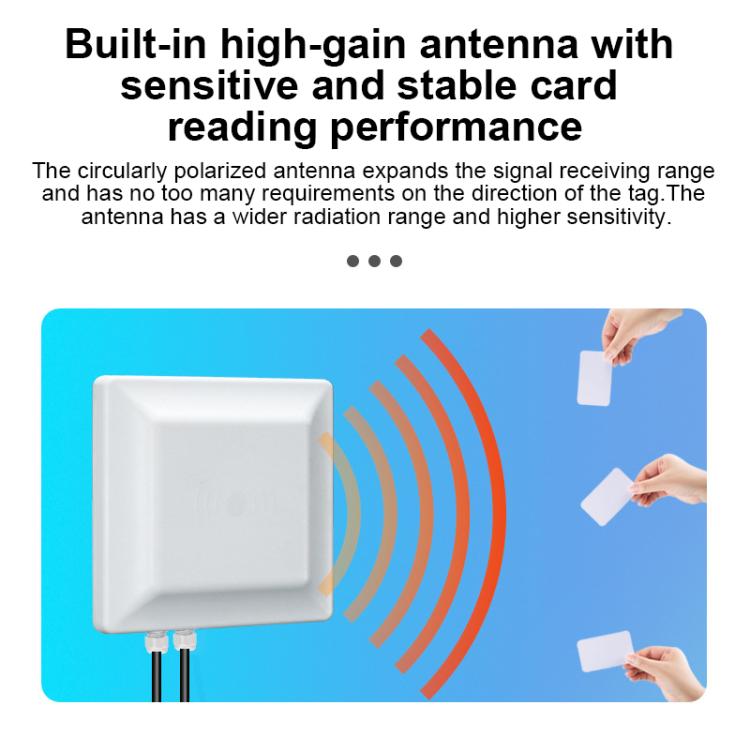

2. Built-in high-gain 7dBi antenna provides wide coverage, sensitive card reading, and stable performance.

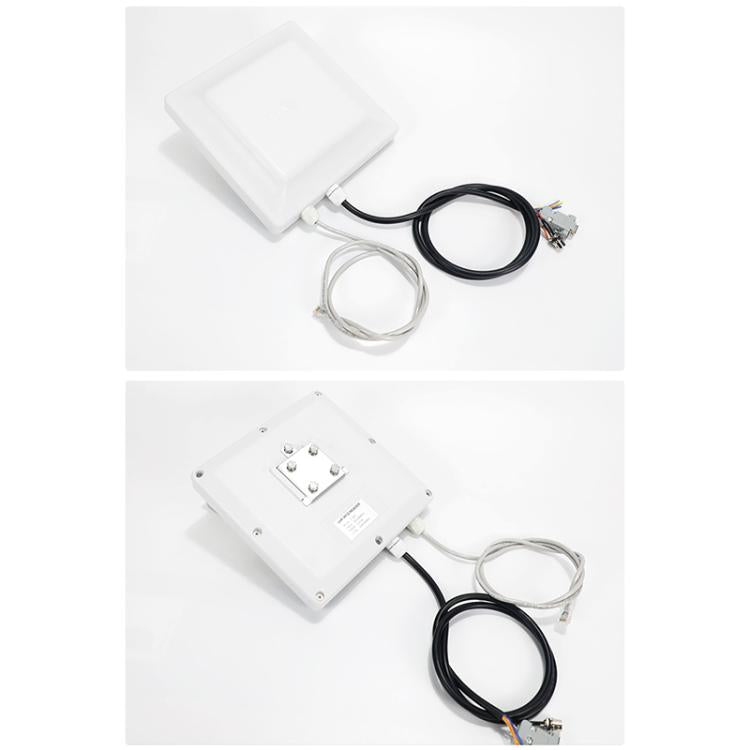

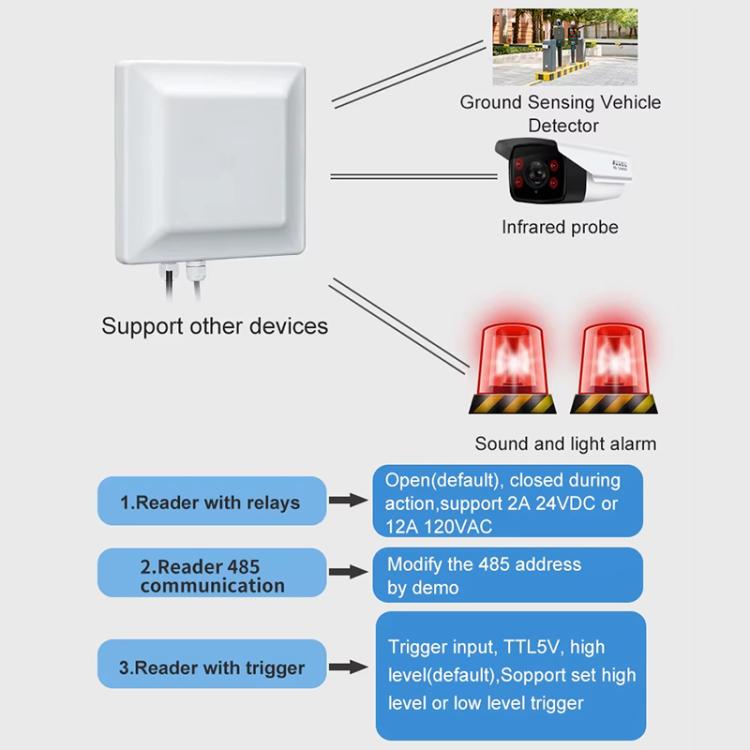

3. Multiple communication interfaces and a separate cable design allow for connection to various devices, such as parking sensors and infrared detectors.
4. Flexible operating modes: active, passive, and trigger.

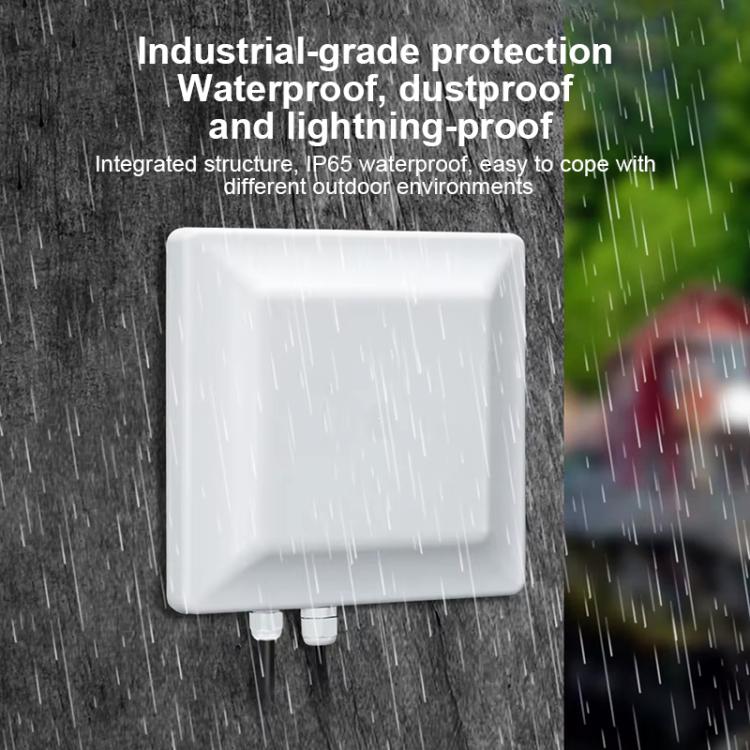

5. Integrated structure with IP65-rated waterproof, dustproof, and lightning-proof protection, making it easily adaptable to various outdoor environments.
6. Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.

Product Specifications:
1. Model: FI-803
2. Dimensions: 235mm x 235mm x 58mm
3. Weight: Approximately 1000g
4. Operating Frequency: Standard: ISM 902-928MHz and ISM 865-868MHz optional.
5. Operating Protocol: ISO18000-6C (EPCGEN2)
6. Card Reading Distance: 0-18m
7. Card Reading Speed: Software-configured, average single-card reading speed of less than 6ms per 64 bits

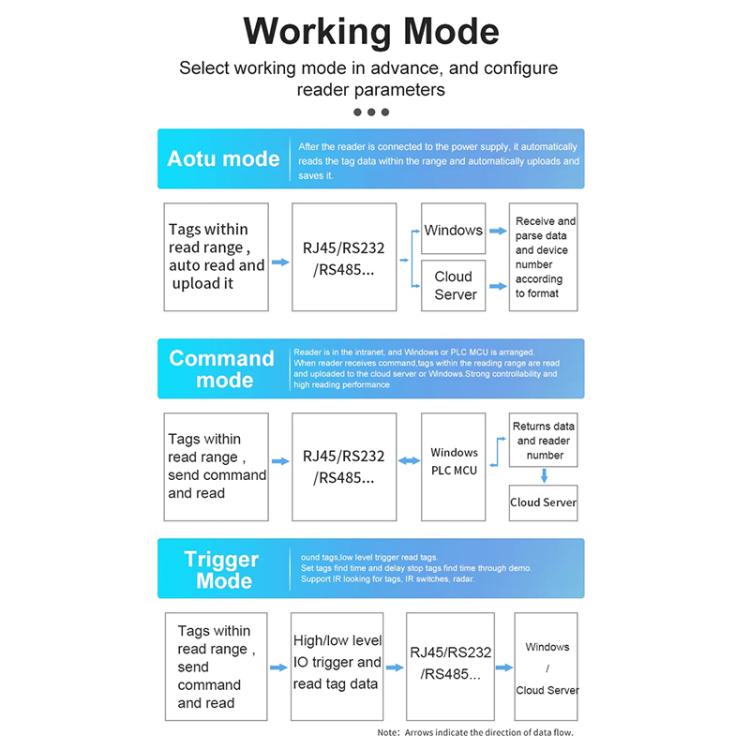

8. Card Reading Mode: Timed automatic reading, external trigger-controlled reading, command-based interactive reading, software-configurable
9. Output Power: 0-33dBm, software-adjustable
10. Operating Mode: Wide Frequency Hopping Spectrum (FHSS)
11. Antenna Gain: Built-in circularly polarized antenna, 7dBi gain

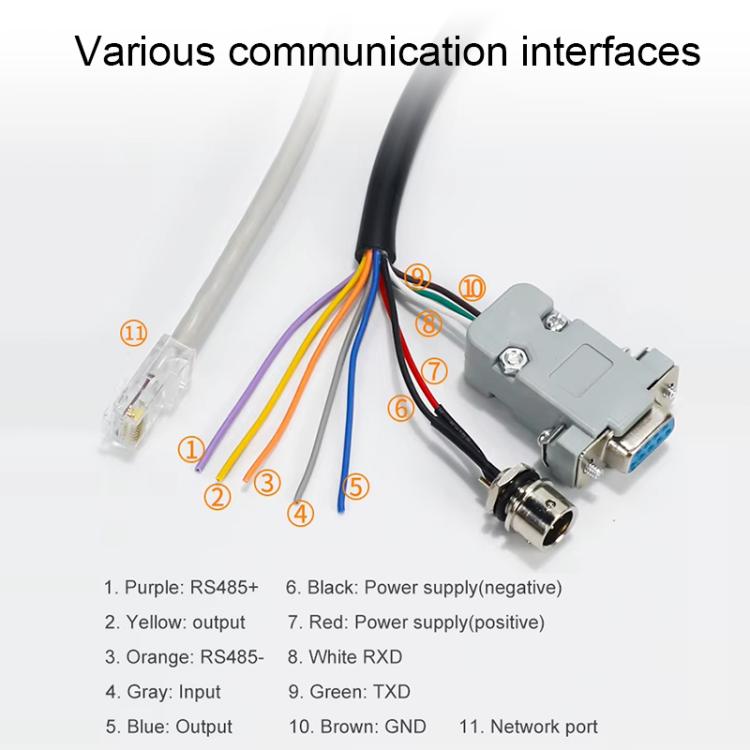

12. Communication Interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output
13. Operating Indicator: Buzzer
14. Power Supply: DC+12V (with power adapter), voltage range: 9-16V
15. Operating Temperature: -20 degrees Celsius to +80 degrees Celsius
