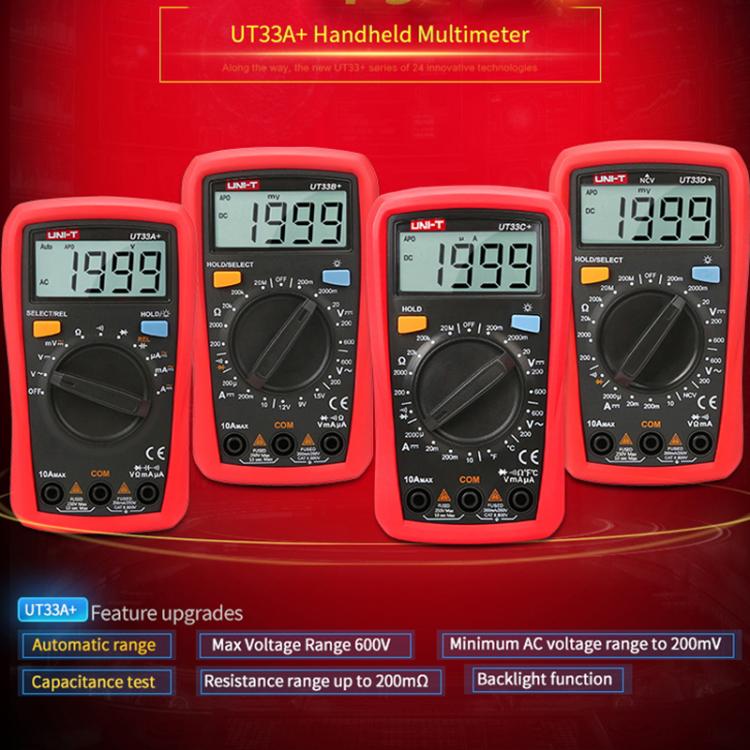

The UT33+ series redefines the performance benchmark for entry-level digital multimeters. Innovative industrial design ensures these products can withstand a 2-meter drop. The new LCD display layout provides an enhanced user experience. This product series ensures safe operation for users in CAT II 600V environments. Special features include: 2mF capacitance testing (UT33A+); Battery testing (UT33B+); Temperature measurement (UT33C+); Non-Contact Voltage (NCV) testing (UT33D+).

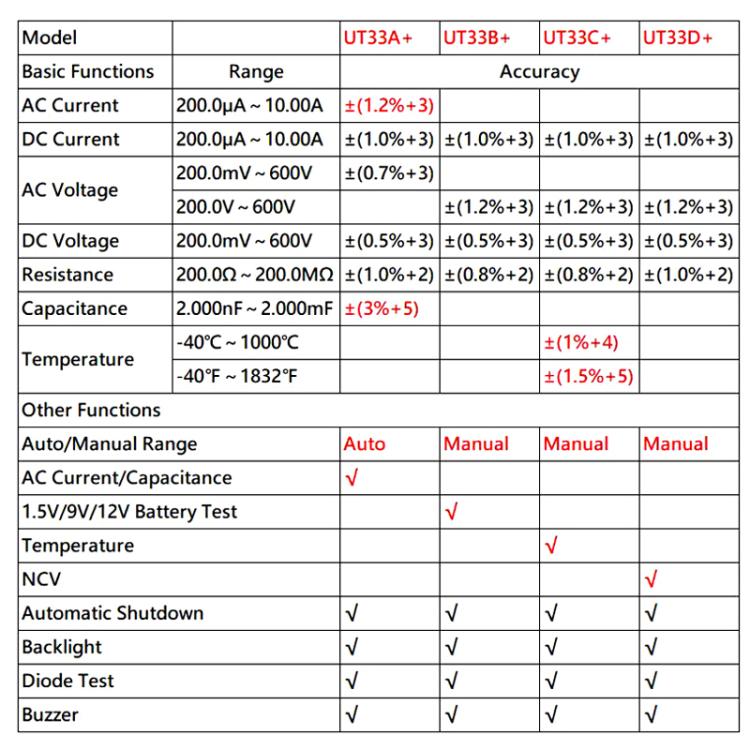

Parameters:

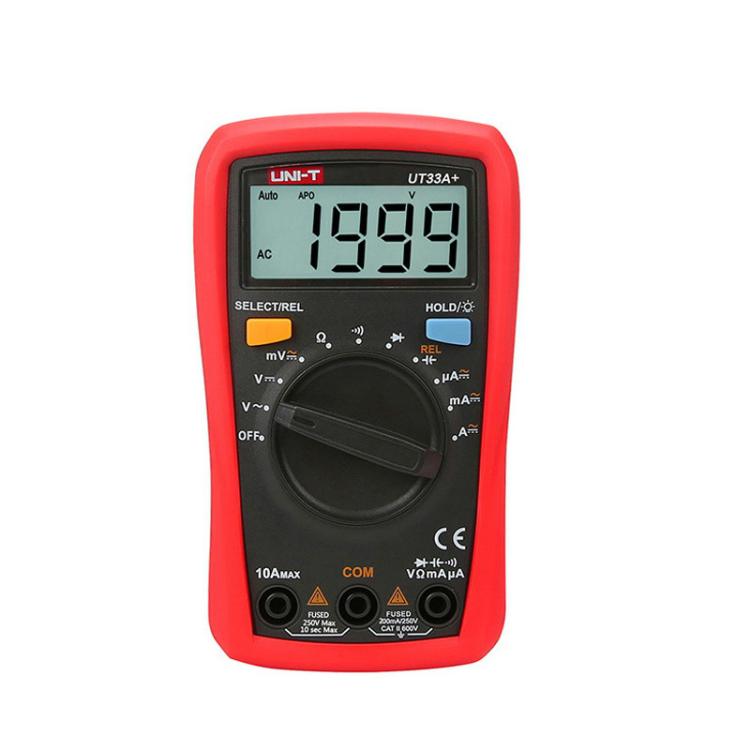

UT33A+:
1. DC Voltage: 0.0001V~600V
2. AC Voltage: 0.0001V~600V
3. DC Current: 0.1μA~10A
4. AC Current: 0.1μA~10A
5. Capacitance: 0.001nF~2mF
6. Resistance: 0.1Ω~200MΩ
UT33B+:
1. DC Voltage: 0.0001V~600V
2. AC Voltage: 0.1V~600V
3. DC Current: 0.1μA~10A
4. Resistance: 0.1Ω~20MΩ
5. Battery Test: 1.5V/9V/12V
UT33C+:
1. DC Voltage: 0.0001V~600V
2. AC Voltage: 0.1V~600V
3. DC Current: 1μA~10A
4. Resistance: 0.1Ω~20MΩ
5. Temperature: -40~1000 degrees Celsius (Note: The included pointed K-type thermocouple is only suitable for temperatures below 250 degrees Celsius)
UT33D+:
1. DC Voltage: 0.0001V~600V
2. AC Voltage: 0.0001V~600V
3. DC Current: 1μA~10A
4. Resistance: 0.1Ω~200MΩ
General Specifications:
1. Power Supply: 1.5V Battery (R03) × 2(Not included)
2. Display: 66mm x 51mm

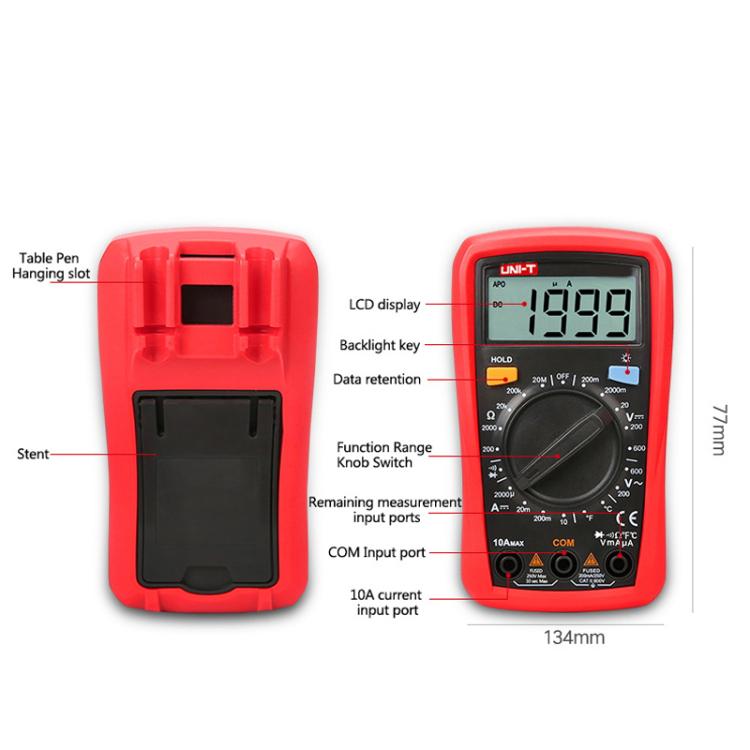

3. Product Dimensions: 134mm x 77mm x 47mm
4. Weight: 206g
Specification:
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
18cm * 10cm * 7cm / 7.09inch * 3.94inch * 2.76inch
|
| Carton Weight |
20.60kgs / 45.41lb
|
| Carton Size |
65cm * 32cm * 36cm / 25.59inch * 12.6inch * 14.17inch
|
| Loading Container |
20GP: 356 cartons * 60 pcs = 21360 pcs
40HQ: 826 cartons * 60 pcs = 49560 pcs
|
|
