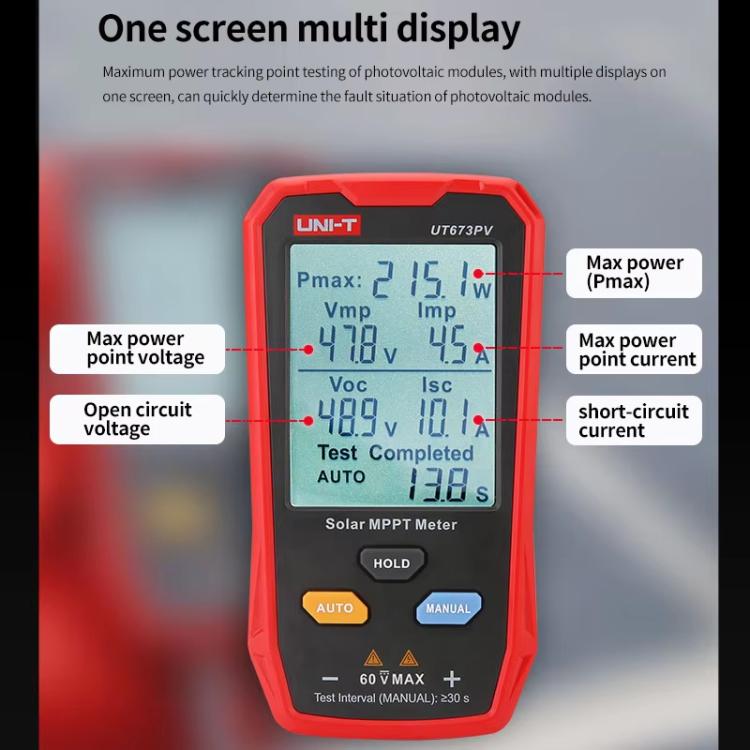

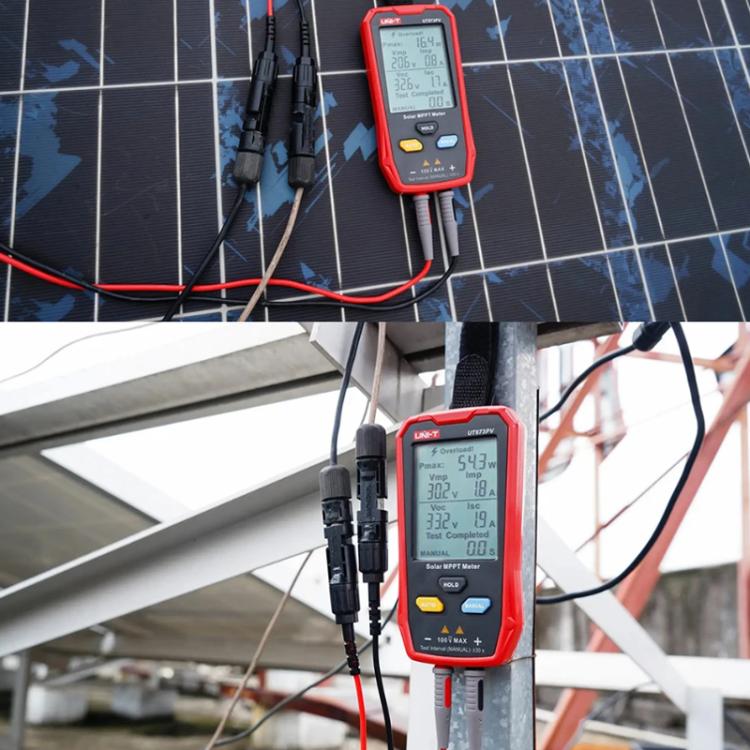

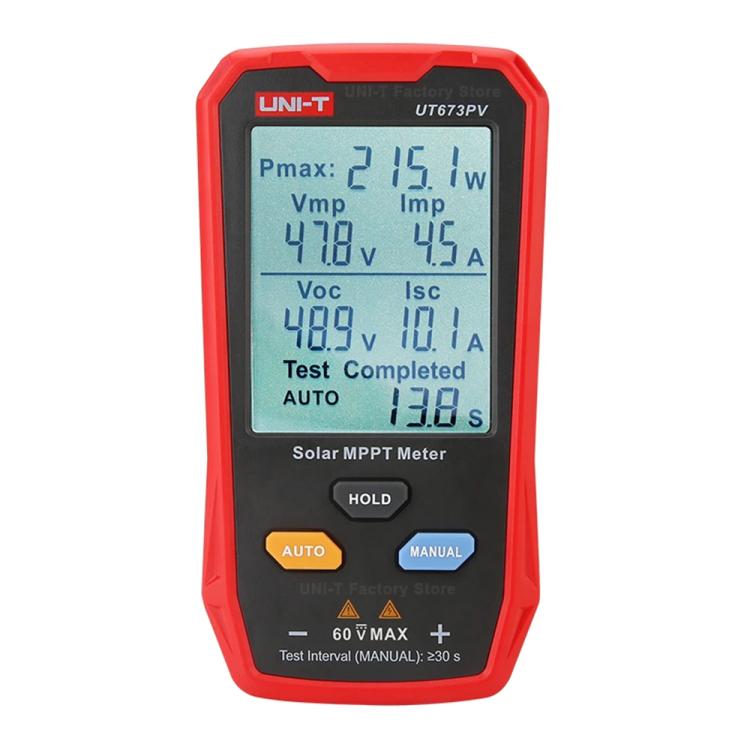

1. The UT673PV Solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open-circuit voltage, and short-circuit current.

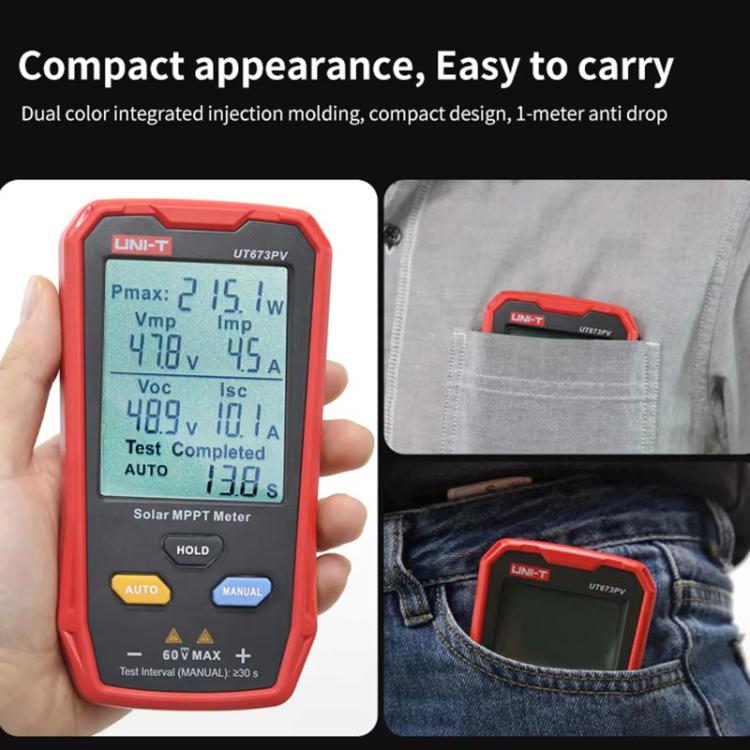

2. Equipped with a large screen and automatic measurement function, this device can display all measurement results simultaneously. Its portable design facilitates easy carrying, significantly improving operational efficiency for PV manufacturers, installers, and end-users.

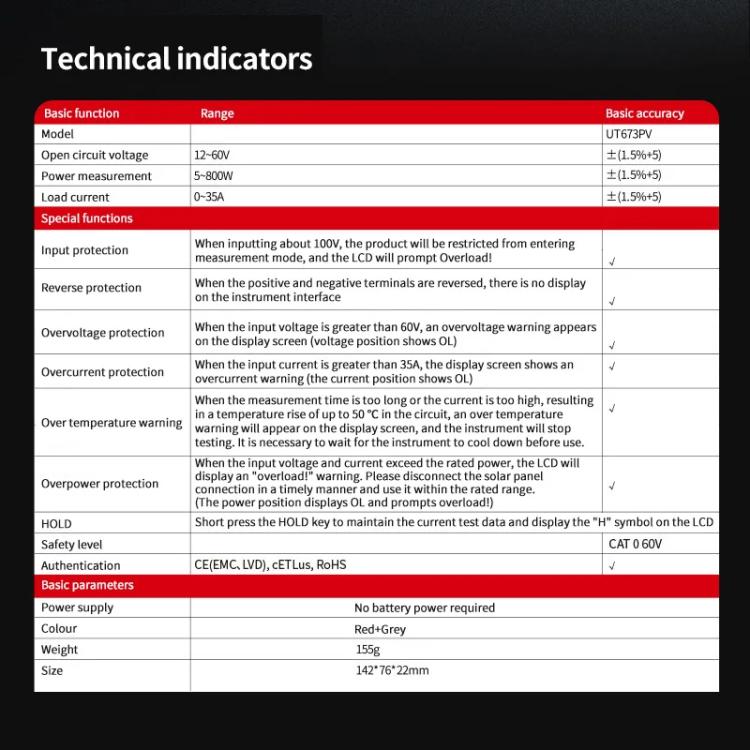

3. Open-Circuit Voltage Measurement: 12-60V +/- (1.5% + 5)
4. Power Measurement: 5-800W +/- (1.5% + 5)
5. Load Current: 0-35A +/- (1.5% + 5)
6. Power Supply: Does not require batteries.
7. Unit Weight: 155g
8. Unit Dimensions: 142 x 76 x 22mm
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.11lb
|
| One Package Size |
20cm * 15cm * 8cm / 7.87inch * 5.91inch * 3.15inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
38cm * 36cm * 26cm / 14.96inch * 14.17inch * 10.24inch
|
| Loading Container |
20GP: 749 cartons * 10 pcs = 7490 pcs
40HQ: 1740 cartons * 10 pcs = 17400 pcs
|
|
