1.Ultra-Long Range Transmission：Achieve exceptional wireless HDMI transmission over 400 meters, perfect for large spaces or multi-room setups.
2.Superior Image Quality：Utilizing H.265 encoding for clearer and smoother 1080P video transmission compared to similar products.

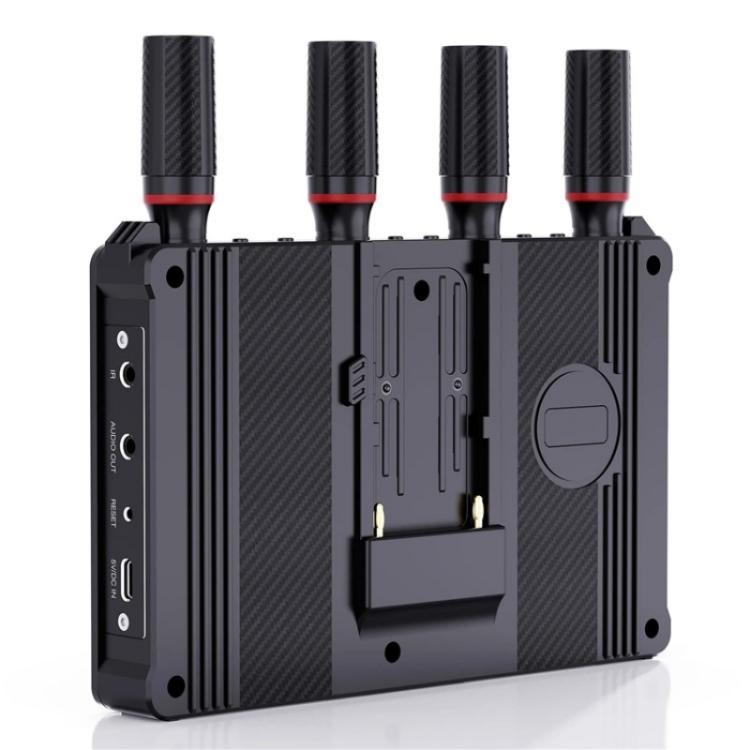

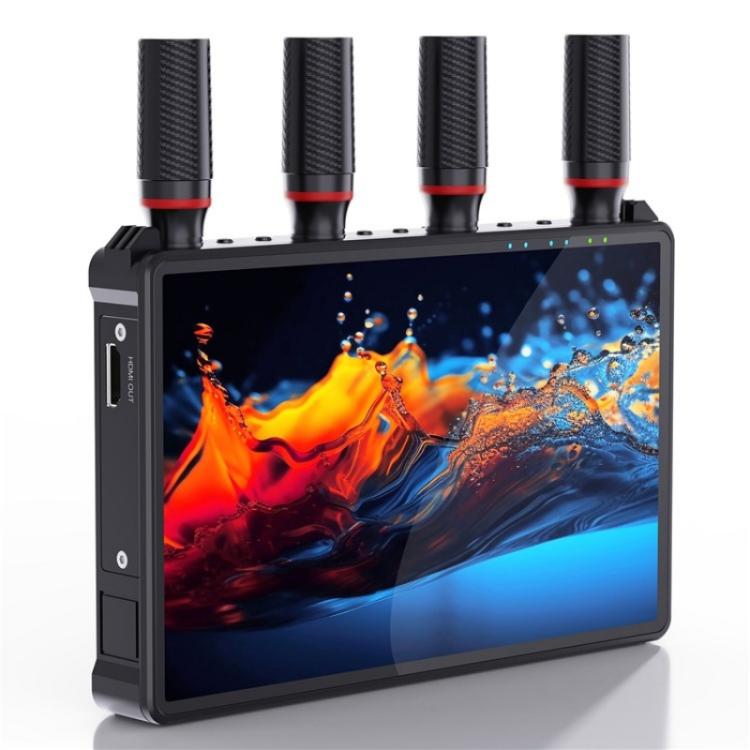

3.Versatile RX with Built-in Display：The receiver features a 7-inch LCD screen with multiple mounting options, ideal for desktop viewing, wall mounting, or outdoor shooting with a cold shoe mount.
4.Low Power Consumption：Designed for minimal heat generation during extended use, making it suitable for 24/7 operation scenarios.
5.Full-Range IR Remote Control：Support for infrared remote control, perfect for home entertainment systems including TVs, media players, and DVRs.
6.Multi-Device Support：Capable of connecting one transmitter to up to five receivers, enabling flexible multi-screen setups.
7.One-Touch Display Control：Easily switch off the receivers display screen for use as a standard HDMI receiver when needed.
Specifications:
1.Transmission Range: Greater than or equal to 400 meters
2.Operating Frequency: 5GHz
3.Video Codec: H.265
4.Latency: Less than or equal 0.05s
5.TX HDMI IN: 1920x1080P@60Hz (backwards compatible)
6.RX HDMI OUT: 1920x1080P@60Hz
7.RX Display: 7-inch LCD, 1024x600 resolution
8.HDMI Standard: HDMI 1.3, HDCP 1.4
9.Transmission Bitrate: 20Mbps
10.Transmission Modes: 1TX to 1-5RX
11.IR Remote Interface: 3.5mm jack, 30KHz-60KHz range
12.Audio Interface: 3.5mm stereo jack
13.TX Antenna: 2x WL-208
14.RX Antenna: 4x WL-208
15.RX Speaker: 1x 1.5W
16.TX Ports: HDMI IN, LOOP OUT, IR, Type-C power, RESET
17.RX Ports: HDMI OUT, IR, Type-C power, 3.5mm audio, RESET
Specification:
|
Package Weight
|
| One Package Weight |
1.00kgs / 2.21lb
|
| One Package Size |
28.3cm * 16cm * 6cm / 11.14inch * 6.3inch * 2.36inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
43cm * 28cm * 38cm / 16.93inch * 11.02inch * 14.96inch
|
| Loading Container |
20GP: 582 cartons * 12 pcs = 6984 pcs
40HQ: 1353 cartons * 12 pcs = 16236 pcs
|
|
