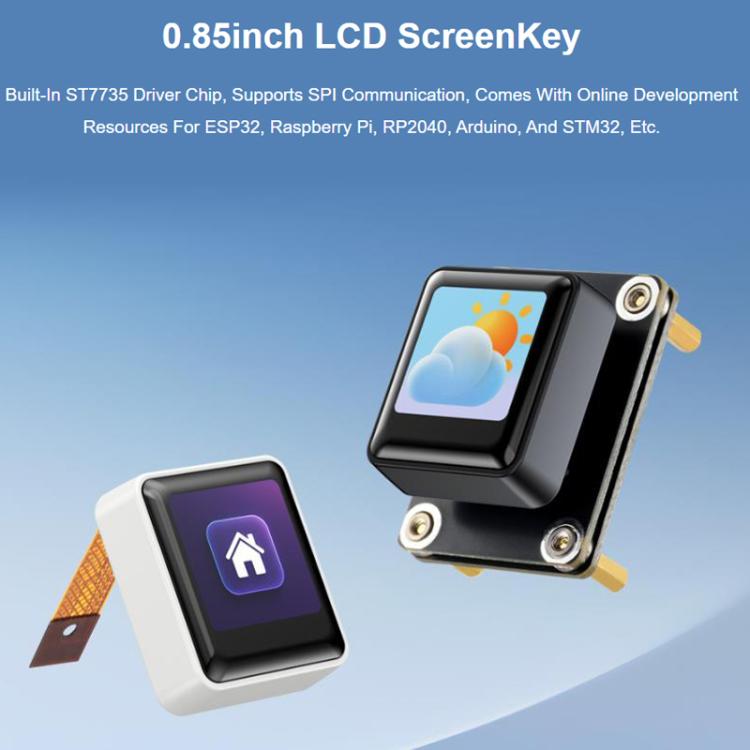

1. Built-in ST7735 driver chip

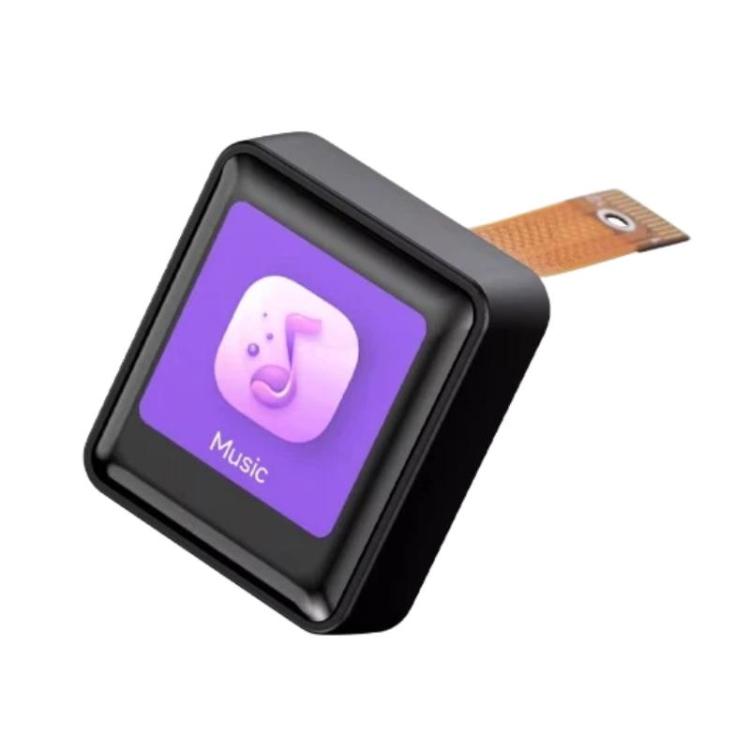

2. 0.85-inch IPS display with 128 x 128 resolution, 65K color, high-definition display image
3. SPI communication interface, simple interface, occupies few IO resources, convenient for embedded development
4. 2.5D tempered glass panel, good light transmission, scratch-resistant and durable; edge arc design, smooth hand feel

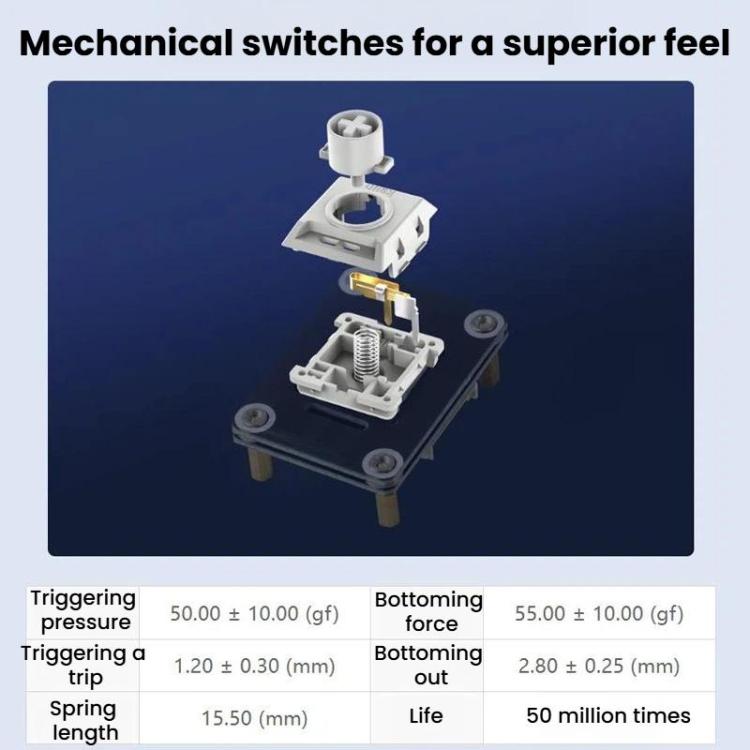

5. Mechanical key structure, pressing feels crisp, capable of coping with high-frequency usage
6. Supports development on platforms such as Raspberry Pi, Arduino, ESP32, RP2040, STM32, etc., and provides complete supporting materials and sample programs
Parameters
1. Working voltage: 3.3V
2. Display color: 65K
3. Display panel: IPS

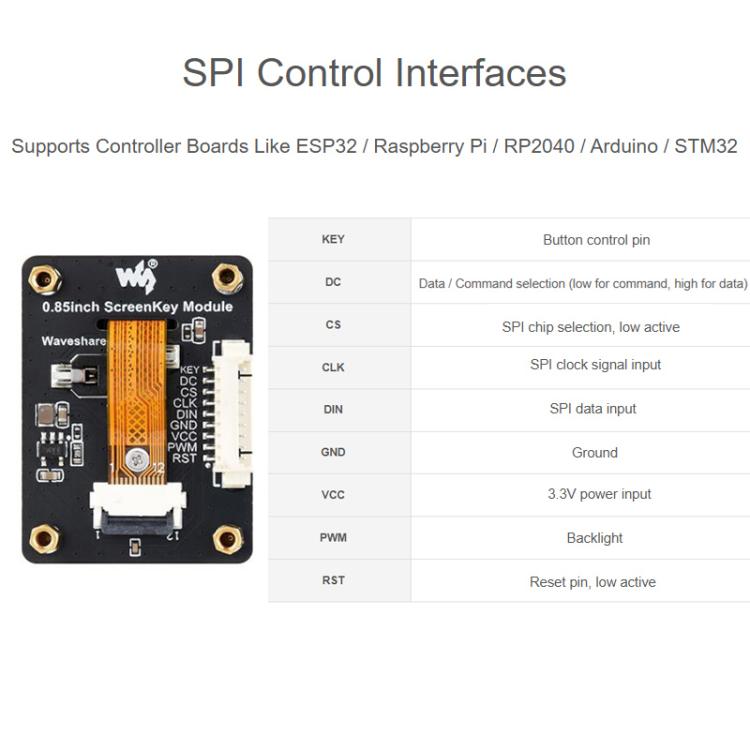

4. Communication interface: 4-wire SPI
5. Resolution: 128 x 128 pixels

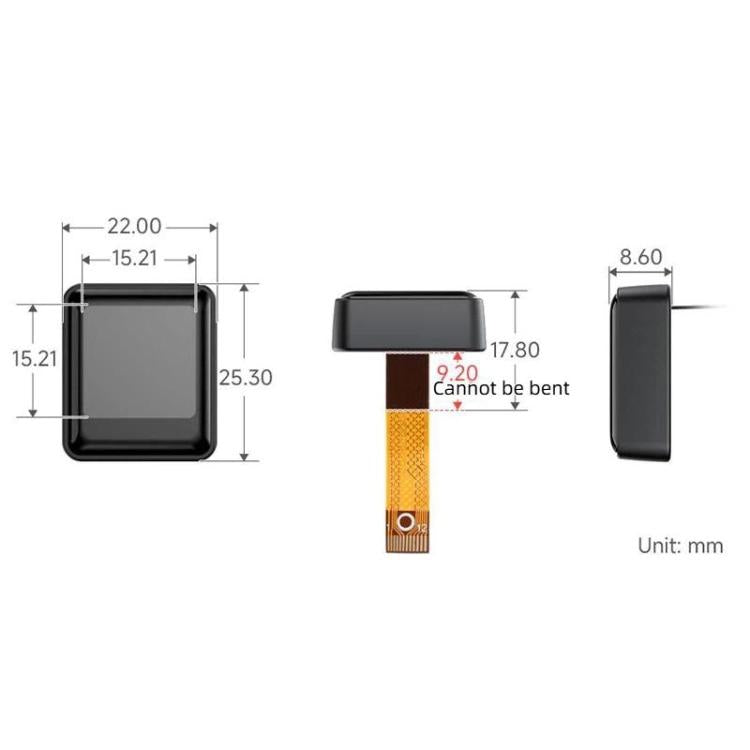

6. Display size: 15.21 x 15.21mm
7. Pixel pitch: 118.8 x 118.8 micrometers
8. Control chip: ST7735
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
5cm * 4cm * 3cm / 1.97inch * 1.57inch * 1.18inch
|
| Carton Weight |
27.00kgs / 59.52lb
|
| Carton Size |
47cm * 38cm * 34cm / 18.5inch * 14.96inch * 13.39inch
|
| Loading Container |
20GP: 439 cartons * 860 pcs = 377540 pcs
40HQ: 1019 cartons * 860 pcs = 876340 pcs
|
|
