1. Operating voltage: 3.3V/5V
2. Resolution: 360 x 360 pixels
3. Brightness: 450 cd/square meters
4. Contrast ratio: 1200:1
5. Display driver IC: ST77916
6. Touch controller IC: CST816S

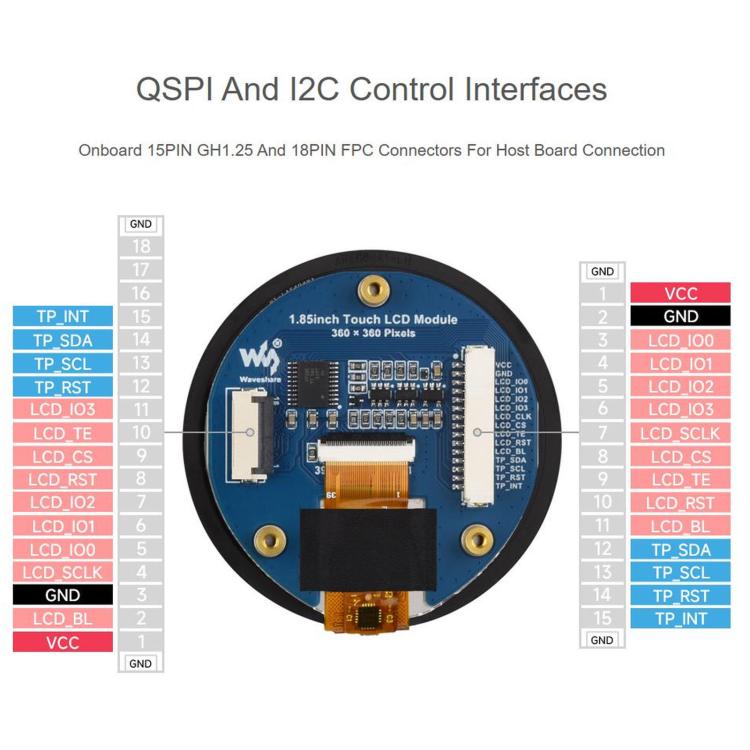

7. Display interface: QSPI
8. Touch interface: I2C
9. Display panel: IPS
10. Touch type: Capacitive
11. Display colors: 262K

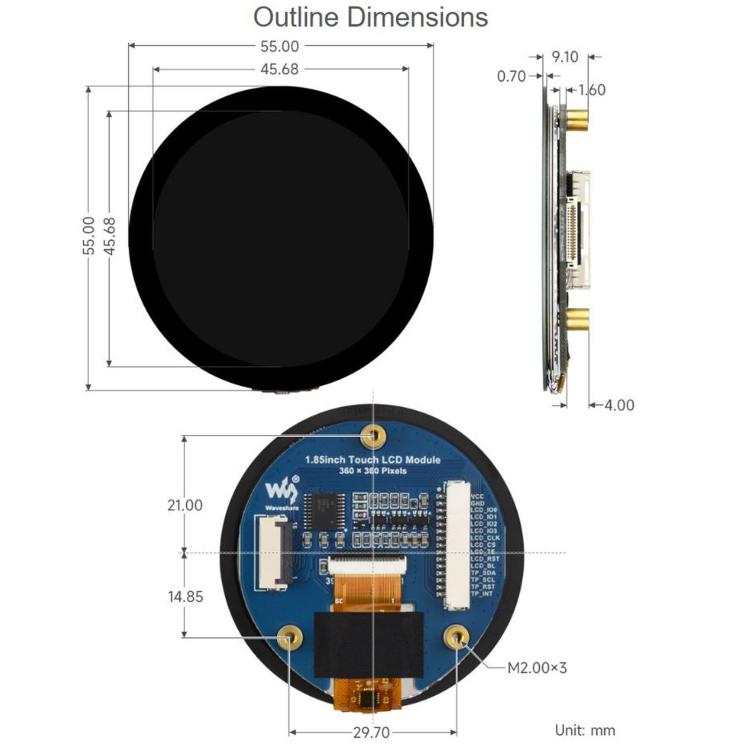

12. Display size: Approx. 45.68 x 45.68 mm
13. Dimensions: Approx. 55 x 55 x 9.1 mm
Features:
1. 360 x 360 resolution, 262K colors; capable of clearly displaying color images.
2. High-transmittance touchscreen with fast response and long service life.

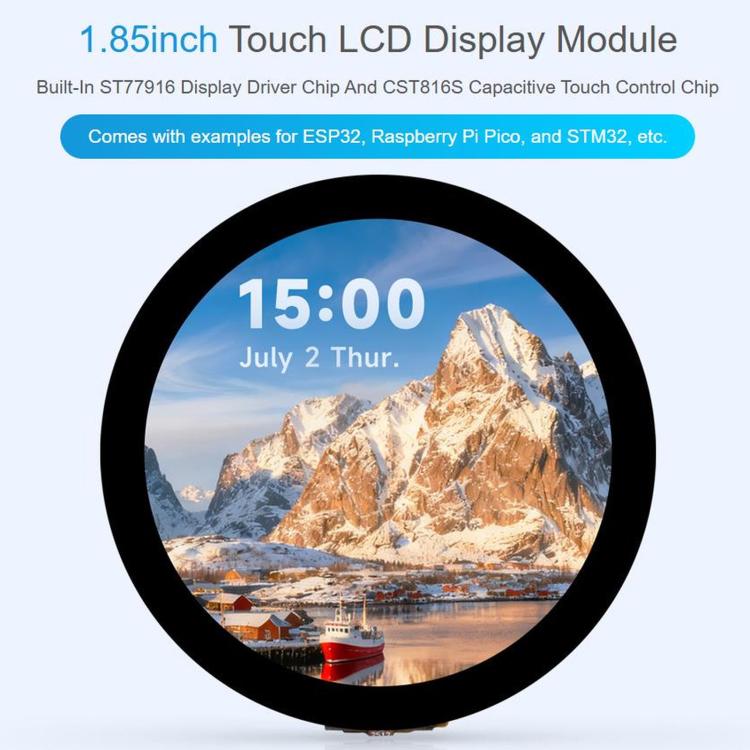

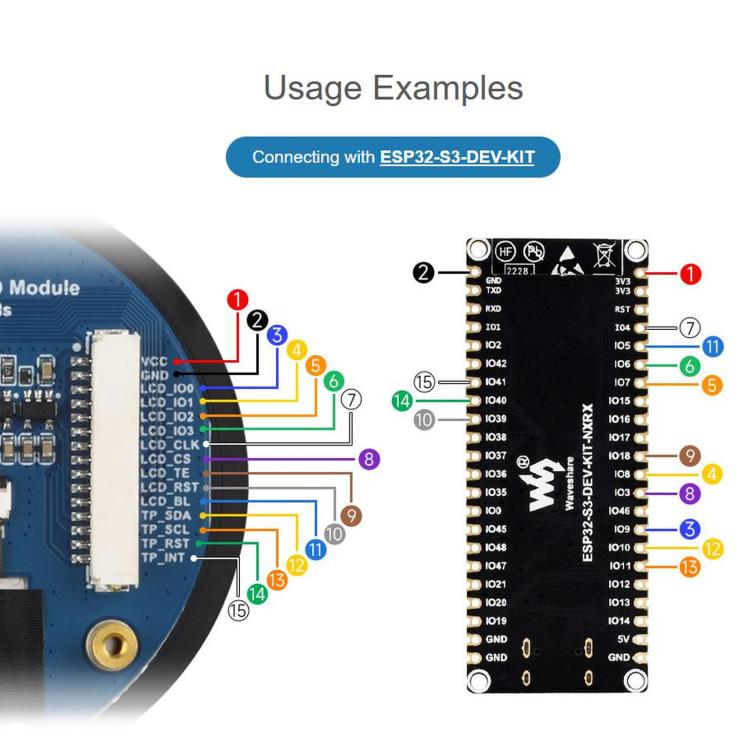

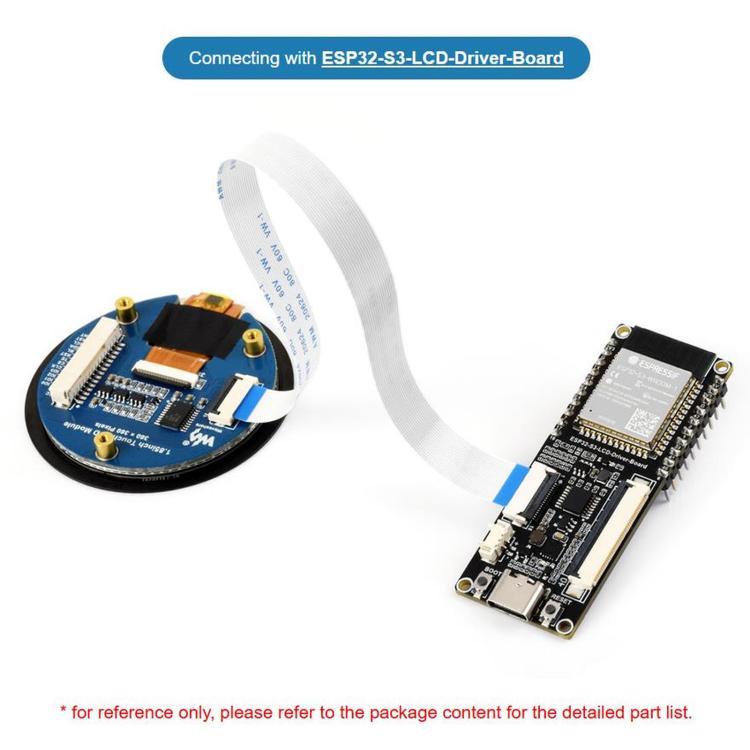

3. Built-in ST77916 display driver and CST816S capacitive touch controller; communicates via QSPI and I2C interfaces respectively, minimizing pin usage; compatible with main control boards such as ESP32-S3, Raspberry Pi Pico, and STM32.
4. Includes example code and resources for ESP32, Pico, STM32, and more.

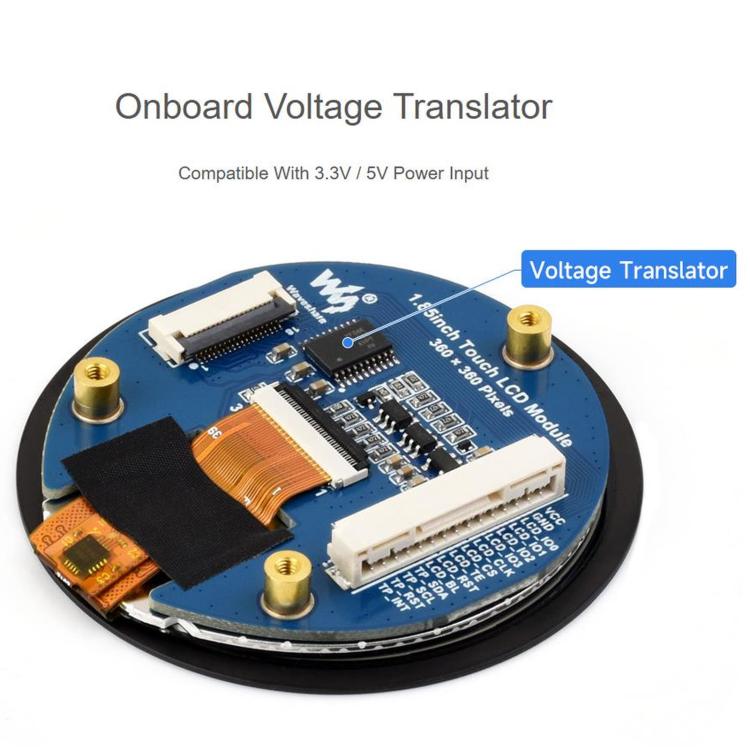

5. Onboard level-shifting chip; compatible with 3.3V/5V power inputs.
Specification:
|
Package Weight
|
| One Package Weight |
0.05kgs / 0.12lb
|
| One Package Size |
10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
40cm * 32cm * 30cm / 15.75inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 694 cartons * 100 pcs = 69400 pcs
40HQ: 1612 cartons * 100 pcs = 161200 pcs
|
|
